2014.5 Citroen C4 display

Driving
12
Switching on
 If the speed setting is suitable (last speed setting programmed in the system) press button 4 to switch the speed limiter on.
 Turn the wheel 1 to the "LIMIT" position to select the speed limiter; the function is paused.
 Pressing button 4 temporarily interrupts the function (pause).
Adjusting the limit speed
setting
You do not have to switch the speed limiter on in order to set the speed.
To modify the limit speed setting from the current speed of the vehicle:  in steps of +/- 1 mph (km/h), make successive short presses on button 2 or 3 ,  continuously, in steps of +/- 5 mph (km/h), press and hold button 2 or 3 .
To modify the limit speed setting using memorised speeds and from your Audio system (only with the monochrome screen C):  with the system first activated (see "Memorising speeds"),  make a long press on button 2 or 3 , the system displays the memorised speed closest to the actual speed of the vehicle; this setting becomes the new limit speed,
 to choose another memorised speed, make another long press on button 2 or 3 .
To modify the limit speed setting using memorised speeds and from the touch screen tablet:  press button 5 to display the six memorised speed settings,  press the button for the desired speed setting. This setting becomes the new limit speed.

9
Driving13
Switching off
 Turn wheel 1 to the "0" position: the display of information on the speed limiter disappears.
Operating fault
Flashing dashes indicate a fault with the speed limiter.
Have it checked by a CITROËN dealer or a qualified workshop.
The use of mats not approved by CITROËN may inter fere with the operation of the speed limiter. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned c o r r e c t l y, - do not fit one mat on top of another.
On a steep descent or in the event of sharp acceleration, the speed limiter will not be able to prevent the vehicle from exceeding the programmed speed.
Temporarily exceeding the
programmed speed
 If you want to temporarily exceed the programmed limit speed, press firmly on the accelerator pedal, going beyond the point of resistance . The speed limiter is deactivated temporarily and the displayed programmed speed flashes.
When the limit speed is exceeded but is not due to action by the driver, there is an audible
signal to complete the alert. Once the speed of the vehicle returns to the programmed setting, the speed limiter functions again: the display of the programmed speed setting becomes steady again.

Driving
14
Cruise control
1. Cruise control mode selection wheel. 2. Button for setting the current speed of the vehicle as the cruise setting or lowering the cruise setting. 3. Button for setting the current speed of the vehicle as the cruise setting or raising the cruise setting. 4. Cruise control pause / resume button. 5. Display memorised speed settings button.
Steering mounted controls
6. Cruise control pause / resume indication. 7. Cruise control mode selected indication. 8. Cruise speed setting. 9. Selecting a memorised cruise speed.
Displays in the instrument panel
System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator pedal.
The operation of the cruise control can be interrupted (pause): - by pressing control 4 or by pressing the brake or clutch pedal, - automatically, if operation of the dynamic stability control system is triggered.
The cruise control is switched onmanually. It requires a minimum vehicle speed of 25 mph (40 km/h) as well as: - with a manual gearbox, the engagement of fourth gear or higher, - with an electronic gearbox, the gear selector at position A , or second gear or higher in manual mode, - with an automatic gearbox, the gear selector at position D or second gear or higher in manual mode.
Switching off the ignition cancels any programmed speed setting.
The cruise control system is a driving aid that cannot, in any circumstances, replace the need to observe speed limits, nor the
need for vigilance on the part of the driver. As a safety measure, you are advised to keep your feet near the pedals at all times.

9
Driving15
Switching on
 Turn the wheel 1 to the "CRUISE" position to select cruise control mode; the function is paused.
Adjusting the cruise speed
setting
The cruise control must be activated.
 To start the cruise control and set a cruise speed, once the vehicle has reached the desired speed, press button 2 or 3 : the current speed of your vehicle becomes the cruise speed setting. You can release the accelerator pedal.
 Pressing button 4 interrupts operation of the system (pause).
 Pressing button 4 again restores operation of the cruise control (ON).
As a precaution, it is recommended that the cruise speed chosen be close to the current speed of your vehicle, so as to avoid any sudden acceleration or deceleration of the vehicle.
Take care: pressing and holding button 2 or 3 results in a rapid change in the speed of your vehicle.
To modify the cruise speed setting from the current speed of the vehicle:  in steps of + or - 1 mph (km/h), make repeated short presses on button 2 or 3 ,  continuously, in steps of + or - 5 mph (km/h), press and hold button 2 or 3 .
To modify the cruise speed setting using memorised speeds and from your Audio system (only with the monochrome screen C):  with the system first activated (see "Memorising speeds"),  make a long press on button 2 or 3 , the system displays the memorised speed closest to the actual speed of the vehicle; this setting becomes the new cruise speed,  to choose another memorised speed, make another long press on button 2 or 3 .
To modify the cruise speed setting using memorised speeds and from the touch screen tablet:  press button 5 to display the six memorised speed settings,  press the button for the desired speed setting. This setting becomes the new cruise speed.

Driving
16
The use of mats not approved by CITROËN may inter fere with the operation of the cruise control. To avoid any risk of jamming of the pedals: - ensure that the mat is positioned
c o r r e c t l y, - never fit one mat on top of another.
Temporarily exceeding the
programmed speed
When required (overtaking manoeuvre...), it is possible to exceed the programmed speed by pressing the accelerator pedal. The cruise control is temporarily overridden and the programmed speed setting flashes.
To return to the programmed speed, simply release the accelerator pedal. Once the vehicle has returned to the programmed speed, the cruise control takes over again: the display of the programmed speed setting becomes steady again.
Only use the cruise control if the traffic conditions will allow you to drive for a certain time at a steady speed and at a safe distance from the vehicle ahead. Do not activate the cruise control in urban areas, in heavy traffic, on winding or steep roads, on slippery or flooded roads, or in conditions of poor visibility (heavy rain, fog, falling snow...). In some circumstances, it may not be possible to maintain or reach the programmed speed: towing, vehicle heavily loaded, steep climb.
When descending a steep hill, the cruise control system cannot prevent the vehicle from exceeding the
programmed speed.
You may have to brake to control the speed of your vehicle. In this case, the cruise control is automatically paused. To activate the system again, press button 4 .
Switching off
 Turn wheel 1 to the "0" position: the cruise control information disappears from the screen.
Operating fault
Flashing dashes indicate a fault with the cruise control system.
Have it checked by a CITROËN dealer or a qualified workshop.

.
Audio and Telematics 21
7-inch touch screen tablet
GPS satellite navigation - Multimedia audio - Bluetooth ® GPS satellite navigation - Multimedia audio - Bluetooth ® GPS satellite navigation - Multimedia audio - Bluetooth telephone ® telephone ®
Contents First steps 22
Steering mounted controls 24
Menus 25
Navigation 26
Navigation - Guidance 34
T r a f fi c 3 8
Radio Media 40
Radio 46
DAB (Digital Audio Broadcasting) radio 48
Media 50
Settings 54
Internet 62
Internet browser 63
MirrorLinkTM 66
Telephone 68
Frequently asked questions 76
The system is protected in such a way that it will only operate in your vehicle.
As a safety measure, the driver should only carry out operations which require prolonged attention while the vehicle is stationary. The display of the energy economy mode message signals that the system is about to go into standby. Refer to the Energy economy (mode) section.

Audio and Telematics
22

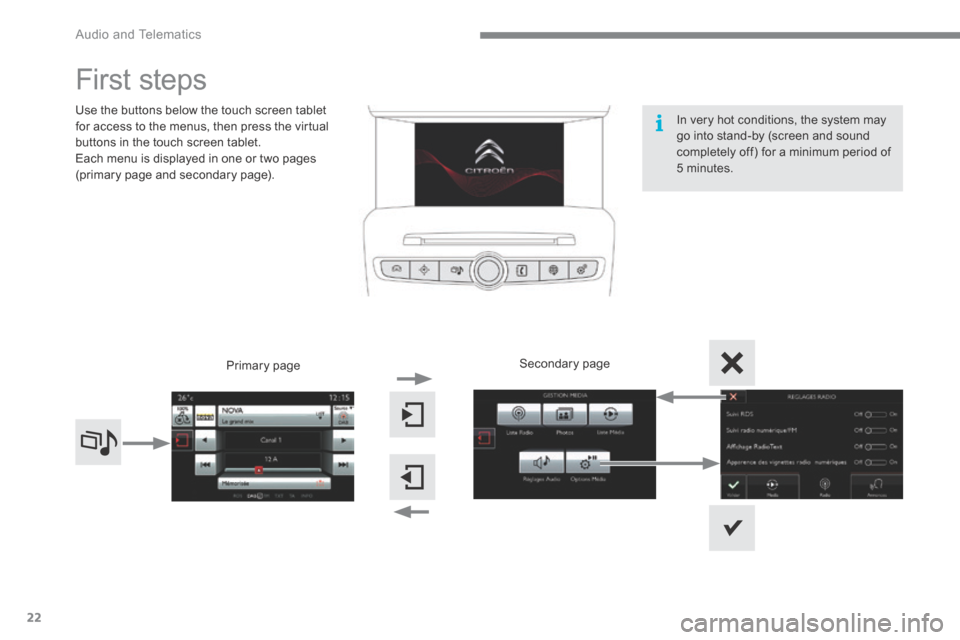

First steps
Use the buttons below the touch screen tablet for access to the menus, then press the virtual buttons in the touch screen tablet. Each menu is displayed in one or two pages (primary page and secondary page).
Secondary page Primary page
In very hot conditions, the system may go into stand-by (screen and sound completely off) for a minimum period of 5 minutes.

Audio and Telematics
24
Steering mounted controls
Media: change the multimedia source. Telephone: start a call. Call in progress: access to the telephone menu (End call, Secret mode, Hands-free mode). Telephone, press and hold: reject an incoming call, end a call in progress; other than a call in progress, access to the telephone menu. Decrease volume.
Radio, turn: automatic search for the previous / next station. Media, turn: previous / next track. Press: confirm a selection.
Radio: display the list of stations. Media: display the list of tracks. Radio, press and hold: update the list of stations received.
Increase volume.
