2014.5 Citroen C4 DAG navigation system

237
C4-2_en_Chap13b_RT6_ed01-2014
The system is protected in such a way that it will only operate  in   your   vehicle.
eMyWay
01 First steps - Control panel
For safety reasons, the driver must only carry out operations
  which   require   prolonged   attention   while   the
vehicle

  is   stationary.
When
  the   engine   is   switched   off   and   to   prevent
discharging

  of   the   battery,   the   system   switches   off
following

  the   activation   of   the   energy   economy   mode.
CONTENTS
02
Steering mounted
controls
03

General operation
04


Navigation
- Guidance
05

T
raffic information
06

Using
the telephone
07
Radio
08

Music media players
09


Audio
settings
10
Configuration
11

Screen menu
map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 238
240
241
243
256
259
269
274
280
281
282
286
GPS navigation system
Multimedia audio system
Bluetooth
® telephone

01
238
C4-2_en_Chap13b_RT6_ed01-2014
FIRST STEPS
access to the
" Navigation - guidance"
menu
  and   display   the
recent

  destinations.
Rotary

control

knob:
Short

press

without

the

engine

running:

on
  /   off.
Short

press

with

the

engine

running:

audio

source


off

/

restore.
Rotation:

volume

adjustment

(each

source

is


independent,

including

T

A


messages

and
navigation


instructions).
Continuous

press:

reinitialisation


of


the


system.
Short


press:

select

pre-set

radio


station.
Long

press:

pre-set

the

current


station. MODE

button:

Selection

of

the
 type

of

permanent

display.
Long

press:

black

screen

(DARK).
o

pen the
"Telephone"
  menu
and

  display   the   list   of
recent calls or accept
an

  incoming   call.
o
pen the
"Configuration "
  menu.
Long
  press:   access
to

  the   GPS   coverage
and

  the   navigation
demonstration

  mode.o pen the "Traffic
information"   menu
and

  display   the
current

  traffic   alerts.

04
243
C4-2_en_Chap13b_RT6_ed01-2014
List of recent destinations." Navigation - guidance
"
To

delete

the

list

of

recent

destinations,   select   "Guidance
options "

in

the

navigation

menu

then
  select   "Delete last
destinations"

and

confirm.

Select

"Ye s "
  then   confirm.
Deleting

just

one

destination

is

not

possible. Go
  from   the   list   to   the   menu   (left/right).
"Select destination"
"
j ourney leg and route"
"Guidance options "
"Map management"
"Stop / Restore guidance "
NAVIGATION - GUIDANCE
Access to the "NAVIGATION" menu
Press N AV.
orTo
  make   full   use   of   all   of   the
functions

  of   your   navigation
system,

  update   the   mapping
regularly

.   Contact   a  CITROËN
  dealer   or   order  your
  mapping   update   at
http://citroen.navigation.com
A


short

press   on   the   end   of   the
lighting


control   stalk   repeats
the


last

navigation   message.

04
244
C4-2_en_Chap13b_RT6_ed01-2014
Press N AV to   display   the  "
Navigation - guidance "
  menu.
Towards a new destination
NAVIGATION - GUIDANCE

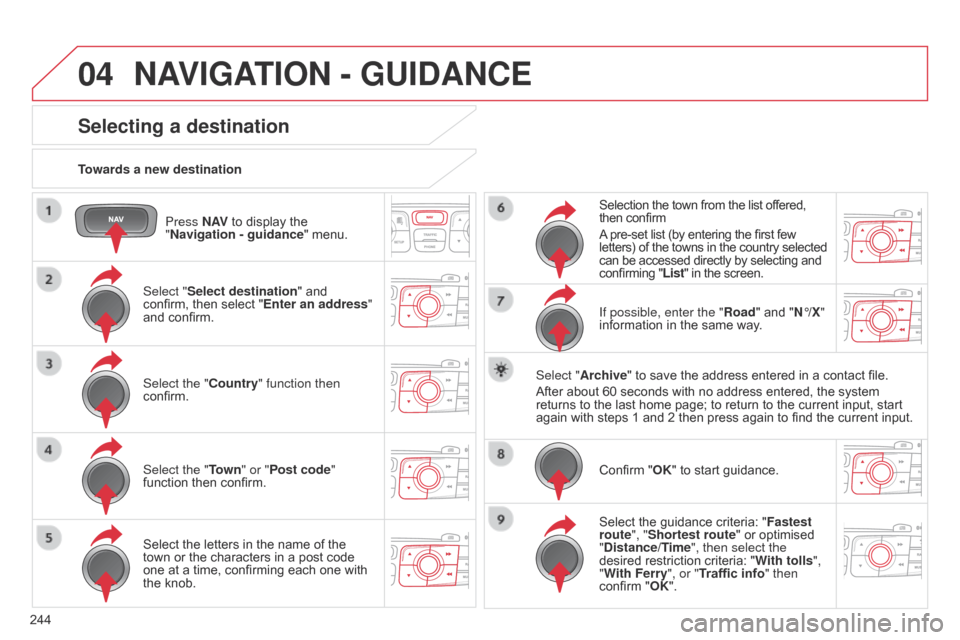

Selecting a destination
Select "Select destination" and confirm,
  then   select   "Enter an address"
and
  confirm.
Select the "Country" function then
confirm.
Select the "Town " or "Post code"
function
  then   confirm.
Select
  the   letters   in   the   name   of   the
town

  or   the   characters   in   a   post   code
one

  at   a   time,   confirming   each   one   with
the

  knob. Selection
  the   town   from   the   list   offered,
 then

  confirm
A

pre-set   list   (by   entering   the   first   few
 letters)

  of   the   towns   in   the   country   selected
 can

  be   accessed   directly   by   selecting   and
 confirming

  "List"   in   the   screen.
If possible, enter the "Road"   and   "N°/X"
information
  in   the   same   way.
Select "Archive"
  to   save   the   address   entered   in   a   contact   file.
After
  about   60   seconds   with   no   address   entered,   the   system
returns

  to   the   last   home   page;   to   return   to   the   current   input,   start
again

  with   steps   1   and   2   then   press   again   to   find   the   current   input.
Confirm
  "OK"   to   start   guidance.
Select
  the   guidance   criteria:   "Fastest
route", "Shortest route"
  or   optimised
"

Distance/Time", then select the
desired
  restriction   criteria:   "With tolls ",
"With Ferry", or "Traffic info" then
confirm
  "OK".

04
245
C4-2_en_Chap13b_RT6_ed01-2014
Towards a recent destinationPress N AV

to   display   the
"

Navigation - guidance "
  menu.
Select
  the   desired   destination   and
confirm

  to   start   guidance. Towards a contact in the contacts directory
Select "Select destination"   and
confirm,

  then   select   "Directory"
  and
confirm.Selection

  the   desired   destination   from
your

  contacts   and   confirm   "OK" to start
the
  guidance.Press N AV


to   display   the
"

Navigation - guidance"
  menu.
Navigation
  towards   a   contact   is   only   possible   if   it   has   an   address
entered

  in   the   audio   navigation   system.
Delete recent destinations Press N AV


to   display   the
"

Navigation - guidance "
  menu.
Select "Options "
  and   confirm   and   then
"

Delete recent destinations"   and
confirm.
NAVIGATION - GUIDANCE

04
249
C4-2_en_Chap13b_RT6_ed01-2014
NAVIGATION - GUIDANCE
Select:
-
"V
isual   alert"
-

"Audible
  alert"
-

"Alert
  only   in   guidance"
-

"Overspeed
  alarm   only".
The
  choice   of   time   of   notification   defines
how

  long   in   advance   that   Risk   area
warnings

  are   given.
Select "OK"
  to   confirm   the   screen.
Select "Guidance options
"   and   confirm,
then select "

Set parameters for risk
areas "   and   confirm.
Press N AV

to   display   the   "Navigation -
guidance"   menu.
These   functions   are   only   available   if   risk   areas   have   been
downloaded

  and   installed   on   the   system.
The   detailed   procedure   for   updating   risk   area   POIs   can   be   found   at
http://citroen.navigation.com.
Settings for risk area / danger area alerts

04
251
C4-2_en_Chap13b_RT6_ed01-2014
NAVIGATION - GUIDANCE

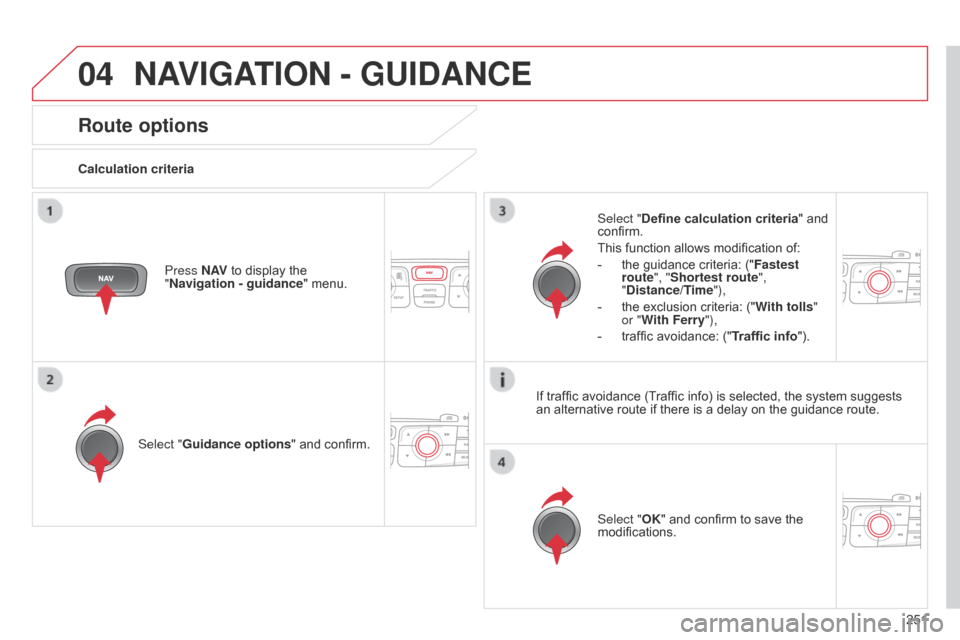

Route options
Calculation criteriaSelect "Guidance options "
  and   confirm. Select "OK"
  and   confirm   to   save   the
modifications.
Select "

Define calculation criteria"   and
confirm.
This

  function   allows   modification   of:
-

the
  guidance   criteria:   ("Fastest
route", "Shortest route",
"Distance/Time"),
-

the
  exclusion   criteria:   ("With tolls "
or "With Ferry"),
-

traffic
  avoidance:   ("Traffic info").
Press N AV


to   display   the
"

Navigation - guidance "
  menu.If
  traffic   avoidance   (Traffic   info)   is   selected,   the   system   suggests
an

  alternative   route   if   there   is   a   delay   on   the   guidance   route.

04
252
C4-2_en_Chap13b_RT6_ed01-2014
NAVIGATION - GUIDANCE
Press N AV to   display   the  "
Navigation - guidance "
  menu.
Map management
Selecting the points of interest displayed on the map
Select "Map management"   and   confirm. Select
  from   the   various   categories   the
ones

  that   you   want   to   display   on   the
screen.
Select "

Map details"   and   confirm. Select "Default" to have only "Filling stations, garages
"
  and
"

Risk areas"
  appear   on   the   map   (if   installed   in   the   system).
Select "OK"
  then   confirm   and
select

"OK"   again   then   confirm   to   save
the

  modifications.
