2013 VOLKSWAGEN TOUAREG Start

area you have selected in a previous window, you will not be able to find the street at the street
selection stage.
Finishing destination input
x Press the Start route guidance function key to start route guidance to the entered destination .
x OR: Press the Store in directoryfunction key to store the destination in the destination memory .
Address entry menu

Fig. 165 Navigation main menu with destination.

Fig. 166 Address input menu with destination address.
.

In the Select a street menu, the towns where you can search for a street name are listed. The
town currently selected in the Address entry menu is displayed at the top of the list.
x Press a function key with a town name to search for a newly entered street in that town.
x OR: Press the In all citiesfunction key to search for a street name across the country.
Further function keys in the Address entry menu
Store 1):Store the displayed destination in the destination memory after assigning an entry name .
Points of interest: Select a point of interest .
Map 1):: Select the destination from the map view in the vicinity of the entered address .
Start 1):Starts route guidance to the displayed destination .
Search for points of interest using point of interest categories

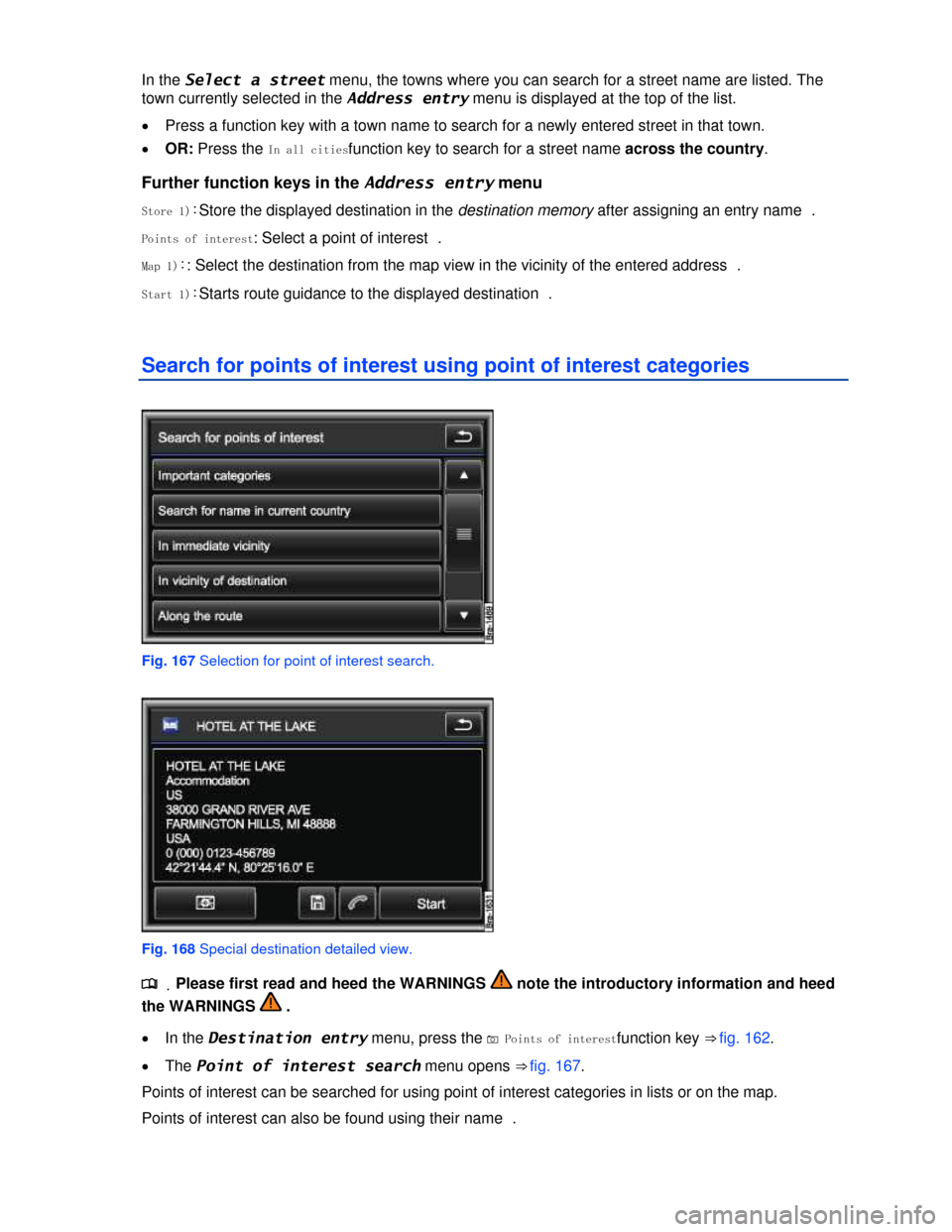

Fig. 167 Selection for point of interest search.

Fig. 168 Special destination detailed view.
.

Quick search for important points of interest in your location
x Press the Important categoriesfunction key to open a list of frequently used point of interest
categories.
x Press one of the categories to select it (in fig. 170: Hotels).
The nearest ten points of interest in the selected category are shown in a list .
Special destination search by selecting a search area and a point of interest category
In the Search for points of interest menu, you can set a search area for the point of interest
search .
In immediate vicinity : Area around current vehicle position.
In vicinity of destination6: Area around last destination.
Along the route7: Along the calculated route.
In a new city: Select country and town as center of search area.
Nationwide: Whole of country you are currently driving in.
x Press to select search area .
x Then press to select the desired point of interest category ⇒ fig. 169.
x Some point of interest categories contain further sub-categories that are revealed upon pressing.
The points of interest found in the search area for the selected point of interest category are displayed
in a list .
Select point of interest from list and show in detailed view
The nearest points of interest are displayed at the top of the list of points of interest that have been
found.
If the immediate vicinity has been selected as the search area, additional distance and direction details
will be displayed -.
The distances and directions initially refer to the route as the crow flies. The arrow -.is shown “not
filled in”.
In the background, the Infotainment System starts to calculate the route to the nearest points of
interest in the list. Points of interest for which a possible route has been calculated are displayed with
a “filled in” arrow. In this case, the actual distance to be driven is displayed.
The selection of points of interest can be narrowed down further by entering a name .
x Touching a point of interest in the list shows the point of interest in the detailed view ⇒ fig. 168.
Selection options in the detailed view
' Opens a list where you can select other points of interest with the same address.
, Stores the points of interest in the destination memory .
. Shows the point of interest on the map.
Start: Starts route guidance to the point of interest.
 2): Makes a call to a displayed telephone number.

6 Only if a destination has already been set.
7 Can only be selected during route guidance.

Show details: Shows the destination in the detail view.
Show destination on map: Shows the destination on the map .
Loading a destination from the directory
The Load from directory menu only displays directory entries for which route guidance can be
started (display: symbol 3)
The directory needs to be opened for editing in order to display or edit all directory entries .
x Press the * Directoryfunction key ⇒ fig. 162.
x Press the desired directory entry in the Load from directory menu.
x If more than one navigation destination is stored for a directory entry, you then need to select the
desired navigation destination by touching the screen.
x Press one of the following options in the Destination details menu.
Start route guidance: Starts route guidance .
Add as stopover: Allows you to add the destination to the tour plan .
Enter/show destination on map: Shows the destination on the map .
You can also search for directory entries using a search function.
x Press the Searchfunction key and search for the directory entry by entering the entry name in an
input window .

Function key: Effect
Delete profiles : Press the profile to be deleted in the list of stored user profiles and accept the
confirmation dialog with Delete .
Change profile name8: Renames currently loaded profile in an input window .
Read name tags9: Reads out recorded name tags .
Delete name tags15: Deletes recorded name tags .
Import directory a):: Starts an immediate import of directory entries from a connected cell phone to
the directory.
Import contactsImports navigation data (VCARds) from an inserted data medium into the directory .
Export contacts : copies selected directory entries on an inserted data medium .

Storing or editing the home address

Fig. 191 Menu: Destination entry.

Fig. 192 Menu: New home address.

8 Only active when a cell phone or a SIM card is currently connected to the Infotainment System
⇒ page 287.
9 Only active if name tags have been recorded for directory entries ⇒ page 183.

The Starting point 2 of a tour cannot be changed in the Tour plan menu. It is always
determined by the current vehicle position. The Add stopover function key is only available via the H
function key.
x Press the

On road : the start point for the route guidance will be reached using public roads as far as
possible.
Off-road : the start point for route guidance will be reached in off-road mode and any available
roads will not be used.

When route guidance starts, the system will switch to the map view.
An audible signal is given when the starting point of the waypoint tour has been reached.
During route guidance
Characteristics of the terrain are ignored during route guidance. A driving recommendation will be
given about 55 yards (50 meters) before reaching a turning point. You should therefore drive slowly
and follow recommendations for turning as far as possible!
Changes in the direction of travel will be given in relation to the current direction of travel, such as
.“Please travel in direction 9 o'clock!”.
The tendency of the direction of travel will be shown in the instrument cluster display using arrows.
Stopping route guidance
x Press the Infotainment button .NAV in the map display to open the Waypoint navigation
menu.
x Press the Stop function key.
Stopping waypoint navigation

Fig. 205 Waypoint navigation menu.
.

Dynamic route: Switching dynamic route guidance on or off
With this option, traffic reports can be taken into account in the route calculation .
x In the Route options menu, press the Dynamic route function key.
x In the pop-up window, press the On or Off function key to enable or disable dynamic route
guidance.
Excluding or including types of route in the calculation
Press the < .  Highways , ! Ferries , Toll roads
and " Tunnels function keys to activate or deactivate them. This makes it possible to define whether
these types of route should be allowed for the route calculation or not.
If no reasonable route exists without the road type to be avoided, this road type will be nevertheless
considered in the route calculation. For instance, if an island cannot be reached without using a ferry.
For the calculation of very long routes, it is not possible to avoid highways .
Starting and stopping route guidance

Fig. 208 3D map display during route guidance.

Fig. 209 Navigation main menu during route guidance.
.
