2013 TOYOTA RAV4 EV Owners Manual

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■
Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

410 4-3. Do-it-yourself maintenance

When trouble arises5
411
5-1. Essential informationEmergency flashers ......... 412
If your vehicle needs to be towed ........................ 413
If you think something is wrong ......................... 416
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 417
If a warning message is displayed........................ 427
If you have a flat tire......... 447
If the EV (Electric Vehicle) system will not start ....... 465
If you lose your keys ........ 467
If the electronic key does not operate
properly .......................... 468
If the vehicle 12-volt battery is discharged ...... 470
If your vehicle overheats ....................... 475
If the vehicle becomes stuck .............................. 477
If your vehicle has to be stopped in an
emergency ..................... 479

412
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the EV system is not
operating (while the “READY” indicator is not illuminated), the 12-volt battery
may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.

5
When trouble arises
413
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The EV system is operating bu t the vehicle will not move.
● The vehicle makes an abnormal sound.
If there is a malfunction in the P position control system, or if the 12-
volt battery is discharged, the vehicle cannot be moved with the front
wheels on the ground, as the front wheels may be locked.
In this case, move the vehicle with both front wheels or all four
wheels lifted.
Jump start procedure ( P. 470)
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

414 5-1. Essential information
Towing with a sling-type truckDo not tow with a sling-type truck
to prevent body damage.
Towing with a wheel-lift type truckFrom the front Release the parking brake.
From the rear Use a towing dolly under the
front wheels.

5
When trouble arises
415
5-1. Essential information
Using a flat bed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
NOTICE
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent causing serious damage to the EV system when towing
using a wheel-lift type truck
Never tow this vehicle from the rear with the front wheels on the ground.
Doing so can lead to EV system damage.

416
5-1. Essential information

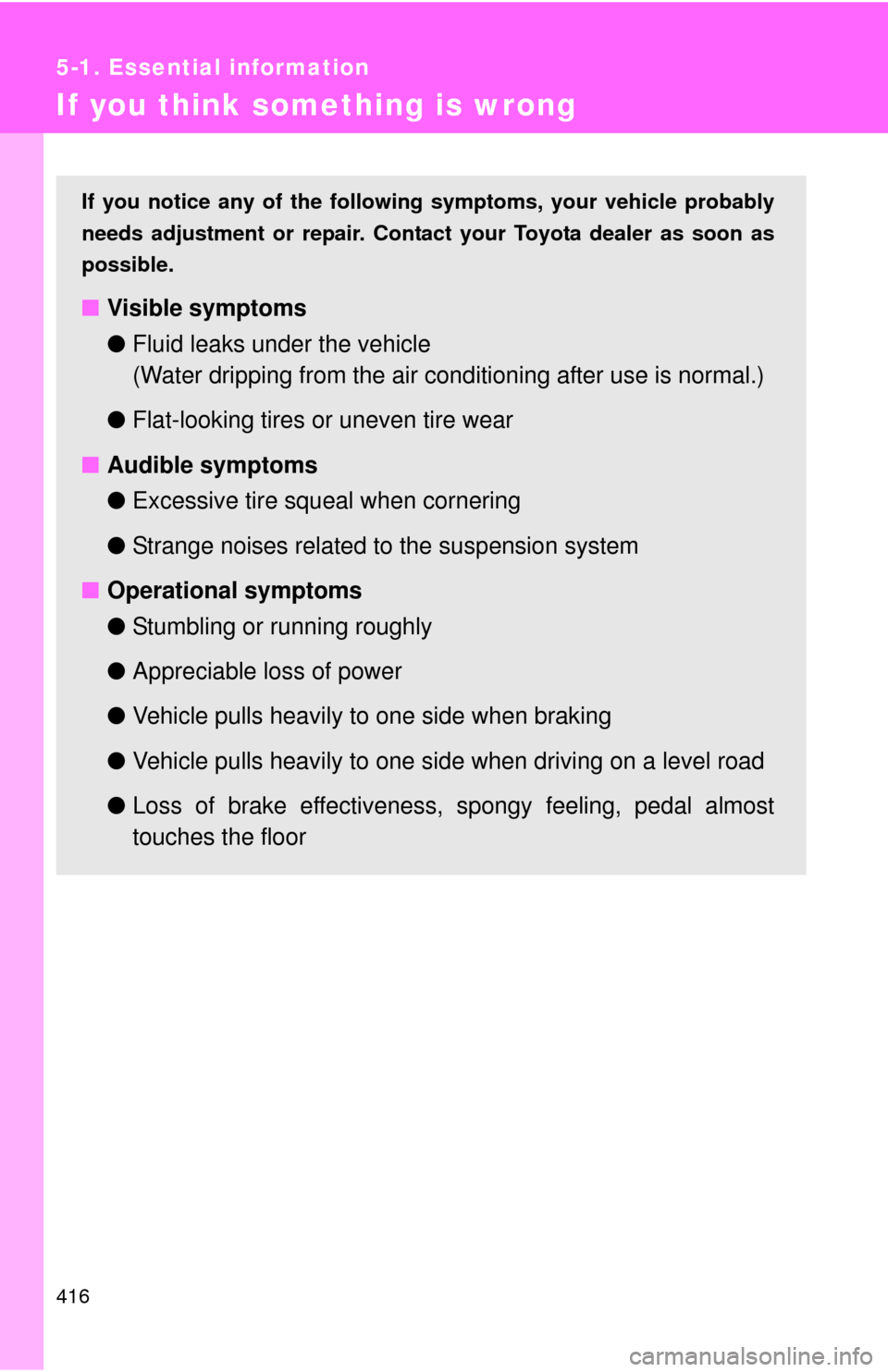

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
■ Audible symptoms
●Excessive tire squeal when cornering
● Strange noises related to the suspension system
■ Operational symptoms
●Stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor
