2013 TOYOTA PRIUS V Owners Manual (in English)

417
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■

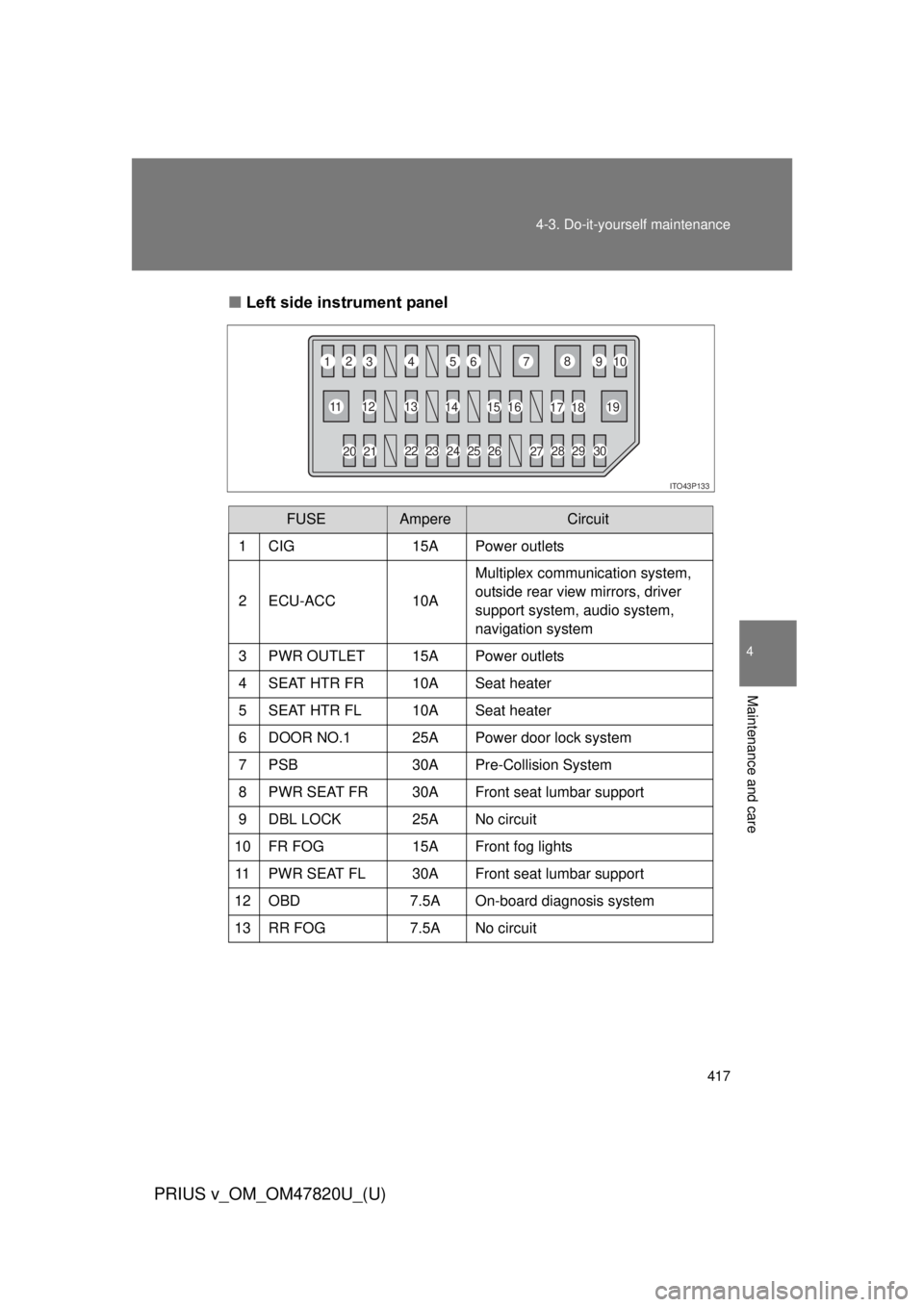

Left side instrument panel
FUSEAmpereCircuit
1 CIG 15A Power outlets
2 ECU-ACC 10AMultiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front seat lumbar support
9 DBL LOCK 25A No circuit
10 FR FOG 15A Front fog lights
11 PWR SEAT FL 30A Front seat lumbar support
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
ITO43P133
12
3 4
56 7
8
910
11 12
13
14 15
16 17
18 19
23 24 25
26
2728
29
30
20 21 22

418 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
FUSEAmpereCircuit
14 STOP 10A Stop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A Panoramic roof shades
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, inside rear view mir-
ror, garage door opener, yaw rate
& G sensor, brake system, electric
power steering, navigation system,
panoramic roof shades, tire pres-
sure warning system, seat belt
pretensioners, audio system,
emergency flashers, turn signal
lights, windshield wipers, headlight
cleaner
22 GAUGE 10AHeadlight leveling system, seat
belt reminder light, gauges and
meters
23 A/C 10A Air conditioning system
24 WASHER 15A Windshield washer
25 RR WIP 20A Rear window wiper and washer

419
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
FUSEAmpereCircuit
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, occupant detection system
(ECU and sensors), smart key
system
29 PANEL 10AAir conditioning system, emer-
gency flashers, seat heaters,
transmission, P position switch,
navigation system, advanced
parking guidance system, head-
light cleaner, seat belt reminder
light, headlight leveling system,
glove box light, clock, audio sys-
tem
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights

420 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 422)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.

421
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
NOTICE
■
Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

422
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 508)
■ Front bulb locations
Front side
marker light
Headlight low beam
Daytime
running light and
headlight high beam
Fog light
Front turn
signal light
Parking light

423
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
■

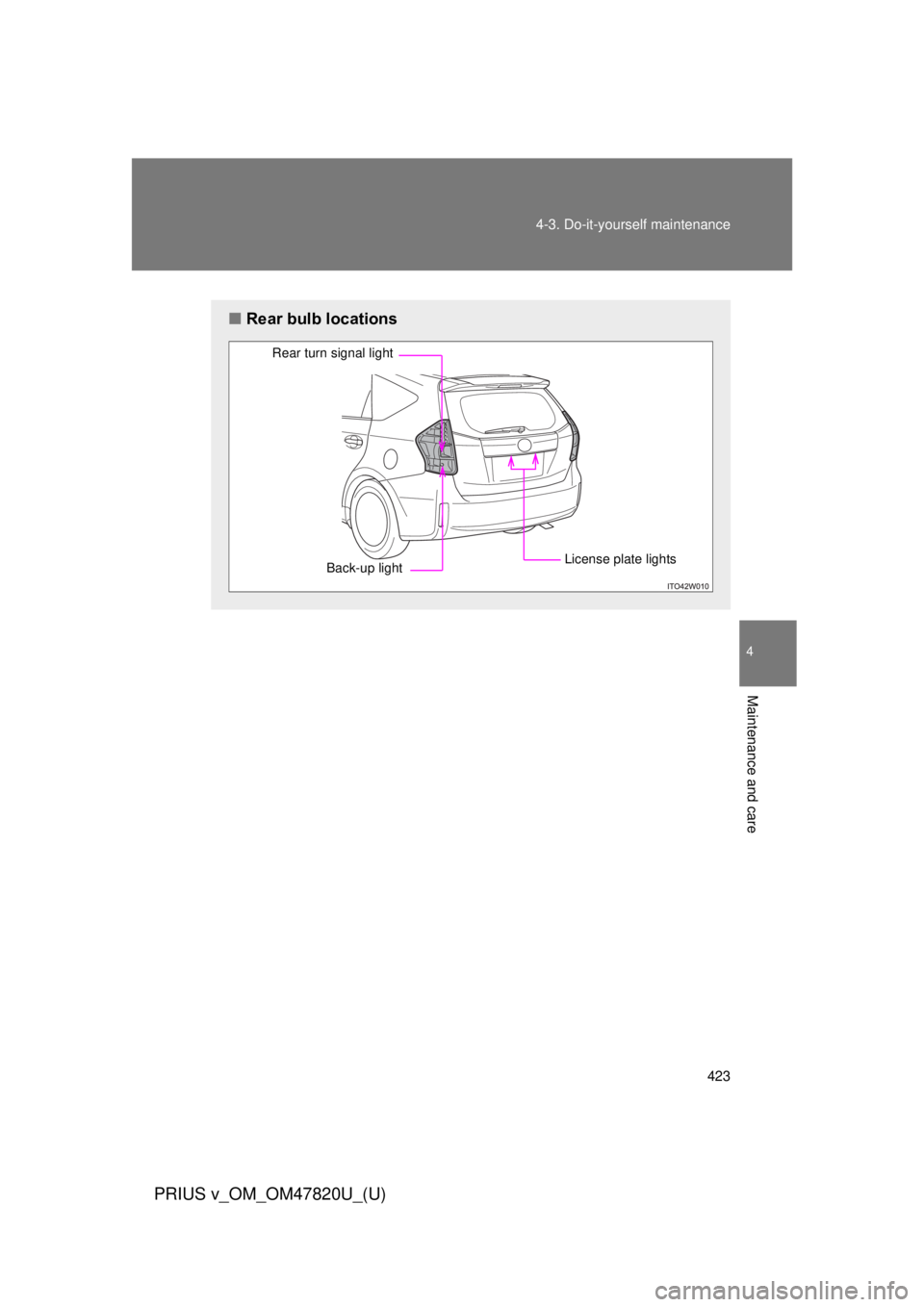

Rear bulb locations
Rear turn signal light
Back-up light License plate lights

424 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Replacing light bulbs■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 1
STEP 2
STEP 3
