2013 TOYOTA PRIUS V Owners Manual (in English)

409
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care

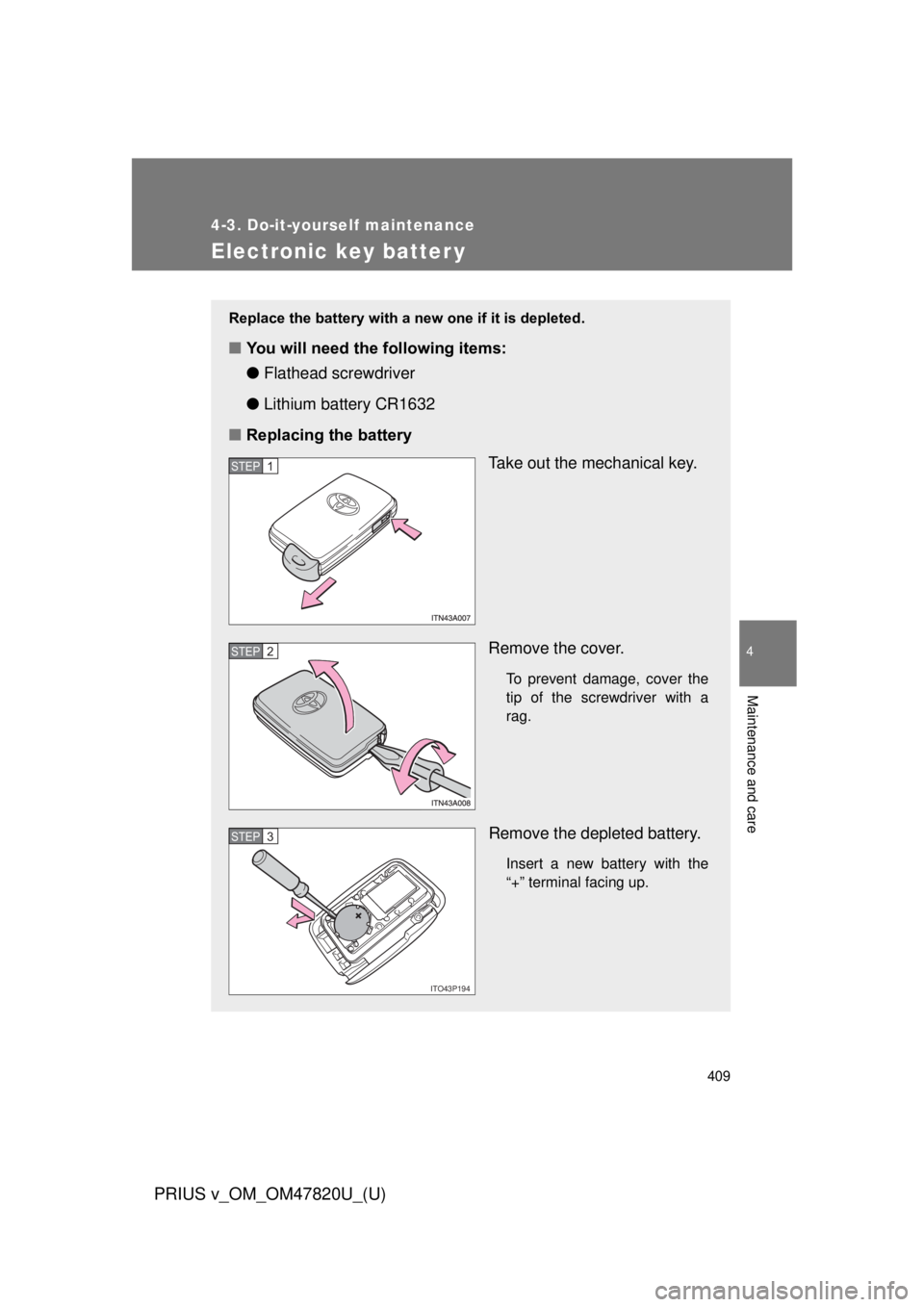

Electronic key batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
● Lithium battery CR1632
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
To prevent damage, cover the
tip of the screwdriver with a
rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
ITO43P194
STEP 3

410 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
■Use a CR1632 lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the electronic key battery is depleted
The following symptoms may occur:
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

411
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
When closing, first hook the lid
onto the two rear tabs.
Left side instrument panelRemove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 414) for details about which fuse to check.
STEP 1
STEP 2
STEP 3

412 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Remove the fuse.Only type A fuse can be
removed using the pullout
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 4
STEP 5
12
ITY42C012

413
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
ITO43P161

414 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Fuse layout and amperage ratings■ Engine compartment
FUSEAmpereCircuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A No circuit
5 ENG W/P 30A Cooling system
6 ABS MAIN
NO.2 7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 P-CON MTR 30A P position control system, trans-
mission
9 AMP 30A Audio system
10 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
11 DC/DC-S 5A Inverter and converter

415
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
FUSEAmpereCircuit
12 P CON MAIN 7.5A P position control system, trans-
mission
13 AM2 7.5A Power management system
14 ECU-B2 7.5A Smart key system
15 MAYDAY 10A MAYDAY
16 ECU-B3 10A Air conditioning system
17 TURN & HAZ 10A Turn signal lights
18 ETCS 10AMultiport fuel injection system/
sequential multiport fuel injection
system
19 ABS MAIN
NO.1 20A Anti-lock brake system
20 P/I 2 40AHorn, right-hand headlight (low
beam), left-hand headlight (low
beam), back-up lights
21 ABS MTR 1 30A Anti-lock brake system
22 ABS MTR 2 30A Anti-lock brake system
23 H-LP HI MAIN 20A H-LP HI RH, H-LP HI LH,
headlight switch, daytime running
light system
24 HV BATT 10A No circuit
25 DRL 7.5A Daytime running light system
26 P/I 1 60A IG2, EFI MAIN, BATT FAN
27 EPS 60A Electric power steering
28 PCU 10A Inverter and converter
29 IGCT NO.2 10A Hybrid system, P position control
system, inverter and converter

416 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
FUSEAmpereCircuit
30 MIR HTR 10A Outside rear view mirror defoggers
31 RAD NO.1 15A Audio system, navigation system
32 DOME 10ADoor courtesy lights, personal
lights, interior lights, front foot
lights, vanity lights, inside rear
view mirror, garage door opener,
overhead console
33 ECU-B 7.5ASmart key system, multiplex com-
munication system, personal
lights, gauges and meters, occu-
pant detection system (ECU and
sensors)
34 H-LP LH HI 10A Left-hand headlight (high beam)
35 H-LP RH HI 10A Right-hand headlight (high beam)
36 EFI NO.2 10AMultiport fuel injection system/
sequential multiport fuel injection
system
37 IGCT NO.3 10A Cooling system
38 SPARE 30A Spare fuse
39 SPARE 10A Spare fuse
40 SPARE 7.5A Spare fuse
41 EFI MAIN 20AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
42 BATT FAN 10A Battery cooling fan
43 IG2 20AMultiport fuel injection system/
sequential multiport fuel injection
system, MET-IGN, IGN, hybrid
system
