4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
CAUTION
■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.

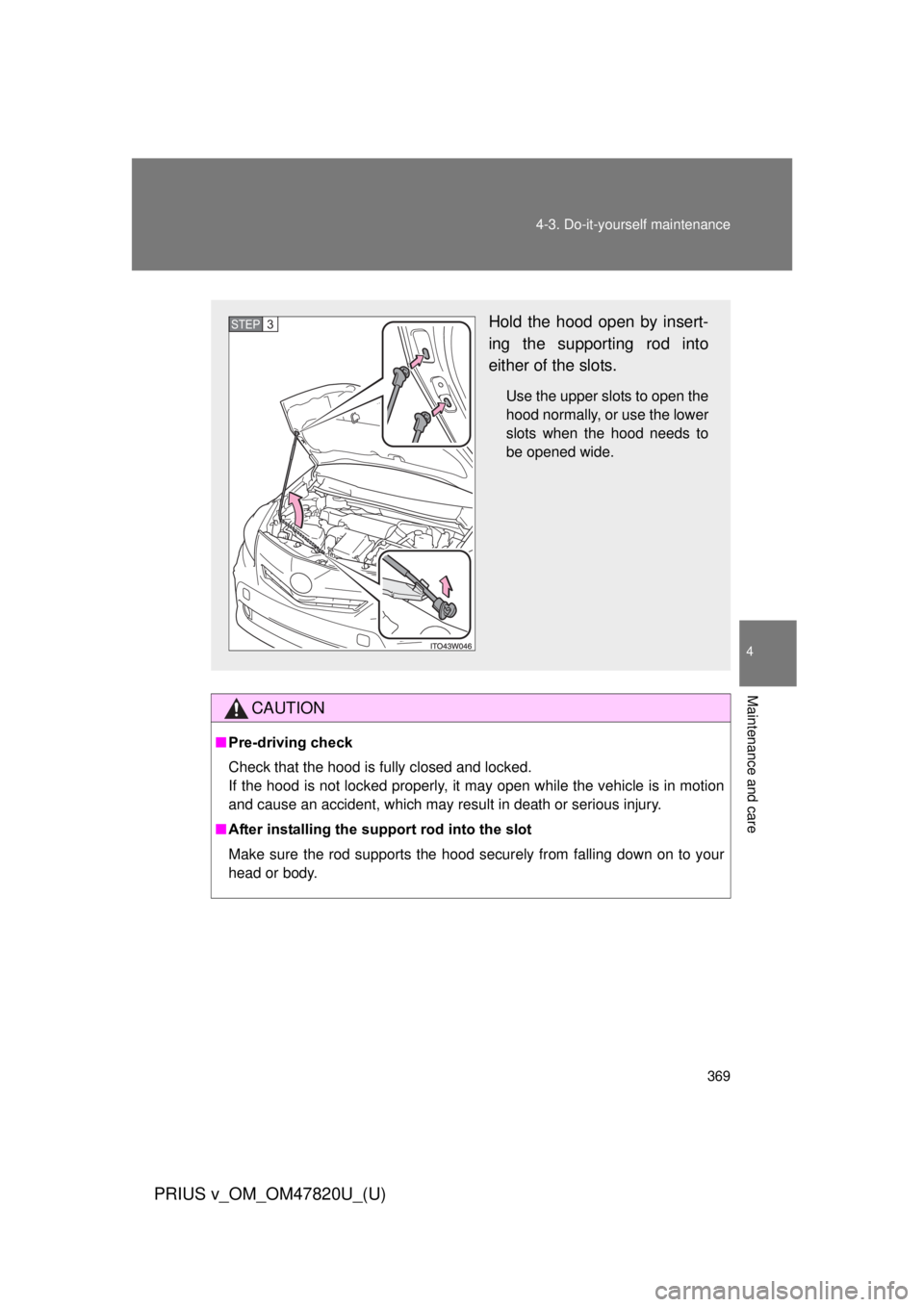

Hold the hood open by insert-
ing the supporting rod into
either of the slots.
Use the upper slots to open the
hood normally, or use the lower
slots when the hood needs to
be opened wide.
STEP 3

370 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

371
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement (such as under rear suspension etc.) may
damage your vehicle or cause injury.
■Front
■ Rear

372 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the hybrid system while the vehicle is supported by the floor
jack.
● Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift position to P.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

373
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
CAUTION
●
Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any object on top of or underneath
the floor jack.
●When raising the vehicle, do not set the
floor jack under the rear suspension.Rear suspension
Front

374
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)

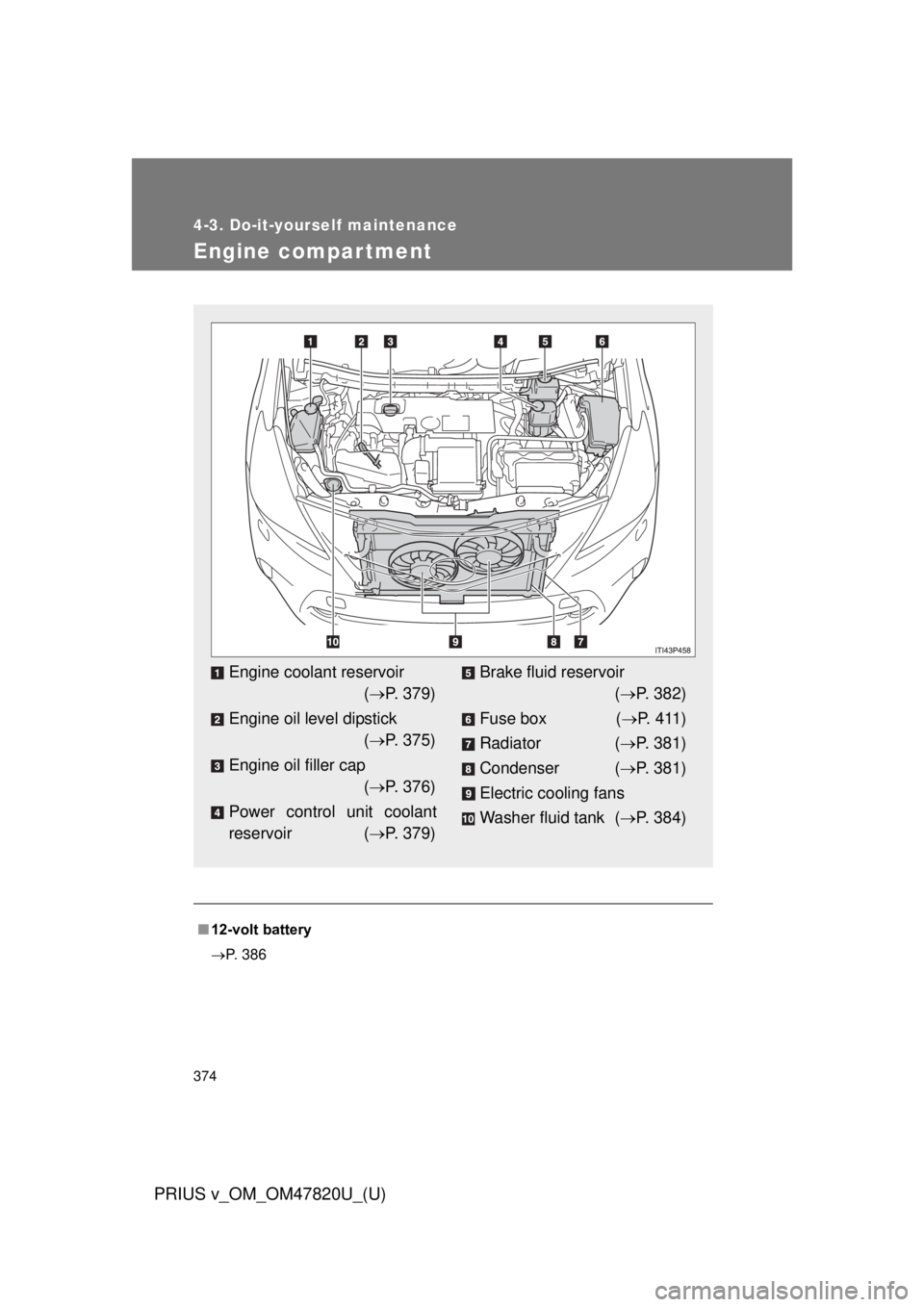

Engine compar tment
■12-volt battery
 P. 386
Engine coolant reservoir
( P. 379)
Engine oil level dipstick ( P. 375)
Engine oil filler cap ( P. 376)
Power control unit coolant
reservoir ( P. 379)Brake fluid reservoir
( P. 382)
Fuse box ( P. 411)
Radiator ( P. 381)
Condenser ( P. 381)
Electric cooling fans
Washer fluid tank ( P. 384)

375
4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
4
Maintenance and care
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes
for the oil to drain back in to the bottom of the engine.

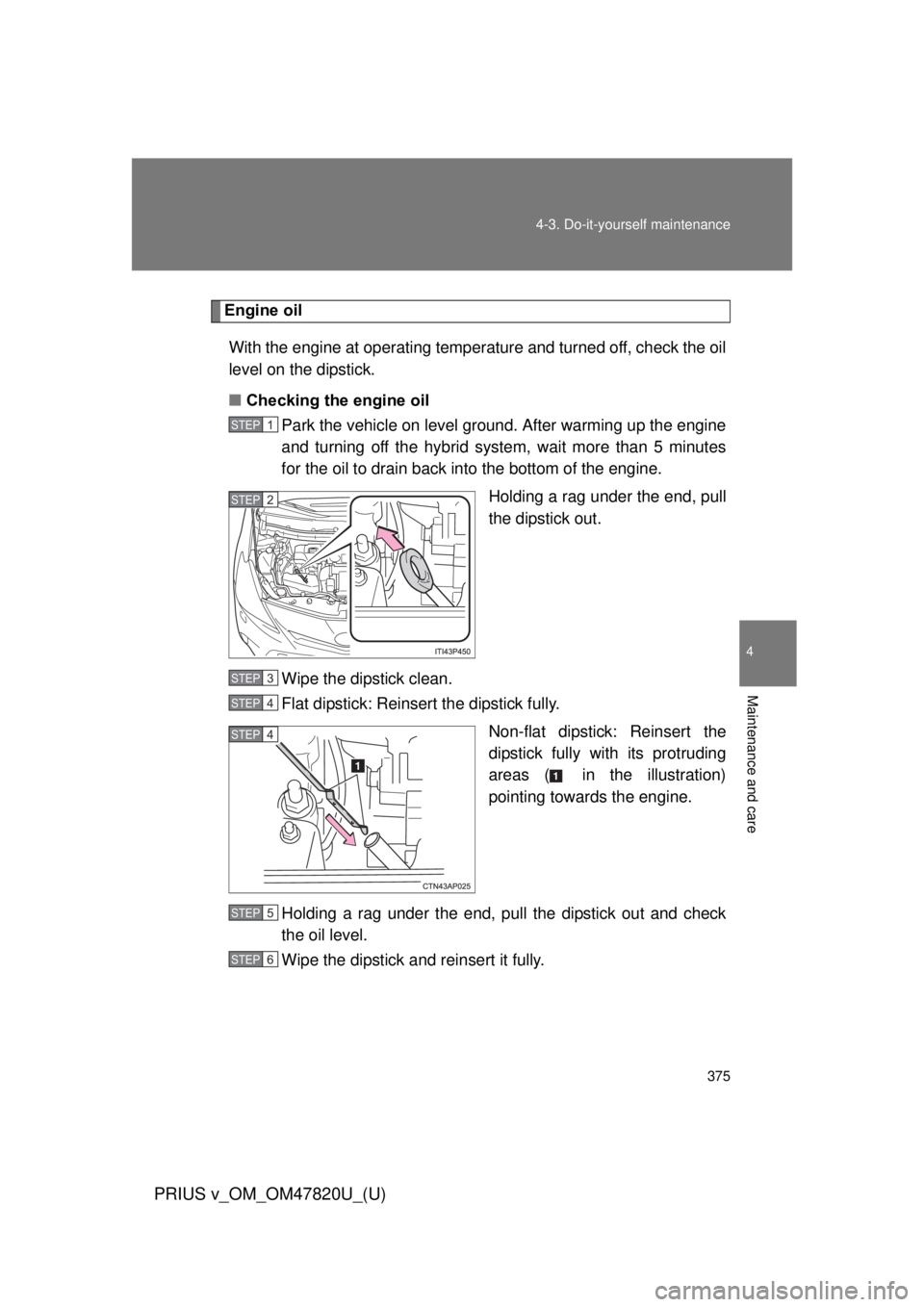

Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully. Non-flat dipstick: Reinsert the
dipstick fully with its protruding
areas ( in the illustration)
pointing towards the engine.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 4
STEP 5
STEP 6

376 4-3. Do-it-yourself maintenance
PRIUS v_OM_OM47820U_(U)
Flat dipstickLow
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Non-flat dipstick Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
