2013 TOYOTA LAND CRUISER display

549 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
■Initializing the tire pressure warning system
Initialize the tire pressure warning system with the tire inflation pressure
adjusted to the specified level.
■If you press the tire pressure reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the speci-
fied level and initialize the tire pressure warning system again.
■When the initialization of the tire pressure warning system has
failed
Initialization can be completed in a few minutes. However, in the follow-
ing cases, the settings have not been recorded and the system will not
operate properly. If repeated attempts to record tire inflation pressure
settings are unsuccessful, have the vehicle inspected by your Toyota
dealer.
●When operating the tire pressure warning reset switch, the tire pres-
sure warning light does not blink 3 times and the setting message
does not appear on the multi-information display.
●After carrying out the initialization procedure, the tire pressure warn-
ing light blinks for 1 minute then stays on after driving for about 20
minutes.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.

574 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)■Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 AAudio system, multi-display
assembly, main body ECU,
mirror ECU, rear seat enter-
tainment, smart key system,
clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency
flashers, audio system, head-
light cleaner switch, inverter,
driving position memory sys-
tem, outside rear view mirror
switches, overhead module,
roll sensing of curtain shield
airbags off switch, shift lever
switch, steering switches, VSC
OFF switch, console switch

577 4-3. Do-it-yourself maintenance
4
Maintenance and care

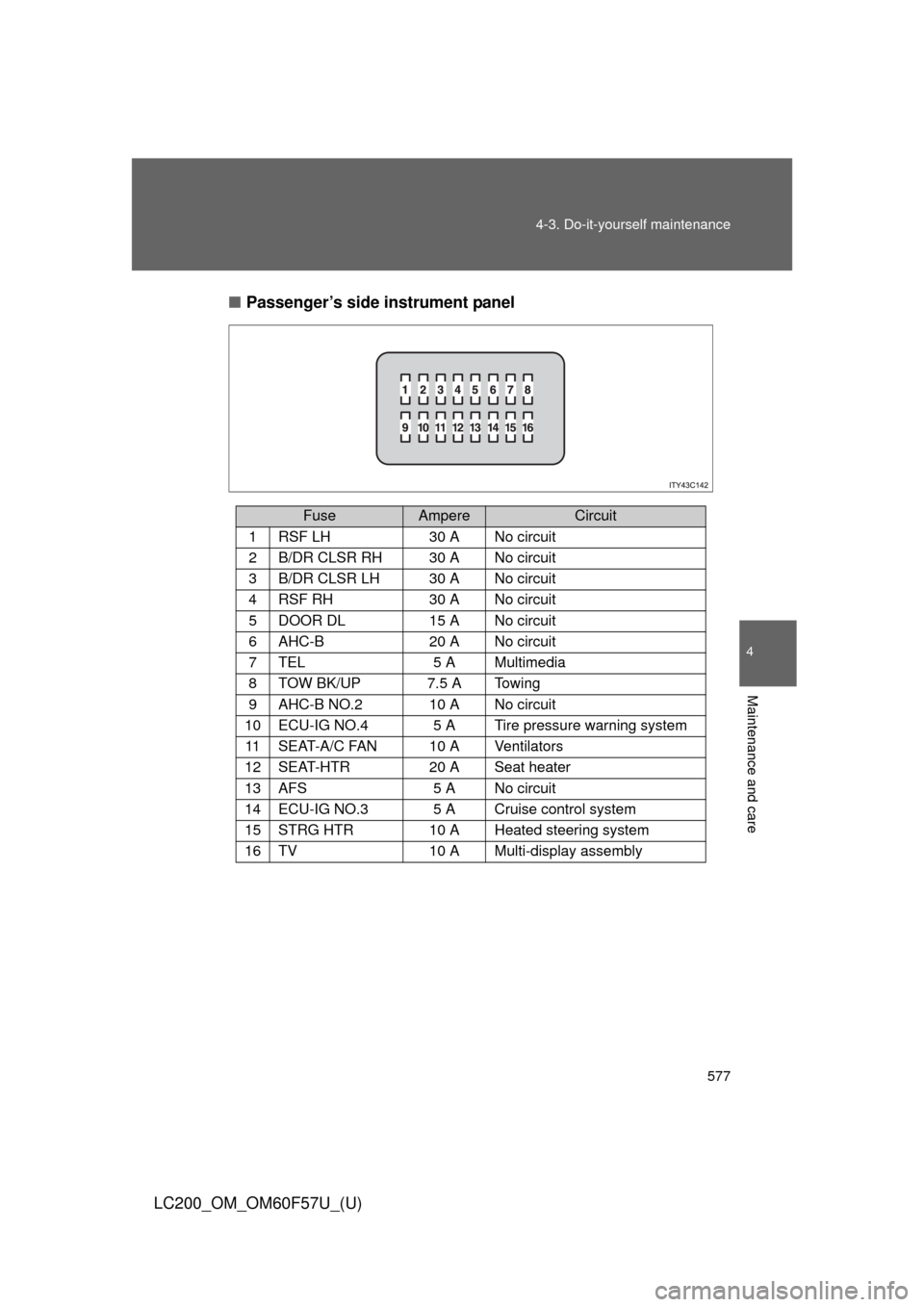

LC200_OM_OM60F57U_(U)■Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A Ventilators
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A Cruise control system
15STRG HTR10 A Heated steering system
16TV10 A Multi-display assembly

When trouble arises5
597
LC200_OM_OM60F57U_(U)
5-1. Essential information
Emergency flashers ......... 598
If your vehicle needs
to be towed .................... 599
If you think something
is wrong ......................... 604
Fuel pump shut off
system ........................... 6055-2. Steps to take in
an emergency
If a warning light turns
on or a warning
buzzer sounds... ........... 606
If a warning message
is displayed .................... 617
If you have a flat tire......... 633
If the engine will not
start ................................ 647
If the shift lever cannot be
shifted from P ................. 649
If you lose your keys ........ 650
If the electronic key
does not operate
properly .......................... 651
If the battery is
discharged ..................... 654
If your vehicle
overheats ....................... 658
If the vehicle
becomes stuck ............... 661
If your vehicle has to be
stopped in an
emergency ..................... 663

5
When trouble arises
617
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
If a warning message is displayed
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed operations, or shows messages that
indicate a need for maintenance.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.

5
When trouble arises
619 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Indicates a malfunction in the intuitive parking
assist
The site of malfunction is shown flashing on the
display.
Indicates a malfunction in the cruise control
system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
Indicates a malfunction in the dynamic radar
cruise control system (if equipped)
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
(If equipped)Indicates a malfunction in the VGRS
A buzzer also sounds.

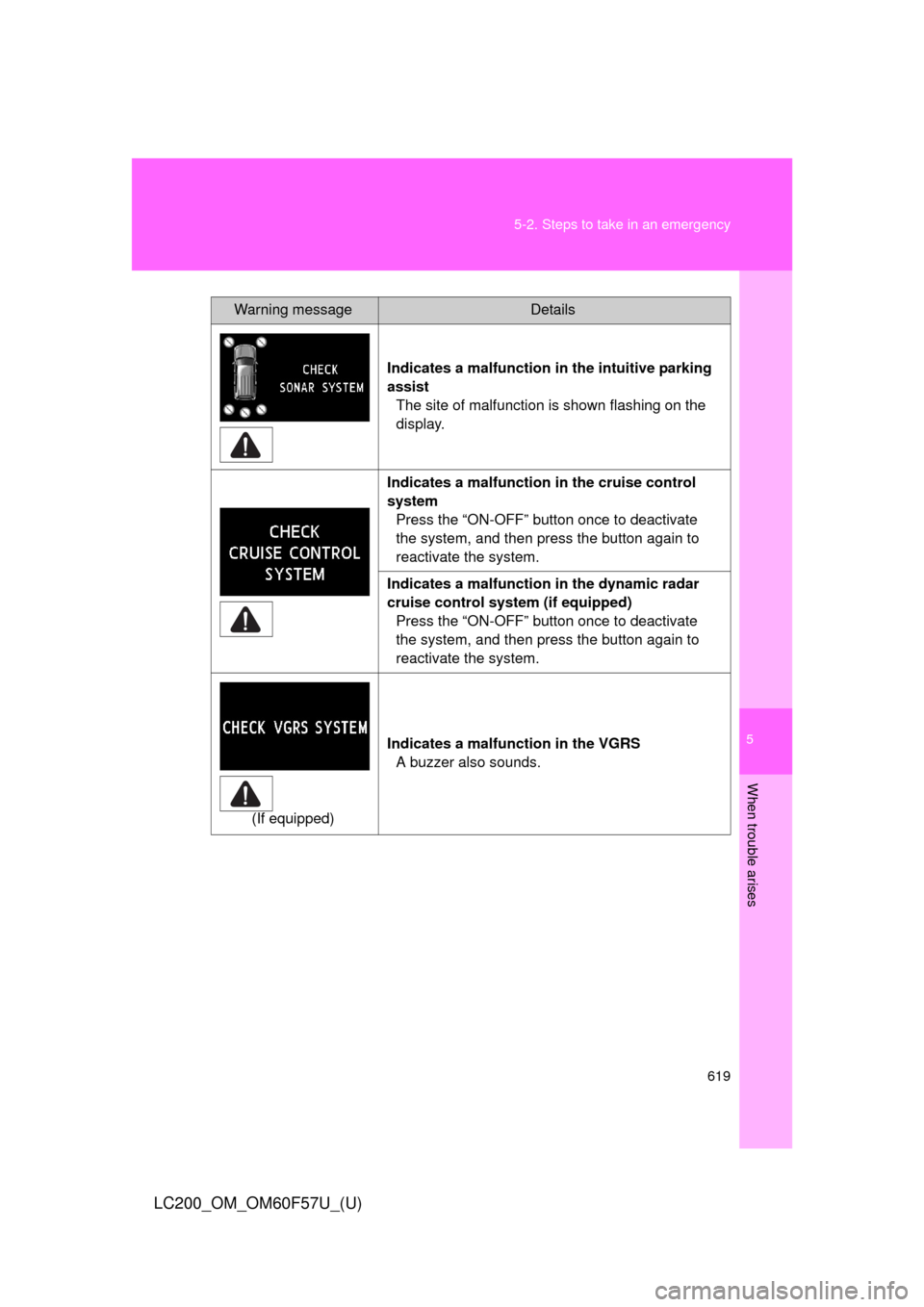

Warning messageDetails

628 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Contin-
uous
(Flashes)The driver’s door
was opened when
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off.Shift the
shift lever
to “P”.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashes)The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off. • Shift the
shift lever
to “P”.
• Bring the
electronic
key back
into the
vehicle.

5
When trouble arises
631 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Other messages
If the following message is displayed, take appropriate action and
confirm that the message has disappeared. (P. 245)

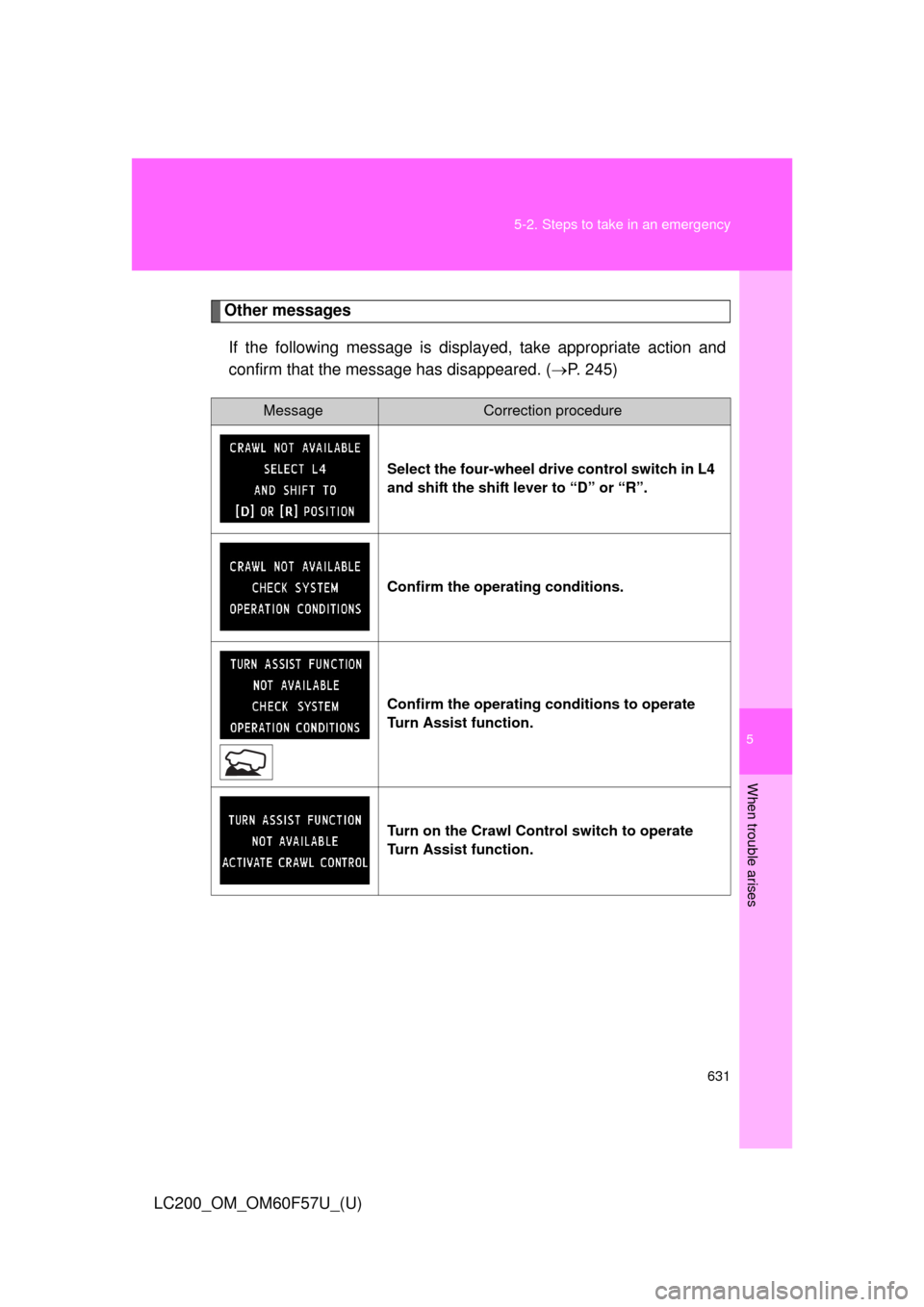

MessageCorrection procedure
Select the four-wheel drive control switch in L4
and shift the shift lever to “D” or “R”.
Confirm the operating conditions.
Confirm the operating conditions to operate
Turn Assist function.
Turn on the Crawl Control switch to operate
Turn Assist function.
