INSPECTION AND MAINTENANCE
60MK0-14E
The main fuse, primary fuses and some of
the individual fuses are located in the
engine compartment. If the main fuse
blows, no electrical component will func-
tion. If a primary fuse blows, no electrical
component in the corresponding load
group will function. When replacing the
main fuse, a primary fuse or an individual
fuse, use a genuine SUZUKI replacement.
To remove a fuse, use the fuse puller pro-
vided in the fuse box. The amperage of
each fuse is shown in the back of the fuse
box cover.
60G111
NOTE:
Make sure that the fuse box always carries
spare fuses. (22) 25 A ABS control module
(23) 15 A Head light (Right)
(24) 20 A Front fog light
(25) – Blank
(26) 40 A Ignition switch
(27) 7.5 A Starting Signal
(28) – Blank
(29) – Blank
(30) – Blank
WARNING
If the main fuse or a primary fuse
blows, be sure to have your vehicle
inspected by an authorized SUZUKI
dealer. Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.EXAMPLE
BLOWNOK

Downloaded from www.Manualslib.com manuals search engine 7-25INSPECTION AND MAINTENANCE
60MK0-14E
Fuses under the Dash Board
74LHT0711
60MK033
EXAMPLE
(1)
(12)(10)
(13)
(36) (2) (3)
(4)
(5)(6)
(7) (8)(9)
(11) (14) (15)
(16) (17) (18) (19) (20) (21) (22)
(23) (24) (25) (26) (27) (28) (29)
(30) (31) (32) (33) (34) (35) (37)
(38)
(39)
(40)
PRIMARY FUSE
(1) 30 A Belt
(2) – Blank
(3) – Blank
(4) 20 A Rear defogger
(5) – Blank
(6) – Blank
(7) – Blank
(8) 7.5 A Starting Signal
(9) 15 A ACC-2
(10) 30 A Power window
(11) 10 A Hazard
(12) – Blank
(13) 15 A Ignition coil
(14) 10 A ABS control module
(15) 15 A ACC
(16) – Blank
(17) 15 A Horn
(18) 10 A Stop light
(19) 10 A Air bag
(20) 10 A Back-up light
(21) 15 A Rear wiper / Washer
(22) 25 A Front wiper
(23) 7.5 A Dome light
(24) – Blank
(25) 7.5 A RR fog lamp
(26) – Blank
(27) 7.5 A Ignition-1 signal
(28) – Blank
(29) – Blank
(30) 15 A Radio
(31) 10 A Tail lamp
(32) 20 A D/L
(33) 7.5 A Cruise control
(34) 10 A Meter
(35) 7.5 A Ignition-2 signal
(36) – Blank
(37) – Blank
(38) – Blank
(39) 7.5 A Rear blower fan
(40) – Blank

Downloaded from www.Manualslib.com manuals search engine 7-26
INSPECTION AND MAINTENANCE
60MK0-14E
81A283
Headlight AimingSince special procedures are required, we
recommend you take your vehicle to your
SUZUKI dealer for headlight alignment.
Bulb Replacement
WARNING
Always be sure to replace a blown
fuse with a fuse of the correct amper-
age. Never use a substitute such as
aluminum foil or wire to replace a
blown fuse. If you replace a fuse and
the new one blows in a short period
of time, you may have a major electri-
cal problem. Have your vehicle
inspected immediately by your
SUZUKI dealer.
BLOWN OK
CAUTION
 Light bulbs can be hot enough to
burn your finger right after being
turned off. This is true especially
for halogen headlight bulbs.
Replace the bulbs after they
become cool enough.
 The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit
or dropped. Handle them carefully.
NOTICE
The oils from your skin may cause a
halogen bulb to overheat and burst
when the lights are on. Grasp a new
bulb with a clean cloth.
NOTICE
Frequent replacement of a bulb indi-
cates the need for an inspection of
the electrical system. This should be
carried out by your SUZUKI dealer.

Downloaded from www.Manualslib.com manuals search engine 7-27INSPECTION AND MAINTENANCE
60MK0-14E

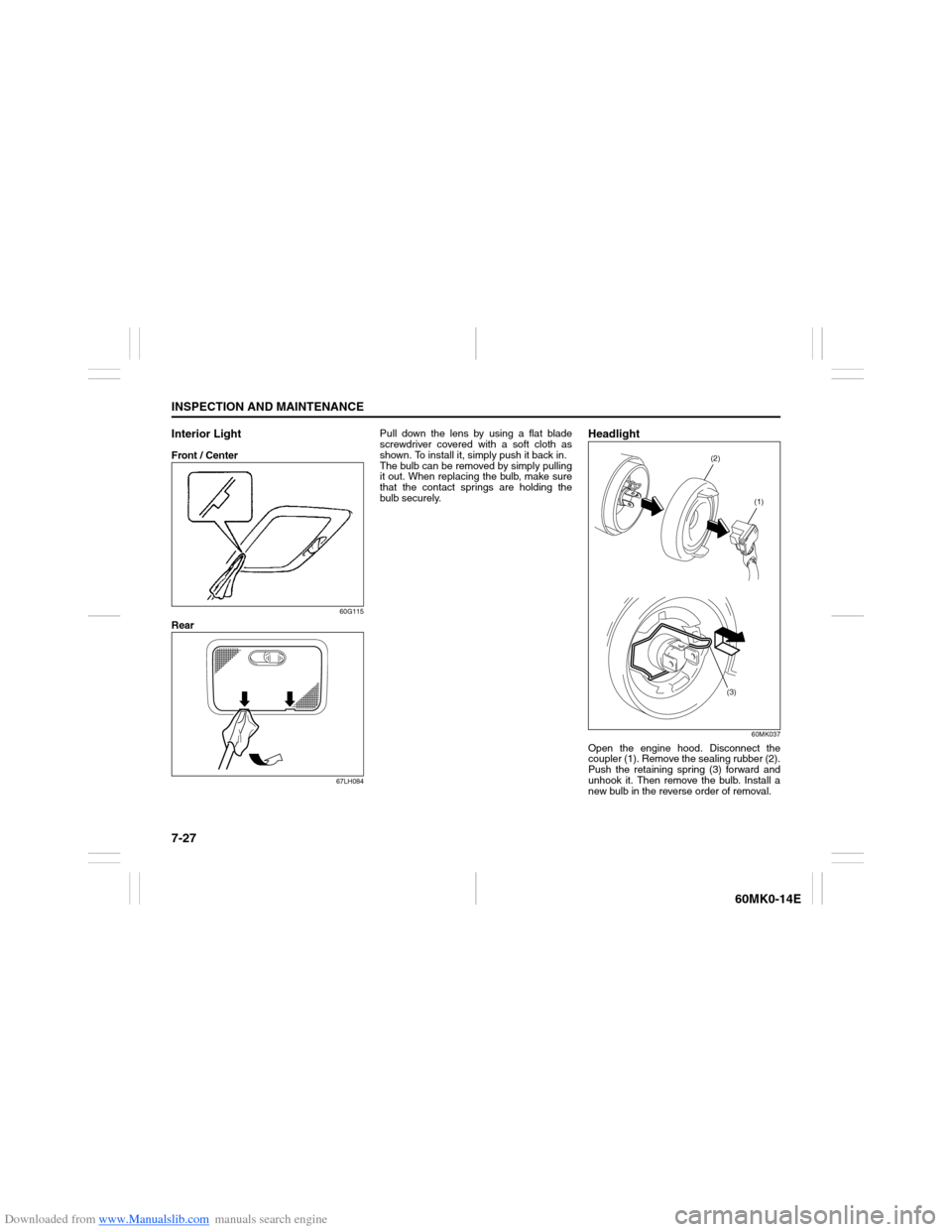

Interior Light Front / Center
60G115
Rear
67LH084
Pull down the lens by using a flat blade
screwdriver covered with a soft cloth as
shown. To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
Headlight
60MK037
Open the engine hood. Disconnect the
coupler (1). Remove the sealing rubber (2).
Push the retaining spring (3) forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
(2)
(1)
(3)

Downloaded from www.Manualslib.com manuals search engine 7-28
INSPECTION AND MAINTENANCE
60MK0-14E
60MH050

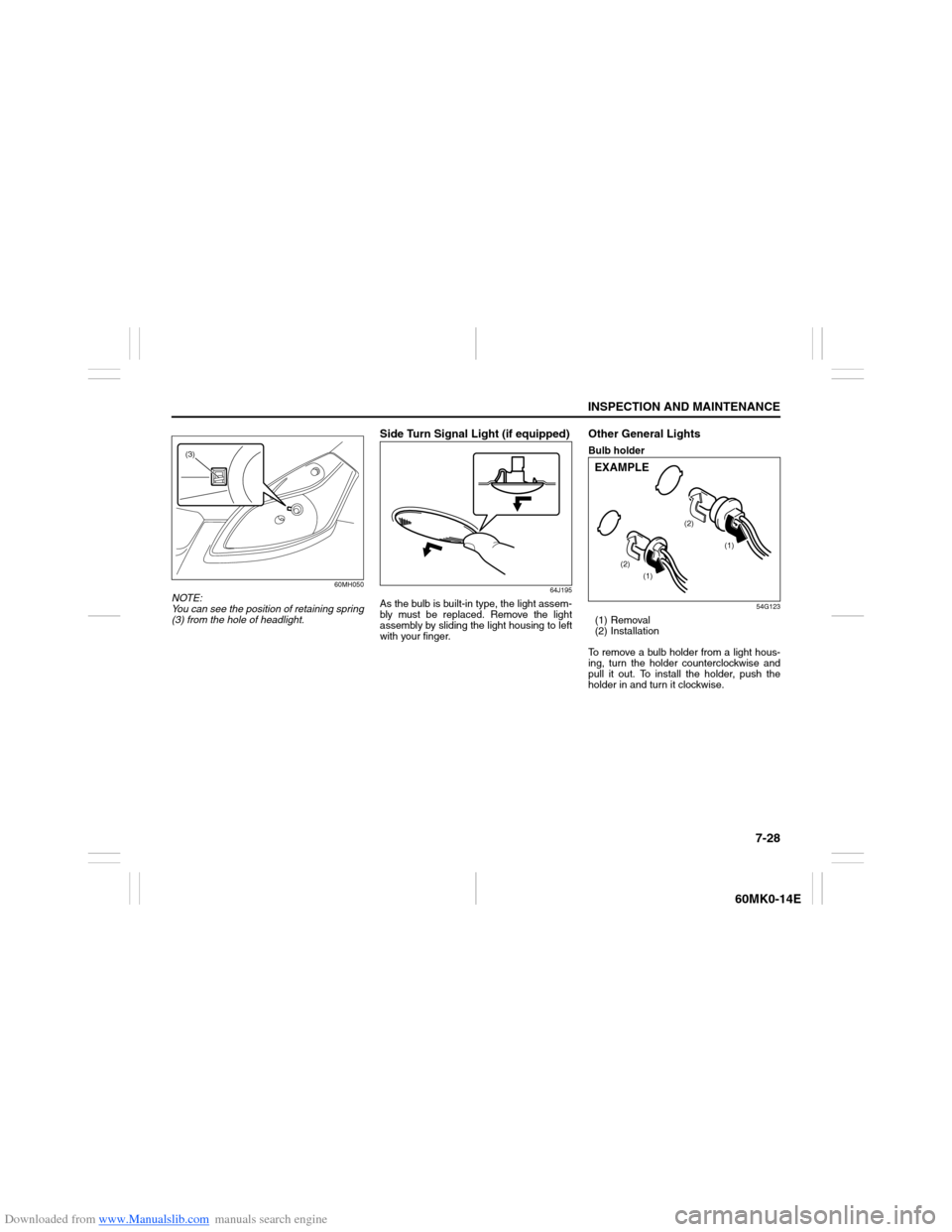

NOTE:
You can see the position of retaining spring
(3) from the hole of headlight.
Side Turn Signal Light (if equipped)
64J195
As the bulb is built-in type, the light assem-
bly must be replaced. Remove the light
assembly by sliding the light housing to left
with your finger.
Other General LightsBulb holder
54G123
(1) Removal
(2) Installation
To remove a bulb holder from a light hous-
ing, turn the holder counterclockwise and
pull it out. To install the holder, push the
holder in and turn it clockwise.
(3)
(1)
(1) (2)(2)
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine 7-29INSPECTION AND MAINTENANCE
60MK0-14E

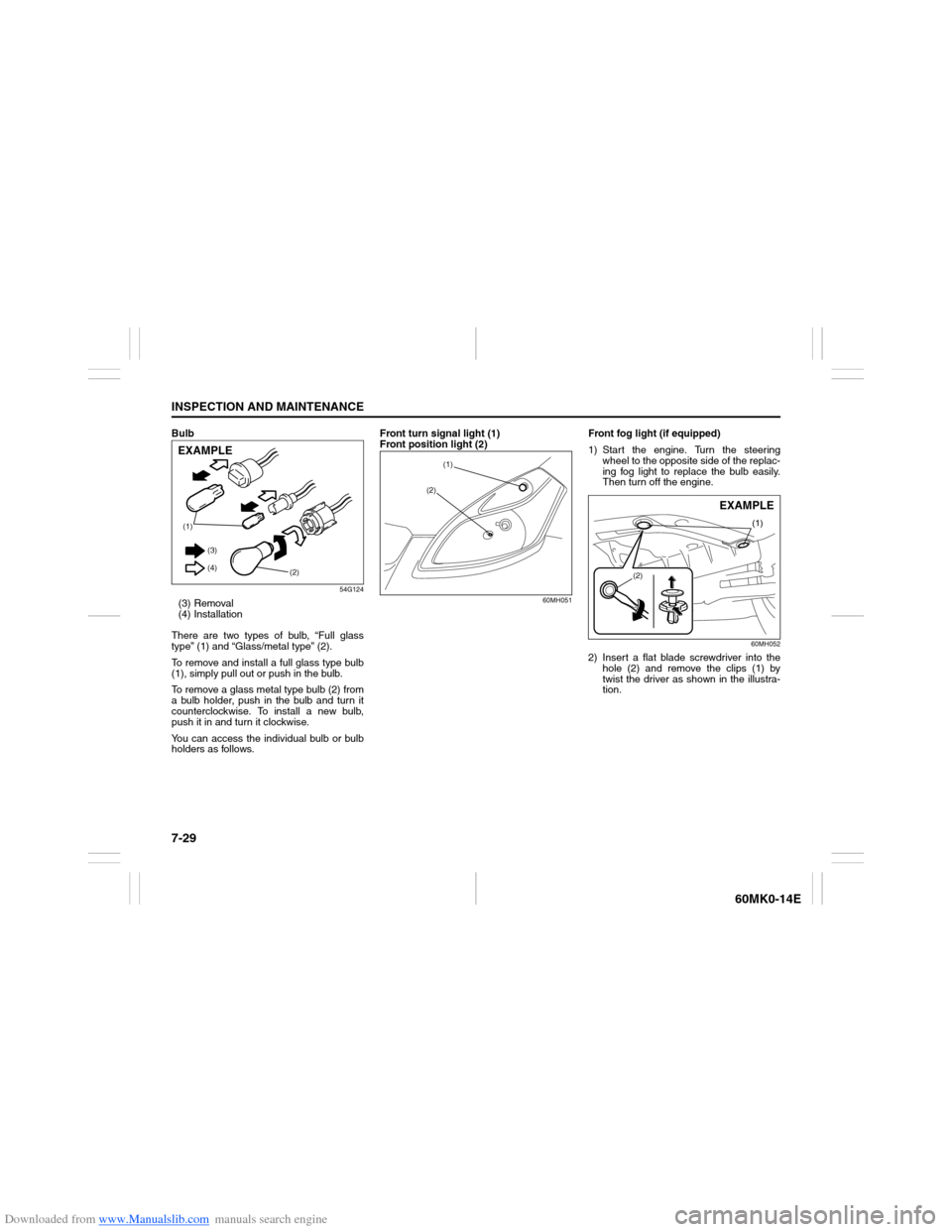

Bulb
54G124
(3) Removal
(4) Installation
There are two types of bulb, “Full glass
type” (1) and “Glass/metal type” (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb.
To remove a glass metal type bulb (2) from
a bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.Front turn signal light (1)
Front position light (2)
60MH051
Front fog light (if equipped)
1) Start the engine. Turn the steering
wheel to the opposite side of the replac-
ing fog light to replace the bulb easily.
Then turn off the engine.
60MH052
2) Insert a flat blade screwdriver into the
hole (2) and remove the clips (1) by
twist the driver as shown in the illustra-
tion.
(1)
(2) (3)
(4)EXAMPLE
(1)
(2)
(1)
(2)
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine 7-30
INSPECTION AND MAINTENANCE
60MK0-14E
80JM071
3) Open the fender cover. Disconnect the
coupler with pushing the lock release.
Turn the bulb holder counterclockwise
and remove it.Rear combination light
(tail, stop, turn signal, etc.)
60MH053
Remove the screw (1). Remove the combi-
nation light (2) by pulling it outside.
License plate light
Since special procedures are required, we
recommend you take your vehicle to your
SUZUKI dealer for bulb replacement.High-mount stop light
80J100
To remove a high-mount stop light housing
the following procedure:
1) Open the tailgate, and remove the nuts
(1) as shown in the illustration.
EXAMPLE
(1)
(1)(2)
(1)
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine 7-31INSPECTION AND MAINTENANCE
60MK0-14E
60MH054

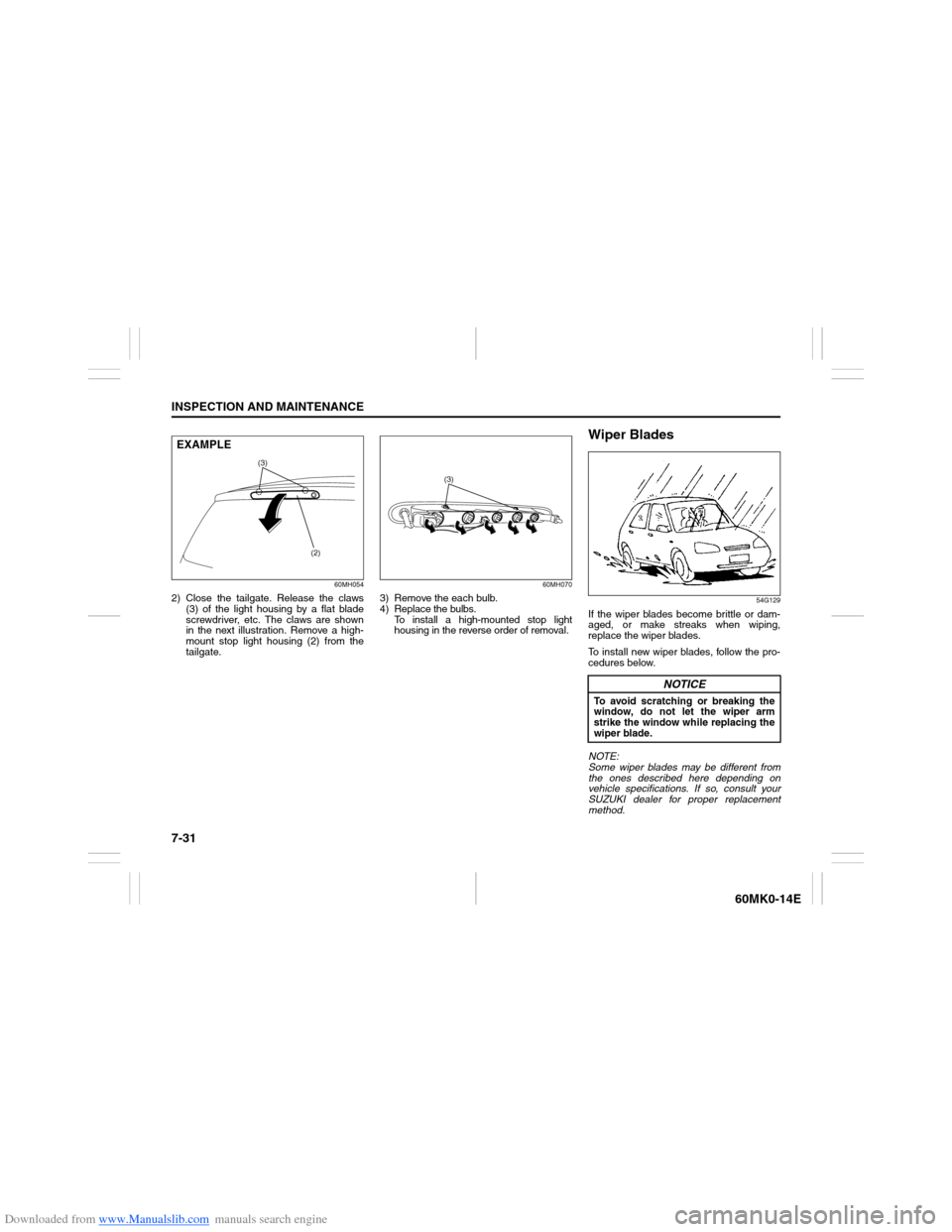

2) Close the tailgate. Release the claws
(3) of the light housing by a flat blade
screwdriver, etc. The claws are shown
in the next illustration. Remove a high-
mount stop light housing (2) from the
tailgate.
60MH070
3) Remove the each bulb.
4) Replace the bulbs.
To install a high-mounted stop light
housing in the reverse order of removal.
Wiper Blades
54G129
If the wiper blades become brittle or dam-
aged, or make streaks when wiping,
replace the wiper blades.
To install new wiper blades, follow the pro-
cedures below.
NOTE:
Some wiper blades may be different from
the ones described here depending on
vehicle specifications. If so, consult your
SUZUKI dealer for proper replacement
method.
(2) (3)
EXAMPLE
(3)
NOTICE
To avoid scratching or breaking the
window, do not let the wiper arm
strike the window while replacing the
wiper blade.
