2013 SUZUKI ERTIGA engine

Downloaded from www.Manualslib.com manuals search engine 11-3
SPECIFICATIONS
60MK0-14E
ITEM: Lights WATTAGE BULB No.
Headlight 12V 60/55W H4
Turn signal light Front 12V 21W PY21W
Rear 12V 21W PY21W
Side turn signal light (on fender) 12V 5W WY5W
Side turn signal light (on outside rearview mirror) LED –
Position light 12V 5W W5W
Tail/brake light 12V 21/5W P21/5W
License plate light 12V 5W W5W
Reversing light 12V 16W W16W
Interior light (front) (center) 12V 10W –
Interior light (rear) 12V 10W –
Front fog light 12V 55W H11
High mount stop light 12V 5W W5W

Downloaded from www.Manualslib.com manuals search engine 11-4SPECIFICATIONS
60MK0-14E
*1 If you cannot prepare a tire with the specified load index rate and speed symbol, prepare a tire with higher load index rate and speed
symbol. ITEM: Wheel and Suspension
Tire size, front and rear 185/65R15 88H
*1
Rim size 185/65R15 tire: 15X5 1/2J
Tire pressures For the specified tire pressure, see the Tire Information Label located
on the driver’s door lock pillar.
ITEM: Capacities (approx.)
Coolant (including reservoir tank) M/T 4.5 L (7.9 lmp pt)
A/T 4.4 L (7.7 lmp pt)
Fuel tank 45 L (9.9 Imp gal)
Engine oil 3.1 L (5.5 Imp pt) (replacement with oil filter)
Transaxle oil M/T 2.6 L (4.5 Imp pt)
A/T 5.0 L (8.8 Imp pt)

Downloaded from www.Manualslib.com manuals search engine 12-1
INDEX
12
60MK0-14E
INDEXSymbols“AIR BAG” Light .................................................................. 2-40Numerics4-Speed Automatic Transaxle ............................................ 3-10AAccelerator Pedal .................................................................. 3-7
Accessory Socket ................................................................ 5-41
Adding Coolant .................................................................... 7-12
Adjusting Seat Position ...................................................... 2-14
Adjusting Seat Position (for 2nd row seats) ..................... 2-16
Adjusting Seatbacks .................................................. 2-15, 2-16
Air Cleaner............................................................................ 7-13
Air Conditioning System .............................................. 5-1, 7-35
All Seat Belts Except Center of 2nd Row Seat.................. 2-23
Anti-Lock Brake System (ABS) .......................................... 3-13
Anti-Lock Brake System (ABS) Warning Light ................. 2-39
Anti-Theft Feature ................................................................ 5-31
Armrest ................................................................................. 5-44
Assist Grips.......................................................................... 5-42
Audio System ......................................................................... 5-7
Automatic Transaxle ........................................................... 3-10
Automatic Transaxle (AT) Fluid.......................................... 7-16
Average fuel consumption......................................... 2-47, 2-49BBattery .................................................................................. 7-22
Bottle holder......................................................................... 5-43
Brake Assist System ........................................................... 3-13
Brake Fluid ........................................................................... 7-17
Brake Pedal ................................................................... 3-7, 7-18Brake System Warning Light .............................................. 2-38
Brakes ................................................................................... 7-17
Braking .................................................................................. 3-12
Brightness Control............................................................... 2-45
Bulb Replacement ................................................................ 7-26
CCatalytic Converter ................................................................ 4-1
CD Player .............................................................................. 5-15
Center Seat Belt of 2nd Row Seat ...................................... 2-24
Central Door Locking System ............................................... 2-3
Changing Engine Oil and Filter............................................. 7-9
Changing Wheels ................................................................... 8-5
Charging Light...................................................................... 2-40
Chassis Serial Number ........................................................ 10-1
Child Restraint Systems ...................................................... 2-27
Child-Proof Locks (rear door) ............................................... 2-3
Clock ..................................................................................... 2-50
Clutch Pedal .................................................................. 3-7, 7-16
Coolant Level Check ............................................................ 7-12
Coolant Replacement .......................................................... 7-12
Corrosion Prevention ............................................................ 9-1
Cup Holder and Storage Area ............................................. 5-43DDaily Inspection Checklist..................................................... 3-1
Door Locks ............................................................................. 2-2
Downshifting maximum allowable speeds .......................... 3-9
Drive Belt ................................................................................ 7-7
Driver’s Seat Belt Reminder ................................................ 2-25
Driver’s Seat Belt Reminder Light ...................................... 2-40
Driving on Hills ....................................................................... 4-3
Driving on Slippery Roads .................................................... 4-4

Downloaded from www.Manualslib.com manuals search engine 12-2INDEX
60MK0-14E
Driving range........................................................................ 2-49EElectric Power Steering Light ............................................. 2-42
Electric Window Controls ................................................... 2-11
Emergency Locking Retractor (ELR) ................................. 2-22
Engine Coolant .................................................................... 7-11
Engine Hood......................................................................... 5-38
Engine Oil and Filter .............................................................. 7-7
Engine Oil Consumption ....................................................... 3-2
Engine Serial Number ......................................................... 10-1
Exhaust Gas Warning............................................................ 3-1FFloor Mats............................................................................. 5-45
Fluid Control Clutch ............................................................ 7-16
Fluid Level Check ................................................................ 7-16
Folding Rear Seats .............................................................. 2-18
Footrest ................................................................................ 5-45
Frame Hooks ........................................................................ 5-46
Front Air Bags ...................................................................... 2-31
Front Fog Light Switch........................................................ 2-52
Front Seat Back Pocket....................................................... 5-44
Front Seats ........................................................................... 2-14
Fuel Filler Cap ...................................................................... 5-37
Fuel Gauge ........................................................................... 2-44
Fuel Recommendation .......................................................... 1-1
Full Wheel Cover.................................................................... 8-5
Fuses .................................................................................... 7-23
Fuses in the Engine Compartment .................................... 7-23
Fuses under the Dash Board .............................................. 7-25
GGasoline Engine ..................................................................... 1-1
Gasoline/Ethanol blends ....................................................... 1-1
Gear Oil ................................................................................. 7-15
Gear Oil Change ................................................................... 7-15
Gear Oil Level Check ........................................................... 7-15
Gearshift Lever ....................................................................... 3-9
Glove Box ............................................................................. 5-42HHazard Warning Switch ....................................................... 2-53
Head Restraints ........................................................... 2-15, 2-17
Headlight Aiming.................................................................. 7-26
Highway Driving ..................................................................... 4-3
Horn ....................................................................................... 2-56
How the ABS Works............................................................. 3-14IIf the Engine is Flooded......................................................... 8-8
If the Engine Overheats ......................................................... 8-9
If the Starter Does Not Operate............................................. 8-8
If Your Vehicle Gets Stuck .................................................... 4-5
Ignition Key Reminder ........................................................... 2-2
Ignition Switch........................................................................ 3-3
Immobilizer System ............................................................... 2-1
Immobilizer System Light.................................................... 2-41
Improving Fuel Economy ...................................................... 4-2
Information Display.............................................................. 2-46
Inside Rearview Mirror......................................................... 2-13
Installation with a Lap Belt .................................................. 2-29
Installation with Lap-Shoulder Seat Belts ......................... 2-29
Instantaneous Fuel Consumption ...................................... 2-48
Instrument Cluster ............................................................... 2-36

Downloaded from www.Manualslib.com manuals search engine 12-3
INDEX60MK0-14E
Interior Light......................................................................... 7-27
Interior Light Switch ............................................................ 5-40
iPod
®..................................................................................... 5-26
JJacking Instructions .............................................................. 8-2
Jump Starting Instructions ................................................... 8-6KKeyless Entry System Transmitter ...................................... 2-5
Keys ........................................................................................ 2-1LLap-Shoulder Belt ................................................................ 2-22
Light Reminder Buzzer........................................................ 2-51
Lighting Control Lever ........................................................ 2-50
Lighting Operation............................................................... 2-51
Low Fuel Warning Light ...................................................... 2-42
Luggage Box ........................................................................ 5-46MMain Beam (high beam) Indicator Light ............................ 2-42
Maintenance Recommended under Severe
Driving Conditions................................................................. 7-5
Maintenance Schedule .......................................................... 7-2
Malfunction Indicator Light................................................. 2-40
Manual Transaxle................................................................... 3-9
Manual Window Control ...................................................... 2-11
Mirrors .................................................................................. 2-13
MP3/WMA Disc ..................................................................... 5-18OOdometer .............................................................................. 2-50
Oil Level Check ...................................................................... 7-8
Oil Pressure Light ................................................................ 2-39Open Door Warning Light ................................................... 2-41
Outside Rearview Mirrors.................................................... 2-13
Overhead rear air conditioning system ............................... 5-3
PParking Brake ....................................................................... 7-19
Parking Brake Lever .............................................................. 3-5
Pedal........................................................................................ 3-7
Periodic Maintenance Schedule ........................................... 7-2
Power-Assisted Brakes ....................................................... 3-13RRadio ..................................................................................... 5-13
Radio Antenna ........................................................................ 5-6
Rear Seats............................................................................. 2-16
Rear Window Wiper/Washer Switch ................................... 2-55
Refill with Oil and Check for Leaks .................................... 7-11
Refilling ................................................................................... 7-8
Replace the Oil Filter ........................................................... 7-10
Replacement of the Battery................................................... 2-6
Running-in .............................................................................. 4-1SSeat Adjustment .......................................................... 2-14, 2-16
Seat Belt Hanger .................................................................. 2-26
Seat Belt Inspection ............................................................. 2-26
Seat Belts and Child Restraint Systems ............................ 2-20
Selection of Coolant ............................................................ 7-11
Shoulder Anchor Height Adjuster ...................................... 2-25
Side Door Locks ..................................................................... 2-2
Spark Plugs .......................................................................... 7-13
SPECIFICATIONS ................................................................. 11-1
Specified Fluid...................................................................... 7-16
Specified Gear Oil ................................................................ 7-15

Downloaded from www.Manualslib.com manuals search engine 12-4INDEX
60MK0-14E
Specified Oil ........................................................................... 7-7
Speedometer ........................................................................ 2-43
Starting a Cold and Warm Engine ........................................ 3-8
Starting the Engine ................................................................ 3-8
Steering ................................................................................ 7-19
Sun Visor .............................................................................. 5-39
Supplemental Restraint System (air bags)........................ 2-30TTachometer .......................................................................... 2-43
Tailgate ................................................................................... 2-4
Temperature Gauge ............................................................. 2-44
Theft Deterrent Alarm System .............................................. 2-7
Thermometer ........................................................................ 2-46
Tilt Steering Lock Lever...................................................... 2-55
Tire Chains ............................................................................. 4-4
Tire Changing Tool ................................................................ 8-1
Tire Inspection ..................................................................... 7-20
Tire Rotation......................................................................... 7-21
Tires ...................................................................................... 7-20
To Raise the Vehicle with a Garage Jack ............................ 8-3
Towing .................................................................................... 8-7
Trailer Towing ........................................................................ 6-1
Transaxle selector position indicator
(for automatic transaxle vehicles)...................................... 2-47
Transaxle Warning Light ..................................................... 2-41
Trip meter ............................................................................. 2-48
Turn Signal Control Lever................................................... 2-52
Turn Signal Indicators ......................................................... 2-42
Turn Signal Operation ......................................................... 2-52
UUniversal Serial Bus (USB) Socket..................................... 5-42
USB device ........................................................................... 5-23
Using the Transaxle ............................................................... 3-9VVehicle Cleaning .................................................................... 9-2
Vehicle Identification ........................................................... 10-1
Vehicle Loading...................................................................... 6-1WWalk-in Type Seats (for 2nd row seats) ............................. 2-17
Warning and Indicator Lights ............................................. 2-38
Washing .................................................................................. 9-4
Waxing .................................................................................... 9-5
Windows ............................................................................... 2-11
Windshield Washer .............................................................. 2-54
Windshield Washer Fluid .................................................... 7-35
Windshield Wiper and Washer Lever ................................. 2-53
Windshield Wipers ............................................................... 2-54
Wiper and Washer Operation .............................................. 2-54
Wiper Blades ........................................................................ 7-31

Downloaded from www.Manualslib.com manuals search engine 60MK0-14E

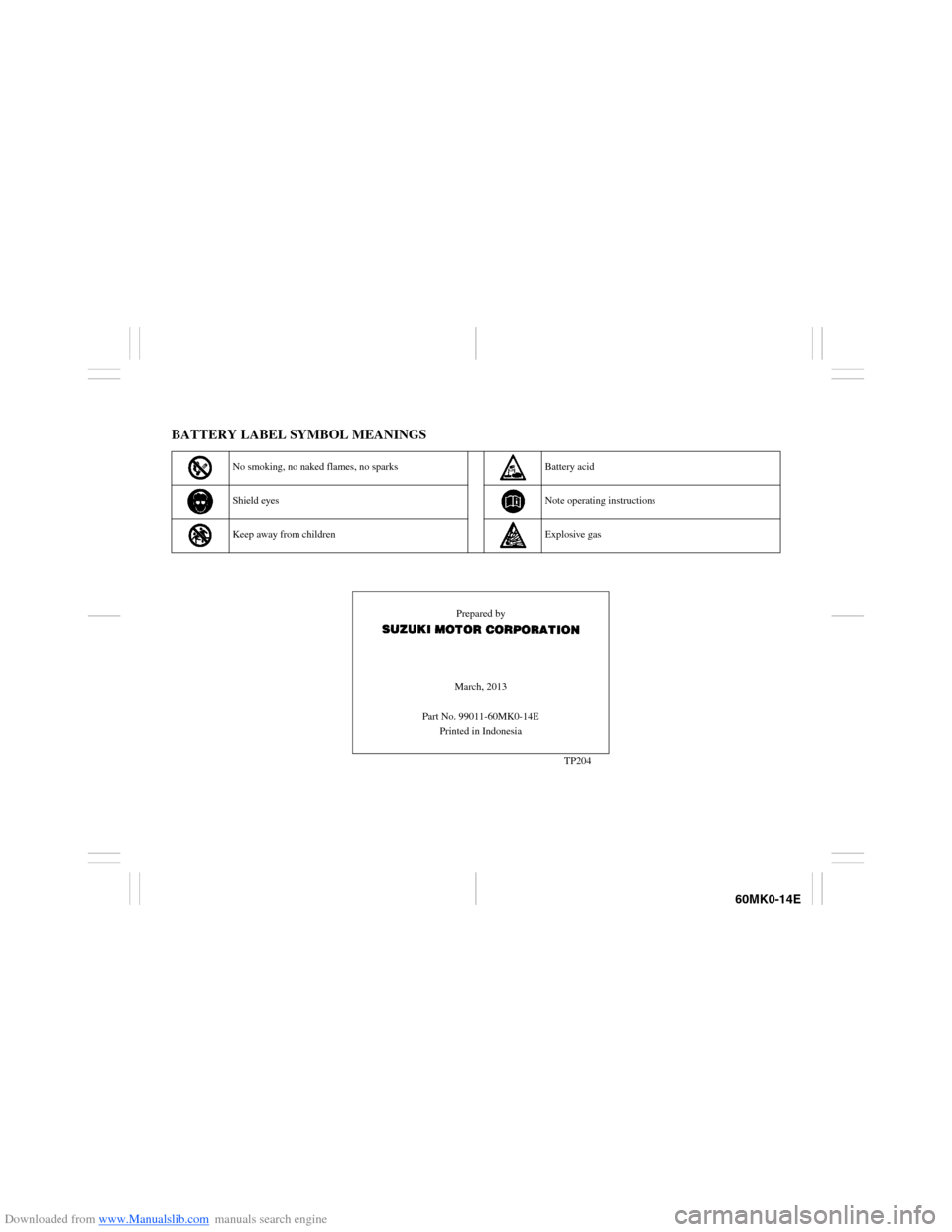

BATTERY LABEL SYMBOL MEANINGS
No smoking, no naked flames, no sparks
Battery acid
Shield eyes
Note operating instructions
Keep away from children
Explosive gas
Prepared by
March, 2013
Part No. 99011-60MK0-14E
Printed in Indonesia
TP204
