2013 SUBARU IMPREZA WRX Owners Manual

14 &Interior
! Passenger compartment area
1) Lower anchorages for child restraint
system (page 1-29)
2) Seatbelt (page 1-11)
3) Parking brake lever (page 7-33)
4) Front seat (page 1-2)
5) Rear seat (page 1-7)

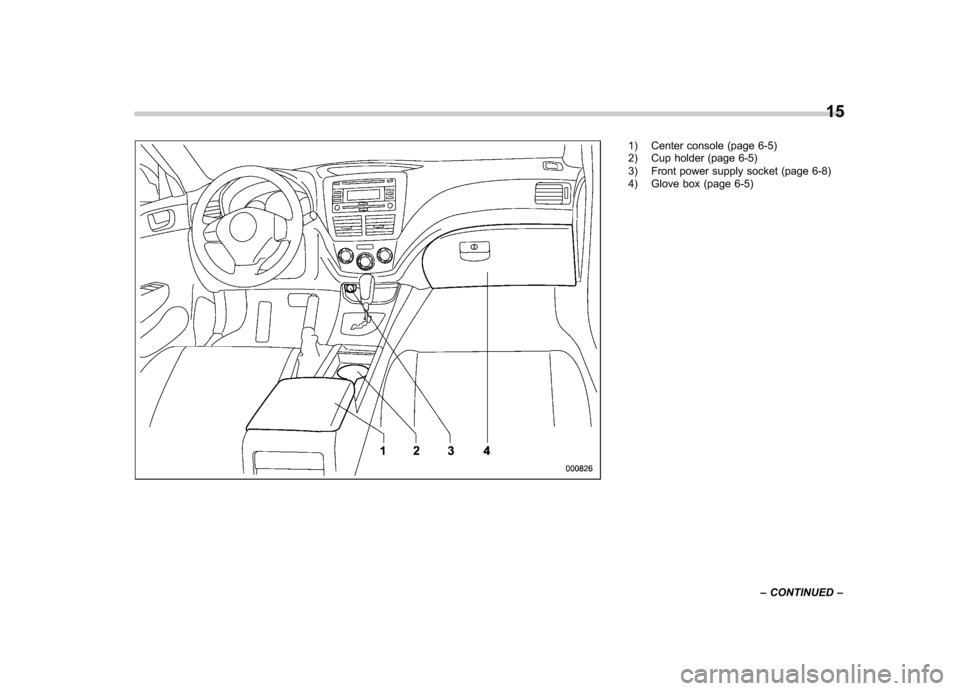

1) Center console (page 6-5)
2) Cup holder (page 6-5)
3) Front power supply socket (page 6-8)
4) Glove box (page 6-5)15
– CONTINUED –

16 &Instrument panel
1) Door locks (page 2-4)
2) Outside mirror switch (page 3-45)
3) Illumination brightness control
(page 3-31)
4) Headlight beam leveler (page 3-32)
5) Light control switch (page 3-29)
6) Combination meter (page 3-5)
7) Wiper control lever (page 3-34)
8) Hazard warning flasher switch (page 3-5)
9) Audio (page 5-1)
10) Shift lever (page 7-14/page 7-16)
11) Climate control (page 4-1)
12) Cruise control (page 7-37)
13) Horn (page 3-49)
14) SRS airbag (page 1-34)
15) Tilt/telescopic steering (page 3-48)
16) Hands-free switches (page 5-35)
17) Audio control buttons (page 5-31)
18) Fuse box (page 11-37)
19) Vehicle Dynamics Control OFF switch (page 7-30)/Vehicle Dynamics Control
mode switch (page 7-29)
20) Hood lock release knob (page 11-5)
21) Power windows (page 2-20)

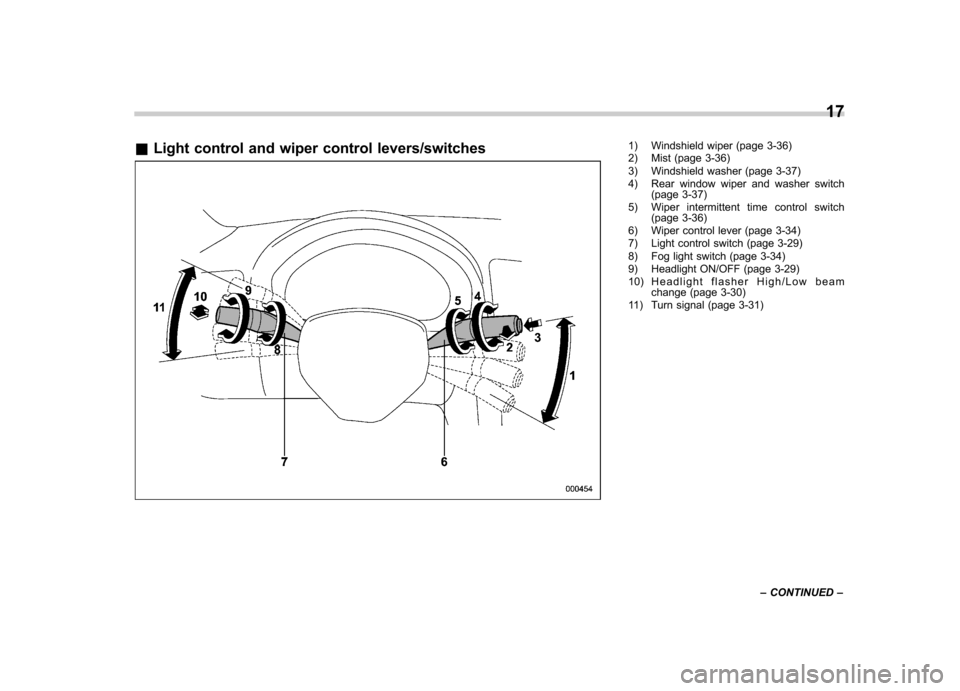

&Light control and wiper control levers/switches1) Windshield wiper (page 3-36)
2) Mist (page 3-36)
3) Windshield washer (page 3-37)
4) Rear window wiper and washer switch
(page 3-37)
5) Wiper intermittent time control switch (page 3-36)
6) Wiper control lever (page 3-34)
7) Light control switch (page 3-29)
8) Fog light switch (page 3-34)
9) Headlight ON/OFF (page 3-29)
10) Headlight flasher High/Low beam change (page 3-30)
11) Turn signal (page 3-31) 17
– CONTINUED –

18 &Combination meter
! U.S.-spec. models (STI)
1) Fuel gauge (page 3-9)
2) Tachometer (page 3-9)
3) Speedometer (page 3-7)
4) Trip meter A/B selection and trip meter
reset knob (page 3-7)
5) Odometer/Trip meter (page 3-7)
6) Temperature gauge (page 3-10)

!U.S.-spec. models (except STI)1) Fuel gauge (page 3-9)
2) Tachometer (page 3-9)
3) Speedometer (page 3-7)
4) Trip meter A/B selection and trip meter
reset knob (page 3-7)
5) Odometer/Trip meter (page 3-7)
6) Temperature gauge (page 3-10) 19
– CONTINUED –

20 !Except U.S.-spec. models (STI)
1) Fuel gauge (page 3-9)
2) Tachometer (page 3-9)
3) Speedometer (page 3-7)
4) Trip meter A/B selection and trip meter
reset knob (page 3-7)
5) Odometer/Trip meter (page 3-7)
6) Temperature gauge (page 3-10)

!Except U.S.-spec. models (except STI)1) Fuel gauge (page 3-9)
2) Tachometer (page 3-9)
3) Speedometer (page 3-7)
4) Trip meter A/B selection and trip meter
reset knob (page 3-7)
5) Odometer/Trip meter (page 3-7)
6) Temperature gauge (page 3-10) 21
– CONTINUED –
