2013 SSANGYONG KORANDO center console

0000-00
Luggage lamp switch
Overhead console
switchFront seat heating and ventilation switch
With heating and ventilation
switchWith heating switch
Driver power seat
switch
Center room lamp
switch
Rear door switch (RH)Rear door switch (LH)
Tailgate switch

8510-00
Rear door switch and
heating switch (RH)
Front seat heating and ventilation switch
With heating and ventilation
switchWith heating switch
Rear door switch and
heating switch (LH)Driver power seat
switch
Tailgate switch
Luggage lamp switch
Center room lamp
switch
Overhead console
switch

8510-00
Door coupled room lamp operation and dimming control
When opening any of doors while the room lamp switch in overhead console is pressed in ("Door"
coupled position), the front and center room lamps come on. If the key is removed and door stays open,
the room lamps automatically goes off after 10 minutes. The sleep mode will be deactivated when the
door is locked or closed with the lamp OFF automatically.
When closing the door with IGN ON, the room lamps go off immediately.
When closing the door with IGN OFF, the room lamps stay on for 2 seconds more and are dimmed
out the side fascia panel.
When turning the ignition switch to ON position during dimming out operation, the room lamps go off
immediately.
When receiving the door unlock signal with IGN OFF, key removed and door closed, the overhead
console room lamp/center room lamp come on for 30 seconds.
For specification with the SKM, the lamps come on by the REKES unlock or passive unlock
signal.
When receiving the door unlock signal again while the lamps stay on by the REKES or passive
unlock signal, the overhead console/center room lamps stays on for 30 seconds more. (the lamps
stay on when receiving door unlock signal)
When opening a door during the coupled operation and dimming operation, the room lamps stays
ON. When closing it again, the lamps stay on for 2 seconds more and are dimmed out for 3 seconds.
While the room lamps dim out when the driver/passenger/rear doors are open and closed, they go off
immediately when entering into the theft deterrent mode.
The room lamps come on when AUTO approach signal is received. 1.
2.
3.
4.
5.
6.
7.
8.

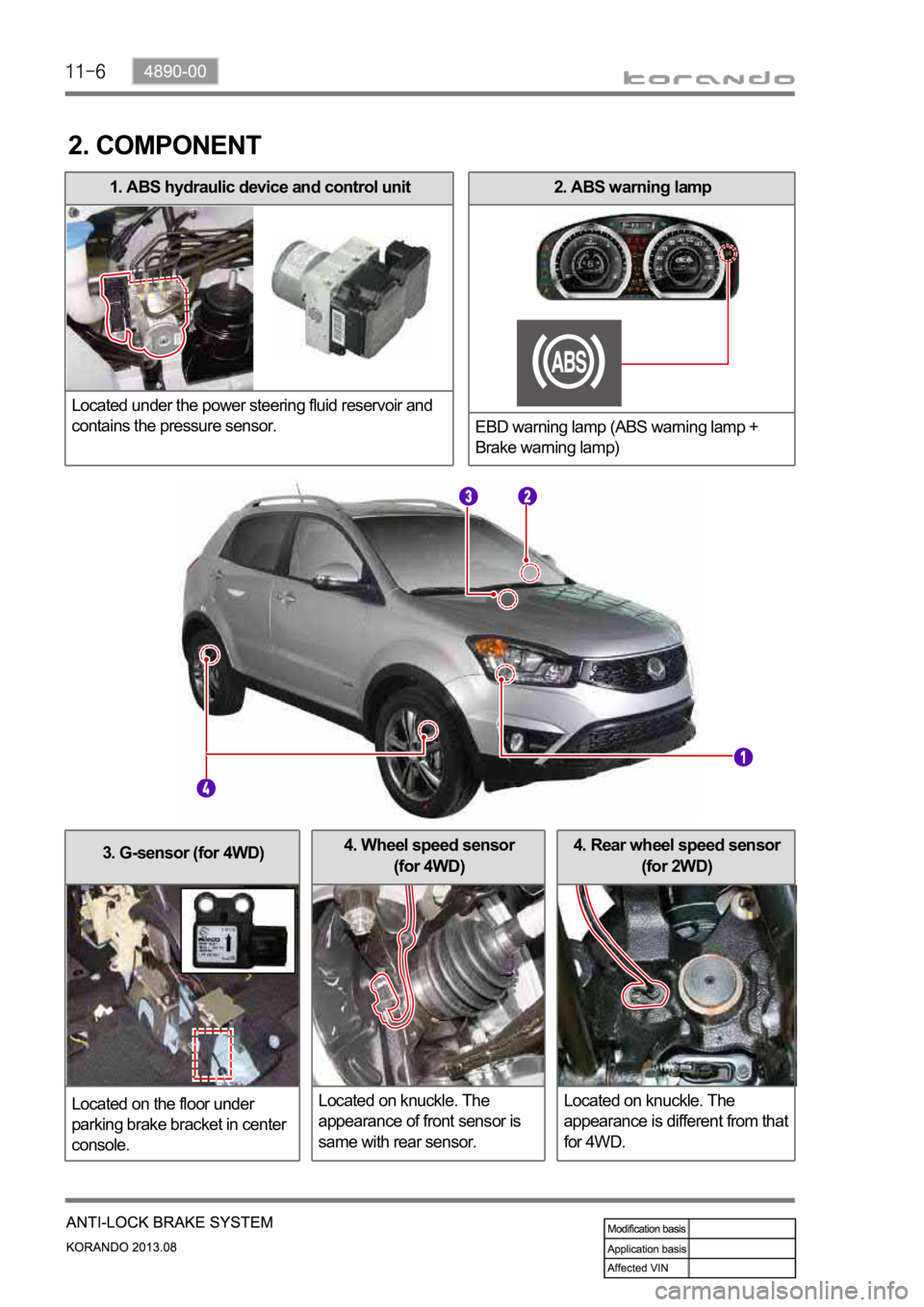

3. G-sensor (for 4WD)
Located on the floor under
parking brake bracket in center
console.4. Rear wheel speed sensor
(for 2WD)
Located on knuckle. The
appearance is different from that
for 4WD.4. Wheel speed sensor
(for 4WD)
Located on knuckle. The
appearance of front sensor is
same with rear sensor.
2. ABS warning lamp
EBD warning lamp (ABS warning lamp +
Brake warning lamp)1. ABS hydraulic device and control unit
Located under the power steering fluid reservoir and
contains the pressure sensor.
2. COMPONENT

Driver air bag
The air bag is installed at the center of the
steering wheel. The inflator of this air bag is
ignited momentarily in the event of a collision
and deploys the air bag cushion.
Air bag unit (SDM)
The air bag unit is installed in
the front side of the front
console, and it monitors the
air bag system and
determines the air bag
deployment in the event of a
collision.Front impact sensor
The front impact sensors are fitted
at the bottom of both LH and RH
headlamp inside the front
bumper, and output signals that
activates the front air bag system.
Air bag warning lamp
This lamp notifies the driver about the result of the
diagnosis and faults.
Passenger air bag
This air bag is installed in the upper side
of the instrument panel on the
passenger side. It activates in the same
way of the driver air bag.
2. AIR BAG SYSTEM LAYOUT
Passenger Air Bag ON/OFF Switch
The front passenger air bag is disabled (not
inflatable) when placing the passenger air bag
switch is located on the right side of the
instrument panel, and you can see it when
opening the front passenger door. Press and
turn this switch to operate.
