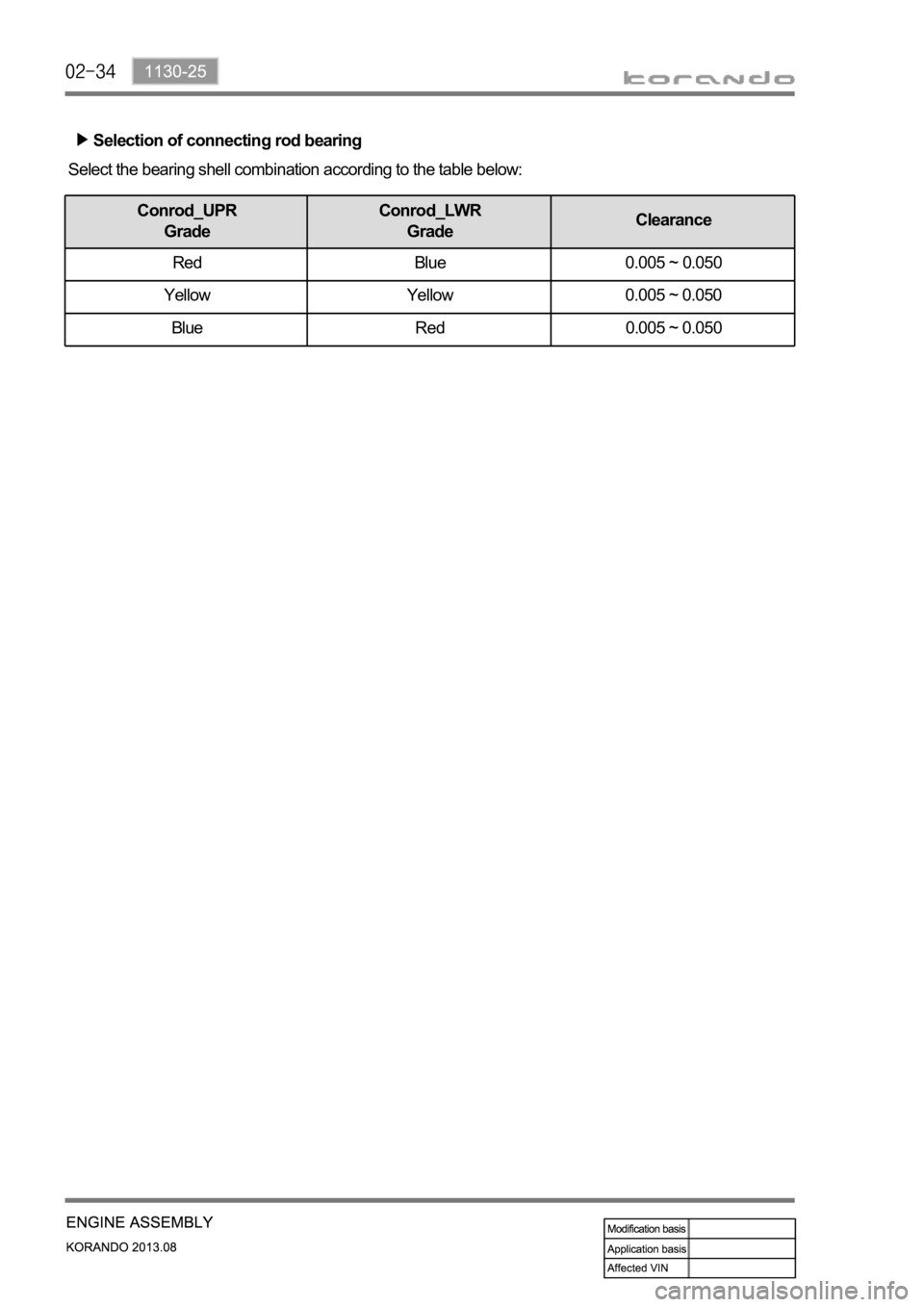

Selection of connecting rod bearing
Select the bearing shell combination according to the table below:
Conrod_UPR
GradeConrod_LWR
GradeClearance
Red Blue 0.005 ~ 0.050
Yellow Yellow 0.005 ~ 0.050
Blue Red 0.005 ~ 0.050

Bottom of cylinder block Crankshaft sprocket installing surface
Crankshaft lower bearing Crankshaft lower bearing
Selection of crankshaft main bearing
Pin
punch
markColorDiameter of crankshaft
main journal in cylinder
block (mm)
* Blue 62.500 ~ 62.506
** Yellow 62.506 ~ 62.513
*** Red 62.513 ~ 62.519Mark ColorDiameter of
crankshaft main
journal (mm)
B Blue 57.960 ~ 57.965
Y Yellow 57.955 ~ 57.960
R Red 57.950 ~ 57.955
W White 57.945 ~ 57.950
V Violet 57.940 ~ 57.945
Engine
name
Main
journal
bearing
#1 #2 #3 #4 #5
G2 0DF
RRWWR

8010-01
Indicator
(green)
Headlamp high beam indicator
Front fog lamp indicator
Side light indicator
Indicator
(blue)
Indicator
(green)
Indicator
(amber)
Glow indicator(DSL only)
Indicator
(red)
Fuel filter indicator(DSL only)
This indicator comes on when the tail lamp is switched on.
This indicator comes on when the ignition switch is turned to the "ON"
position and will go off when the glow plugs are sufficiently heated.
This indicator comes on when the water level in the fuel filter exceeds a
certain level. This lamp comes on when the headlamp high beam is operated.
This indicator comes on when the fog lamp switch is operated after the tail
lamps comes on.
3) Details of Warning Lamps and Indicators

8510-00
Audio remote control switch
Cruise control switch
Item Specification
Cruise control switchON/OFF DC 5V - 10mA
DECEL DC 5V - 10mA
ACCEL DC 5V - 10mA
RESUME DC 5V - 10mA
Item Resistance Output voltage
Audio
remote control
switchVOL -
0 to 0.3 V
VOL +
0.4 to 1.0 V
MODE
1.1 to 1.4 V
MUTE
1.5 to 1.8 V
SEEK UP
1.9 to 2.25 V
SEEK DOWN
2.26 to 2.64 V
TIP -
-
TIP +
-
Bluetooth
(hands-free)
2.66 to 3.0 V
Front seat heating and ventilation switch
Item Specification
Front seat heating
and ventilation switchDriver seat heating switch 12V - 0.1A (max. 30 mA)
Driver seat ventilation switch 12V - 0.1A (max. 30 mA)
Passenger seat heating switch 12V - 0.1A (max. 30 mA)

Luminous intensity is a measure for the amount of light which passes through the unit area per
time unit. The SI unit of luminous intensity is the candela (cd), an SI base unit. -Luminous Intensity
Luminance describes the amount of light that passes through or is emitted from a particular area,
and falls within a given solid angle. It is measured in sb or nt. -Luminance
This indicates the amount of light reaching a given area. Measuring unit is lux (lx) and it is not
directly proportional to the brightness of the area as the reflection rate is not included. -Intensity of illumination
The LED stands for "Light Emitting Diode" or "Luminescent Diode." LED is a semiconductor diode
that emits incoherent narrow-spectrum light when electrically biased in the forward direction of the
p-n junction, as in the common LED circuit. In short, it is an element that converts electric signals
into light signals. Yellow, blue, red and white LEDs are currently available.
The followings are the advantages of LED.
It is not glaring and doesn't have short circuit unlike the conventional lamps.
It is semi-permanent and doesn't generate heat.
Its power consumption is much lower than those of conventional bulbs. -
-
Pin No. Specification
Operating voltage 9 V to 16 V
Load Max. 200 mA (relay load)
Operating temperature
Storage temperature
Mounting location Top center of inner side of windshield glass
2. AUTOMATIC LIGHT SENSOR SPECIFICATIONS

8910-05
1. SPECIFICATION
Unit Item Specification
AudioVoltage DC 14.4 V
Speaker impedance
Max. power 45 watts x 4 ch
Weight 2,244 g
Size 310.4 mm (W) x 275.7 mm (H) x 209 mm (D)
RadioFrequencyFM: 87.5 MHz ~ 108.0 MHz
AM: 531 kHz ~ 1,602 kHz
SensitivityFM: 18 dBu
AM: 35 dBu
S/N ratio
(Signal/noise ratio)FM: 45 db
AM: 40 db
Stereo channel separation
FM: 20 db
MP3 [WMA]/USB Frequency response 20 Hz ~ 20 kHz
S/N ratio
(Signal/noise ratio)60 dB
Channel response 54 dB
MP3 [WMA]/CDFrequency response
S/N ratio
(Signal/noise ratio)50 dB
Channel response 35 dB
BluetoothFrequency 2,402 ~ 2,480 MHz
SpecificationSupports headset, hands-free, A2DP and AVRCP
profile formats
(Headset, hands-free: profile for calling)
(A2DP, AVRCP: profile for listening music)

1. OVERVIEW
The audio head unit is fitted with the Bluetooth handsfree for convenience. It has a micro pole antenna
and its own integrated amplifier to improve the radio frequency reception rate and to provide the high-
quality sound. The iPod function also has been added to the USB terminal.
Front door speakerAudio remote
control switch
Audio head unit USB & AUX jack
assemblyBluetooth (hands
-free)microphone
Front door tweeter
speaker

8910-05
Micro pole antennaRear door speaker
Bluetooth (hands-free)
microphone
Audio remote
control switch
USB/AUX jack assembly
Audio head unit
