2013 SSANGYONG KORANDO display

8010-01
Operations for power supply in SVC
When the ignition switch is turned to ON position, the message "WELCOME" is displayed for 2
seconds on the DOT LCD and the seat belt reminder comes on for 4 seconds. However, if a signal
with higher priority is received, the seat belt reminder comes on only for 2 seconds
to display it.
The pre-warning (system check) indicator comes on for 4 seconds and goes off 0.4 seconds after
that the ignition is switched on.
All input signals can be input 4 seconds after the pre-warning (system check) indicator starts
illuminating.
Only the symbol and DOT LCD are illuminated initially, if the SKM (Smart Key Module) or door (B-
CAN) signal is received
while B+ power is supplied.
If the ignition is switched on with the LCD illuminated, the DOT LCD and the symbol follow
the side fascia panel.
When the step 1, 2 and 3 are performed after 4 seconds, the seat belt warning lamp is deactivated
in advance.
Dial light ON condition: Lights up gradually for 2 seconds when the ignition is switched on. 1.
2.
3.
4.
5.
6.
4) Illumination & Brightness
(1) Operations for Power Supply

When the ignition is switched off, the message "GOOD-BYE" is displayed for 2 seconds and disappears.
The other LCDs go off as soon as the ignition is switched off.
The dial and pointer dim down for 2 seconds and go off at the same time when the DOT LCD goes off. 7.

8010-01
Operations for power supply in STD
The operation input before the LCD backlight is illuminated, right after the ignition is turned OFF or ON,
is ignored.
detected.
The LCD display, LCD backlight, dial lamp and indicator lamp are turned on or off by the ignition
switch ON/OFF operation. -
-
-

8010-01
Function Signal Remark
Input data Speed signal
Display type 4 digits LCD
Display range A: 0.0 ~ 999.9 km
(mile)
B: 0.0 ~ 9999.9 km
(mile)
Resolution 0.1 km (mile)
Maximum Odo
value
km
0.0 km
IGN OFF Memorize and maintain previous trip distance
Data clear Supply B+ voltage for the first time
Press and hold mode switch for more than 1 sec.
Maximum Odo
valueIf the signal indicating actual vehicle speed above 300 km/h is received, the data is
not accumulated.
Function Signal Remark
Input data Speed signal
Display type 6 digits LCD
Display range 0~999999 km(mile)
Hold
Resolution 1 km (mile)
Maximum Odo
valueIf the signal indicating
actual vehicle speed
above 300 km/h is
received, the data is
not accumulated.
STD Class Odometer Display & Data Storage
STD Class Tripmeter Display

Function Signal Remark
Display type 3 digits LCD
Display range 50 km ~ 999 km
(30 miles ~ 999 miles)
Resolution 1 km (mile)
Display interval every 1 seconds
(1) DTE (Distance To Empty) Mode
The DTE (distance to empty) function is an estimation on how much further the vehicle can be driven with
the fuel remaining in the tank, based on the previous driving pattern (fuel economy).
7) Display Mode
STD Class Odometer Display & Data Storage

8010-01
Function Signal Remark
Display type 3 digits LCD
Display range 0.0 km ~ 99.9 km
(0 miles~99.9 miles)
Resolution 0.1 km (mile)
Display
intervalevery 10 seconds
Data clear- Disconnect B+
voltage
- Press and hold
Reset switch for
more than 1 sec.
- Reset automatically
when refilling
Standard type
- Drives at speed of 1 km/h or higher after refueling
- Press TRIP switch for more than 1 sec.
Supervision type
- To set reset ON/OFF when driving at speed of 1 km/h or higher after refueling
A) For auto reset
- Drive at speed of 1 km/h or higher after refueling
- Menu is not reset when pressing TRIP switch for more than 1 sec.
- Changed to manual setting when pressing TRIP switch for more than 5 sec.
B) For manual reset
- Menu is not reset when driving at speed or 1 km/h or higher after refueling
Menu is reset when pressing TRIP switch for more than 1 sec.
- Changed to automatic setting when pressing TRIP switch for more than 5 sec.
(2) Average Fuel Consumption Mode
The LCD display indicates average fuel consumption calculated based on total driving distance and total
fuel consumption since B+ power supply or data reset.

When the ignition is switched on and the vehicle is drived more than 10 km, average fuel consumption
is displayed at every 200 ms, based on the fuel consumption and driving distance for 600 ms. -
Function Signal Remark
Display type DOT BAR TYPE(92DOT)
Display range
Resolution
(DOT)
0.5435(MPG per Bar)
Display interval

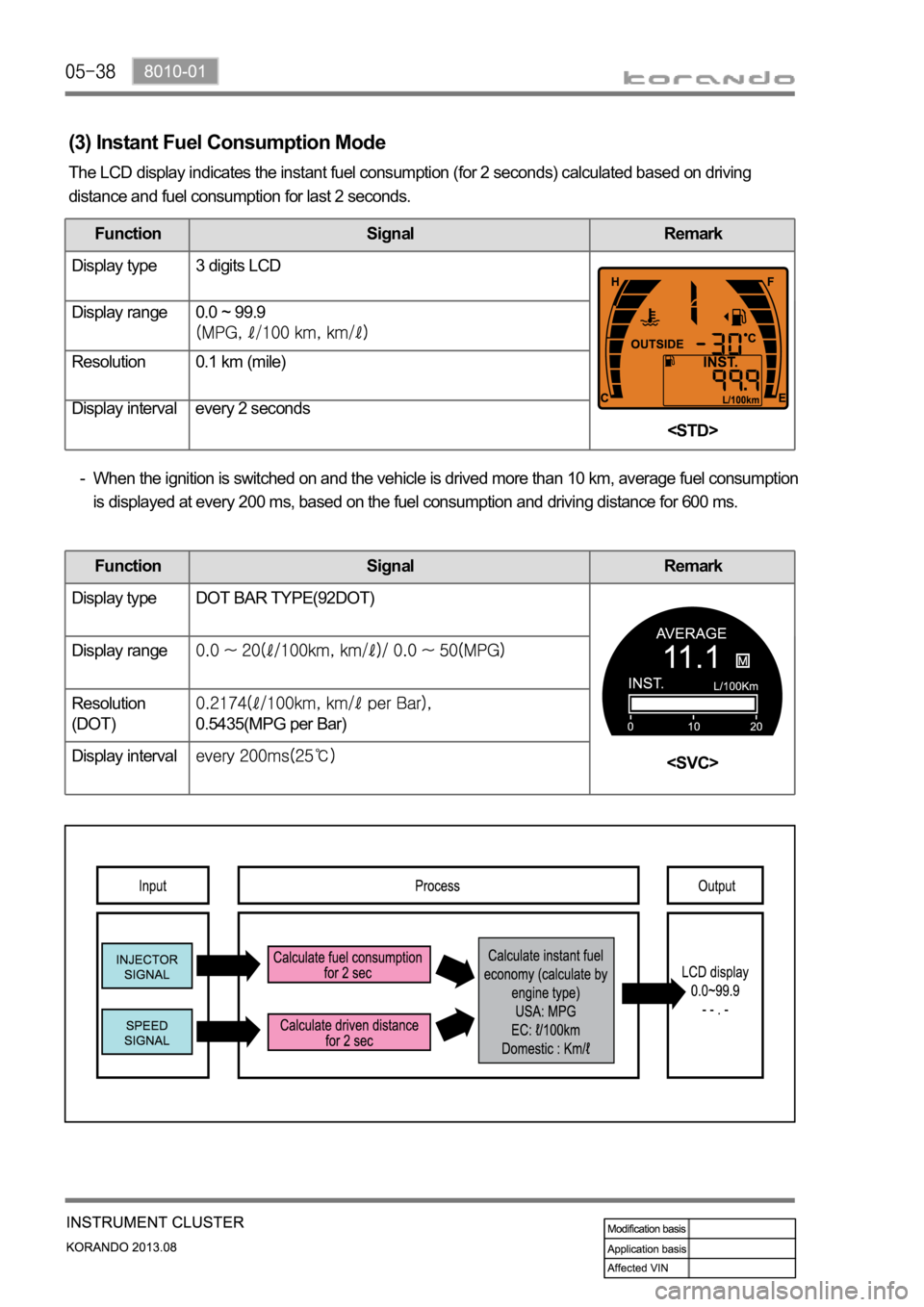

(3) Instant Fuel Consumption Mode
The LCD display indicates the instant fuel consumption (for 2 seconds) calculated based on driving
distance and fuel consumption for last 2 seconds.
Function Signal Remark
Display type 3 digits LCD
Display range 0.0 ~ 99.9
Resolution 0.1 km (mile)
Display interval every 2 seconds

8010-01
SVC class instrument cluster STD class instrument cluster
(4) Illumination Mode
TRIP/RESET switch
Press for less than 1 second: change to next mode
Press for more than 1 second:
: Enter into illumination level mode
1 second on consecutively illumination mode
If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode, the
LCD changes to next mode. -
-
-

(5) TPMS mode
The TPMS (Tire Pressure Monitoring System) monitors each tire's status and warns a driver for
dangerous situations.
At initial start (more than 20 minutes have elapsed after ignition off), the tire pressure is not
determined. It can be displayed after 10 minutes of driving at speed of 20 km/h or higher. -
-
Standard type
Pressing the TRIP switch at the illumination brightness mode shows the items in the following order:
TPMS (front)->TPMS (rear).
Status Operating conditions Display
Tire pressure
displayAt initial start (more than 20 minutes have
elapsed after ignition off), the tire pressure is
not determined. It can be displayed after 10
minutes of driving at speed of 20 km/h or
higher.
FR - display
RR - displayIf the tire pressure is abnormal when it is not
The standard type instrument cluster shows
