2013 SKODA SUPERB battery replacement

Rear towing eyeFig. 188
Rear bumper: Removing the cap/installing the towing eye
First read and observe the introductory information and safety warn- ings
on page 236.
›
Press onto the bottom part of the cap in the rear bumper » Fig. 188 - 
and re-
move it.
›
Screw in the towing eye by turning to the left up to the stop » Fig. 188 - 
and
tighten as much as possible. For tightening purposes, we recommend, for exam-
ple, using the wheel wrench, towing eye from another vehicle or a similar object
that can be pushed through the eye.
›
After unscrewing the towing eye, put the cap on and press into place. The cap must engage firmly.
On vehicles with a factory-fitted towing device, there is no mount for the screw-
in towing eye behind the cap » page 238, Vehicles with a tow hitch .
CAUTION
The towing eye must always be screwed in fully and firmly tightened, otherwise
the towing eye can tear when towing in or tow-starting.
Vehicles with a tow hitch
First read and observe the introductory information and safety warn-
ings
on page 236.
On vehicles with a factory-fitted towing device, there is no mount for the screw-
in towing eye behind the cap.
Use the built-in detachable ball rod for towing » page 162, Towing device .
Towing the vehicle using the towing device is a viable alternative solution to us-
ing the towing eye.
If the towing device is removed completely, it must be replaced with the standard
reinforcement of the rear bumper which is part of the mount for the towing eye.
If this procedure is not observed, the vehicle may not meet the national legal pro- visions.
CAUTION
The detachable ball rod and/or the vehicle can be damaged if an unsuitable towbar is used.
Note
The detachable ball rod must always be in the vehicle so that it can be used for
towing, if necessary.
Radio remote control
 Introduction
This chapter contains information on the following subjects:
Replacing the battery in the remote control key
239
Synchronising the remote control
239
Replace the battery in the remote control of the auxiliary heater (parking
heater)
239
CAUTION
■ The replacement battery must have the same specification as the original bat-
tery.■
When replacing the battery, pay attention to the correct polarity.
For the sake of the environment
Dispose of the used battery in accordance with national legal provisions.
238Do-it-yourself

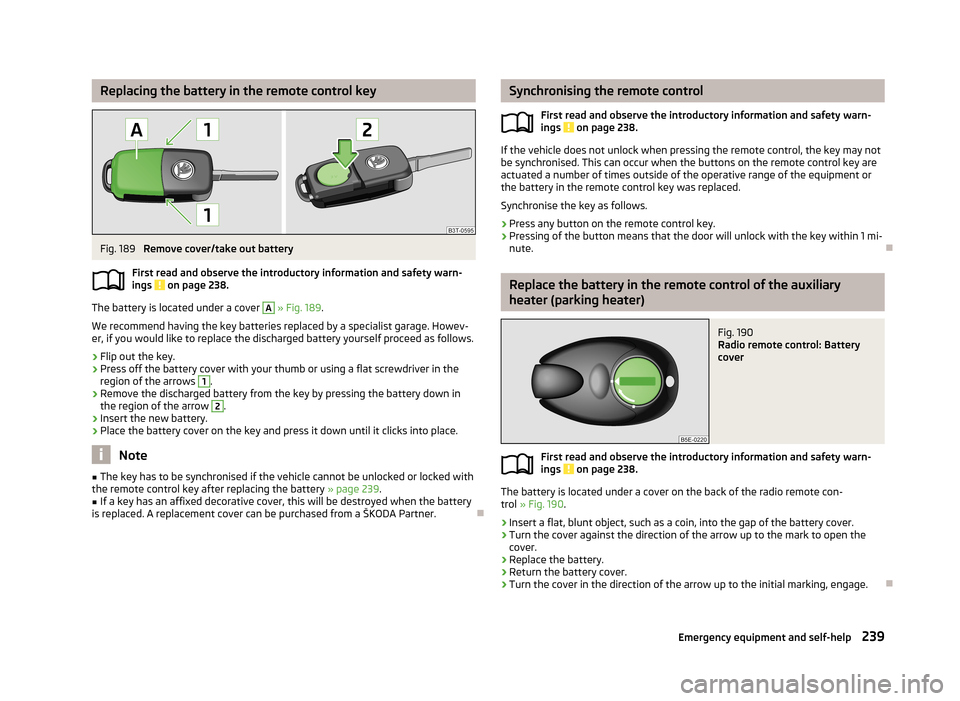

Replacing the battery in the remote control keyFig. 189
Remove cover/take out battery
First read and observe the introductory information and safety warn-
ings
on page 238.
The battery is located under a cover
A
» Fig. 189 .
We recommend having the key batteries replaced by a specialist garage. Howev- er, if you would like to replace the discharged battery yourself proceed as follows.
›
Flip out the key.
›
Press off the battery cover with your thumb or using a flat screwdriver in theregion of the arrows
1
.
›
Remove the discharged battery from the key by pressing the battery down inthe region of the arrow
2
.
›
Insert the new battery.
›
Place the battery cover on the key and press it down until it clicks into place.
Note
■ The key has to be synchronised if the vehicle cannot be unlocked or locked with
the remote control key after replacing the battery » page 239.■
If a key has an affixed decorative cover, this will be destroyed when the battery
is replaced. A replacement cover can be purchased from a ŠKODA Partner.

Synchronising the remote control
First read and observe the introductory information and safety warn-
ings
on page 238.
If the vehicle does not unlock when pressing the remote control, the key may not
be synchronised. This can occur when the buttons on the remote control key are actuated a number of times outside of the operative range of the equipment or
the battery in the remote control key was replaced.
Synchronise the key as follows.
›
Press any button on the remote control key.
›
Pressing of the button means that the door will unlock with the key within 1 mi-
nute.

Replace the battery in the remote control of the auxiliary
heater (parking heater)
Fig. 190
Radio remote control: Battery
cover
First read and observe the introductory information and safety warn-
ings on page 238.
The battery is located under a cover on the back of the radio remote con-
trol » Fig. 190 .
›
Insert a flat, blunt object, such as a coin, into the gap of the battery cover.
›
Turn the cover against the direction of the arrow up to the mark to open the
cover.
›
Replace the battery.
›
Return the battery cover.
›
Turn the cover in the direction of the arrow up to the initial marking, engage.

239Emergency equipment and self-help

N
Net partition
95
Behind the front seats96
Behind the rear seats95
Removing and refitting the housing96
Nets86
Non-closable side pocket (Superb Combi)90
O
Oil See Engine oil
211
Oil pressure display messaes
16
On-board computer see multifunction display
25
Operation in winter Diesel fuel
206
Vehicle battery217
Outside temperature26
Overview Engine compartment
209
P
Paintwork See Paintwork care
198
Paintwork care198
Panoramic sliding roof (Combi) Closing
48
Opening48
Sun screen48
Park assist153
Finding a parking space154
Information messages156
Parking155
Parking Automatic brake assist
156
Manoeuvring out of a parallel parking space156
Park assist153
Parking aid152
Parking aid152
Function153
Parking lights51
Parking vehicle38
Part replacement193
Passive safety Before setting off
169
Driving safety170
Safety equipment169
Passive Safety169
Pedals139
Footmats139
Petrol refer to Fuel
205
Polishing the paintwork See Taking care of your vehicle
198
Power outlet 12 V
78
Power steering131
Power windows Button in the front passenger door
45
Operational faults46
Practical features74
12-Volt power outlet78
Storage compartment for umbrella82
Storage compartment in rear centre console82
Storage compartment on the passenger side80
Storage compartment under the armrest, front79
Storage compartment under the passenger seat81
Storage net in the front centre console79
Storage pockets on the front seats82
R
Radiator fan
209
Radio reception See windows
200
Radio remote control Auxiliary heating
109
Raise vehicle231
Rear-view mirror Exterior mirrors
65
Rear fog light55
Rear interior light58
Rear mirror63
Interior mirror64
Rear seats Seat folded forward Combi
74
Rear window - heater59
Recirculated air mode Manual air conditioning
102
Recommended gear24
Refuelling204
Fuel204
Remote control lock
33
Replacing the battery239
Synchronisation process239
unlock33
Remote control key Replacing the battery
239
Removable lights (Superb Combi) Changing rechargeable light batteries
91
Removable Light (Superb Combi) Remove light
91
Removable ski bag84
Removable variable loading floor Fit and remove
94
Repairs and technical alterations193
Replace Vehicle battery
218
Replacing Bulb for main beam
249
Bulb for main beam and daytime running lights249
Bulb for the fog light250
Bulb for the licence plate light250
Bulb in rear light (Superb Combi)251
Bulbs247
Fuses244
265Index
