Switching the device on/offFirst read and observe the introductory information given on page 5.›
Press the  knob to switch the device on or off.
When the device is switched on, the audio source and operating mode that were active before switching off the device will be restored.
If the vehicle key is pulled out of the ignition lock while the unit is switched on,the unit will switch off automatically. After switching on the ignition, the unit is
turned on automatically.
If the device was switched off using the 
knob, then the device will not switch
on automatically after switching on the ignition.
If your vehicle is fitted with the KESSY system, the device will switch off automat-
ically after the engine has been turned off and the door opened.
When the ignition is switched off, the system switches off automatically after ap-prox. half an hour (discharge protection of the vehicle battery).

Adjusting the volume
First read and observe the introductory information given on page 5.
Increase the volume
›
Turn the  knob to the right.
Reduce the volume
›
Turn the  knob to the left.
Muting
›
Press the MUTE button
or
›
Set the volume to 0 using the  knob.
CAUTION
Car speakers may be damaged if playback is too loud or distorted.Note■
The change in volume is displayed on the device display screen.■The corresponding symbol appears in the display when the sound is muted. .■
Some connected sources allow the volume to be changed directly at the source.
■
Excessively high volumes can cause sound resonance in the vehicle.
■
The loudspeakers in the vehicle are designed for a device power output of 4 x
20 W.

Operating the device
 Introduction
This chapter contains information on the following subjects:
Operating via the device screen
7
Operating using the buttons on the control lever
7
Operating using the buttons/dials on the multi-function steering wheel -
Audio menu
8
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .
Some features of the device are also displayed in the Maxi DOT display 1)
. Depend-
ing on the vehicle equipment, these features can be operated as follows.
■ Using the buttons on the operating lever » page 7
■ Using the buttons/dials on the multi-function steering wheel » page 8
Note
If the ignition and the side light are switched on, the buttons and dials on the
multifunction steering wheel will also be illuminated.1)
Description of the display in the Maxi DOT display » Owner's Manual , chapter Information system
6Introductory information

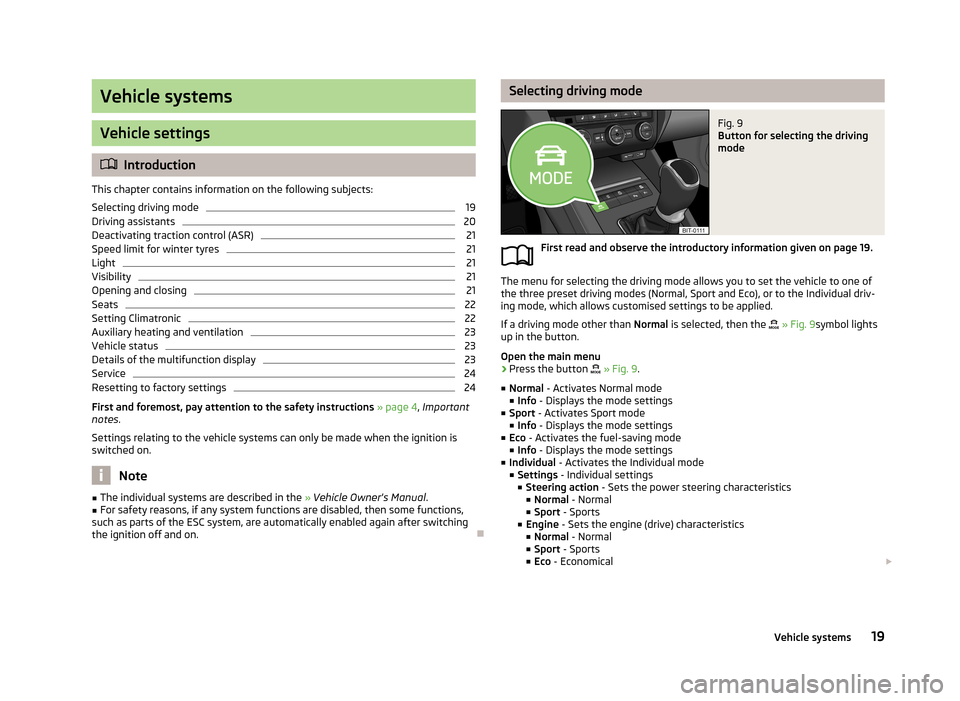

Vehicle systems
Vehicle settings
Introduction
This chapter contains information on the following subjects:
Selecting driving mode
19
Driving assistants
20
Deactivating traction control (ASR)
21
Speed limit for winter tyres
21
Light
21
Visibility
21
Opening and closing
21
Seats
22
Setting Climatronic
22
Auxiliary heating and ventilation
23
Vehicle status
23
Details of the multifunction display
23
Service
24
Resetting to factory settings
24
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .
Settings relating to the vehicle systems can only be made when the ignition is
switched on.
Note
■ The individual systems are described in the » Vehicle Owner's Manual .■For safety reasons, if any system functions are disabled, then some functions,
such as parts of the ESC system, are automatically enabled again after switching
the ignition off and on.

Selecting driving modeFig. 9
Button for selecting the driving
mode
First read and observe the introductory information given on page 19.
The menu for selecting the driving mode allows you to set the vehicle to one of
the three preset driving modes (Normal, Sport and Eco), or to the Individual driv-
ing mode, which allows customised settings to be applied.
If a driving mode other than Normal is selected, then the 
» Fig. 9 symbol lights
up in the button.
Open the main menu
›
Press the button 
» Fig. 9 .
■ Normal - Activates Normal mode
■ Info - Displays the mode settings
■ Sport - Activates Sport mode
■ Info - Displays the mode settings
■ Eco - Activates the fuel-saving mode
■ Info - Displays the mode settings
■ Individual - Activates the Individual mode
■ Settings - Individual settings
■ Steering action - Sets the power steering characteristics
■ Normal - Normal
■ Sport - Sports
■ Engine - Sets the engine (drive) characteristics
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical 
19Vehicle systems

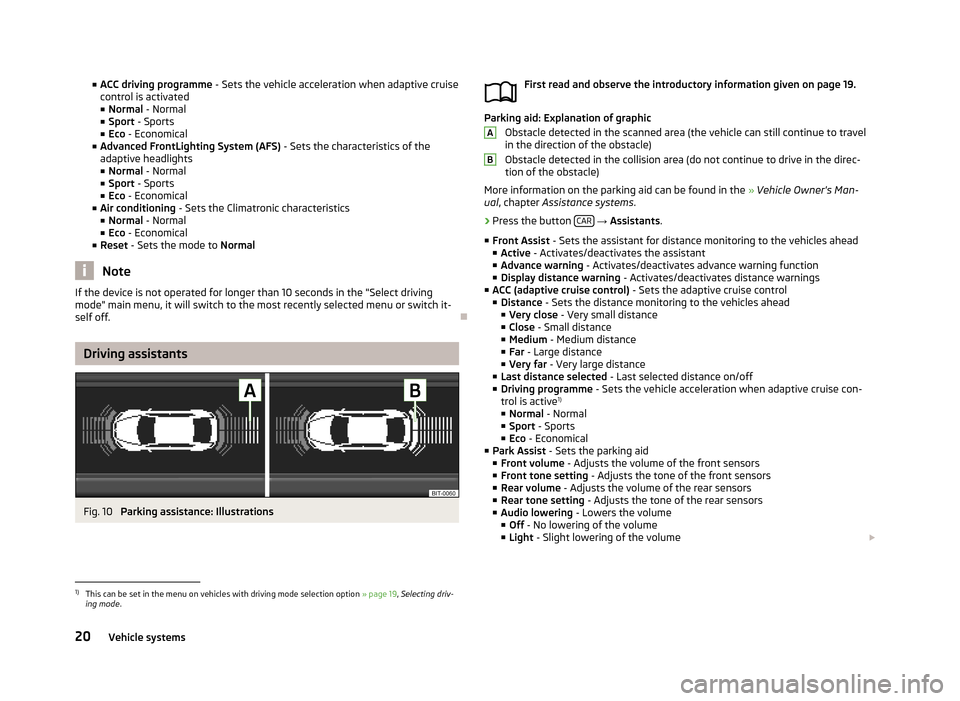

■ACC driving programme - Sets the vehicle acceleration when adaptive cruise
control is activated ■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Advanced FrontLighting System (AFS) - Sets the characteristics of the
adaptive headlights
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Air conditioning - Sets the Climatronic characteristics
■ Normal - Normal
■ Eco - Economical
■ Reset - Sets the mode to Normal
Note
If the device is not operated for longer than 10 seconds in the "Select driving
mode" main menu, it will switch to the most recently selected menu or switch it-
self off.
Driving assistants
Fig. 10
Parking assistance: Illustrations
First read and observe the introductory information given on page 19.
Parking aid: Explanation of graphic
Obstacle detected in the scanned area (the vehicle can still continue to travel
in the direction of the obstacle)
Obstacle detected in the collision area (do not continue to drive in the direc- tion of the obstacle)
More information on the parking aid can be found in the » Vehicle Owner's Man-
ual , chapter Assistance systems .
›
Press the button CAR
→ Assistants .
■ Front Assist - Sets the assistant for distance monitoring to the vehicles ahead
■ Active - Activates/deactivates the assistant
■ Advance warning - Activates/deactivates advance warning function
■ Display distance warning - Activates/deactivates distance warnings
■ ACC (adaptive cruise control) - Sets the adaptive cruise control
■ Distance - Sets the distance monitoring to the vehicles ahead
■ Very close - Very small distance
■ Close - Small distance
■ Medium - Medium distance
■ Far - Large distance
■ Very far - Very large distance
■ Last distance selected - Last selected distance on/off
■ Driving programme - Sets the vehicle acceleration when adaptive cruise con-
trol is active 1)
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Park Assist - Sets the parking aid
■ Front volume - Adjusts the volume of the front sensors
■ Front tone setting - Adjusts the tone of the front sensors
■ Rear volume - Adjusts the volume of the rear sensors
■ Rear tone setting - Adjusts the tone of the rear sensors
■ Audio lowering - Lowers the volume
■ Off - No lowering of the volume
■ Light - Slight lowering of the volume 

AB1)
This can be set in the menu on vehicles with driving mode selection option
» page 19, Selecting driv-
ing mode .
20Vehicle systems

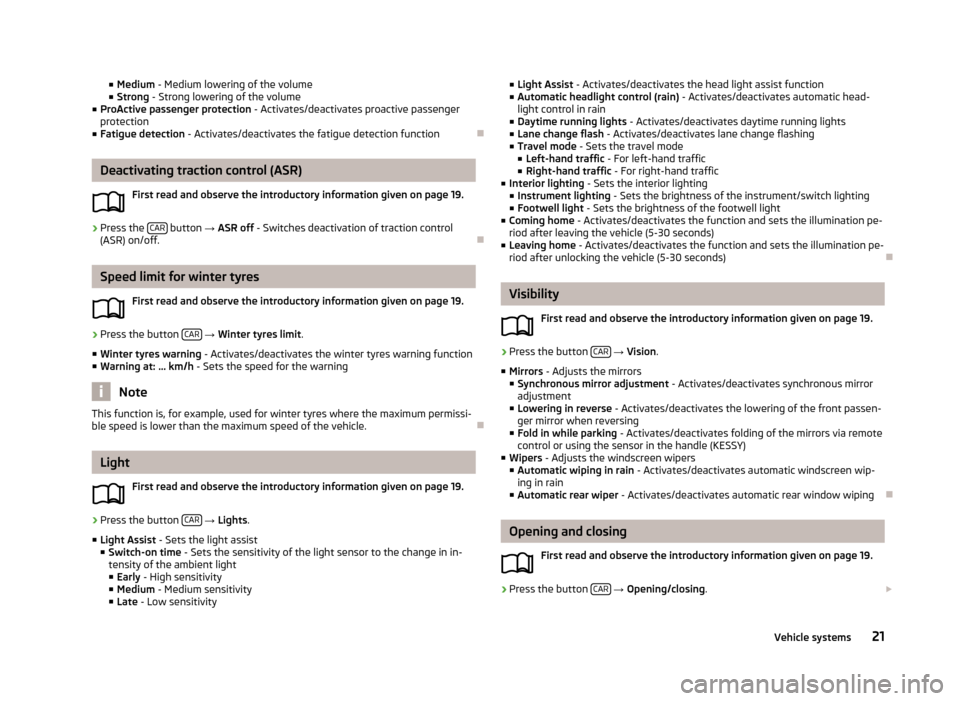

■Medium - Medium lowering of the volume
■ Strong - Strong lowering of the volume
■ ProActive passenger protection - Activates/deactivates proactive passenger
protection
■ Fatigue detection - Activates/deactivates the fatigue detection function
Deactivating traction control (ASR)
First read and observe the introductory information given on page 19.
›
Press the CAR button
→ ASR off - Switches deactivation of traction control
(ASR) on/off.

Speed limit for winter tyres
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Winter tyres limit .
■ Winter tyres warning - Activates/deactivates the winter tyres warning function
■ Warning at: ... km/h - Sets the speed for the warning
Note
This function is, for example, used for winter tyres where the maximum permissi-
ble speed is lower than the maximum speed of the vehicle.
Light
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Lights .
■ Light Assist - Sets the light assist
■ Switch-on time - Sets the sensitivity of the light sensor to the change in in-
tensity of the ambient light
■ Early - High sensitivity
■ Medium - Medium sensitivity
■ Late - Low sensitivity

■
Light Assist - Activates/deactivates the head light assist function
■ Automatic headlight control (rain) - Activates/deactivates automatic head-
light control in rain
■ Daytime running lights - Activates/deactivates daytime running lights
■ Lane change flash - Activates/deactivates lane change flashing
■ Travel mode - Sets the travel mode
■ Left-hand traffic - For left-hand traffic
■ Right-hand traffic - For right-hand traffic
■ Interior lighting - Sets the interior lighting
■ Instrument lighting - Sets the brightness of the instrument/switch lighting
■ Footwell light - Sets the brightness of the footwell light
■ Coming home - Activates/deactivates the function and sets the illumination pe-
riod after leaving the vehicle (5-30 seconds)
■ Leaving home - Activates/deactivates the function and sets the illumination pe-
riod after unlocking the vehicle (5-30 seconds)
Visibility
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Vision .
■ Mirrors - Adjusts the mirrors
■ Synchronous mirror adjustment - Activates/deactivates synchronous mirror
adjustment
■ Lowering in reverse - Activates/deactivates the lowering of the front passen-
ger mirror when reversing
■ Fold in while parking - Activates/deactivates folding of the mirrors via remote
control or using the sensor in the handle (KESSY)
■ Wipers - Adjusts the windscreen wipers
■ Automatic wiping in rain - Activates/deactivates automatic windscreen wip-
ing in rain
■ Automatic rear wiper - Activates/deactivates automatic rear window wiping

Opening and closing
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Opening/closing . 
21Vehicle systems

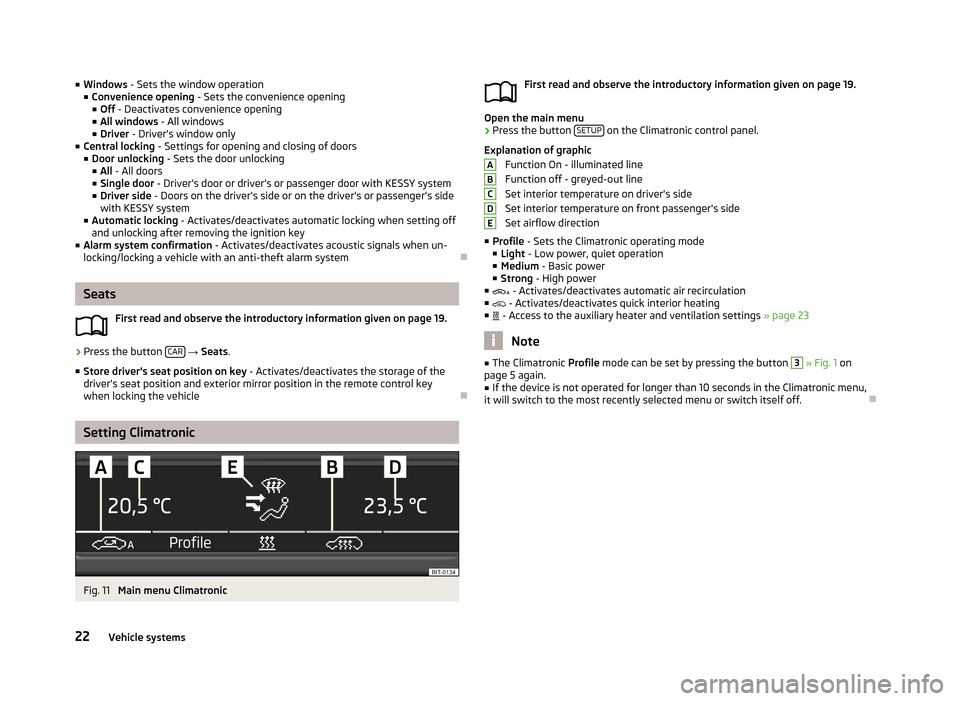

■Windows - Sets the window operation
■ Convenience opening - Sets the convenience opening
■ Off - Deactivates convenience opening
■ All windows - All windows
■ Driver - Driver's window only
■ Central locking - Settings for opening and closing of doors
■ Door unlocking - Sets the door unlocking
■ All - All doors
■ Single door - Driver's door or driver's or passenger door with KESSY system
■ Driver side - Doors on the driver's side or on the driver's or passenger's side
with KESSY system
■ Automatic locking - Activates/deactivates automatic locking when setting off
and unlocking after removing the ignition key
■ Alarm system confirmation - Activates/deactivates acoustic signals when un-
locking/locking a vehicle with an anti-theft alarm system
Seats
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Seats .
■ Store driver's seat position on key - Activates/deactivates the storage of the
driver's seat position and exterior mirror position in the remote control key
when locking the vehicle

Setting Climatronic
Fig. 11
Main menu Climatronic
First read and observe the introductory information given on page 19.
Open the main menu
›
Press the button SETUP on the Climatronic control panel.
Explanation of graphic Function On - illuminated line
Function off - greyed-out line
Set interior temperature on driver's side
Set interior temperature on front passenger's side Set airflow direction
■ Profile - Sets the Climatronic operating mode
■ Light - Low power, quiet operation
■ Medium - Basic power
■ Strong - High power
■  - Activates/deactivates automatic air recirculation
■  - Activates/deactivates quick interior heating
■  - Access to the auxiliary heater and ventilation settings » page 23
Note
■
The Climatronic Profile mode can be set by pressing the button 3 » Fig. 1 on
page 5 again.■
If the device is not operated for longer than 10 seconds in the Climatronic menu,
it will switch to the most recently selected menu or switch itself off.

ABCDE22Vehicle systems

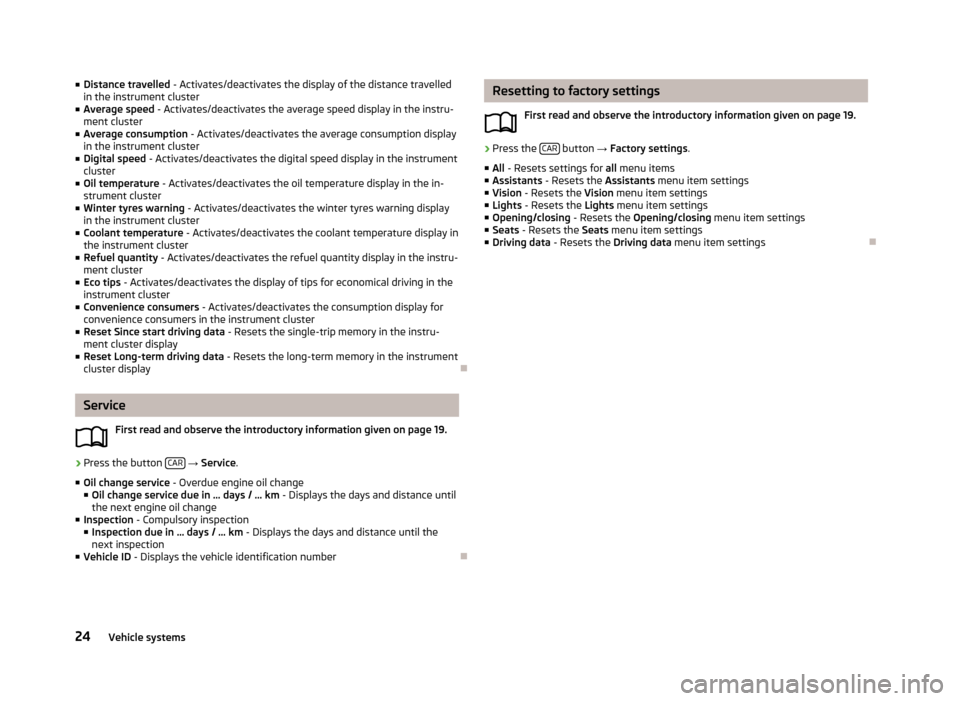

■Distance travelled - Activates/deactivates the display of the distance travelled
in the instrument cluster
■ Average speed - Activates/deactivates the average speed display in the instru-
ment cluster
■ Average consumption - Activates/deactivates the average consumption display
in the instrument cluster
■ Digital speed - Activates/deactivates the digital speed display in the instrument
cluster
■ Oil temperature - Activates/deactivates the oil temperature display in the in-
strument cluster
■ Winter tyres warning - Activates/deactivates the winter tyres warning display
in the instrument cluster
■ Coolant temperature - Activates/deactivates the coolant temperature display in
the instrument cluster
■ Refuel quantity - Activates/deactivates the refuel quantity display in the instru-
ment cluster
■ Eco tips - Activates/deactivates the display of tips for economical driving in the
instrument cluster
■ Convenience consumers - Activates/deactivates the consumption display for
convenience consumers in the instrument cluster
■ Reset Since start driving data - Resets the single-trip memory in the instru-
ment cluster display
■ Reset Long-term driving data - Resets the long-term memory in the instrument
cluster display
Service
First read and observe the introductory information given on page 19.
›
Press the button CAR
→ Service .
■ Oil change service - Overdue engine oil change
■ Oil change service due in … days / … km - Displays the days and distance until
the next engine oil change
■ Inspection - Compulsory inspection
■ Inspection due in … days / … km - Displays the days and distance until the
next inspection
■ Vehicle ID - Displays the vehicle identification number

Resetting to factory settings
First read and observe the introductory information given on page 19.›
Press the CAR button
→ Factory settings .
■ All - Resets settings for all menu items
■ Assistants - Resets the Assistants menu item settings
■ Vision - Resets the Vision menu item settings
■ Lights - Resets the Lights menu item settings
■ Opening/closing - Resets the Opening/closing menu item settings
■ Seats - Resets the Seats menu item settings
■ Driving data - Resets the Driving data menu item settings

24Vehicle systems

Index
A
Adjusting the volume
6
AF10
AM13
Anti-theft device4
Audio12
Media14
Multi-function steering wheel8
Radio12
Automatic headlight in rain21
Automatic locking21
Automatic rear windscreen wiping21
Automatic windscreen wiping in rain21
AUX10, 17
Auxiliary heating and ventilation Settings
23
C
Climatronic Automatic air recirculation
22
Automatic mode22
Operating mode22
COMING HOME21
Component protection4
Control lever7
Convenience consumers23
D
Date
11
Daytime running lights21
Declaration of conformity4
Description and operation of the device5
Description of the device5
Device Settings9
Device screen7, 11
Device screen display7
Device settings9
Driving mode19
E
Eco tips
23
F
Factory settings
11
Fatigue detection system20
File formats15
FM13
Folding down the exterior mirrors - folding in while parking
21
Frequency band13
H
Head Light Assist
21
I
ID3 tag
10
Important notes4
Instrument lighting21
Introductory information4
Component protection4
Declaration of conformity4
L
Lane change flash
21
Language11
LEAVING HOME21
Light sensor - light switch-on time21
M
MAXI DOT
7, 8
MDI17
Media14
Adjusting additional functions17
AUX17
File formats15
Operation16
Selecting sources15
Settings10
Supported media15
USB17
Mix10, 17
Multi-function steering wheel Audio
8
Multifunction display23
O
Operating the device
5, 6
Control lever7
Device7
P
Parking aid
20
PI10
ProActive passenger protection20
PTY10
R
Radio
12
Save radio stations12
Search for radio stations12
Selecting a radio station13
Settings10
Symbols12
Traffic programme (TP)14
RDS10
25Index

Remote control key memory function22
Repeat17
S
Save radio stations
12
Scan Media
17
Radio12
Search for radio stations12
Seats Settings
22
Selecting a radio station13
Selecting driving mode19
Selecting sources15
Settings Device
9
Device system11
Driving mode19
Media10
Radio10
Sound10
Volume6
Setup9
Sound Settings
10
Speed limit for winter tyres21
START-STOP23
Switching the device off6
Switching the device on6
Synchronous adjustment of both mirrors21
System Settings
11
T
Tilting the mirror surface - lowering in reverse
21
Time11
TP12, 14
Traffic programme14
Travel light - travel mode21
Tyre pressure monitor23
U
Units
11
Unlocking doors21
USB17
V
Vehicle identification number
24
Vehicle settings19
Auxiliary heating and ventilation23
Climatronic22
Details of the multifunction display23
Driving assistant20
Light21
Opening and closing21
Resetting to factory settings24
Seats22
Service24
Speed limit for winter tyres21
Traction control (ASR)21
Vehicle status23
Visibility21
Vehicle systems19
Version11
Versions data11
VIN number24
Visual parking system (OPS)20
W
Window convenience operation
21
26Index
