2013 RENAULT SCENIC Electronic Parking Brake Workshop Manual

37B-49
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF046
PRESENT
OR
STOREDBRAKE MOTOR/CABLES CONNECTION
(EMERGENCY UNLOCKING)
1. DEF: Parking brake unlocked by the emergency handle
NOTESPriority when dealing with a number of faults:
Deal first with faults DF003, DF004, DF028, DF029, DF035, DF041, DF042, DF043,
DF050, DF054, DF055, DF057, DF058 and DF073 if they are present or stored.
Conditions for applying the fault finding procedure to a stored fault:
Apply this fault finding procedure if the fault recurs after the fault is cleared, with the
ignition switched off and on again (forced + after ignition feed, see Introduction),
and the parking brake released then applied using the control lever.
Special notes:
The fault does not usually come from the electronic parking brake computer.
This fault indicates that the electronic parking brake system has been unlocked by the
manual control (if this is the case, check that the handle protector has not been
damaged).
Check that the emergency unlocking handle has not been manually pulled by the
user, which would provoke this fault.
The cables are reset by the parking brake release manual command or automatically
(if the fault is present) when the vehicle is driven at more than 1.2 mph (2 km/h)
(the fault is then stored).
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
If there has been no manual use of the emergency unlocking handle and if PR019 > 5,
contact the Techline.
Check that the fault was not provoked by manual usage of the emergency unlocking handle. In this case, it is
normal for the fault to arise; clear the fault.
Carry out a releasing command, then a braking command with the control lever to reset the cables of the parking
brake.
Check the conformity of the parking brake mechanical tensioning line: correctly attached, no breakage.
Check the conformity of the emergency unlocking cable.
Carry out the necessary repairs.
Check that the braking force and maximum braking are operating correctly.
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF046/FPA_V04_DF046/FPA_V08_DF046/FPA_V0D_DF046/FPA_V11_DF046

37B-50
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF047
PRESENT
OR
STOREDMANUAL CONTROL
1. DEF: No signal
2. DEF: Signal inconsistency
3. DEF: Short circuit
4. DEF: Lever fault
NOTESPriorities when dealing with a number of faults:
Deal with faults: DF035 Undervoltage, DF055 Battery undervoltage and DF054
Battery voltage too high first, if they are present or stored.
Note:
The fault does not usually come from the electronic parking brake computer.
The fault is only stored after the brakes have been applied 3 times with the control
level.
Conditions for applying the fault finding procedure to a stored fault:
Deal with the fault as if it were present.
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
If the fault is stored and PR019 < 3, clear the fault: do not take this fault into account.
Using the diagnostic tool (PARKING sub-function), check the operation of the parking brake control lever. With the
ignition switched on, statuses ET008, ET009 and ET010 should operate as follows:
ET008 "Engagement
switch position"ET009 "Redundant
braking switch position"ET010 "Release switch
position"
Lever at rest INACTIVE INACTIVE RELEASED
Lever pulled slightly
(3 mm travel)ACTIVE INACTIVE RELEASED
Lever pulled to end of
travelACTIVE ACTIVE RELEASED
Lever pulled and release
switch pressedACTIVE ACTIVE PRESSED
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF047/FPA_V04_DF047/FPA_V08_DF047/FPA_V0D_DF047/FPA_V11_DF047

37B-51
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF047
CONTINUED
If the statuses do not operate as explained above, check the connection and condition of the parking brake
control lever connector.
Repair if necessary.
With the parking brake control lever connector disconnected, check for earth on track 2 of the lever connector
(repair if necessary).
Also check for a 5 V supply (4 V < X < 5 V) on track 7 of the lever connector.
If the supply is not present and the parking brake computer is correctly supplied (no other faults detected by the
diagnostic tool), then contact the Te c h l i n e.
Check the condition and connection of the electronic parking brake computer connectors and their clips
(terminals).
Repair if necessary.
With the parking brake control lever connector disconnected, check the insulation (from earth and to+ 12 V and
the insulation of the 4 wires from each other), the continuity and absence of interference resistance on the
following connections:
Parking brake lever connector: 1216Electronic parking brake computer: 1217
track 9
track 7
track 10
track 4track D2
track C2
track C3
track D3
Repair if necessary.
With the parking brake control unit connector disconnected, check the insulation between tracks C2 and D2 of
the computer. If the tracks are in short circuit, replace the lever (see Replacement of components, Part A/
Procedure for replacing an electronic parking brake computer) (see MR405 (Espace IV) or MR395
(Laguna II) or MR370 (Scénic), Mechanical, 37B, Electronic parking brake, Lever: Removal - Refitting or
MR353 (Vel Satis), Mechanical, 37B, Automatic parking brake, Lever).
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.

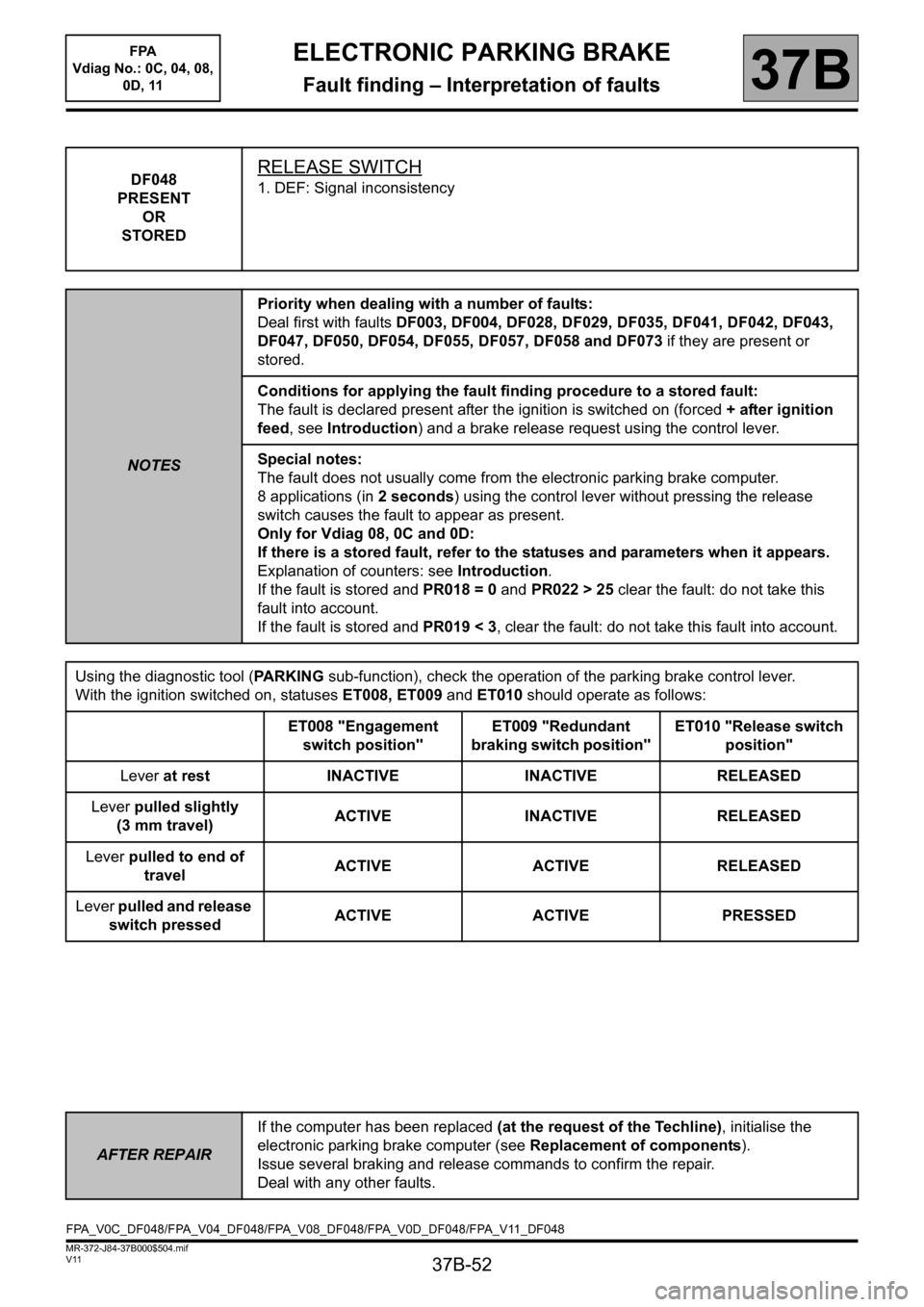

37B-52
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF048
PRESENT
OR
STOREDRELEASE SWITCH
1. DEF: Signal inconsistency
NOTESPriority when dealing with a number of faults:
Deal first with faults DF003, DF004, DF028, DF029, DF035, DF041, DF042, DF043,
DF047, DF050, DF054, DF055, DF057, DF058 and DF073 if they are present or
stored.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the ignition is switched on (forced + after ignition
feed, see Introduction) and a brake release request using the control lever.
Special notes:
The fault does not usually come from the electronic parking brake computer.
8 applications (in 2 seconds) using the control lever without pressing the release
switch causes the fault to appear as present.
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
If the fault is stored and PR019 < 3, clear the fault: do not take this fault into account.
Using the diagnostic tool (PARKING sub-function), check the operation of the parking brake control lever.
With the ignition switched on, statuses ET008, ET009 and ET010 should operate as follows:
ET008 "Engagement
switch position"ET009 "Redundant
braking switch position"ET010 "Release switch
position"
Lever at rest INACTIVE INACTIVE RELEASED
Lever pulled slightly
(3 mm travel)ACTIVE INACTIVE RELEASED
Lever pulled to end of
travelACTIVE ACTIVE RELEASED
Lever pulled and release
switch pressedACTIVE ACTIVE PRESSED
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF048/FPA_V04_DF048/FPA_V08_DF048/FPA_V0D_DF048/FPA_V11_DF048

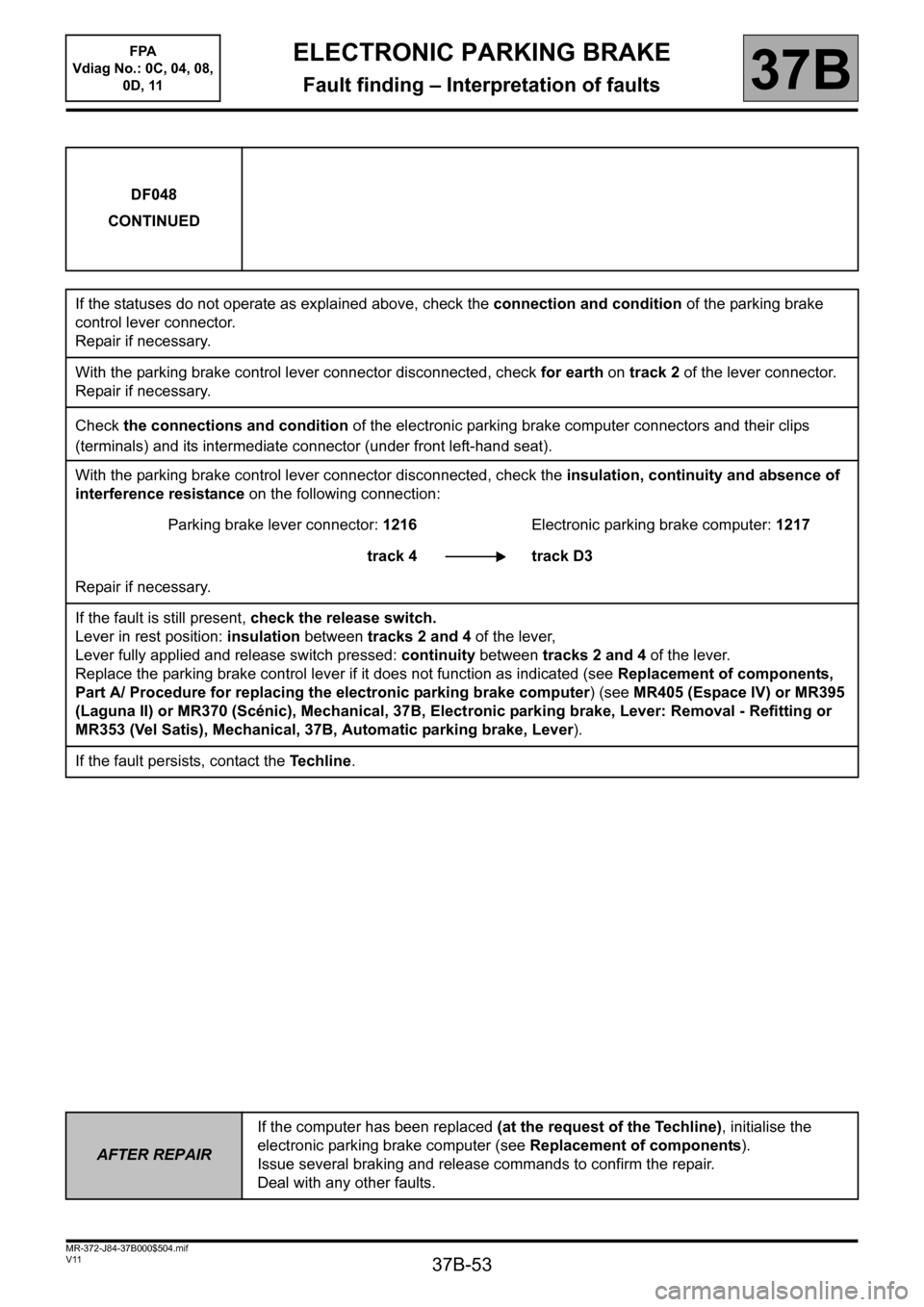

37B-53
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF048
CONTINUED
If the statuses do not operate as explained above, check the connection and condition of the parking brake
control lever connector.
Repair if necessary.
With the parking brake control lever connector disconnected, check for earth on track 2 of the lever connector.
Repair if necessary.
Check the connections and condition of the electronic parking brake computer connectors and their clips
(terminals) and its intermediate connector (under front left-hand seat).
With the parking brake control lever connector disconnected, check the insulation, continuity and absence of
interference resistance on the following connection:
Parking brake lever connector: 1216Electronic parking brake computer: 1217
track 4 track D3
Repair if necessary.
If the fault is still present, check the release switch.
Lever in rest position: insulation between tracks 2 and 4 of the lever,
Lever fully applied and release switch pressed: continuity between tracks 2 and 4 of the lever.
Replace the parking brake control lever if it does not function as indicated (see Replacement of components,
Part A/ Procedure for replacing the electronic parking brake computer) (see MR405 (Espace IV) or MR395
(Laguna II) or MR370 (Scénic), Mechanical, 37B, Electronic parking brake, Lever: Removal - Refitting or
MR353 (Vel Satis), Mechanical, 37B, Automatic parking brake, Lever).
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.

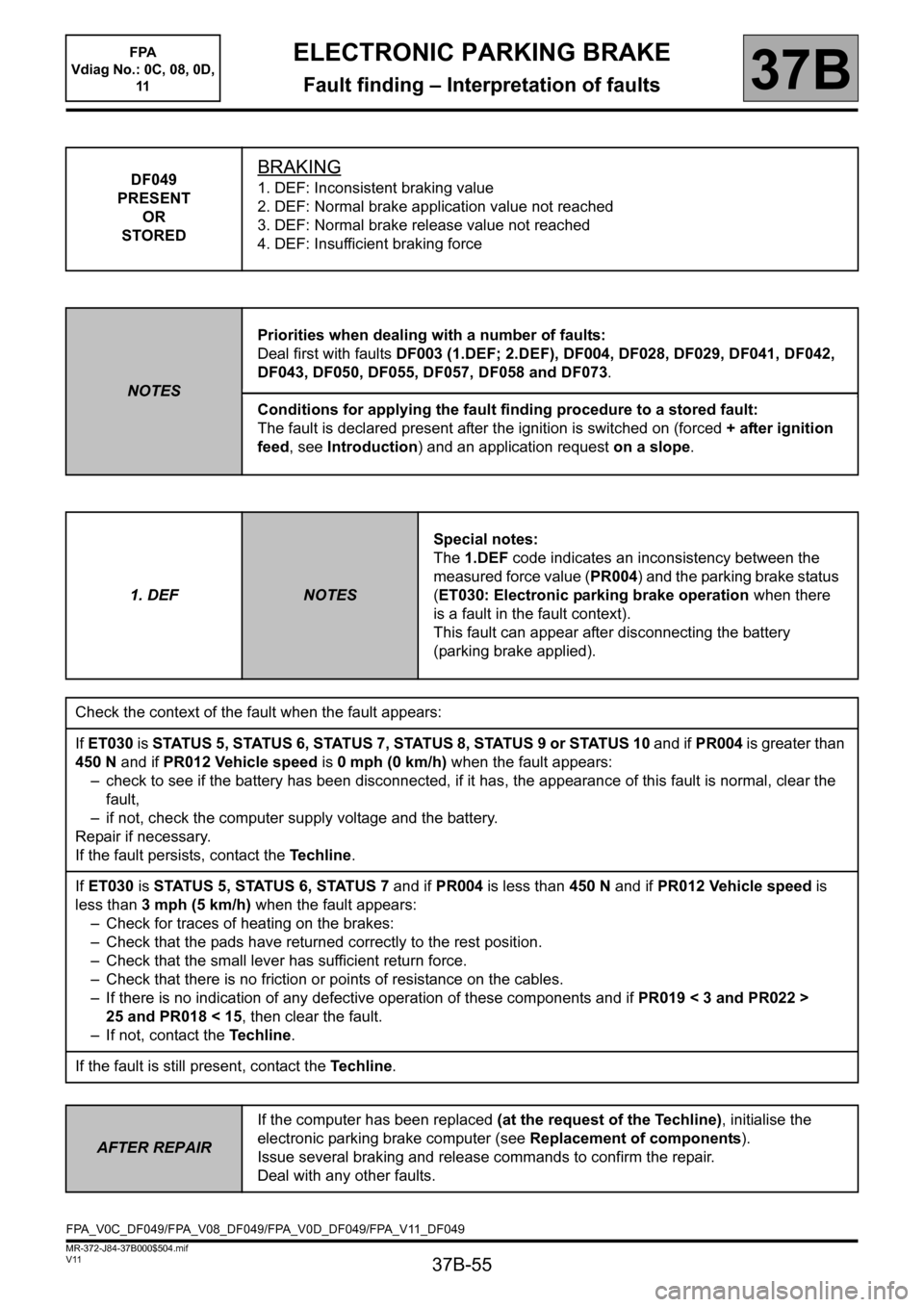

37B-54
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF049
PRESENT
OR
STOREDBRAKING
1. DEF: Inconsistent braking value
2. DEF: Normal brake application value not reached
3. DEF: Normal brake release value not reached
4. DEF: Insufficient braking force
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
– a braking command is issued on a slope.
Priorities when dealing with a number of faults:
Deal with faults: DF046 Brake motor / cables connection, DF050 Mechanical
seizure, DF035 Undervoltage, DF058 Parking brake motor current and DF055
Battery undervoltage first if they are present or stored.
Check that the parking brake mechanical tensioning line is correct:
– that the parking brake cables are fitted correctly (refer to the repair procedure),
– that the parking brake cables are in good condition (not seized or deteriorated),
– that the rear brake callipers are correct, in good condition and operating correctly,
– that the rear brake pads are correct and in good condition.
Carry out the necessary repairs.
Using the diagnostic tool statuses screen, display parameter PR003 Slope value.
If the value displayed is not 0 degrees (± 1) on level ground, carry out slope initialisation again (actuator control
mode menu).
Using the diagnostic tool parameters screen, display the following parameters: PR005 Force setpoint and PR004
Measured force value. These must show the various values recorded in the conformity check.
Clear the fault, switch off the ignition for 5 minutes (vehicle doors and windows closed), switch the ignition back
on and repeat a braking command on a slope.
If the fault reappears, switch off the ignition and disconnect the computer supply fuse (fuse F23 of the engine fuse
box, refer to the wiring diagram) for approximately 1 minute.
Reconnect the fuse, switch the ignition on and establish dialogue with the computer. Apply the brake to check
whether the fault recurs.
If the fault reappears despite the above tests, or if the parameter values are not within conformity check
tolerances while the brake is applied, then contact your Techline.
AFTER REPAIRClear the fault memory.
Follow the instructions to confirm repair.
If the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other possible faults.
FPA
Vdiag No.: 04
FPA_V04_DF049

37B-55
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF049
PRESENT
OR
STOREDBRAKING
1. DEF: Inconsistent braking value
2. DEF: Normal brake application value not reached
3. DEF: Normal brake release value not reached
4. DEF: Insufficient braking force
NOTESPriorities when dealing with a number of faults:
Deal first with faults DF003 (1.DEF; 2.DEF), DF004, DF028, DF029, DF041, DF042,
DF043, DF050, DF055, DF057, DF058 and DF073.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the ignition is switched on (forced + after ignition
feed, see Introduction) and an application request on a slope.
1. DEF
NOTESSpecial notes:
The 1.DEF code indicates an inconsistency between the
measured force value (PR004) and the parking brake status
(ET030: Electronic parking brake operation when there
is a fault in the fault context).
This fault can appear after disconnecting the battery
(parking brake applied).
Check the context of the fault when the fault appears:
If ET030 is S TAT U S 5 , S TAT U S 6 , S TAT U S 7 , S TAT U S 8 , S TAT U S 9 o r S TAT U S 1 0 and if PR004 is greater than
450 N and if PR012 Vehicle speed is 0 mph (0 km/h) when the fault appears:
– check to see if the battery has been disconnected, if it has, the appearance of this fault is normal, clear the
fault,
– if not, check the computer supply voltage and the battery.
Repair if necessary.
If the fault persists, contact the Techline.
If ET030 is S TAT U S 5 , S TAT U S 6 , S TAT U S 7 and if PR004 is less than 450 N and if PR012 Vehicle speed is
less than 3 mph (5 km/h) when the fault appears:
– Check for traces of heating on the brakes:
– Check that the pads have returned correctly to the rest position.
– Check that the small lever has sufficient return force.
– Check that there is no friction or points of resistance on the cables.
– If there is no indication of any defective operation of these components and if PR019 < 3 and PR022 >
25 and PR018 < 15, then clear the fault.
– If not, contact the Techline.
If the fault is still present, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF049/FPA_V08_DF049/FPA_V0D_DF049/FPA_V11_DF049
FPA
Vdiag No.: 0C, 08, 0D,
11

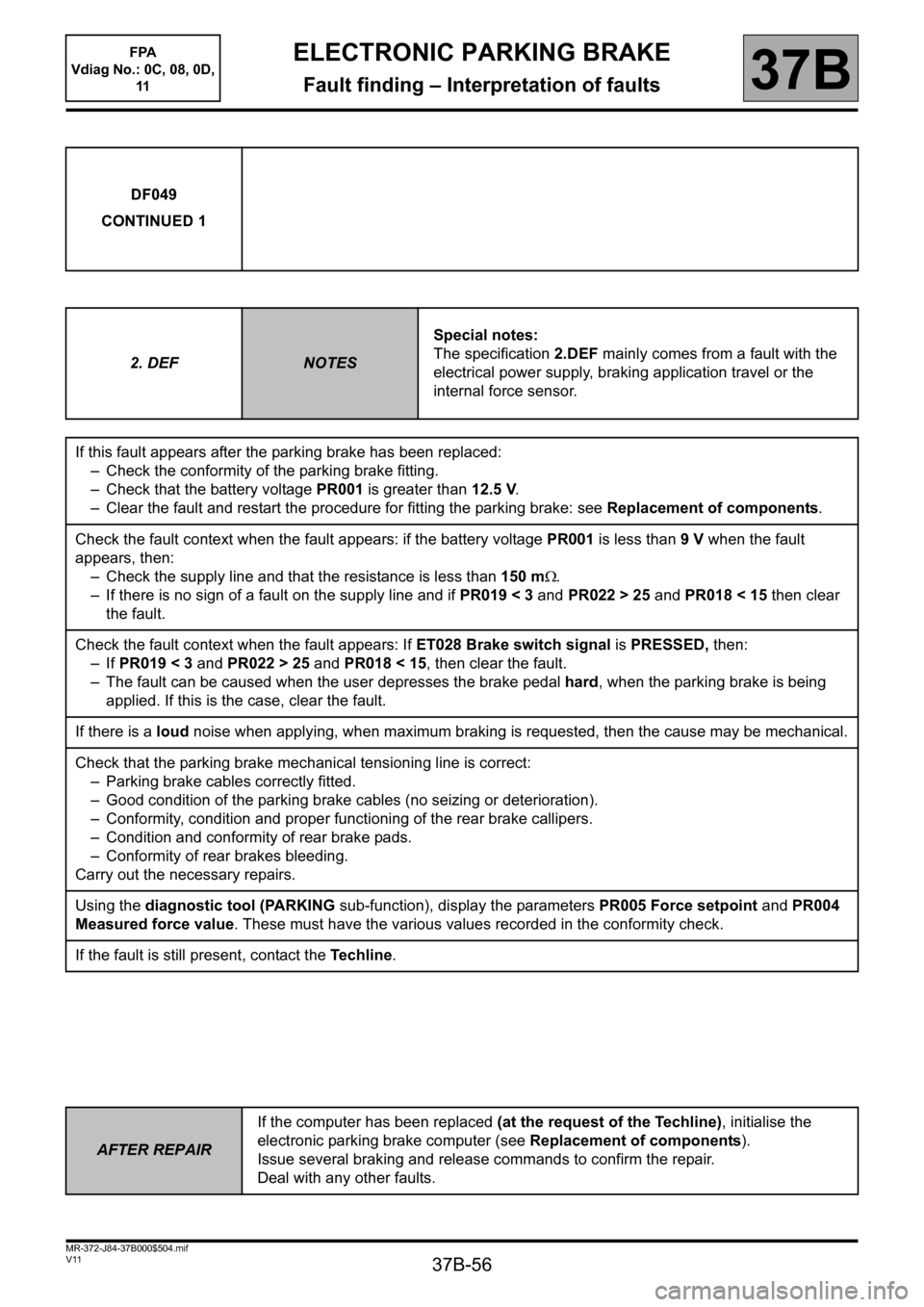

37B-56
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF049
CONTINUED 1
2. DEF
NOTESSpecial notes:
The specification 2.DEF mainly comes from a fault with the
electrical power supply, braking application travel or the
internal force sensor.
If this fault appears after the parking brake has been replaced:
– Check the conformity of the parking brake fitting.
– Check that the battery voltage PR001 is greater than 12.5 V.
– Clear the fault and restart the procedure for fitting the parking brake: see Replacement of components.
Check the fault context when the fault appears: if the battery voltage PR001 is less than 9 V when the fault
appears, then:
– Check the supply line and that the resistance is less than 150 m.
– If there is no sign of a fault on the supply line and if PR019 < 3 and PR022 > 25 and PR018 < 15 then clear
the fault.
Check the fault context when the fault appears: If ET028 Brake switch signal is PRESSED, then:
–If PR019 < 3 and PR022 > 25 and PR018 < 15, then clear the fault.
– The fault can be caused when the user depresses the brake pedal hard, when the parking brake is being
applied. If this is the case, clear the fault.
If there is a loud noise when applying, when maximum braking is requested, then the cause may be mechanical.
Check that the parking brake mechanical tensioning line is correct:
– Parking brake cables correctly fitted.
– Good condition of the parking brake cables (no seizing or deterioration).
– Conformity, condition and proper functioning of the rear brake callipers.
– Condition and conformity of rear brake pads.
– Conformity of rear brakes bleeding.
Carry out the necessary repairs.
Using the diagnostic tool (PARKING sub-function), display the parameters PR005 Force setpoint and PR004
Measured force value. These must have the various values recorded in the conformity check.
If the fault is still present, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA
Vdiag No.: 0C, 08, 0D,
11
