2013 RENAULT SCENIC Electronic Parking Brake Workshop Manual

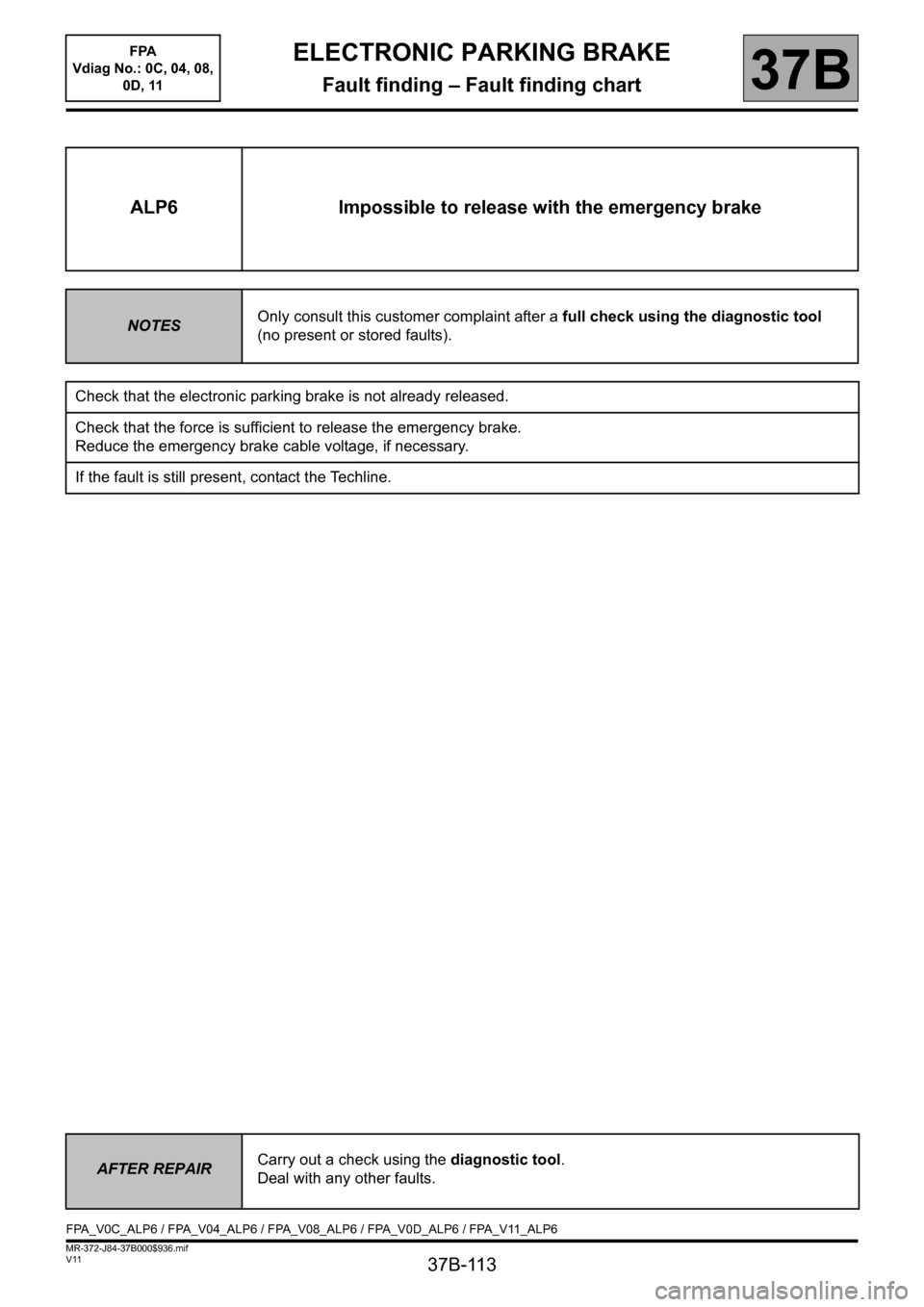

37B-113
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP6 Impossible to release with the emergency brake
NOTESOnly consult this customer complaint after a full check using the diagnostic tool
(no present or stored faults).
Check that the electronic parking brake is not already released.
Check that the force is sufficient to release the emergency brake.
Reduce the emergency brake cable voltage, if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP6 / FPA_V04_ALP6 / FPA_V08_ALP6 / FPA_V0D_ALP6 / FPA_V11_ALP6

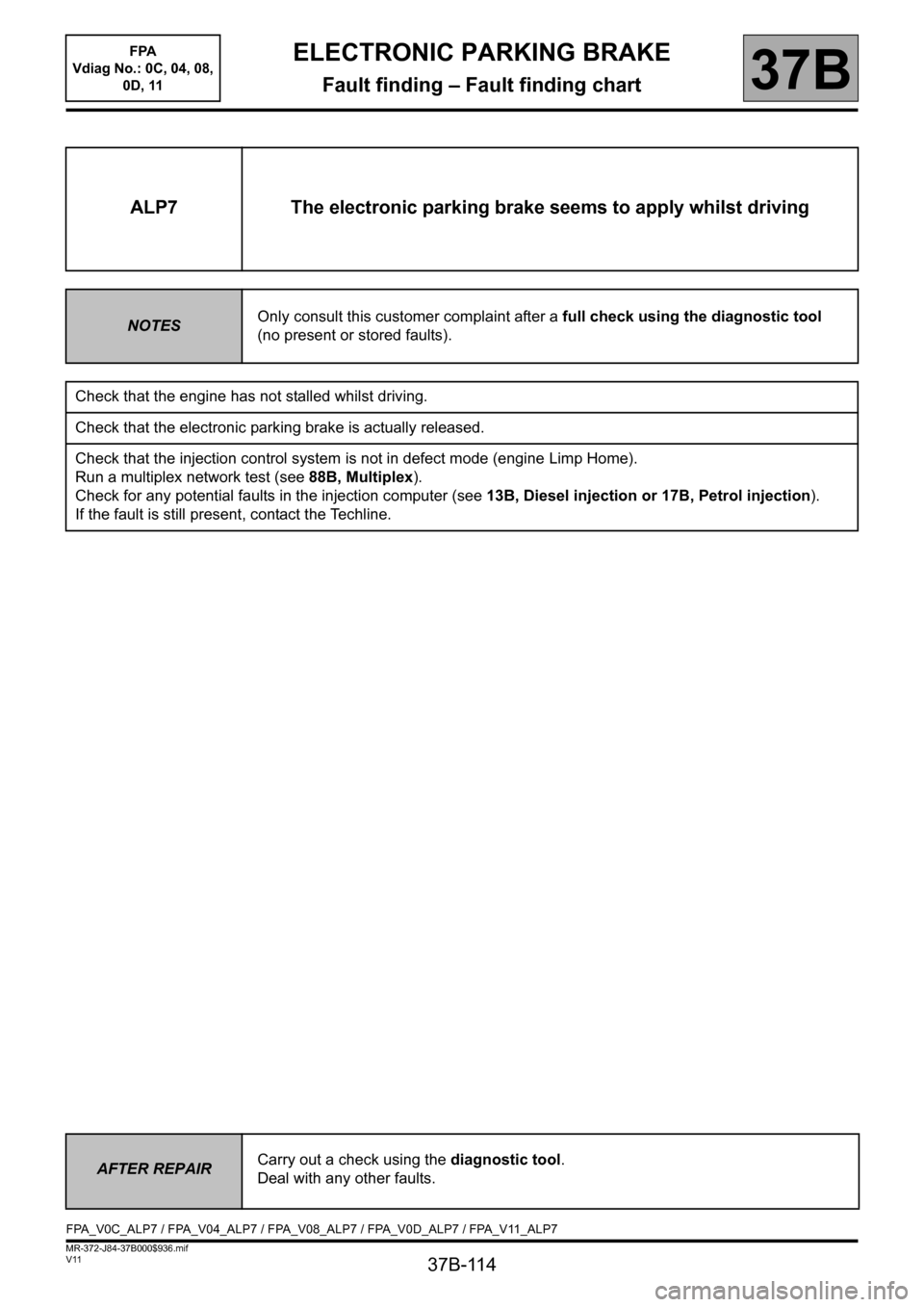

37B-114
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP7 The electronic parking brake seems to apply whilst driving
NOTESOnly consult this customer complaint after a full check using the diagnostic tool
(no present or stored faults).
Check that the engine has not stalled whilst driving.
Check that the electronic parking brake is actually released.
Check that the injection control system is not in defect mode (engine Limp Home).
Run a multiplex network test (see88B, Multiplex).
Check for any potential faults in the injection computer (see 13B, Diesel injection or 17B, Petrol injection).
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP7 / FPA_V04_ALP7 / FPA_V08_ALP7 / FPA_V0D_ALP7 / FPA_V11_ALP7

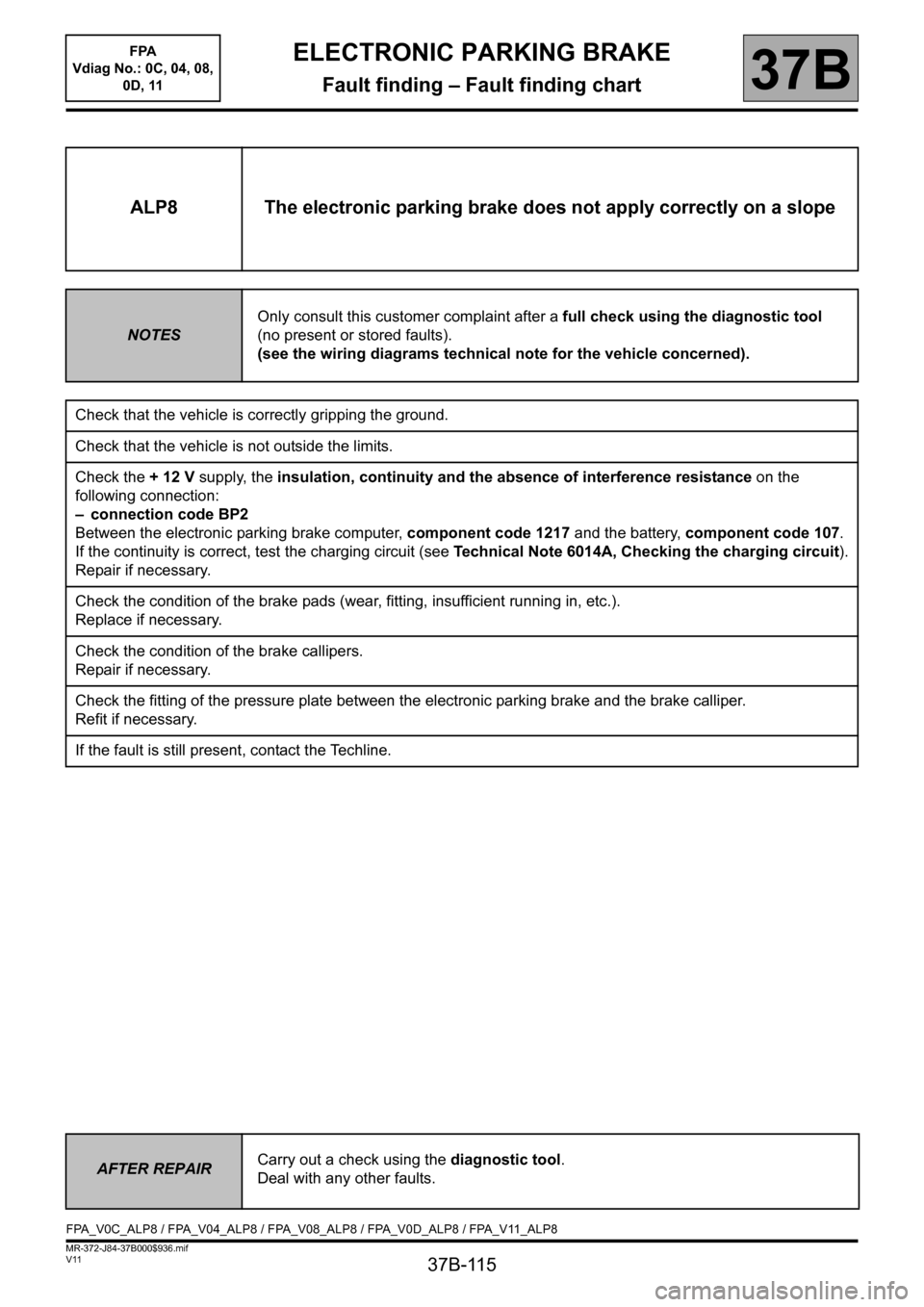

37B-115
MR-372-J84-37B000$936.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Fault finding chart
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
ALP8 The electronic parking brake does not apply correctly on a slope
NOTESOnly consult this customer complaint after a full check using the diagnostic tool
(no present or stored faults).
(see the wiring diagrams technical note for the vehicle concerned).
Check that the vehicle is correctly gripping the ground.
Check that the vehicle is not outside the limits.
Check the + 12 V supply, the insulation, continuity and the absence of interference resistance on the
following connection:
– connection code BP2
Between the electronic parking brake computer, component code 1217 and the battery, component code 107.
If the continuity is correct, test the charging circuit (see Technical Note 6014A, Checking the charging circuit).
Repair if necessary.
Check the condition of the brake pads (wear, fitting, insufficient running in, etc.).
Replace if necessary.
Check the condition of the brake callipers.
Repair if necessary.
Check the fitting of the pressure plate between the electronic parking brake and the brake calliper.
Refit if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a check using the diagnostic tool.
Deal with any other faults.
FPA_V0C_ALP8 / FPA_V04_ALP8 / FPA_V08_ALP8 / FPA_V0D_ALP8 / FPA_V11_ALP8
