17B-126
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF894
PRESENT OR
STOREDADDITIONAL FUEL CIRCUIT SOLENOID VALVECC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
For engines: K4M, K7M, D4D
NOTESSee the Wiring Diagrams Technical Note for Logan, Sandero, Kangoo VLL.
Check the connection and condition of the connector of the additional fuel circuit solenoid valve, component code
1640 and the injection computer connector, component code 120.
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the continuity, insulation, and absence of interference resistance on the following connections:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 1047.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring. Otherwise replace the wiring.
Check the supply of the solenoid valve using a test light, by running command AC217 Additional fuel circuit
solenoid valve.
Check the internal resistance of the solenoid valve, component code 1640 on the computer connector; its value
must be between: 12  < X  16  (Duster F4R engine) or 22  < X  30  (Duster K4M engine). If the resistance
is incorrect, replace the solenoid valve.
If the fault is still present, contact the Techline.
V42_V04_DF894/V42_V05_DF894/V42_V06_DF894/V42_V14_DF894/V42_V16_DF894/V42_V18_DF894
PETROL INJECTION
Fault finding – Interpretation of faults

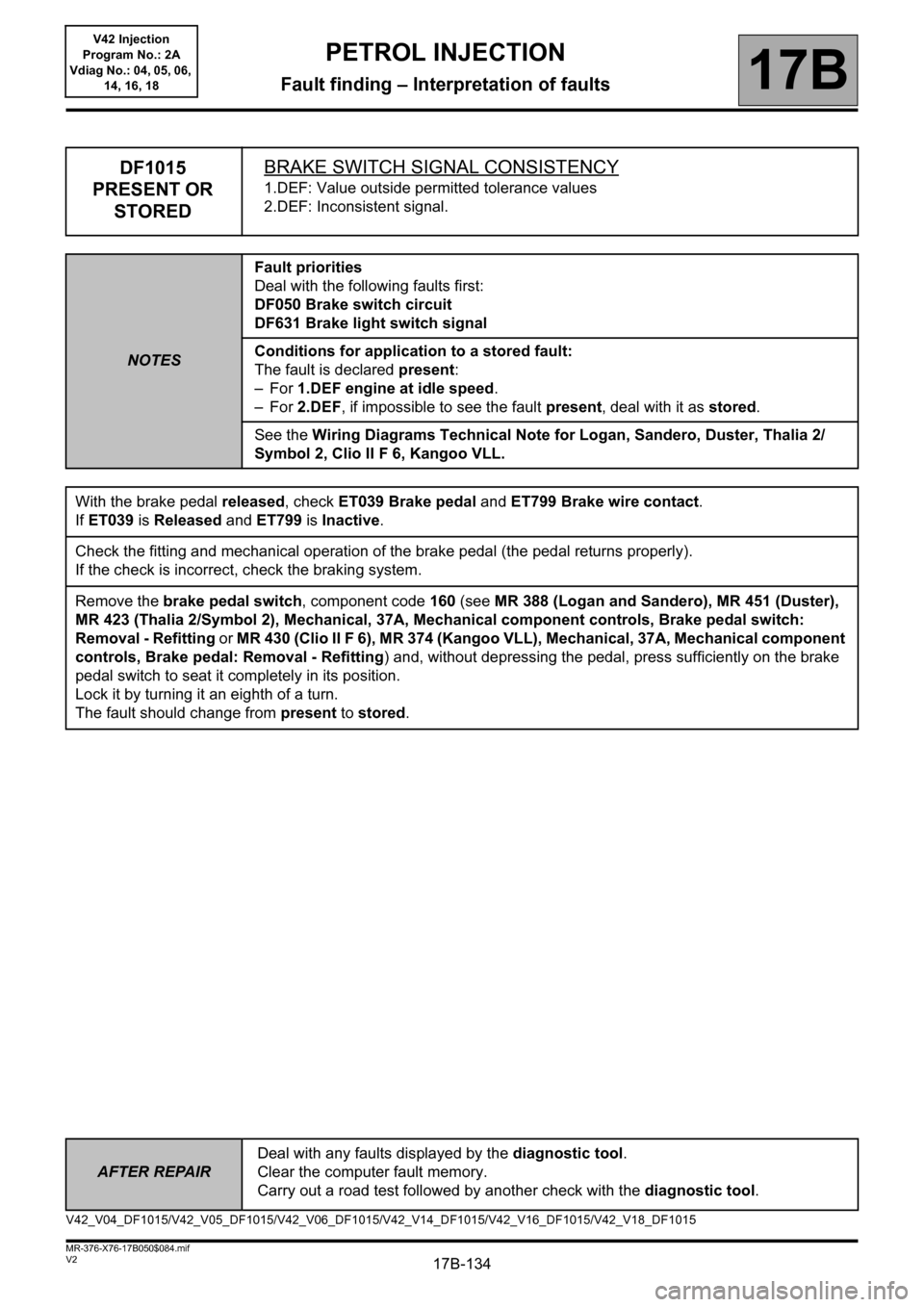

17B-134
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1015
PRESENT OR
STOREDBRAKE SWITCH SIGNAL CONSISTENCY
1.DEF: Value outside permitted tolerance values
2.DEF: Inconsistent signal.
NOTESFault priorities
Deal with the following faults first:
DF050 Brake switch circuit
DF631 Brake light switch signal
Conditions for application to a stored fault:
The fault is declared present:
–For 1.DEF engine at idle speed.
–For 2.DEF, if impossible to see the fault present, deal with it as stored.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
With the brake pedal released, check ET039 Brake pedal and ET799 Brake wire contact.
If ET039 is Released and ET799 is Inactive.
Check the fitting and mechanical operation of the brake pedal (the pedal returns properly).
If the check is incorrect, check the braking system.
Remove the brake pedal switch, component code 160 (see MR 388 (Logan and Sandero), MR 451 (Duster),
MR 423 (Thalia 2/Symbol 2), Mechanical, 37A, Mechanical component controls, Brake pedal switch:
Removal - Refitting or MR 430 (Clio II F 6), MR 374 (Kangoo VLL), Mechanical, 37A, Mechanical component
controls, Brake pedal: Removal - Refitting) and, without depressing the pedal, press sufficiently on the brake
pedal switch to seat it completely in its position.
Lock it by turning it an eighth of a turn.
The fault should change from present to stored.
V42_V04_DF1015/V42_V05_DF1015/V42_V06_DF1015/V42_V14_DF1015/V42_V16_DF1015/V42_V18_DF1015

17B-139
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1034
PRESENT OR
STOREDCOMBUSTION MISFIRES
1.DEF: Polluting misfiring
2.DEF: Destructive misfiring
NOTESFault priorities:
Deal with the following faults first:
–DF109 Low fuel level misfiring
–DF059 Misfiring on cylinder 1
–DF060 Misfiring on cylinder 2
–DF061 Misfiring on cylinder 3
–DF062 Misfiring on cylinder 4
Special notes:
After this fault appears:
the OBD warning light is on.
Conditions for application to a stored fault:
The fault is declared present:
Engine idling.
1.DEF
NOTESNone.
Check the ignition coil circuit of cylinder 3,
Check the fuel supply circuit (see MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374
(Kangoo VLL), Mechanical, 13A, Fuel supply, Fuel circuit: Operating diagram),
Check the fuel supply pump circuit,
Check the condition of the cylinder 3 injector (see MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio
II F 6) or MR 374 (Kangoo VLL), Mechanical, 17B, Petrol injection, Injector rail - Injectors: Removal -
Refitting),
Check the compression of cylinder 3.
V42_V04_DF1034/V42_V05_DF1034/V42_V06_DF1034/V42_V14_DF1034/V42_V16_DF1034/V42_V18_DF1034

17B-141
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1058
PRESENT OR
STOREDINLET PRESSURE CONSISTENCY1.DEF: Abnormal voltage
2.DEF: Abnormal pressure
NOTESPriority when dealing with a number of faults:
DF079 Motorised throttle valve servo
Conditions for applying the fault finding procedure to a stored fault:
The fault is considered present under the following conditions:
–For 2.DEF engine running at idle speed.
Special note:
For 2.DEF, the OBD warning light and level 1 fault warning light illuminate,
For 1.DEF, the OBD warning light illuminates.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the fitting and sealing of the inlet air pressure sensor, component code 147 (condition of the seals) and look
for possible leaks on the inlet air pipe.
Check the connector of the inlet air pressure sensor, component code 147.
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the supply voltage of the sensor on connections 3AJR and 3AJP.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3AJP between components 120 and 147,
–3AJR between components 120 and 147,
–3AJQ between components 120 and 147.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Replace the inlet air pressure sensor, component code 147 and check that the fault is no longer present (see MR
388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6) or MR 374
(Kangoo VLL), Mechanical, 12A, Fuel mixture, Air inlet: Description).
If the fault is still present, contact the Techline.
V42_V04_DF1058/V42_V05_DF1058/V42_V06_DF1058/V42_V14_DF1058/V42_V16_DF1058/V42_V18_DF1058

17B-145
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1074
PRESENT OR
STOREDMOTORISED THROTTLE POSITION INCONSISTENT1.DEF: Inconsistency between throttle valve position and control.
2.DEF: Inconsistent signal.
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is considered present under the following conditions:
–For 1.DEF engine running at idle speed.
Special note:
For 1.DEF, the OBD warning light illuminates,
For 2.DEF, the OBD warning light and level 2 fault warning light illuminate.
See the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2, Clio II F 6, Kangoo VLL.
Check the connection and condition of the motorised throttle valve connector, component code 1076 and the
injection computer connector, component code 120.
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3AJB between components 1076 and 120,
–3AJC between components 1076 and 120,
–3MP between components 1076 and 120,
–3MQ between components 1076 and 120,
–3MO between components 1076 and 120.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
V42_V04_DF1074/V42_V05_DF1074/V42_V06_DF1074/V42_V14_DF1074/V42_V16_DF1074/V42_V18_DF1074

17B-146
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
V2 MR-376-X76-17B050$084.mif
PETROL INJECTION
Fault finding – Interpretation of faults17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
DF1235
PRESENT OR
STOREDAUTOMATIC TRANSMISSION
1.DEF: Invalid multiplex signals generated by computer
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is present with the engine idling.
Special note:
OBD warning light comes on.
Run fault finding on the ETC (see 26A, 4X4 Driveshaft).
V42_V04_DF1235/V42_V05_DF1235/V42_V06_DF1235/V42_V14_DF1235/V42_V16_DF1235/V42_V18_DF1235

17B-169V2 MR-376-X76-17B050$110.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
ET148OBD WARNING LIGHT ACTIVATION REQUEST
STATUS DEFINITIONYES: This status indicates that the warning light is lit continuously.
NO: This status indicates that the warning light is off.
FLASHING: This status indicates that the warning light flashes.
SELF TEST: This status indicates that the warning light is performing a self test.
NOTESSpecial notes:
In the event of normal operation, this warning light must remain off (NO).
Conformity check: Engine stopped, ignition on or engine running.
"YES"If the status is inconsistent, consult the interpretation of fault DF342 Malfunction
indicator light circuit.
V42_V04_ET148/V42_V05_ET148/V42_V06_ET148/V42_V14_ET148/V42_V16_ET148/V42_V18_ET148

17B-256
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V2 MR-376-X76-17B050$180.mif
PETROL INJECTION
Fault finding – Tests17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
TEST 5
CONTINUED
Check the continuity, insulation, and absence of interference resistance on the following connections:
For Logan, Sandero, Duster:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 1047,
For Thalia 2/Symbol 2, Kangoo VLL:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 238,
For Clio II F 6:
–3ACM between components 1640 and 120,
–3FB between components 1640 and 983.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the supply of the solenoid valve using a test light, by running command AC224 Additional petrol circuit
pump relay.
Check the internal resistance of the solenoid valve, component code 1640 on the connector of the computer,
component code 120. Its value must be between: 24  < X  30  12  £ X £ 16  (Duster F4R engine) or 22 
X  30
 (Duster K4M engine) (between 0°C and 40°C). If the resistance is not correct, replace the solenoid
valve (see MR 388 (Logan and Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2), MR 430 (Clio II F 6)
or MR 374 (Kangoo VLL), Mechanical, 19C, Tank, Fuel pump of the additional fuel tank: Removal -
Refitting).
If the fault is still present, contact the techline.
