2013 RENAULT KANGOO ignition

13B-26
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF002
PRESENT
OR
STOREDAIR TEMPERATURE SENSOR CIRCUIT
CO.1: Open circuit or short circuit to +12 V
CC.0: Short circuit to earth
1.DEF: Inconsistency
NOTESPriority when dealing with a number of faults:
– DF113 Sensor supply voltage.
Special notes:
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
Check the connection and condition of the connector of the air flow sensor, component code 799.
Check the condition of the injection computer connector, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connectors, otherwise
replace the wiring.
Check for + 12 V after ignition on connection 3FB (or 3FBA) of the air flow sensor connector.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the earth on connection NH of the air flow sensor.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
DCM1.2_V08_DF002

13B-28
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF003
PRESENT
OR
STOREDATMOSPHERIC PRESSURE SENSOR CIRCUIT
CO.0: Open circuit or short circuit to earth
CC.1: Short circuit to +12 V
NOTESSpecial notes:
The atmospheric pressure sensor is built into the injection computer.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
Look for any wiring harness damage and check the condition and connection of the injection computer connectors,
component code 120.
Check the connection and condition of the injection locking relay connector.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Move the wiring harness between the injection computer and the battery, component code 107 to see if a change
of status occurs (Present  Stored).
Look for any damage to the wiring and check the connection and condition of the battery and its connections.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A (Renault) or Technical Note
9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace
the wiring.
Measure the battery voltage when the ignition is switched on.
If the battery voltage is less than 11 V, recharge the battery (see Technical Note 6014A (Renault) or Technical
Note 9859A (Dacia), Checking the charging circuit).
Check the condition and connection of the battery terminals and posts.
DCM1.2_V08_DF003

13B-42
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF016
PRESENT
OR
STOREDEGR VALVE CONTROL CIRCUITCO.0: Open circuit or short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit.
CO.1: Open circuit or short circuit to + 12 V
CC.0: Short circuit to earth
1.DEF: Detection of overheating
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is present with the engine idling.
Special notes:
If fault DF016 is present: unstable engine speed and even stalling.
Starting difficult or even impossible when cold.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
K9K 718, 740, 792, 796 engine (Euro 4):
Check the connection and condition of the exhaust gas recirculation valve connector, component code 1460.
Check the connection and condition of the injection computer, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check the insulation and continuity of the following connections:
●3VP between components 1460 and 120,
●3VQ between components 1460 and 120.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A (Renault)
or Technical Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the wiring,
otherwise replace it.
Check for the supply 13 V < X< 14 V (with the engine running), 11.5 V < X < 12.5 V (with the ignition on and
the engine stopped) on connection 3VP of component 1460.
Check for earth on connection 3VQ of component 1460.
DCM1.2_V08_DF016

13B-43
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF016
CONTINUED 1
Measure the resistance of the EGR valve, component code 1460:
●with the engine stopped, the EGR valve will be closed (unless there is a fault),
●wait for the ambient temperature to stabilise (approximately 20°C) around the valve,
measure the resistance between connections 3VP and 3VQ of component 1460. The resistance must be between:
0.5  < R < 50 .
If the value is not correct, replace the EGR valve (see MR 388 (Logan/Sandero), MR 451 (Duster), MR 423
(Thalia 2/Symbol 2) or MR 374 (Kangoo VLL), Mechanical, 14A, Emission control, Exhaust gas recirculation
solenoid valve: Removal - Refitting).
After replacing the EGR valve, use command RZ002 EGR adaptives to reinitialise the EGR valve offsets.
If the fault is still present, contact the Techline.
K9K 790, 794 engine (Euro 3):
Check the connection and condition of the exhaust gas recirculation solenoid valve connector, component code
1460.
Check the connection and condition of the injection computer, component code 1260.
If the connector(s) are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation and continuity of the following connections:
●3FB (or 3FB2) between components 1460 and 120,
●122B between components 1460 and 120.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check for the supply 13 V < X < 14 V (with the engine running), 11.5 V < X < 12.5 V (with the ignition on and
the engine stopped) on connection 3FB (or 3FB2) of component 1460.
Check for earth on connection122B of component1460.

13B-52
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF024
PRESENT
OR
STOREDLOW-PRESSURE ACTUATOR CONTROL CIRCUIT
CO.0: Open circuit or short circuit to earth
CC.1: Short circuit to + 12 V
NOTESSpecial notes:
If fault DF024 is present with CO. 0 or CC.1.: The fuel flow actuator is fully open, there
is rattling, the engine is stopped to prevent it from racing, and illumination of the level 2
warning light.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
Check the connection and condition of the flow actuator connector, component code 1105.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Check for + 12 V after ignition on connection 3FB (or 3FB2) on the flow actuator connector, component code
1105.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
Check the connection and condition of the injection computer connector, component code 120.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connector, otherwise
replace the wiring.
Measure the resistance between connections 3FB (or 3FB2) and 3HI of the flow actuator, component code 1105.
If the resistance is not between: 4.8  < X < 5.8  at 20°C, replace the flow actuator (see MR 388 (Logan/
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol2) or MR 374 (Kangoo VLL), Mechanical, 13B, Diesel
injection, Flow actuator: Removal – Refitting).
Check the insulation, continuity and the absence of interference resistance on the following connection:
●3HI between components 120 and 1105.
If the connection is faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise
replace it.
If the fault is still present, contact the Techline.
DCM1.2_V08_DF024

13B-54
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF026
PRESENT
OR
STOREDCYLINDER 1 INJECTOR CONTROL CIRCUITCO: Open circuit
CC: Short circuit
1.DEF: At minimum stop
2.DEF: At maximum stop
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is present with the engine idling.
Special notes:
When this fault appears, the idle speed is locked at 1000 rpm, there is engine noise,
unsteady engine speed, engine performance reduced to 75% and the level 1 warning
light comes on until the next time the ignition is switched off.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
CO
CC
NOTESNone.
Switch off the ignition and wait 15 seconds.
Check the connection and condition of the injector 1 connector, component code 193.
Check the connection and condition of the injection computer connector, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connectors, otherwise
replace the wiring.
Run command AC005 Cylinder 1 injector.
If injector 1 cannot be heard operating five times in a cycle, connect the wire of the injector of cylinder 2 to the
injector of cylinder 1 and use command AC006 Cylinder 2 injector.
Does this injector actuation cycle work?
Note:
If the wires cannot be swapped, continue the procedure by replying YES to the previous question.
DCM1.2_V08_DF026

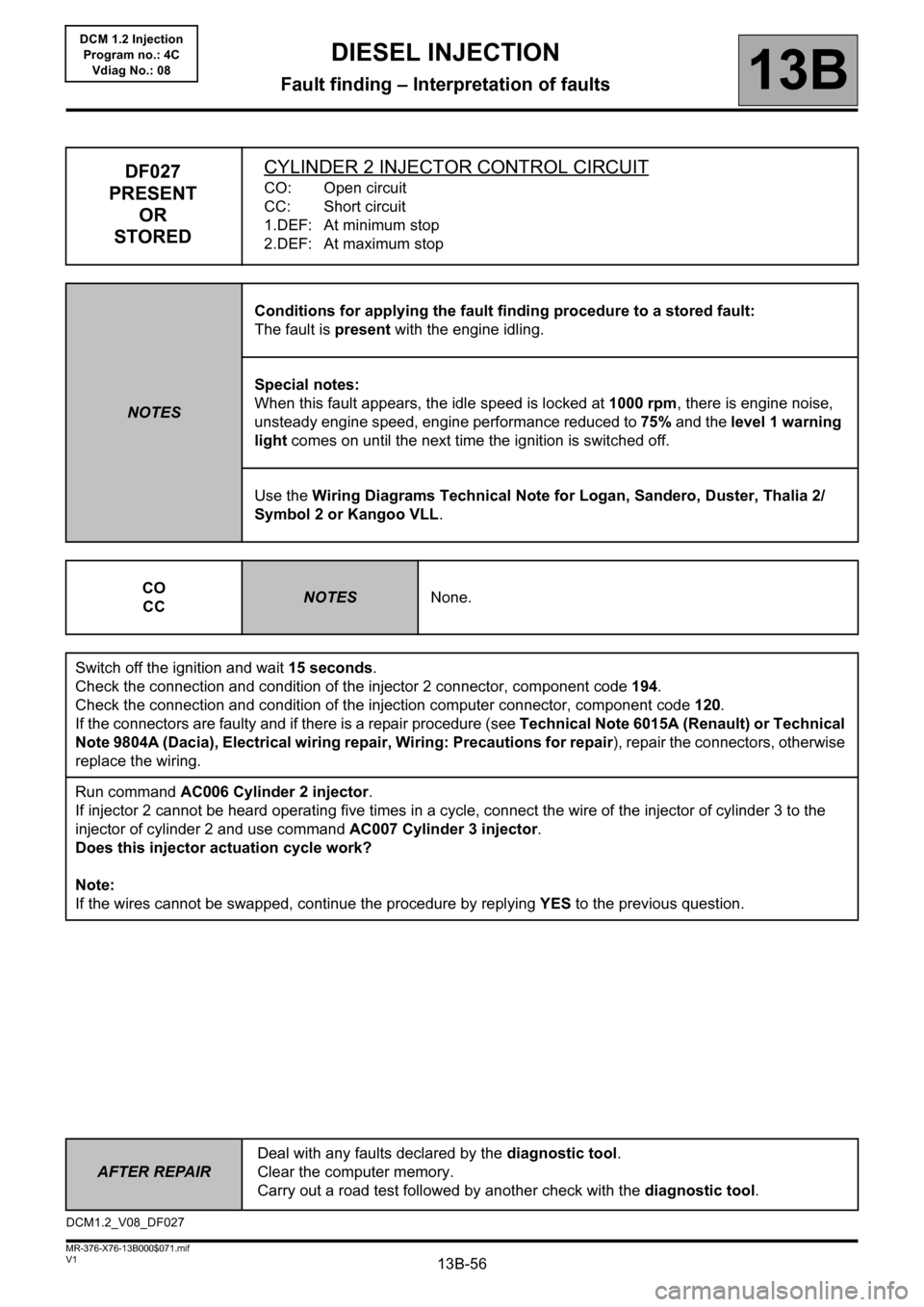

13B-56
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF027
PRESENT
OR
STOREDCYLINDER 2 INJECTOR CONTROL CIRCUITCO: Open circuit
CC: Short circuit
1.DEF: At minimum stop
2.DEF: At maximum stop
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is present with the engine idling.
Special notes:
When this fault appears, the idle speed is locked at 1000 rpm, there is engine noise,
unsteady engine speed, engine performance reduced to 75% and the level 1 warning
light comes on until the next time the ignition is switched off.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
CO
CC
NOTESNone.
Switch off the ignition and wait 15 seconds.
Check the connection and condition of the injector 2 connector, component code 194.
Check the connection and condition of the injection computer connector, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connectors, otherwise
replace the wiring.
Run command AC006 Cylinder 2 injector.
If injector 2 cannot be heard operating five times in a cycle, connect the wire of the injector of cylinder 3 to the
injector of cylinder 2 and use command AC007 Cylinder 3 injector.
Does this injector actuation cycle work?
Note:
If the wires cannot be swapped, continue the procedure by replying YES to the previous question.
DCM1.2_V08_DF027

13B-58
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-13B000$071.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
DF028
PRESENT
OR
STOREDCYLINDER 3 INJECTOR CONTROL CIRCUITCO: Open circuit
CC: Short circuit
1.DEF: At minimum stop
2.DEF: At maximum stop
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is present with the engine idling.
Special notes:
When this fault appears, the idle speed is locked at 1000 rpm, there is engine noise,
unsteady engine speed, engine performance reduced to 75% and the level 1 warning
light comes on until the next time the ignition is switched off.
Use the Wiring Diagrams Technical Note for Logan, Sandero, Duster, Thalia 2/
Symbol 2 or Kangoo VLL.
CO
CC
NOTESNone.
Switch off the ignition and wait 15 seconds.
Check the connection and condition of the injector 3 connector, component code 195.
Check the connection and condition of the injection computer connector, component code 120.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A (Renault) or Technical
Note 9804A (Dacia), Electrical wiring repair, Wiring: Precautions for repair), repair the connectors, otherwise
replace the wiring.
Run command AC007 Cylinder 3 injector.
If injector 3 cannot be heard operating five times in a cycle, connect the wire of the cylinder 4 injector to the
cylinder 3 injector and use command AC008 Cylinder 4 injector.
Does this injector actuation cycle work?
Note:
If the wires cannot be swapped, continue the procedure by replying YES to the previous question.
DCM1.2_V08_DF028
