Cavity Car-tridgeFuse Micro
Fuse Description
F21 30 Amp Pink Drive Train Control
Module
F22 20 Amp Yellow Engine Control
Module
F23 30 Amp Pink Body Controller #1
F24 30 Amp Pink Driver Door Mod-
ule
F25 30 Amp Pink Front Wiper Low
Speed
F25 30 Amp Pink Front Wiper High
SpeedCavity Car- tridgeFuse Micro
Fuse Description
F26 30 Amp Pink Antilock Brakes/
Stability Control Module/Valves
F28 20 Amp Yellow Trailer Tow Backup
Lights – IfEquipped
F29 20 Amp Yellow Trailer Tow Parking
Lights – IfEquipped
F30 30 Amp Pink Trailer Tow Recep-
tacle
F32 30 Amp Pink Drive Train Control
Module – IfEquipped
7
MAINTAINING YOUR VEHICLE 671

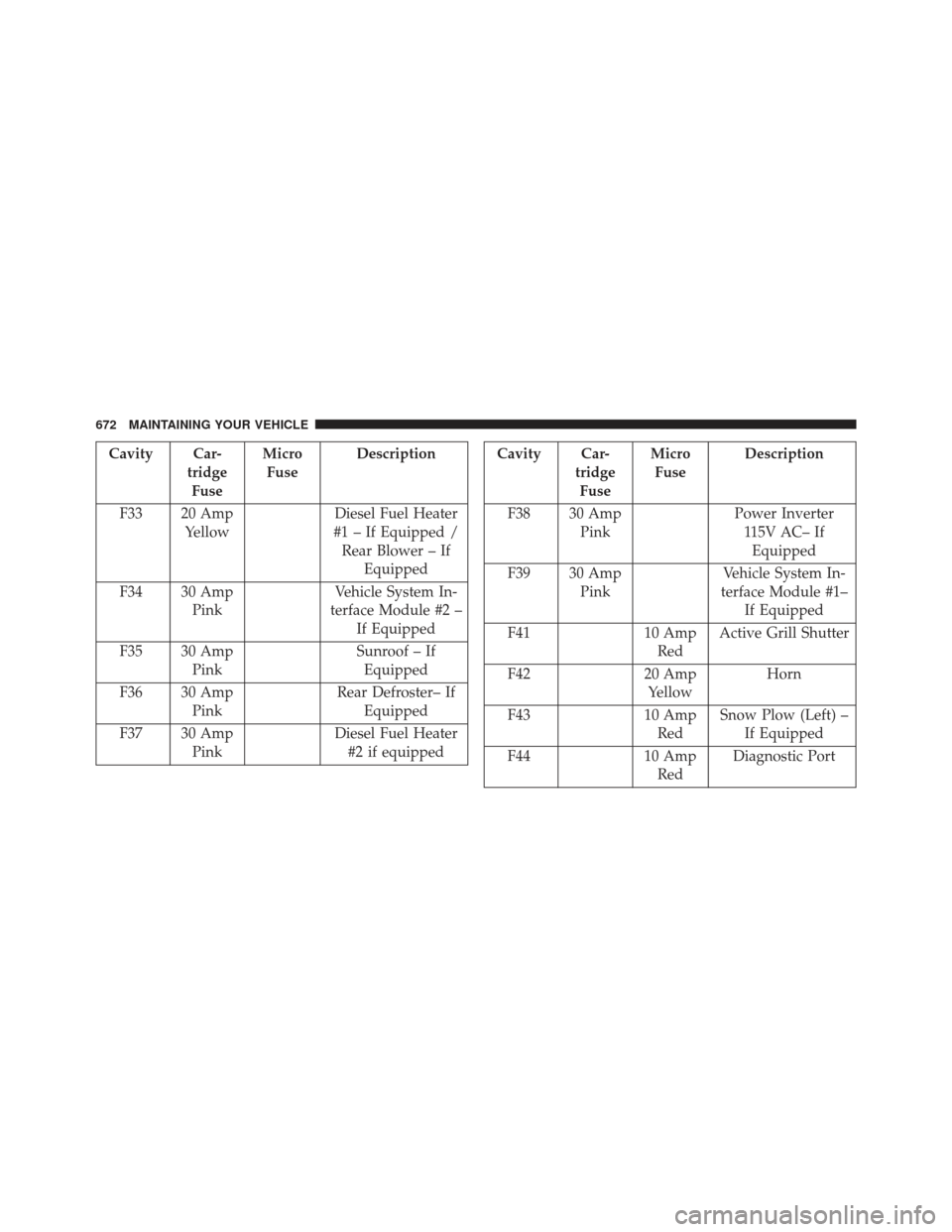

Cavity Car-tridgeFuse Micro
Fuse Description
F33 20 Amp Yellow Diesel Fuel Heater
#1 – If Equipped / Rear Blower – If Equipped
F34 30 Amp Pink Vehicle System In-
terface Module #2 – If Equipped
F35 30 Amp Pink Sunroof – If
Equipped
F36 30 Amp Pink Rear Defroster– If
Equipped
F37 30 Amp Pink Diesel Fuel Heater
#2 if equippedCavity Car- tridgeFuse Micro
Fuse Description
F38 30 Amp Pink Power Inverter
115V AC– IfEquipped
F39 30 Amp Pink Vehicle System In-
terface Module #1– If Equipped
F41 10 Amp
Red Active Grill Shutter
F42 20 Amp
Yellow Horn
F43 10 Amp
Red Snow Plow (Left) –
If Equipped
F44 10 Amp
Red Diagnostic Port
672 MAINTAINING YOUR VEHICLE

Cavity Car-tridgeFuse Micro
Fuse Description
F46 10 Amp
Red Tire Pressure Moni-
tor
F47 10 Amp
Red Snow Plow (Right)
– If Equipped
F49 10 Amp
Red Instrument Panel
Cluster
F50 20 Amp
Yellow Air Suspension
Control Module – If Equipped
F51 10 Amp
Red Ignition Node
Module / Keyless Ignition
F52 5 Amp
Ta n Battery SensorCavity Car-
tridgeFuse Micro
Fuse Description
F53 20 Amp
Yellow Trailer Tow – Left
Turn/Stop Lights
F54 20 Amp
Yellow Adjustable Pedals
F55 20 Amp
Yellow E38 Radio – If
Equipped
F56 15 Amp
Blue Additional Diesel
Content – IfEquipped
F57 20 Amp
Yellow Transmission
7
MAINTAINING YOUR VEHICLE 673

Cavity Car-tridgeFuse Micro
Fuse Description
F58
20 Amp Yellow
(Gas En- gine) /
25 Amp Natural (Diesel
Engine)Engine Cooling Pump
F60 15 Amp
Blue Underhood Lamp
F61 20 Amp
Yellow Power Take-off
Unit – If Equipped
F62 10 Amp
Red Air Conditioning
Clutch
Cavity Car- tridgeFuse Micro
Fuse Description
F63 20 Amp
Yellow
IgnitionCoils (Gas),
Urea Heater (Diesel)
F64 25 Amp
Natural Fuel Injectors /
Powertrain
F65 10 Amp
Red USB interface
F66 10 Amp
Red Sunroof / Passen-
ger Window
Switches / Rain Sensor
F67 10 Amp
Red CD / DVD /
Bluetooth Hands- free Module – If Equipped
674 MAINTAINING YOUR VEHICLE

Cavity Car-tridgeFuse Micro
Fuse Description
F69 15 Amp
Blue Mod SCR 12V – If
Equipped
F70 30 Amp
Green Fuel Pump Motor
F71 25 Amp
Natural Amplifier
F72 10 Amp
Red Voltage Stabilizer
Modules – IfEquippedCavity Car- tridgeFuse Micro
Fuse Description
F74 20 Amp
Yellow (Gas
Engine) /10
Amp Red
(Diesel
Engine) Brake Vacuum
Pump Gas/Diesel – If Equipped
F75 10 Amp
Red Coolant Tempera-
ture Valve Actuator
F76 10 Amp
Red Antilock Brakes/
Electronic Stability Control
7
MAINTAINING YOUR VEHICLE 675

Cavity Car-tridgeFuse Micro
Fuse Description
F77 10 Amp
Red Drivetrain Control
Module/Front Axle Disconnect Module
F78 10 Amp
Red Engine Control
Module / Electric Power Steering
F79 15 Amp
Blue Clearance Lights
F80 10 Amp
Red Universal Garage
Door Opener / Compass
F81 20 Amp
Yellow Trailer Tow Right
Turn/Stop LightsCavity Car- tridgeFuse Micro
Fuse Description
F82 10 Amp
Red Steering Column
Control Module/ Cruise Control
F84 15 Amp
Blue Switch Bank/
Instrument Cluster
F85 10 Amp
Red Airbag Module
F86 10 Amp
Red Airbag Module
F87 10 Amp
Red Air Suspension /
Trailer Tow / Steer- ing Column Con- trol Module
676 MAINTAINING YOUR VEHICLE

Cavity Car-tridgeFuse Micro
Fuse Description
F88 15 Amp
Blue Instrument Panel
Cluster
F90/F91 20 Amp
Yellow Power Outlet (Rear
seats) Customer Selectable
F93 20 Amp
Yellow Cigar Lighter
F94 10 Amp
Red Shifter / Transfer
Case Module
F95 10 Amp
Red Rear Camera /
Park Assist
F96 10 Amp
Red Rear Seat Heater
SwitchCavity Car- tridgeFuse Micro
Fuse Description
F97 25 Amp
Natural Rear Heated Seats
& Heated Steering Wheel – IfEquipped
F98 25 Amp
Natural Front Heated Seats
– If Equipped
F99 10 Amp
Red Climate Control
F101 15 Amp
Blue Electrochromatic
Mirror / Smart
High Beams – If Equipped
F104 20 Amp
Yellow Power Outlets (In-
strument Panel/Center Console)
7
MAINTAINING YOUR VEHICLE 677

CAUTION!
•When installing the power distribution center cover,
it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:
• Disconnect the negative cable from battery. •
Any time you store your vehicle or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
Interior Bulbs
Bulb Number
Overhead Console
Lamps TS 212–9
Dome Lamp 7679
For lighted switches, see your authorized dealer for
replacement instructions.
678 MAINTAINING YOUR VEHICLE
