2013 Ram 1500 Owner's Manual

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial wrecker service. If the trans-
mission and drivetrain are operable, disabled vehicles
may also be towed as described under “Recreational
Towing” in the “Starting and Operating” section.NOTE:
Vehicles equipped with air suspension must be
lowered to the Park (lowest) level, and have automatic
leveling disabled, before tying them down (from the
body) on a trailer or flatbed truck. Refer to Air Suspen-
sion inStarting and Operating for more information. If
the vehicle cannot be lowered to the Park level (for
example, engine will not run), tie-downs must be fas-
tened to the axles (not to the body). Failure to follow
these instructions may cause fault codes to be set and/or
cause loss of proper tie-down tension.
6
WHAT TO DO IN EMERGENCIES 623

Towing
Condition Wheels
OFF the Ground 2WD Models 4WD Models
Flat Tow NONE If transmission is operable:
•Transmission in NEUTRAL
• 30 mph (48 km/h) max speed
• 15 miles (24 km) maxdistance
(6–speed transmission)
• 30 miles (48 km) maxdistance
(8–speed transmission) See instructions in “Recreational Tow-
ing” under “Starting and Operating”
•
Auto Transmission in PARK
• Manual Transmission in gear ( NOT
NEUTRAL)
• Transfer Case in NEUTRAL
• To w i n forward direction
Wheel Lift or Dolly To w Front
NOT ALLOWED
Rear OK NOT ALLOWED
Flatbed ALL BEST METHOD BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
624 WHAT TO DO IN EMERGENCIES

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable or the vehicle’s battery is
discharged, see ”Manual Park Release” or “Shift Lever
Override” in “What To Do In Emergencies” for instruc-
tions on shifting the automatic transmission out of PARK
for towing.
CAUTION!
Do not use sling type equipment when towing.
When securing the vehicle to a flat bed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
Two-Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed. If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be towed (with rear
wheels on the ground) under the following conditions:
•
The transmission must be in NEUTRAL.
• The towing speed must not exceed 30 mph (48 km/h).
• The towing distance must not exceed 15 miles (24 km)
for 6-speed transmission, or 30 miles (48 km) for
8-speed transmission.
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 15
miles (24 km), for 6-speed transmission, or 30 miles
(48 km) for 8-speed transmission, tow with the rear
wheels OFFthe ground. Acceptable methods are to tow
the vehicle on a flatbed, or with the front wheels raised
and the rear wheels on a towing dolly, or (when using a
suitable steering wheel stabilizer to hold the front wheels
6
WHAT TO DO IN EMERGENCIES 625

in the straight position) with the rear wheels raised and
the front wheels on the ground.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
Four-Wheel Drive Models
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of vehicle raised and
the opposite end on a towing dolly.
If flatbed equipment is not available, and the transfer
case is operable, the vehicle may be towed (in the
forward direction, with ALLwheels on the ground), IFthe transfer case is in NEUTRAL (N) and the transmis-
sion is in
PARK(for automatic transmissions) or in gear
(NOT in Neutral, for manual transmissions). Refer to
“Recreational Towing” in “Starting And Operating” for
detailed instructions.
CAUTION!
• Front or rear wheel lifts must not be used. Internal
damage to the transmission or transfer case will
occur if a front or rear wheel lift is used when
towing.
• Towing this vehicle in violation of the above re-
quirements can cause severe transmission and/or
transfer case damage. Damage from improper tow-
ing is not covered under the New Vehicle Limited
Warranty.
626 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........630
 ENGINE COMPARTMENT — 4.7L ..........631
 ENGINE COMPARTMENT — 5.7L ..........632
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .633
▫ Loose Fuel Filler Cap Message ............633
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .634
 REPLACEMENT PARTS ..................635
 DEALER SERVICE ..................... .635
 MAINTENANCE PROCEDURES ...........636▫
Engine Oil ......................... .637
▫ Engine Oil Filter ..................... .640
▫ Engine Air Cleaner Filter ................640
▫ Maintenance-Free Battery ...............641
▫ Air Conditioner Maintenance .............642
▫ Front Driveshaft Lubrication – 2500/3500
(Four-Wheel Drive) Models (Ram Trucks
Only) ............................. .643
▫ Body Lubrication .....................643
▫ Windshield Wiper Blades ...............644
7

▫Adding Washer Fluid ..................645
▫ Exhaust System ..................... .645
▫ Cooling System ..................... .648
▫ Brake System ....................... .654
▫ Rear Axle And 4x4 Front Driving Axle Fluid
Level ............................. .656
▫ Transfer Case ....................... .656
▫ Automatic Transmission ................659
▫ Appearance Care And Protection From
Corrosion .......................... .662
 FUSES ............................. .669
▫ POWER DISTRIBUTION CENTER .........669
 VEHICLE STORAGE ....................678
 REPLACEMENT BULBS .................679
BULB REPLACEMENT ..................680
▫ Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park
And Turn – If Equipped ................680
▫ Fog Lamps – If Equipped ...............683
▫ Rear Tail/Stop, Turn Signal And Backup
Lamps ............................ .683
▫ Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp ........................ .684
▫ Cab Top Clearance Lamps – If Equipped . . . .686
▫ Rear Lamp Bar ID Marker (Dual Rear Wheels) —
If Equipped ......................... .687
▫ Side Marker Lamps (Dual Rear Wheels) — If
Equipped .......................... .688
 FLUID CAPACITIES ....................689
628 MAINTAINING YOUR VEHICLE

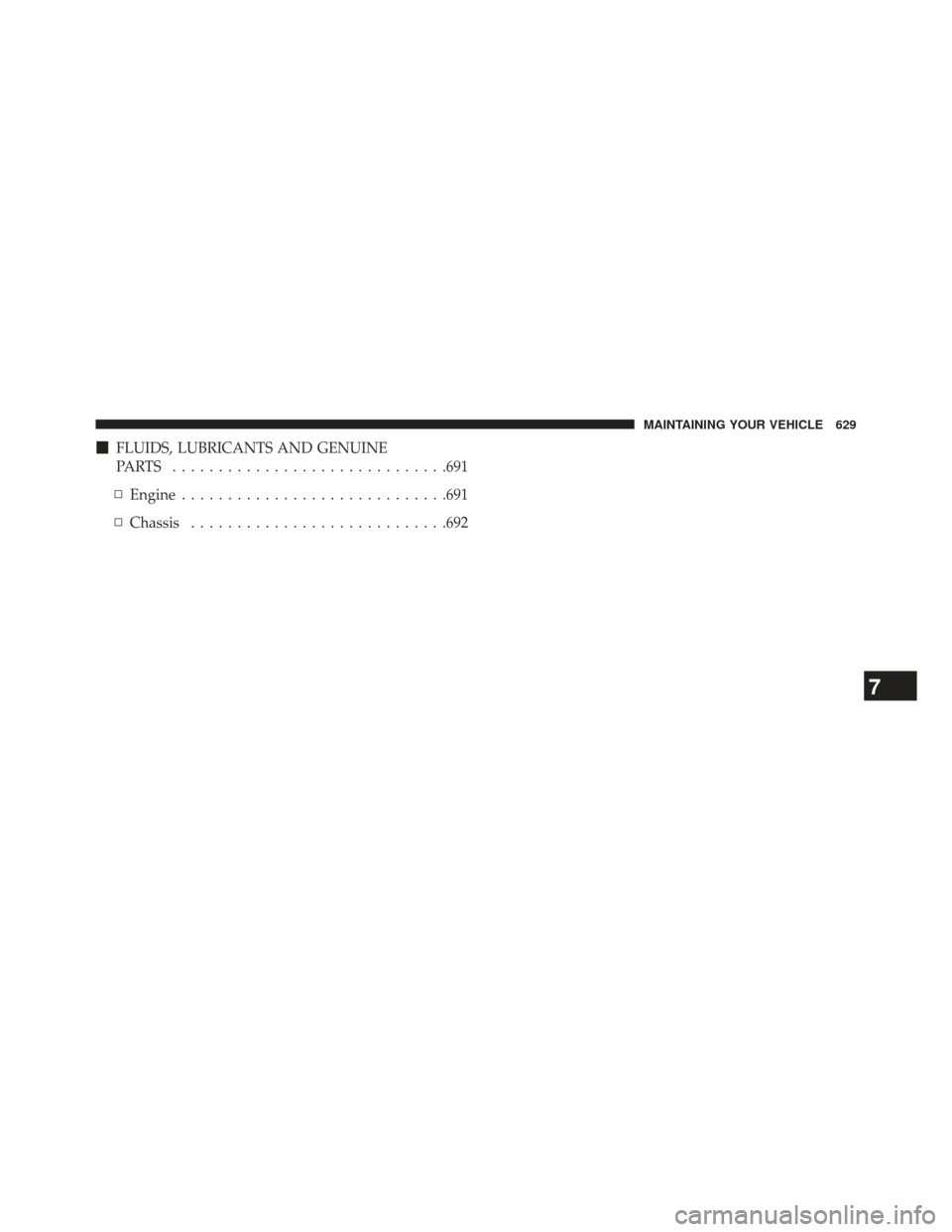

FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .691
▫ Engine ............................ .691
▫ Chassis ........................... .692
7
MAINTAINING YOUR VEHICLE 629

ENGINE COMPARTMENT — 3.6L
1 — Air Cleaner Filter5 — Battery
2 — Engine Oil Dipstick 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Power Distribution Center (Fuses)
4 — Brake Fluid Reservoir 8 — Engine Coolant Reservoir
