2013 PORSCHE PANAMERA Information Manual

148149Technical data

Panamera S E-Hybrid Panamera GTS
Engine
C y linders 6 8
Displacement 2,995 cm34,806 cm3
Max. power (DIN) at rpm245 kW (333 hp) bet ween 5,500 and 6,500 324 kW (440 hp) at 6,700
Max. torque at rpm 440 Nm bet ween 3,000 and 5,250 520 Nm at 3,500
Compression ratio 10.5 : 1 12.5 : 1
Max. power electric motor at rpm 70 kW (95 hp) bet ween 2,200 and 2,600 –
Max. torque electric motor at rpm 310 Nm < 1,700 –
Max. power parallel full hybrid at rpm 306 kW (416 hp) at 5,500 –
Max. torque parallel full hybrid at rpm 590 Nm bet ween 1,250 and 4,000 –
Transmission
LayoutRear-wheel drive All-wheel drive
PDK (7-speed) – Standard
8-speed Tiptronic S Standard –
Chassis
Front axleAluminium double-wishbone Aluminium double-wishbone
Rear axle Aluminium multi-link with chassis subframe Aluminium multi-link with chassis subframe
Steering Variable steering ratio, power-assisted Variable steering ratio, power-assisted
Brakes Six-piston monobloc aluminium fixed calipers (front),
four-piston monobloc aluminium fixed calipers (rear),
integral brake discs internally vented and cross- drilled Six-piston monobloc aluminium fixed calipers (front),

four-piston monobloc aluminium fixed calipers (rear),
composite brake discs (front), integral brake discs (rear),
internally vented and cross- drilled
Standard wheels Front: 8 J x 18 ET 59, Rear: 9 J x 18 ET 53 Front: 9 J x 19 ET 60, Rear: 10 J x 19 ET 61
Standard t yres Front: 245/50 ZR 18, Rear: 275/45 ZR 18 Front: 255/45 ZR 19, Rear: 285/40 ZR 19
Panamera Turbo
Engine
C y linders 8
Displacement 4,806 cm3
Max. power (DIN) at rpm382 kW (520 hp) at 6,000
Max. torque at rpm 700 Nm bet ween 2,250 and 4,500
Compression ratio 10.5 : 1
Max. power electric motor at rpm –
Max. torque electric motor at rpm –
Max. power parallel full hybrid at rpm –
Max. torque parallel full hybrid at rpm –
Transmission
LayoutAll-wheel drive
PDK (7-speed) Standard
Tiptronic S (8-speed) –
Chassis
Front axleAluminium double-wishbone
Rear axle Aluminium multi-link with chassis subframe
Steering Variable steering ratio, power-assisted
Brakes Six-piston monobloc aluminium fixed calipers (front),
four-piston monobloc aluminium fixed calipers (rear),
composite brake discs (front), integral brake discs (rear),
internally vented and cross- drilled
Standard wheels Front: 9 J x 19 ET 60, Rear: 10 J x 19 ET 61
Standard t yres Front: 255/45 ZR 19, Rear: 285/40 ZR 19

150151
Panamera Panamera 4 Panamera S Panamera 4S
Weights
Unladen weight (DIN) 1,770 k g1, 8 2 0 k g1, 810 k g1, 870 k g
Unladen weight (EC)1)1, 8 4 5 k g 1, 8 9 5 k g1, 8 8 5 k g1,9 4 5 k g
Permissible gross weight 2,380 kg2,420 kg2,415 k g2,450 kg
Max. additional load 610 k g600 kg605 kg580 kg
Performance
Top speed 259 km/ h 257 k m / h 287 km/ h 286 km/ h
0–100 km/h 6.3 secs (6.0 secs)2)6.1 secs (5.8 secs)2)5.1 secs (4.8 secs)2)4.8 secs (4.5 secs)2)
Overtaking acceleration 80 –120 km/ h 4.3 secs 4.4 secs 2.9 secs 3.0 secs
Fuel consumption/emissions 3)/
efficiency classes4)
Fuel grade Super Plus unleaded (RON 98)Super Plus unleaded (RON 98)Super Plus unleaded (RON 98)Super Plus unleaded (RON 98)
Urban (in l/100 km) 11 . 2 11 . 411 . 912 . 2
Extra urban (in l/100 km) 6.87. 16.97. 2
Combined (in l/100 km) 8.4 8.78.78.9
CO
2 emissions g/km 19 6203204208
Combined power consumption
(in kWh/100 km) –
–––
Efficiency class (Germany)
4)D DED
Ef ficiency class (Switzerland)4)F FFF
Dimensions
Length 5,015 m m 5,015 m m 5,015 m m 5,015 m m
Width (with exterior mirrors) 1,931 mm (2,114 mm) 1,931 mm (2,114 mm) 1,931 mm (2,114 mm) 1,931 mm (2,114 mm)
Height 1,418 m m 1,418 m m 1,418 m m 1,418 m m
Wheelbase 2,920 mm 2,920 mm 2,920 mm 2,920 mm
Luggage compartment volume (German Car Manu-
facturers’ Assoc.) with folded down rear seats 1,263 litres
1,263 litres1,263 litres1,263 litres
Tank capacity 80 litres80 litres80 litres10 0 l i t res
Panamera S E-Hybrid Panamera GTS Panamera Turbo
Weights
Unladen weight (DIN) 2,095 kg1,9 25 k g1,970 k g
Unladen weight (EC)1)2,170 k g 2,000 kg2,045 kg
Permissible gross weight 2,580 kg2,500 kg2,500 kg
Max. additional load 485 kg575 k g530 kg
Performance
Top speed 270 km/ h 288 km/ h 305 km/ h
0–100 km/h 5.5 secs4.4 secs2)4.1 secs (3.9 secs)2)
Overtaking acceleration 80 –120 km/ h 3.4 secs 3.1 secs 2.6 secs
Fuel consumption/emissions 3)/
efficiency classes4)
Fuel grade Super unleaded (RON 95)Super Plus unleaded (RON 98)Super Plus unleaded (RON 98)
Urban (in l/100 km) – 15.714 .7
Extra urban (in l/100 km) –7. 87. 7
Combined (in l/100 km) 3.1 10.710. 2
CO
2 emissions g/km 71249239
Combined power consumption
(in kWh/100 km) 16 . 2
––
Efficiency class (Germany)
4)A+ FF
Ef ficiency class (Switzerland)4)A GG
Dimensions
Length 5,015 m m 5,015 m m 5,015 m m
Width (with exterior mirrors) 1,931 mm (2,114 mm) 1,931 mm (2,114 mm) 1,931 mm (2,114 mm)
Height 1,418 m m 1,4 0 8 m m 1,418 m m
Wheelbase 2,920 mm 2,920 mm 2,920 mm
Luggage compartment volume (German Car Manu-
facturers’ Assoc.) with folded down rear seats 1,15 3 l i t res
1,263 litres1, 25 0 l i t res
Tank capacity 80 litres10 0 l i t res10 0 l i t res
1) In accordance with the EC standard, the unladen weight applies to vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) In conjunction with the optional Sport Chrono Package with activated SPORT PLUS but ton selected (in the Panamera GTS series).3) Data determined in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC, 692/2008/ EC, 566/2011/ EC and ECE- R 101) measurement method. The figures do not refer to an individual vehicle nor do they
constitute part of the of fer. They are intended solely as a means of comparing dif ferent t ypes of vehicle. Fuel consumption calculated for vehicles with standard specification only. Optional equipment may af fect fuel consumption and
per formance. A vehicle’s fuel consumption and CO
2 emissions do not just depend on how ef ficiently the vehicle uses the fuel but also on driving st yle and other non -technical factors. The latest Porsche models with petrol engines are
designed to operate on fuels with an ethanol content of up to 10 %. You can obtain the latest information on individual vehicles from your Porsche Centre.
4) Valid in the countries listed only.
Technical data

152153Technical data
Ty r e t yp e SizeFuel efficiency class/
rolling resistance Wet grip class
External rolling noise *
Class
External rolling noise
(dB)
Panamera
Summer tyres 245/ 50 Z R18 E – CA73 – 71
275/4 5 Z R18 E – CA
75 – 72
255/4 5 Z R19 EA
71
2 8 5/4 0 Z R19 E – CA
73 – 72
255/40 ZR20 E – CB – A
73 – 71
295/35 ZR20 E – CB – A
74 – 73
All-season tyres 255/4 5 R19 E – BC – B
73 – 72
2 8 5/4 0 R19 E – BC – B
74 – 72
255/4 0 R 2 0 C – BC – B
73 – 72
295/35 R20 C – BC – B
–
74 – 72
For logistical and technical reasons relating to the production process, we are unable to accept orders for a particular make of t yre.
* Quiet rolling noise, Moderate rolling noise, Loud rollling noise.

154155
A
Active bonnet system 78
Adaptive air suspension 65
Adaptive cruise control 102
Air conditioning 87, 91
Airbags 78
All-wheel drive 60
Anti-theft protection 106
Audio systems 92, 98, 136
Auto start/stop function 54
A xle concept 60, 78
B
BOSE® Surround Sound System 98, 136
Brakes 77
Burmester
® High-End Surround
Sound System 98, 136
C
CD/ DVD autochanger 92
Chassis 60
Coasting 33, 54
C o l o u r s 112
Cruise control 102
D
Design 10
Direct fuel injection (DFI) 53
E
E-Power meter 30, 34
Electric motor 32
Electronic logbook 96
Emission control 57
Engineered body design 78
Engines 52, 53
Env iron m en t 81
Exhaust system 57
Exterior 10, 122
F
Factory collection 141
Fuel system 53
H
Headlight cleaning system 73
Headlights 72, 74
Height adjustment 65
High-voltage nickel metal
hydride bat tery 14, 32
Hybrid module 14, 30, 32, 35
I
Interior 12, 84, 116, 130
Interior lighting 84, 86
Interior lighting package for
rear compartment 86
I n t e r i o r p a c k a ge s 113, 13 3 –135
L
Lane Change Assist 105
Lane departure warning 105
Launch Control 69
LED main headlights including
Porsche Dynamic Light System Plus
(PDSL Plus) 74, 123
Levelling system 65, 68
Light-alloy construction 78, 81
Lighting system 72, 74
Lights 84–88
Lightweight exhaust system 57
Loading options 109
Luggage compartment 23, 108, 109
M
Mobile phone preparation 97
MP3 92, 95, 98
Multifunction steering wheel 59, 62
N
Navigation 92, 93
Noise and thermally insulated glass 87
O
On-board computer 62, 64
Online services 97
P
Parallel plug-in hybrid 14, 32
Park Assist 102, 122
Parking brake, electric 77
P a y l o a d 15 0
Personalisation 110, 120
Porsche Active Safe (PAS) 102
Porsche Active Suspension
Management (PASM) 65
Porsche Car Configurator 139
Porsche Car Connect 34, 100
Porsche Ceramic Composite
Brake (PCCB) 76, 126Porsche Communication

Management (PCM) 92
Porsche Doppelkupplung (PDK) 58
Porsche Dynamic Chassis
Control (PDCC) 66, 127
Porsche Dynamic Light System
(PDLS) 73
Porsche Dynamic Light System
Plus (PDLS Plus) 74, 75
Porsche Entry & Drive 106
Porsche Rear Seat Entertainment 94
Porsche Side Impact Protection
System (POSIP) 78
Porsche Stabilit y Management (PSM) 67
Porsche Torque Vectoring Plus
(PT V Plus) 67
Porsche Traction Management (PTM) 60
Porsche Vehicle Tracking System 101
Power output 14, 21, 27, 33, 41, 47
Power seats with
memory package 88, 130
Power steering Plus 62
Privacy glazing 87, 124
R
Radio 92, 95, 97
Rear hatch 109
Recuperation 32
Recycli ng 81
Reversing camera 102
Roll-up sunblinds 87, 109, 131
Roof transport system 124
S
Safet y 73
Seat belt system 78
Seat heating and ventilation 91
Seats 88, 130
Slide/tilt sunroof 124
Soft close doors 87
Speed limit display 104, 105
SPORT but ton 68
Sport Chrono Package 59, 62, 68, 126
SportDesign steering wheel 62
Sports exhaust system 57, 127
Steering 62
Steering wheels 62
Surround View 102
T
Technical data 146
Telephone module 96, 137
Thermally insulated glass 87
Tiptronic S 58
Touchscreen 92, 95
Towbar system 125
Transmission 58
T V tuner 93, 137
Tyre Pressure Monitoring (TPM) 64
Tyre table 152
U
Universal audio interface 92, 95
V
Variable camshaft control 54
VarioCam Plus 54
Voice control system 95
W
Wheels 64, 128
Index
Index

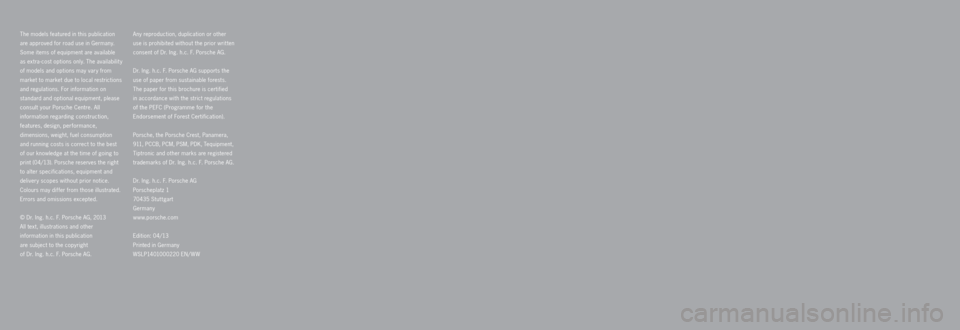

The models featured in this publication
