2013 Peugeot 807 headlamp

10
Interior

5.
Control block.

6.
Steering wheel audio equipment
controls.

7.
Wipers / wash-wipe / trip computer
controls.

8.
Gear lever.

9.
Ignition.

1.
Interior protection alarm
deactivation button.

2.
Speed limiter / cruise control
switches.

3.
Lights and direction indicators
controls.

4.
Driver's airbag.
Horn.
10.
Headlamp height adjustment.

11 .
a- Dynamic stability control button
(ESP/ASR).
b- Parking assistance button.

12.
Steering wheel adjustment control.



INSTRUMENTS AND CONTROLS

43
3
3
14

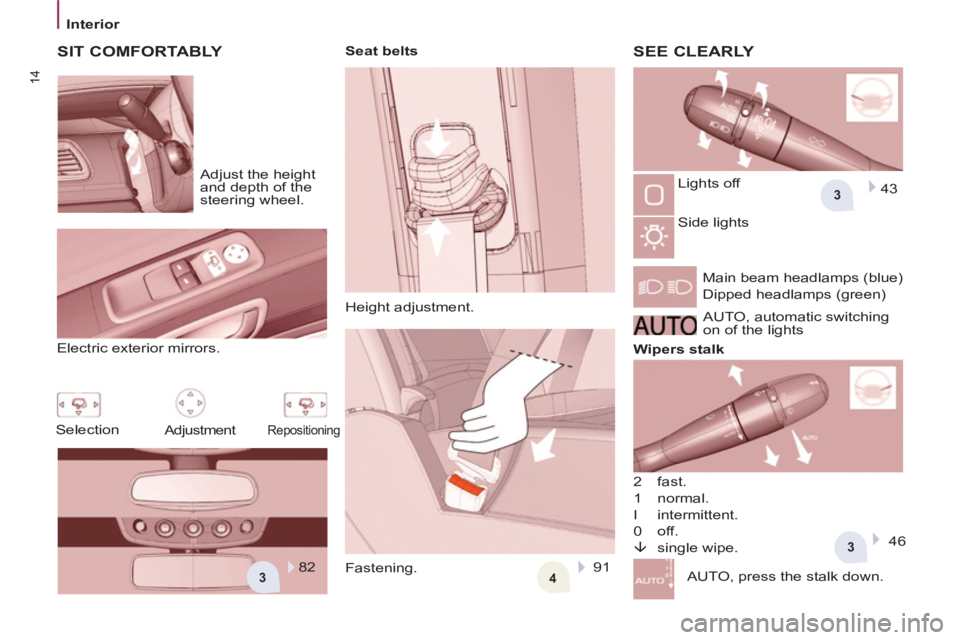

Interior
91

Repositioning


SIT COMFORTABLY
SEE CLEARLY

Adjust the height
and depth of the
steering wheel.
Electric exterior mirrors.
Selection
Seat belts
Height adjustment.
Fastening. Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)

Wipers stalk
2 fast.
1 normal.
I intermittent.
0 off.
È
single wipe.
AUTO, press the stalk down. AUTO, automatic switching
on of the lights
Adjustment

82
43
46

Instruments and controls

32

Warning light is indicates Solution - action

ESP/ASR
fl ashing. wheel skid avoided. The system optimises the traction and improves
the directional stability of the vehicle. Chapter 4,
"Driving safety" section.
remaining on.

a malfunction of the system.
E.g.: under-infl ation of the tyres.
Check the pressure of the tyres. Call a PEUGEOT
dealer.
remaining on with
the button (below
the steering
wheel on the left)
pressed.
deactivation of the system. The operation of the system has been
deactivated. Chapter 4, "Driving safety" section.

Diesel
pre-heating
lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.

Dipped
headlamps/
Daytime
lights
lit. manual selection or
automatic lighting. Rotate the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is switched
on - daytime lights. Depending on the
country in which the vehicle is sold.
Chapter 3, "Steering wheel controls" section.

Main beam
headlamps
pulling of the stalk towards
you. Pull the stalk to return to dipped headlamps.
and with an
audible signal,
ignition off. opening of the driver's door
with the lights still on. Rotate the ring on the lights stalk to position 0.

Direction
indicators
fl ashing with
buzzer. change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.

Instruments and controls

READY TO SET OFF
2
33

Warning light is indicates Solution - action

Front fog
lamps
lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.

Rear fog
lamps
lit. manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off on penalty of
being booked. "This light is a dazzling red."
Display is indicates Solution - action

Cruise control
lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.

Speed limiter
lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.

Service
spanner
lit. service due shortly. Refer to the list of checks in the servicing booklet.
Have the service carried out by a PEUGEOT
dealer.

Automatic
gearbox
displayed. gear lever position selected. Chapter 2, "Instruments and controls" section.

Particle
emission fi lter
saturation
warning
displayed and
associated with
the service
warning light. malfunction of the particle
emission fi lter (diesel
additive level, risk of
clogging, …). Have the fi lter checked by a PEUGEOT dealer.
Chapter 6, "Levels" section.

Steering mounted controls

44

Front fog lights (green)
and rear fog lights
(amber, 2nd rotation of
the ring forwards). To switch off the front and rear
fog lights, turn the ring rearwards
twice in succession.

Front and rear fog lights
Rotate ring B
forwards to switch on
and rearwards to switch off. The
status is confi rmed by the light on the
instrument panel.
These operate with the side lights and
the dipped beam headlamps. In clear weather or in rain, both
day and night, rear fog lights
dazzle and are prohibited.
Do not forget to switch them off when
they are no longer needed.
Automatic switching on of the lights
switches off the rear fog lamps, but the
front fog lamps remain on.



Daytime running lamps

Depending on the country in which
the vehicle is sold, the vehicle may be
equipped with daytime running lamps.
The dipped headlamps come on when
the vehicle is started.
The instruments and controls
(instrument panel, screen, air
conditioning control panel, ...) are
only illuminated on switching to the
automatic illumination of headlamps
mode or when the lamps are switched
on manually.




Dipped beam/main beam change
Pull the stalk fully towards you.
Front fog lights (green,
1st rotation of the ring
forwards).
Lights-on buzzer
When the ignition is switched off, when
the driver's door is opened, a buzzer
sounds if you have left your lights on. This warning lamp comes on
in the instrument panel.

Steering wheel controls

EASE OF USE and COMFORT
3
45


Automatic "Follow-Me-Home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights function
activated
, the side lights and dipped
headlamps remain on for the selected
duration.
To deactivate or activate this
function, go to the display
confi guration menu.
The duration of the timed period must
also be set (15, 30, 60 seconds), via
the display confi guration menu.
Carry out these operations when the
vehicle is stationary.
HEADLAMPS BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.

0
- 1 or 2 people in the front seats.

1
- 5 people.

2
- 6 to 8 people.

3
- Driver + maximum authorised
loads.

Initial setting is position 0.
In foggy weather or in snow,
the brightness sensor can
detect suffi cient light. As a
consequence, the lights will not come
on automatically.

Automatic switching on of the lights

Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function is
accompanied by a message on the
display.
The function is deactivated temporarily
when you use the manual lights stalk.

If the brightness sensor does not
function correctly
, the lights come on
accompanied by the service warning
light, an audible signal and a message
on the display.
Contact a PEUGEOT dealer.

Do not cover the brightness
sensor located in the centre of the
fascia. It is used for the automatic
switching on of the lights and for the
automatic wipers.



Activation
Turn the ring to the AUTO
position.
The activation of this function is
accompanied by a message on the
display.

AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS

On vehicles which are fi tted with xenon
headlamps, this system automatically
corrects the height of the light beam,
regardless of the load in the vehicle.
The driver is then guaranteed optimum
lighting without dazzling other road
users.
Cancelling:
- "fl ash" the headlamps,

-
get out of the vehicle and lock it.
If your vehicle is fi tted
with a brightness
sensor, the side lights
and dipped beam
headlamps switch on
automatically if the
light is poor, or during operation of the
windscreen wipers. They switch off
as soon as the light becomes bright
enough or the windscreen wipers stop.
This function is not compatible with the
daytime lights.

Steering mounted controls

46

WINDSCREEN WIPER STALK

Manual windscreen wipers

Special position of the
windscreen wipers
In the minute following switching
off of the ignition, any action on the
stalk positions the wipers against the
windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.

Vehicle fitted with the
automatic windscreen
wipers control
Do not cover the rain sensor located in
the centre of the fascia.
On vehicles which are fi tted with
this control, in the AUTO
position,
the windscreen wipers operate
automatically and adapt their speed
to the intensity of the rainfall
.
When not in AUTO
mode, for the
other positions, refer to the manual
windscreen wipers section.
The command must be reactivated
whenever the ignition has been
switched off for more than
one minute:

-


move the stalk to any position,

-
then move it back to the required
position.
2
Fast wipe (heavy rain).

1
Normal wipe (moderate rain).

l
Intermittent wipe.

0
Off.

È
Single wipe
(press downwards). Refer to the "Changing a
windscreen wiper blade" section of
chapter 7.

Wash-wipe and headlamp wash

Pull the stalk towards you, the wash-
wipe is accompanied by a timed sweep
of the wipers.
If your vehicle is fi tted with this
function, the headlamp wash is linked
with the wash-wipe, it is triggered if the
dipped headlamps are on. To park the wipers in their normal
position after this has been done,
switch on the ignition and move the
stalk.
To top up the levels, refer to the
"Levels" section of chapter 6.
In the I
ntermittent position, the wiping
speed is in proportion to the vehicle
speed.

82


Mirrors and windows



Manual rear view mirror

The rear view mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.


Automatic day/night interior
mirror
This automatically and gradually
changes between the day and night
positions. To prevent dazzling,
the glass of the mirror darkens
automatically depending on the
intensity of the light from behind.
It clears as the light (headlamps of
following vehicles, sunlight) decreases,
ensuring maximum visibility.

Special feature
To ensure maximum visibility during
manoeuvres, the mirror clears
automatically when reverse gear is
engaged.

MIRRORS

MIRRORS AND WINDOWS

Electric exterior mirrors



- Move switch A
to the right or to
the left to select the corresponding
mirror.

- Move knob B
in all four directions
to adjust.

- Return switch A
to the centre
position
When parked, the mirrors can be
folded back manually, or electrically by
pulling switch A
rearwards.
Electric unfolding of the mirrors is
possible with the key on unlocking the
vehicle.
