2013 Peugeot 508 RXH height adjustment

154
Visibility






Manual adjustment
of halogen
headlamps







Automatic adjustment of xenon headlamps
To avoid causing a nuisance to other road
users, the beams of the halogen headlamps should be adjusted according to the load in the
vehicle.1 Driver 2
Driver + front passenger.3
Driver + front passenger + rear passengers.4
5 people.5
5 people + a load in the boot. 6
Driver + a load in the boot. If a fault occurs
, this warning lamp is displayedin the instrument panel,
accompanied by an audible signal and a
message in the instrument panel screen.
The s
ystem then places your headlamps in the lowest position.
In order to avoid causing a nuisance to other road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, in relation to the load in the vehicle.

If a fault occurs, do not touch the xenonbulbs. Contact a PEUGEOT dealer or a qualified workshop.


The initial setting is position "0".

166
Child safety














Installing child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg
(groups 0(
b )and 0+)
Up to approx 1 year

From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg
(group 2)3 to 6 years approx
From 22 to 36 kg(group 3)
6 to 10 years approx

Front passenger seat (
c )with height adjustment U (R)U (R)U (R)U (R)

Front passenger seat (c)without height adjustmentUUUU
Outer rear seatsUUUU
Centre rear seat XXXX
a:
universal child seat, child seat that can be installed in all vehicles using a seat belt. b:
group 0, from bir th to 10 kg. Shell seats and baby carriers cannot be installed in the front passenger seat.c:
consult the legislation in force in your country before installing your child on this seat.U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing". U (R):same as U, with the vehicle's seat adjusted to the highest position and as far back as possible. X:
seat position not suitable for installation of a child seat for the weight class indicated.

178
Safety
Front seat belt height adjustment
)To a djust the anchorage point, squeeze thecontrol and slide it until you find a notch.


From approximatel
y 12 mph (20 km/h),
the warning lamp(s) flash for
two minutes accompanied by an
audible si
gnal. Once these two
minutes have elapsed, the warning lamp(s)remain on until the driver or one or morepassengers fasten their seat belt.








Seat belt not fastened / unfastened warning lamps
1.Front and/or rear seat belts not fastened / unfastened warning lamp in the instrument
panel.
2. Front left seat belt warning lamp.3.
Front right seat belt warning lamp.4.Rear right seat belt warning lamp.
5.Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.


Front and rear seat belt warning lamps
On switching on the ignition, warninglamp 1
comes on in the instrument
panel and the corresponding warning lamp (2to 6 ) comes on in red in the passenger's seat belt and front airbag warninglamp display if the corresponding seat belt isnot fastened or is unfastened.

.
293
Alphabetical index
Filling with fuel..........................................89,91Fitting a wheel ...............................................191Fitting roof bars .............................................217Fittings, boot ................................................. 104
Flashing indicators ................................ 150, 172Flat bed lorry or trailer............................r48,214Foglamps, rear......................................r148, 200Folding the rear seats.....................................96Front foglamps..............................................148Front seats ................................................92, 93Fuel............................................................40,91Fuel consumption ......................................40,42Fuel consumption figures ............................... 42Fuel filler cap...................................................89Fuel filler flap...................................................89Fuel gauge......................................................89Fuel tank..........................................................89Fusebox, dashboard.....................................203Fuses.............................................................203
G.P.S. ............................................................248Gearbox, electronic gear control ..........130, 228Gear lever, electronic gear control gearbox.......................................................130Ground clearance...................................31, 233Guidance...............................................246,253Guide-me-home............................................151
Identification plates.......................................234Ignition.............................................................27Ignition on........................................................27Indicator lamps, status..............................52,57Indicators, direction......................................172Inflating accessories (using the kit)..............184Inflating tyres ..................................................40Instrument panel.............................................49Instrument panels...........................................50Instrument panel screen.................................50Instruments and controls................................12Intelligent Traction Control............................175Interior fittings ...............................................101Interior mood lighting ....................................161ISOFIX...........................................................169ISOFIX child seats .................................168-170ISOFIX mountings.........................................168
Jack ...............................................................190JBL (audio system)....................................9, 237
F
GI
J
Electronic engine immobiliser...................r27,79Emergency boot release .................................87Emergency call.....................................173, 236Emergency warning lamps ...................107, 172Energy economy mode .................................210Engine, Diesel.................91, 222, 223,231, 232Engine compartment...............................46,223Engine compar tment fusebox.......................203Engine oil level indicator.........................r65, 224Engines .................................................230-232Environment ..........................................5,40,78
Halogen headlamps ..............................196,198Hands-free kit................................................262Hazard warning lamps..........................107,172Head-up display............................135, 138,140Headlamp adjustment...................................154Headlamps, directional.........................155,196Headlamp wash ............................................157Headlamp wash reser voir.............................r225Head restraints, front......................................94Head restraints, rear.......................................r96Heated seats ...................................................94Heating............................................40, 118,121Height and reach adjustment, steering wheel............................................100High load retaining net..................................108High voltage ..............43-45,105, 179, 209, 221High voltage cable ..........................................44Hill start assist ...............................................134History .......................................................42, 67Hybrid .....................................4,22,29, 33,207Hybrid flow............................................4,22, 33Hybrid selector................................................r29Hybrid system..............................4, 22,23,243
H
Keeping children safe ........... 162,169,170, 180Key...........................................70-72,74, 77, 79Key, electronic...............................28, 70-74, 77Keyless Entry and Starting.................71,72, 79Key not recognised.........................................28Key with remote control..................................27
K

.
299

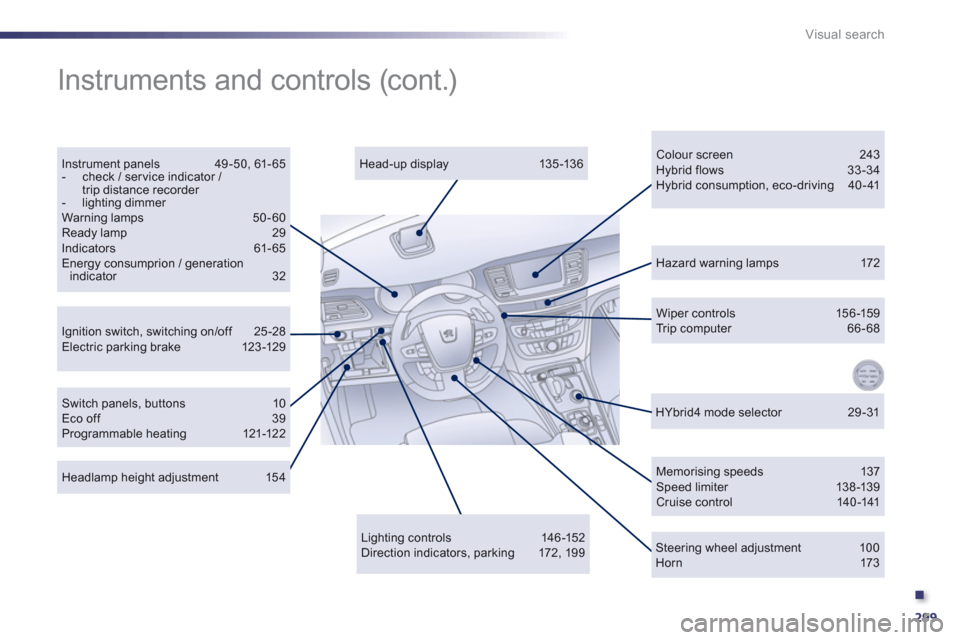

Visual search
Hazard warning lamps 172
Ignition switch, switching on/off 25-28Electric parking brake 123 -129
Instrument panels 49-50, 61-65 - check / ser vice indicator / trip distance recorder - lighting dimmer
Warning lamps 50-60Ready lamp 29Indicators 61-65Energy consumprion / generationindicator 32

Wiper controls 156-159 Trip computer 66 - 68
Headlamp height adjustment 154
Head-up display 13 5 -13 6 Colour screen 243 Hybrid flows 33-34 Hybrid consumption, eco-driving 40-41


Instruments and controls (cont.)
Lighting controls 146 -152 Direction indicators, parking 172, 199
Switch panels, buttons 10Eco off 39 Programmable heating 121-12 2
Memorising speeds 137 Speed limiter 138 -139 Cruise control 140 -141

Steering wheel adjustment 100
Horn 173


HYbrid4 mode selector 29-31
