5VISIBILITY

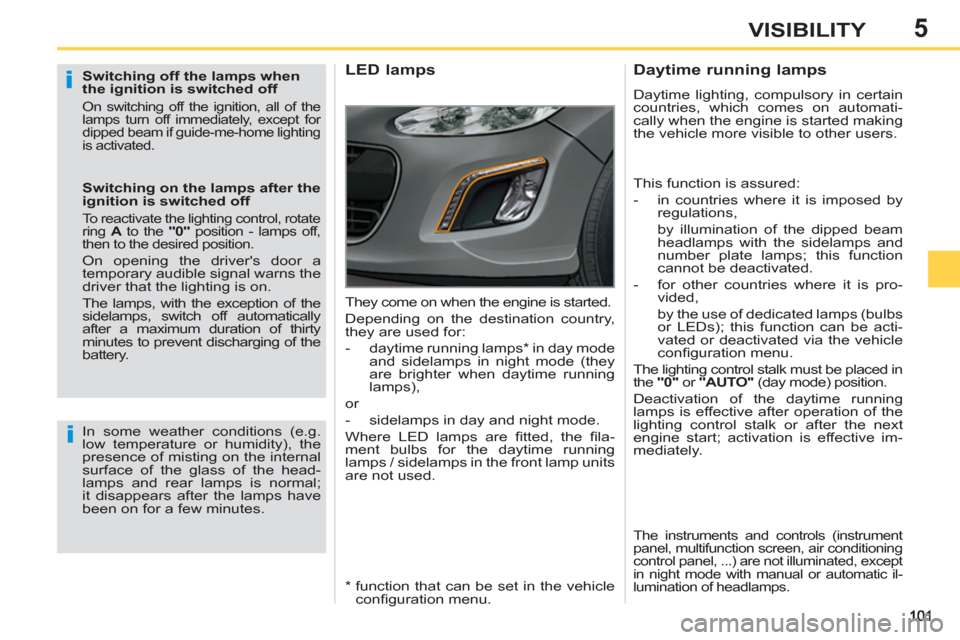

Switching off the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.


Switching on the lamps after the
ignition is switched off
To reactivate the lighting control, rotate
ring A
to the "0"
position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically
after a maximum duration of thirty
minutes to prevent discharging of the
battery.











LED lamps

In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.








Daytime running lamps

Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.

This function is assured:


- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.

- for other countries where it is pro-
vided,
by the use of dedicated lamps (bulbs
or LEDs); this function can be acti-
vated or deactivated via the vehicle
confi guration menu.
The lighting control stalk must be placed in
the "0"
or "AUTO"
(day mode) position.
Deactivation of the daytime running
lamps is effective after operation of the
lighting control stalk or after the next
engine start; activation is effective im-
mediately.


The instruments and controls (instrument
panel, multifunction screen, air conditioning
control panel, ...) are not illuminated, except
in night mode with manual or automatic il-
lumination of headlamps.


They come on when the engine is started.
Depending on the destination country,
they are used for:


- daytime running lamps * in day mode
and sidelamps in night mode (they
are brighter when daytime running
lamps),
or


- sidelamps in day and night mode.
Where LED lamps are fi tted, the fi la-
ment bulbs for the daytime running
lamps / sidelamps in the front lamp units
are not used.

*
function that can be set in the vehicle
confi guration menu.

6
124
FITTINGS

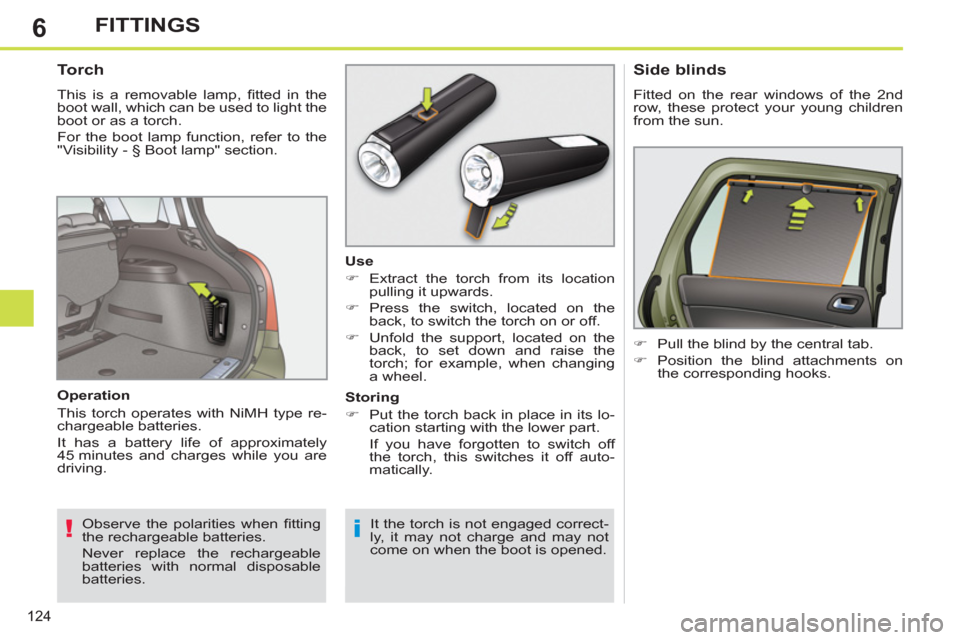

Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.

Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use


)
Extract the torch from its location
pulling it upwards.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.










Side blinds

Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachments on
the corresponding hooks.

Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.

9
PRND
159
DRIVING

To limit fuel consumption when sta-
tionary for long periods with the en-
gine running (traffi c jam...), place the
gear lever in position N
and apply
the parking brake.



Return to standard automatic
operation


)
At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.



Manual operation



)
Select position M
for sequential

changing of the four or six gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.

D
disappears and the gears
engaged appear in succes-
sion on the instrument panel.
If the engine speed is too low or too
high, the gear selected fl ashes for a few
seconds, then the actual gear engaged
is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1
automatically. The sport and snow programmes do not
operate in manual mode.

Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).



Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle.

If the lever is not in position P
,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, an audible
signal is heard and a message ap-
pears in the screen.


)
Return the lever to position P
;
the audible signal stops and the
message disappears.




Operating fault


There is a risk of damage to the
gearbox:


- if you press the accelerator and
brake pedals at the same time,

- if you force the lever from posi-
tion P
to another position when
the battery is fl at.
When the ignition is on, the
lighting of this warning lamp, ac-
companied by an audible signal
and a message in the screen,
indicates a gearbox fault.
In this case, the gearbox switches
to emergency mode and is locked in
3rd gear. You may feel a substantial
knock when changing from P
to R
and
from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed a speed of 60 mph
(100 km/h), local speed restrictions per-
mitting.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.

9
160
DRIVING
STOP & START
The Stop & Start system puts the engine
temporarily on standby - STOP mode -
during stops in the traffi c (red lights, traf-
fi c jams, or other...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,

- with the 6-speed electronic gear
control gearbox
, at a speed below
5 mph (8 km/h), when you press the
brake pedal or put the gear lever
into position N
. If your vehicle is fi tted with
the system, a time counter
calculates the sum of the
periods in STOP mode dur-
ing a journey. It rests itself to
zero every time the ignition
is switched on with the key.
With the automatic gearbox system, for your comfort during parking ma-
noeuvres, STOP mode is not avail-
able for a few seconds after coming
out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
braking, power steering, for example.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is on,

- some special conditions (battery
charge, engine temperature, braking
assistance, ambient temperature...)
where the engine is needed to as-
sure control of a system.
In this case, the "ECO"
warning
lamp fl ashes for a few seconds,
then goes off.

This operation is perfectly normal.

9
161
DRIVING

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
fully depress the clutch pedal,

- with the 6-speed electronic gear
control gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse gear.

Special cases: START invoked
automatically
For your safety and comfort, START is
invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox or 7 mph (11 km/h) with the
6-speed electronic gearbox system,

- some special conditions (battery
charge, engine temperature, braking
assistance, ambient temperature...)
where the engine is needed to as-
sure control of a system.
In this case the "ECO"
warning
lamp fl ashes for few seconds,
then goes off.

This operation is perfectly normal.




Deactivation

If the system has been deactivated
in STOP mode, the engine restarts
immediately. At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.

Reactivation

Press the "ECO OFF"
switch again.

The system is active again; this is confi rmed
by the switch warning lamp going off and a
message in the instrument panel.
The system is reactivated auto-
matically at every new start using
the key. With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
warning lamp comes on or a mes-
sage is displayed asking you to de-
press the clutch pedal to restart the
engine.

9
162
DRIVING

Operating fault

In the event of a malfunction with the
system, the "ECO OFF"
switch warning
lamp fl ashes, then comes on continu-
ously.
have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. All of the warning
lamps in the instrument panel come on.
It is then necessary to switch off the ig-
nition and start the engine again using
the key.


Maintenance

Before working under the bonnet,
deactivate the Stop & Start system
to avoid any risk of injury resulting
from automatic operation of START
mode.
This system requires a specifi c battery
with a special specifi cation and techno-
logy (reference numbers available from
a PEUGEOT dealer or a qualifi ed work-
shop).
Fitting a battery not listed by PEUGEOT
introduces the risk of malfunction of the
system.
The Stop & Start system makes use of advanced technology. All work on
this type of battery must be done
only by a PEUGEOT dealer or a
qualifi ed workshop.

10
172
CHECKS
PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
173
CHECKS
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

*
According to engine.
