2013 Peugeot 308 SW BL language

This personal space offers advice and other useful information for
the care and maintenance of your vehicle.

You can find your user guide on the PEUGEOT website, under theheading "Personal space".

Referring to the user guide on-line also gives you access to thelatest information available, easily identified by the bookmarks, associated with this pictogram:
If the heading "Personal space" is not available on the public websitefor your country, you can find your user guide at the following address:http://public.servicebox.peugeot.com

the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning.It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You will find your user guide, presented in the same way as the paper version.

1INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Controls
There are four buttons to control the
large central instrument panel screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu.
Main menu


)
Press button 1
for access to the
main menu and select one of the
following functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.
The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears on the cen-
tral screen above a certain speed
threshold, indicating that the main
menu cannot be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2
and 3
(refer to the "Trip
computer" section). This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and of the
parameters of the central screen
(languages, units...),

- while driving
, scrolling of the
active functions (trip computer,
navigation...).


Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear
(refer to the "Visibility" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and consumption (l/100 km,
mpg or km/l).

2
45
MULTIFUNCTION SCREENS

Displays in the screen

Depending on the context, displays:


- time,

- date,

- ambient temperature with air condi-
tioning (the value if there is a risk of
ice),

- trip computer,

- alert messages,

- parameter settings menus for the
screen and vehicle equipment.

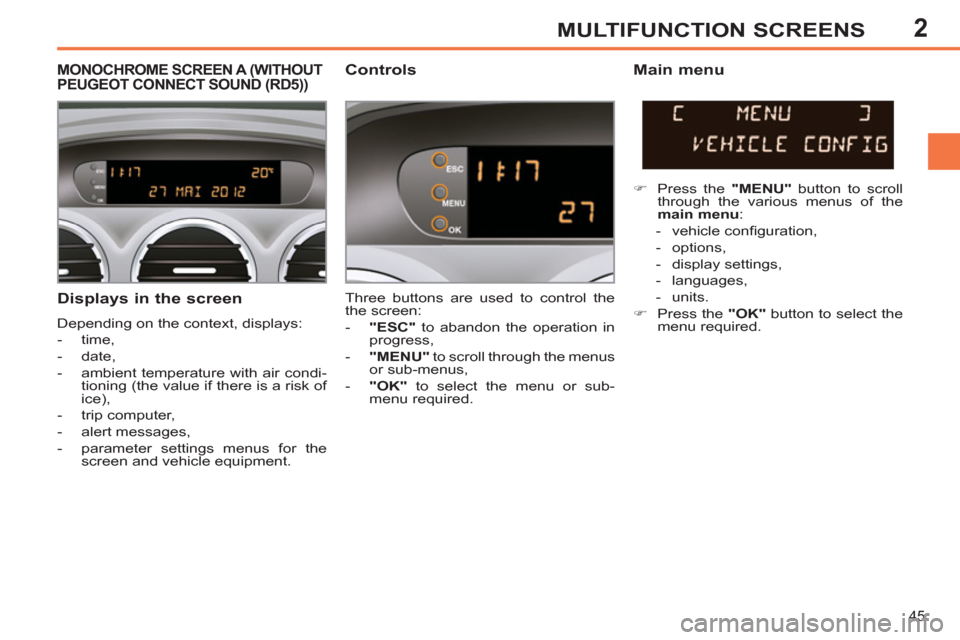

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND (RD5))
Controls
Main menu

Three buttons are used to control the
the screen:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the menus
or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required.

2
46
MULTIFUNCTION SCREENS

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics on the
state of the vehicle (current alerts).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).




)
Once you have selected a setting,
press the "OK"
button to change its
value.


)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (see
"Visibility"),

-
daytime running lamps (see "Visibility"),

- rear parking sensors (see "Driving").


For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

2
47
MULTIFUNCTION SCREENS

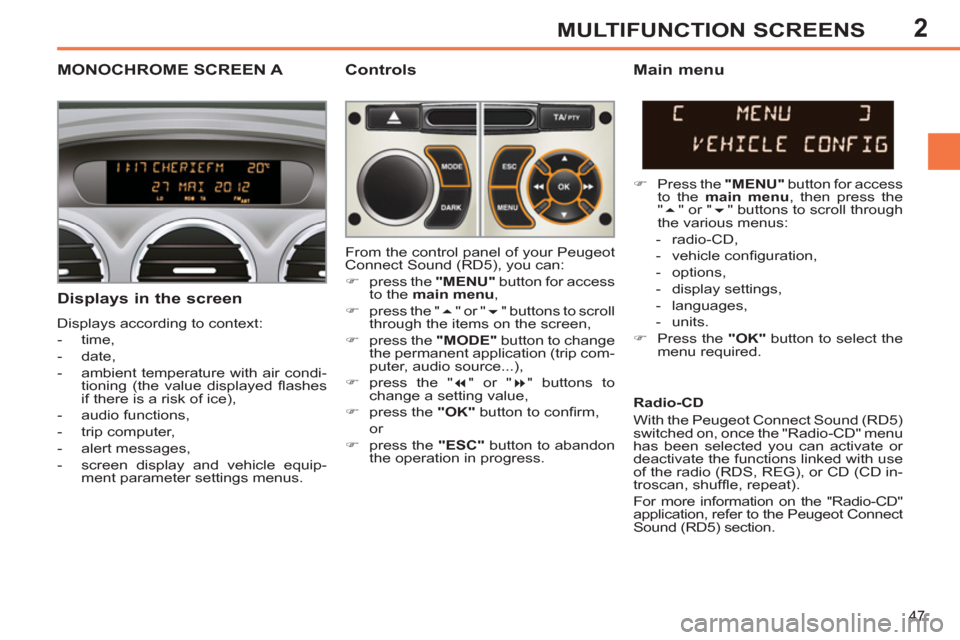

MONOCHROME SCREEN A
Controls

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),

- audio functions,

- trip computer,

- alert messages,

- screen display and vehicle equip-
ment parameter settings menus.



Main menu



)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:


- radio-CD,

- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required. From the control panel of your Peugeot
Connect Sound (RD5), you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or

)
press the "ESC"
button to abandon
the operation in progress.

Radio-CD
With the Peugeot Connect Sound (RD5)
switched on, once the "Radio-CD" menu
has been selected you can activate or
deactivate the functions linked with use
of the radio (RDS, REG), or CD (CD in-
troscan, shuffl e, repeat).
For more information on the "Radio-CD"
application, refer to the Peugeot Connect
Sound (RD5) section.

2
48
MULTIFUNCTION SCREENS

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

Screen display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).



)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.


)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button to
cancel.



Vehicle confi guration


Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (see
"Visibility"),

- daytime running lamps (see "Visibility"),

- rear parking sensors (see "Driving").

2
50
MULTIFUNCTION SCREENS

"Diagnosis vehicle"
menu


)
Press the "MENU"
button for ac-
cess to the main menu.

)
Press the arrows, then the "OK"

button to select the " Diagnosis ve-
hicle
" menu.


)
On the " Diagnosis vehicle
" menu,
select the following application:



Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen. Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert log.

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:


- wiper linked with reverse gear (see
"Visibility"),

- "guide-me-home" lighting (see "Vis-
ibility"),

- interior mood lighting (see "Visibility"),

- daytime running lamps (see "Visibility"),

- rear parking sensors (see "Driving").


"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.

2
51
MULTIFUNCTION SCREENS

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.



"Telephone" menu


Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:


- brightness-video setting,

- date and time setting,

- choice of units.


Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Russe, Türkçe * ).
Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.


)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.


)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.

)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.
With the Peugeot Connect Sound
(RD5) switched on, once this menu has
been selected you can confi gure your
Bluetooth system (pairing), consult the
various telephone directories (calls log,
services...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound (RD5) section.

*
According to country.
