2013 PEUGEOT 2008 engine

185
8
Checks

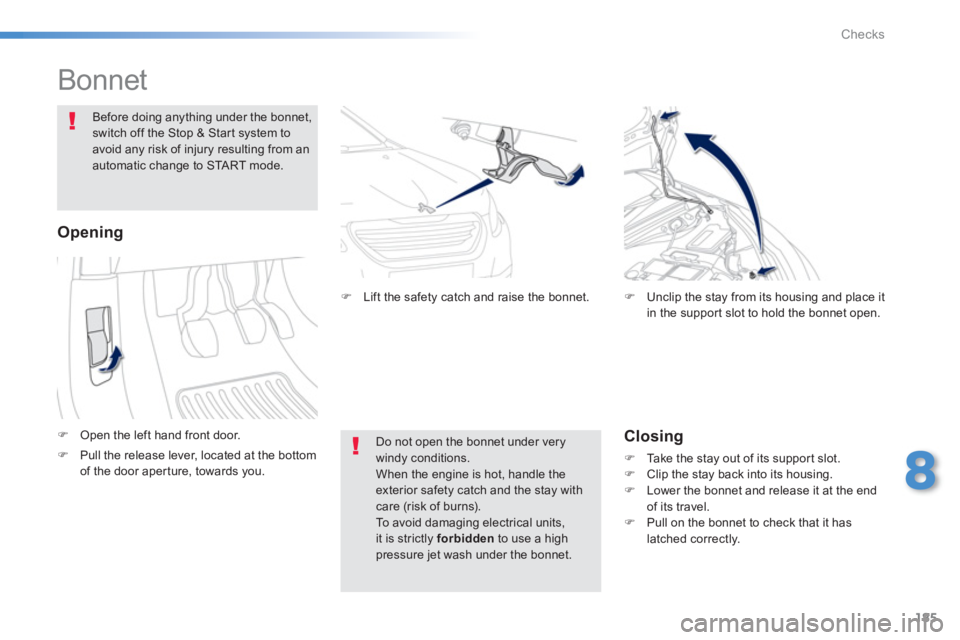

Bonnet
)Open the left hand front door.


Before doing anything under the bonnet,switch off the Stop & Start system toavoid any risk of injury resulting from anautomatic change to STA R T m o d e .


Closing
)
Take the stay out of its suppor t slot. )
Clip the stay back into its housing. )
Lower the bonnet and release it at the endof its travel. )
Pull on the bonnet to check that it has
latched correctly.
)
Unclip the stay from its housing and place itin the suppor t slot to hold the bonnet open.

Do not open the bonnet under very windy conditions.When the engine is hot, handle the exterior safety catch and the stay with care (risk of burns).To avoid damaging electrical units,it is strictly forbiddento use a high pressure jet wash under the bonnet.




Opening
)
Lift the safety catch and raise the bonnet.


)Pull the release lever, located at the bottom
of the door aper ture, towards you.

186
Checks
The various caps and covers allow access for checking the levels of the various fluids and for replacing cer tain components.














Petrol engines
1.
Screenwash reservoir.2.
Coolant reservoir. 3.
Brake fluid reservoir.4.
Battery / Fuses. 5.
Fusebox.
6.Air filter.
7. Engine oil dipstick. 8.Engine oil filler cap.

187
8
Checks
The various caps and covers allow access for checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.














Diesel engines
1.
Screenwash reservoir. 2.Coolant reservoir.3.Brake fluid reservoir.4.
Battery / Fuses.
5. Fusebox.
6.Air filter.
7. Engine oil dipstick.8.Engine oil filler cap.

188
Checks

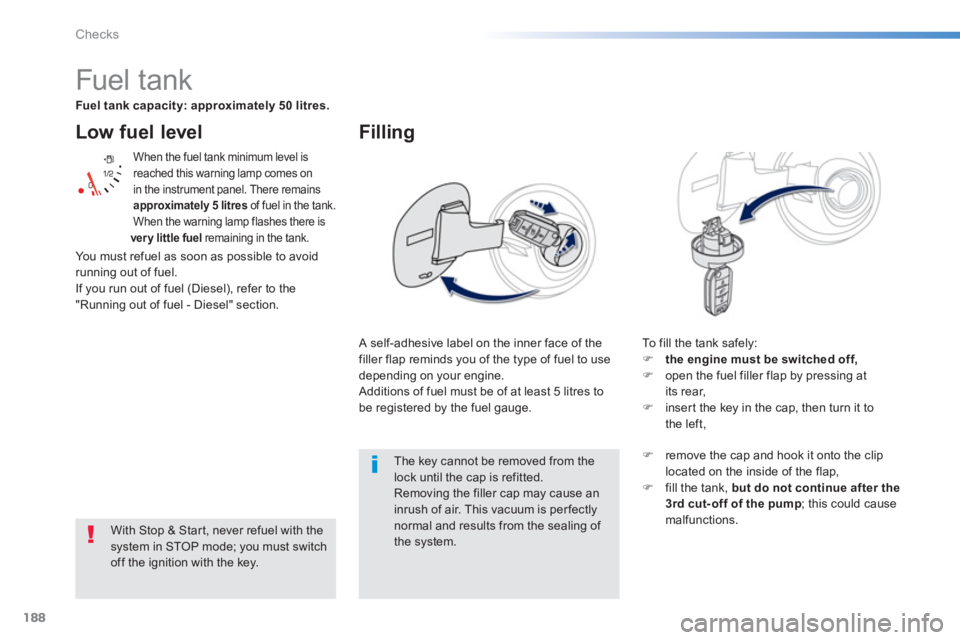

Low fuel level
When the fuel tank minimum level is reached this warning lamp comes on in the instrument panel. There remainsapproximately 5 litres
of fuel in the tank.
When the warning lamp flashes there is very little fuel remaining in the tank.
The key cannot be removed from the lock until the cap is refitted. Removing the filler cap may cause an inrush of air. This vacuum is per fectly normal and results from the sealing of
the system.



























Fuel tank
Fuel tank capacity: approximately 50 litres.

A self-adhesive label on the inner face of thefiller flap reminds you of the type of fuel to use
depending on your engine.
Additions of fuel must be of at least 5 litres to be registered by the fuel gauge.


Filling


To fill the tank safely: )the engine must be switched off,)open the fuel filler flap by pressing at
its rear, )inser t the key in the cap, then turn it to
the left,
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key.
)remove the cap and hook it onto the cliplocated on the inside of the flap, )fill the tank, but do not continue after the
3rd cut- off of the pump ; this could causemalfunctions. You must re
fuel as soon as possible to avoid running out of fuel.
If you run out of fuel (Diesel), refer to the
"Running out of fuel - Diesel" section.

189
8
Checks
If you have put in the wrong fuel for the engine of your vehicle, you musthave the fuel tank drained and filledwith the correct fuel before star ting the engine.

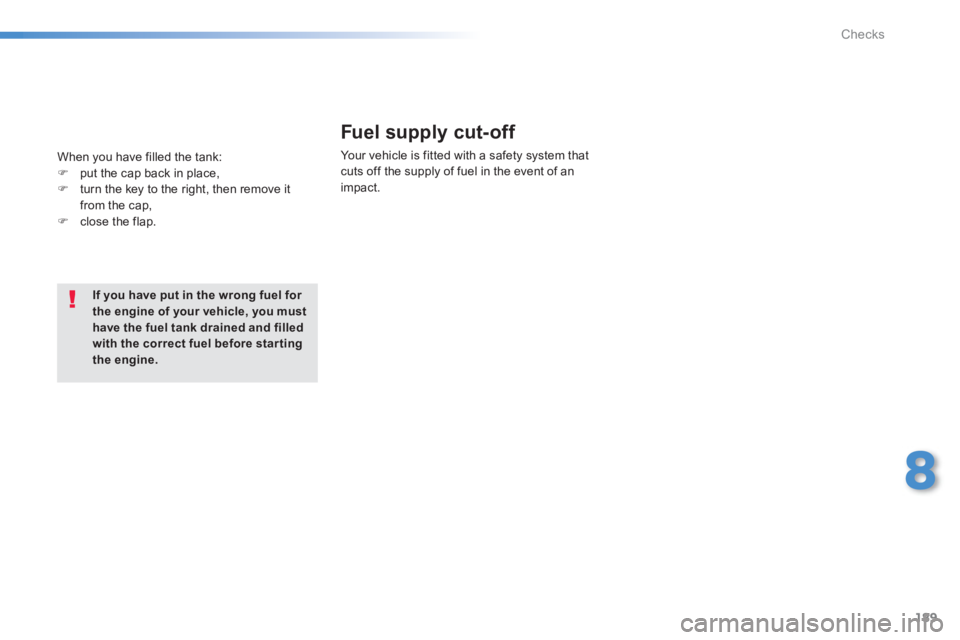

Fuel supply cut-off
Your vehicle is fitted with a safety system that
cuts off the supply of fuel in the event of animpact. When
you have filled the tank:)put the cap back in place,)turn the key to the right, then remove it from the cap, )close the flap.

190
Checks
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remainsclosed and prevents filling.
Do not persist but introduce a Diesel type filler nozzle.

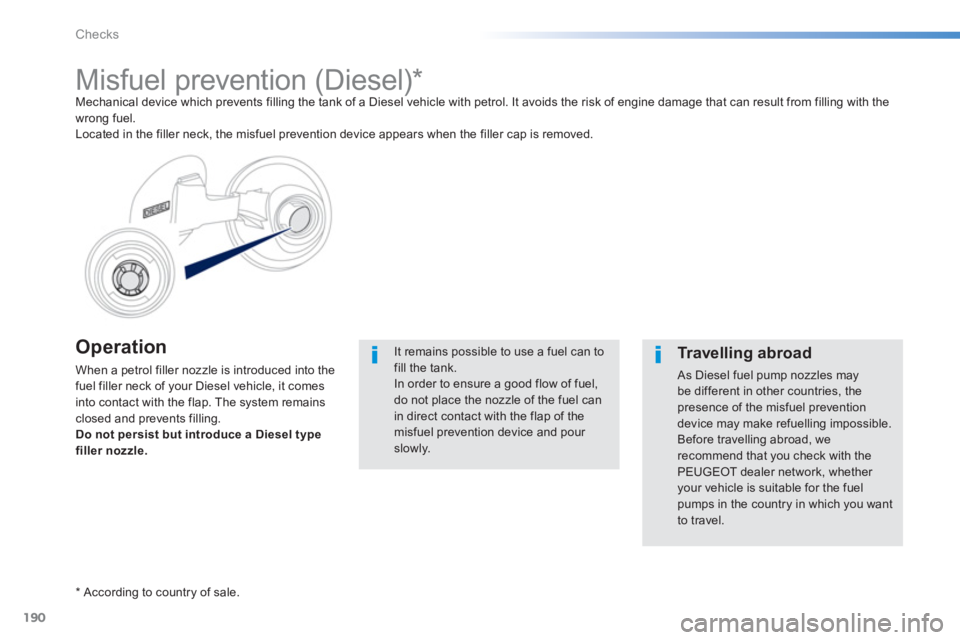

Misfuel prevention (Diesel) * Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the
wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
* Accordin
g to country of sale.
It remains possible to use a fuel can to fill the tank. In order to ensure a good flow of fuel,do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device and pour slowly.



Tr a v e l l i ng abroad

As Diesel fuel pump nozzles maybe different in other countries, thepresence of the misfuel preventiondevice may make refuelling impossible.
Before travelling abroad, werecommend that you check with thePEUGEOT dealer network, whether your vehicle is suitable for the fuel pumps in the country in which you want to travel.

191
8
Checks

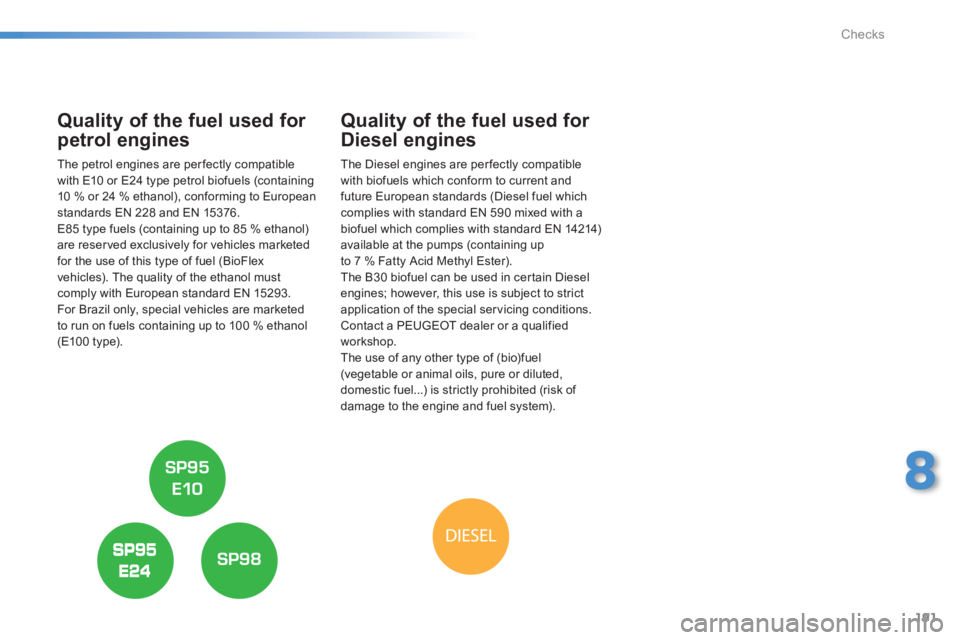

Quality of the fuel used for
petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing10 % or 24 % ethanol), conforming to Europeanstandards EN 228 and EN 15376.
E85 type
fuels (containing up to 85 % ethanol)
are reser ved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol mustcomply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol(E10 0 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are per fectly compatiblewith biofuels which conform to current and future European standards (Diesel fuel which complies with standard EN 590 mixed with a
bio
fuel which complies with standard EN 14214)available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel
engines; however, this use is subject to strictapplication of the special ser vicing conditions.Contact a PEUGEOT dealer or a qualifiedworkshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

192
Checks
On vehicle fitted with HDi engines, the fuelsystem must be primed if you run out of fuel; refer to the engine compar tment view on the
"Diesel engine" section.
If the tank on your vehicle is fitted with a misfuel prevention device, refer to the corresponding section.











Running out of fuel (Diesel)


If the engine does not star t first time, don't keep trying. Start the procedureagain from the beginning.

)
Fill the fuel tank with at least five litres of
diesel. )
Open the bonnet.)
Press and release the priming pump until
resistance is felt (there may be resistanceon the first press).
) Operate the star ter until the engine star ts. )
Close the bonnet.



1.4 litre HDi engine
)Fill the fuel tank with at least five litres of diesel.)Open the bonnet. )If necessary, unclip the styling cover for access to the priming pump. )Squeeze and release the priming pump
repeatedly until resistance is felt (there maybe resistance at the first press).)Operate the star ter until the engine star ts (if the engine does not star t at the first attempt, wait around 15 seconds before
trying again).)If the engine does not star t after a few attempts, operate the priming pump again
then start the engine. )Clip the styling cover back in place.)Close the bonnet.

1.6 litre HDi engine
