Practical information
Fuse N°RatingFunctions
F1
615 A Front foglamps.
F18 10 A
Right hand main beam headlamp.
F1
910 A
Left hand main beam headlamp.
F25
30 A Headlamp wash relay (accessory).
F2
940 A Front wiper motor.
F3
080 A
Pre-heater plugs (Diesel).
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery (left-hand side).
Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph). )When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.
Fuse table
172
Practical information

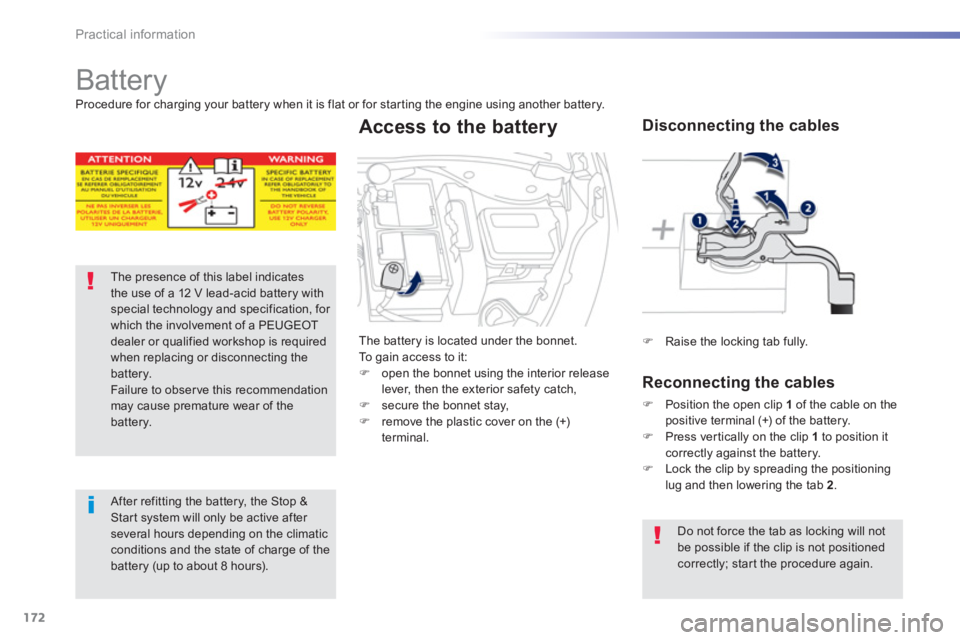

Battery
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a PEUGEOT dealer or qualified workshop is requiredwhen replacing or disconnecting thebattery.
Failure to observe this recommendation may cause premature wear of thebattery.
After refitting the battery, the Stop & Start system will only be active after
several hours depending on the climaticconditions and the state of charge of the battery (up to about 8 hours).
)Raise the locking tab fully.
Disconnecting the cables
Reconnecting the cables
)Position the open clip 1of the cable on the positive terminal (+) of the battery.
)Press ver tically on the clip 1
to position it correctly against the battery. )Lock the clip by spreading the positioning
lug and then lowering the tab 2.
Do not force the tab as locking will not be possible if the clip is not positionedcorrectly; start the procedure again.

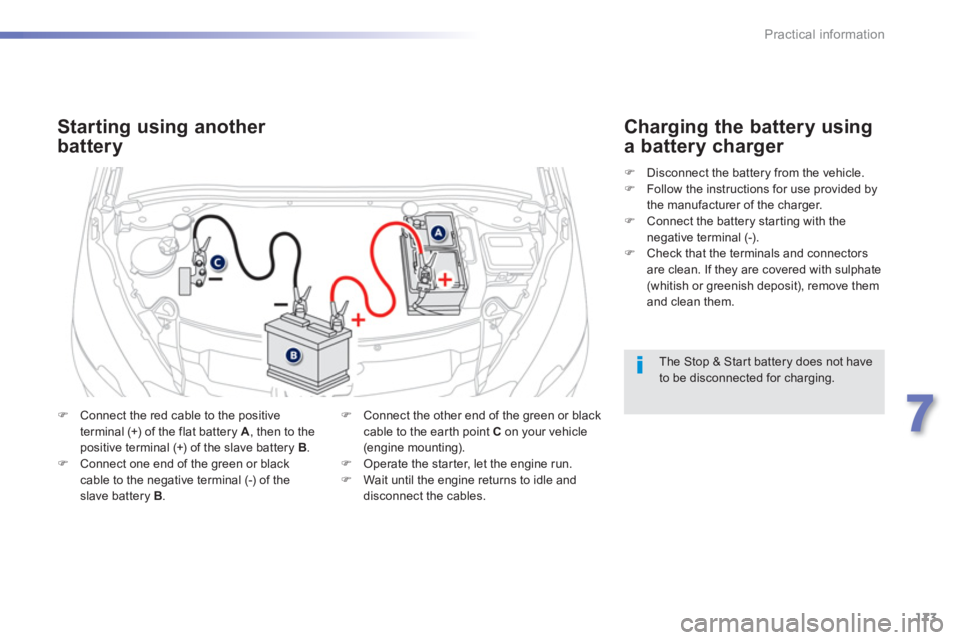

Procedure for char
ging your battery when it is flat or for star ting the engine using another battery.
The battery is located under the bonnet.
To gain access to it: ) open the bonnet using the interior releaselever, then the exterior safety catch, )
secure the bonnet stay, )
remove the plastic cover on the (+)
t
erminal.
Access to the battery
