15

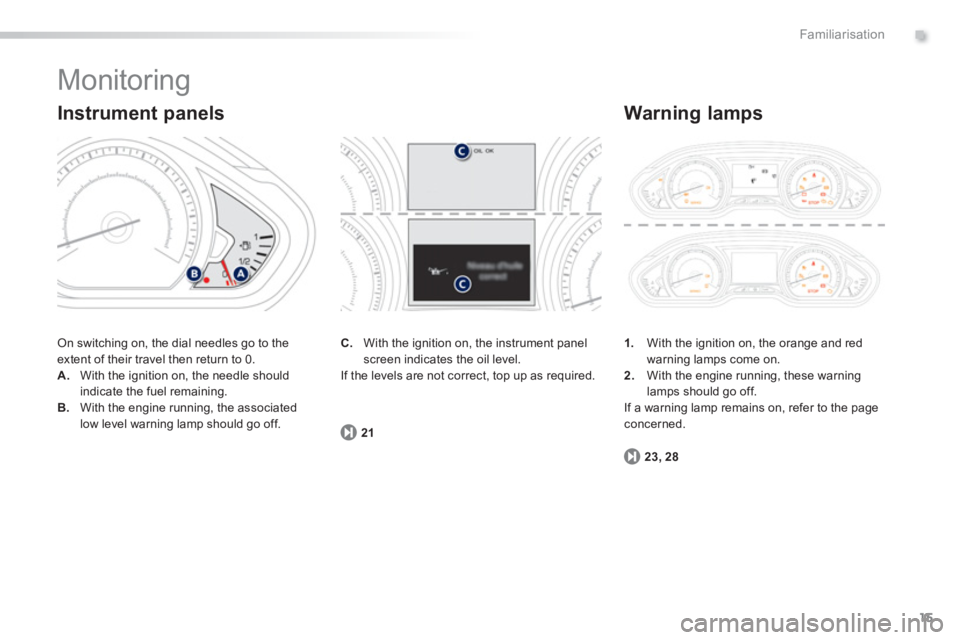

Familiarisation
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the needle should
indicate the fuel remaining.B.With the engine running, the associatedlow level warning lamp should go off.

Instrument panels
1.
With the ignition on, the orange and red
warning lamps come on. 2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.


Warning lamps
23, 28
C.
With the ignition on, the instrument panelscreen indicates the oil level.
If the levels are not correct, top up as required.
21

1
21
Instruments and controls





LCD instrument panel
1.
Engine coolant temperature gauge. 2.Rev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol or
Diesel).3.Engine oil level indicator.4. Gear shift indicator for a manual gearbox
or gear lever position and gear for an electronic or automatic gearbox.
5. Digital speedometer (mph or km/h) This can be switched off with a long presson B.
A.General lighting dimmer.B.
Recall the service information.
Reset the function selected (service
indicator or trip distance recorder).
Setting the time.
Switching the digital speedometer on and off.
6.
Cruise control or speed limiter settings.7.
Ser vice indicator, then total distance recorder (miles or km).
These functions are displayed successively
on switching on the ignition.8. Trip distance recorder (miles or km).
9. Analogue speedometer (mph or km/h).
10.Fuel gauge.



Dials and screens
Control buttons

28
Instruments and controls
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations
STOPfixed, associated with another warning lamp. Major faults have occurred. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.
Servicefixed, associated with another warning lamp. Major faults have occurred. Refer to the section on this warning lamp and youmust then contact a PEUGEOT dealer or qualified
workshop.
fix
ed associated with a message (if a displayscreen is fitted). F
aults have occurred for which there
is no specific warning lamp. Identify the fault by reading the message shown in the screen (if a display screen is fitted) and refer to the corresponding section:
- engine oil level alert,
- risk of blockage of the par ticle emissions filter (Diesel).
- Diesel fuel additive level (Diesel with particle
emissions filter).
You must contact a PEUGEOT dealer or a qualified
workshop.

1
37
Instruments and controls
Engine oil level indicator
Oil level incorrect
This is indicated by the flashing of " OIL" or LLby the display of a dedicated message in theinstrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.

Oil level indicator fault

This is indicated by the flashing of "OIL_ _" or
by the display of a dedicated message in the
instrument panel. Contact a PEUGEOT dealer or a qualified workshop.


Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
There are 2 marks on the dipstick: The total milea
ge is displayed in zone A
of the screen and the trip mileage in zone B.

With the trip mileage displayed, press the button for a few seconds.


Mileage recorder

Tr i
p recorder zero reset
System which informs the driver whether the
engine oil level is correct or not.
This information is indicated for a few seconds when the ignition is switched on, after the service information.
The level read will only be correct if
the vehicle is on level ground and theengine has been off for more than 30 minutes.


-
A= max; never exceed this
level,
-B= min; top up the level via
the oil filler cap, using the grade of oil suited to your engine.
Oil level correct

186
Checks
The various caps and covers allow access for checking the levels of the various fluids and for replacing cer tain components.














Petrol engines
1.
Screenwash reservoir.2.
Coolant reservoir. 3.
Brake fluid reservoir.4.
Battery / Fuses. 5.
Fusebox.
6.Air filter.
7. Engine oil dipstick. 8.Engine oil filler cap.

187
8
Checks
The various caps and covers allow access for checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.














Diesel engines
1.
Screenwash reservoir. 2.Coolant reservoir.3.Brake fluid reservoir.4.
Battery / Fuses.
5. Fusebox.
6.Air filter.
7. Engine oil dipstick.8.Engine oil filler cap.

193
8
Checks

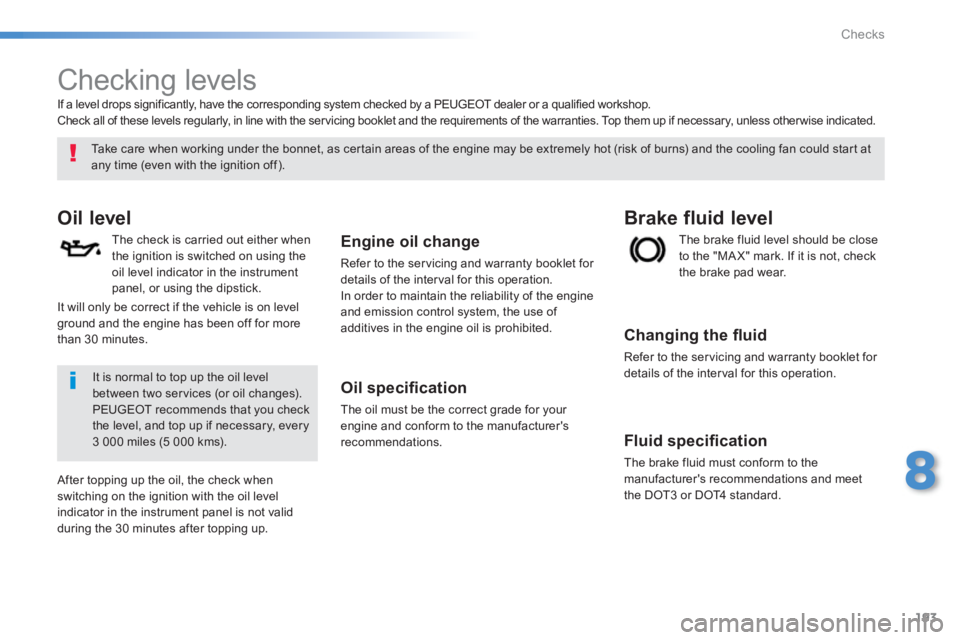

Checking levels
Oil level
The check is carried out either when
the ignition is switched on using theoil level indicator in the instrumentpanel, or using the dipstick.
Engine oil change
Refer to the servicing and warranty booklet for
details of the inter val for this operation.
In order to maintain the reliabilit
y of the engine and emission control system, the use of additives in the engine oil is prohibited.
Oil specifi cation
The oil must be the correct grade for your
engine and conform to the manufacturer'srecommendations.
Th
e brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level

Changing the fl uid

Refer to the ser vicing and warranty booklet for
details of the interval for this operation.

Fluid specifi cation

The brake fluid must conform to themanufacturer's recommendations and meet
the DOT3 or DOT4 standard.



Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could star t at
any time (even with the ignition off).

If a level drops si
gnificantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
Check all of these levels regularly, in line with the ser vicing booklet and the requirements of the warranties. Top them up if necessary, unless other wise indicated.
It is normal to top up the oil levelbetween two ser vices (or oil changes).PEUGEOT recommends that you check the level, and top up if necessary, every
3 000 miles (5 000 kms).

After topping up the oil, the check when switching on the ignition with the oil level
indicator in the instrument panel is not valid
durin
g the 30 minutes after topping up. It will onl
y be correct if the vehicle is on level ground and the engine has been off for more
than 30 minutes.

195
8
Checks
Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground. Take used oil to a PEUGEOT dealer or a qualified workshop (France) or to an authorised waste disposal site.
Used products

Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination
of the ser vice warning lamp, accompanied by an audible warning and a message in the screen (if a display screen is fitted).
