2013 NISSAN XTERRA steering

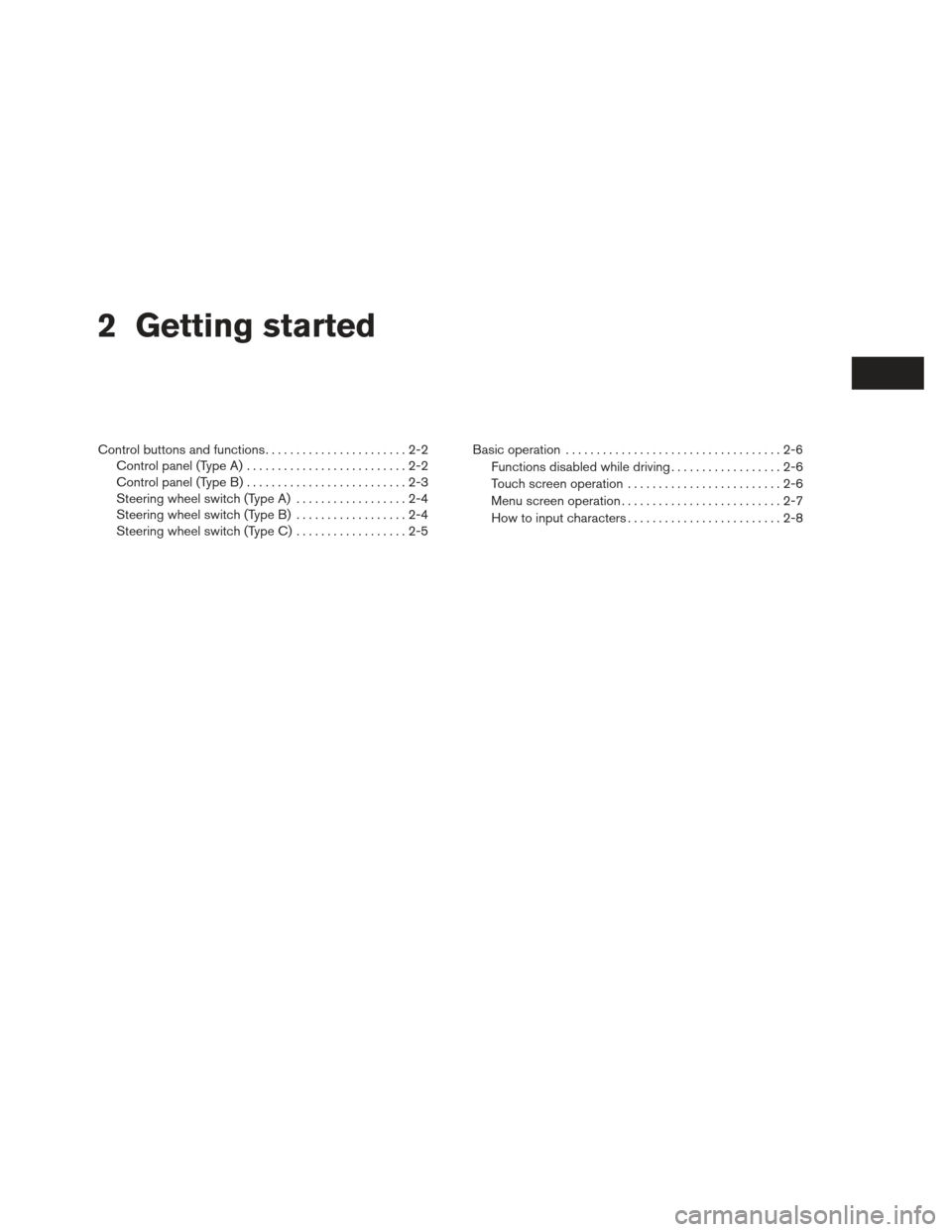

2 Getting started
Control buttons and functions.......................2-2
Control panel (Type A) ..........................2-2
Control panel (Type B) ..........................2-3
Steering wheel switch (Type A) ..................2-4
Steering wheel switch (Type B) ..................2-4
Steering wheel switch (Type C) ..................2-5Basic operation
...................................2-6
Functions disabled while driving ..................2-6
Touch screen operation .........................2-6
Menu screen operation ..........................2-7
How to input characters .........................2-8

STEERING WHEEL SWITCH
(Type A)
1ENTER button / tuning switch
Scrolls up and down through lists and se-
lects the highlighted item on the screen.
2(back) button
Returns to the previous screen or deletes
the last inputted letter if a touch keyboard is
displayed on the screen.
3Volume increase button
Increases the volume of the voice guidance
given by the Navigation System if pressed
while the voice guidance is speaking. If the
volume increase button is pressed at any
other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be increased.
4Volume decrease button
Decreases the volume of the voice guidance
given by the Navigation System if pressed
while the voice guidance is speaking. If the
volume decrease button is pressed at any
other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be decreased.
For more information about the audio system,
Bluetooth® Hands-Free Phone System and
Voice Recognition system (if so equipped) , see
the vehicle’s Owner’s Manual.
STEERING WHEEL SWITCH
(Type B)
1Tuning switch
Scrolls up and down through lists and se-
lects the highlighted item on the screen.
2Volume control button
Increases or decreases the volume of the
voice guidance given by the Navigation Sys-
tem if pressed while the voice guidance is
speaking. If the volume button is pressed at
any other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be adjusted.
AltimaLNV2018TitanLNV2391
2-4Getting started

For more information about the audio system,
Bluetooth® Hands-Free Phone System and
Voice Recognition system (if so equipped) , see
the vehicle’s Owner’s Manual.STEERING WHEEL SWITCH
(Type C)
1Volume control button
Increases or decreases the volume of the
voice guidance given by the Navigation Sys-
tem if pressed while the voice guidance is
speaking. If the volume button is pressed at
any other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be adjusted.
For more information about the audio system,
Bluetooth® Hands-Free Phone System and
Voice Recognition system (if so equipped) , see
the vehicle’s Owner’s Manual.
SentraLNV2395Xterra and FrontierLNV2399NV200LNV2002
Getting started2-5

Several methods are available to set your
destination.
BASIC OPERATION
1. Press the NAV button.2. Select the appropriate destination settingmethod by touching the screen or scrolling
with the scrolling dial.
AVAILABLE SETTING ITEMS
●Destination:
Set and/or save a destination.
Several methods are available to set your
destination.
“SETTING A DESTINATION”
(page 4-6)
● Previous Destinations:
Searches for a destination from the previ-
ous destinations in the destination memory. Up to 50 previous destinations will be auto-
matically stored. If the number of previous
destinations exceeds 50, the oldest one will
be removed from the list and the newest
one will be added.
To manually delete a previous destination
entry, select an entry from the list and then
touch the “Delete” key. Touch “Delete All” to
delete all previous destinations on the list.
Touch the “Save” key to add a previous des-
tination to the address book.
Previous destinations can also be selected
using the NISSAN Voice Recognition Sys-
tem (if so equipped):
1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Previous”.
4. Speak the number of an entry on the dis- played list to choose that destination or say
“Next Page” to view more entries (if
available) .
LNV2047
NAVIGATION SCREEN
Navigation4-3

If no route is set, route guidance is calcu-
lated automatically. If a route is set, say “Re-
place Destination” to use the chosen previ-
ous destination in Step 4 as the new
destination. Say “Set as Waypoint” to add
the chosen previous destination as a way-
point on the current route. Say “Show on
Map” to show the chosen previous destina-
tion on the map.
For more information about the NISSAN
Voice Recognition System, see the vehicle
Owner’s Manual.
NOTE:
It is not possible to retrieve deleted previ-
ous destination entries.
● Home:
Your home address can be entered as a
destination.
Home can also be set as a destination using the
NISSAN Voice Recognition System (if so
equipped): 1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Home”. If a home location is set, route guidance to the
home location is calculated automatically.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual.
●
Routing Options:
Changes the settings the system uses to
calculate the route.
“ROUTING OPTIONS”
(page 4-5) ●
Turn List:
Touch “Turn List” to display a list of all turns
on the active route. Touch an entry to see
more detailed information about that entry.LNV0945
4-4Navigation

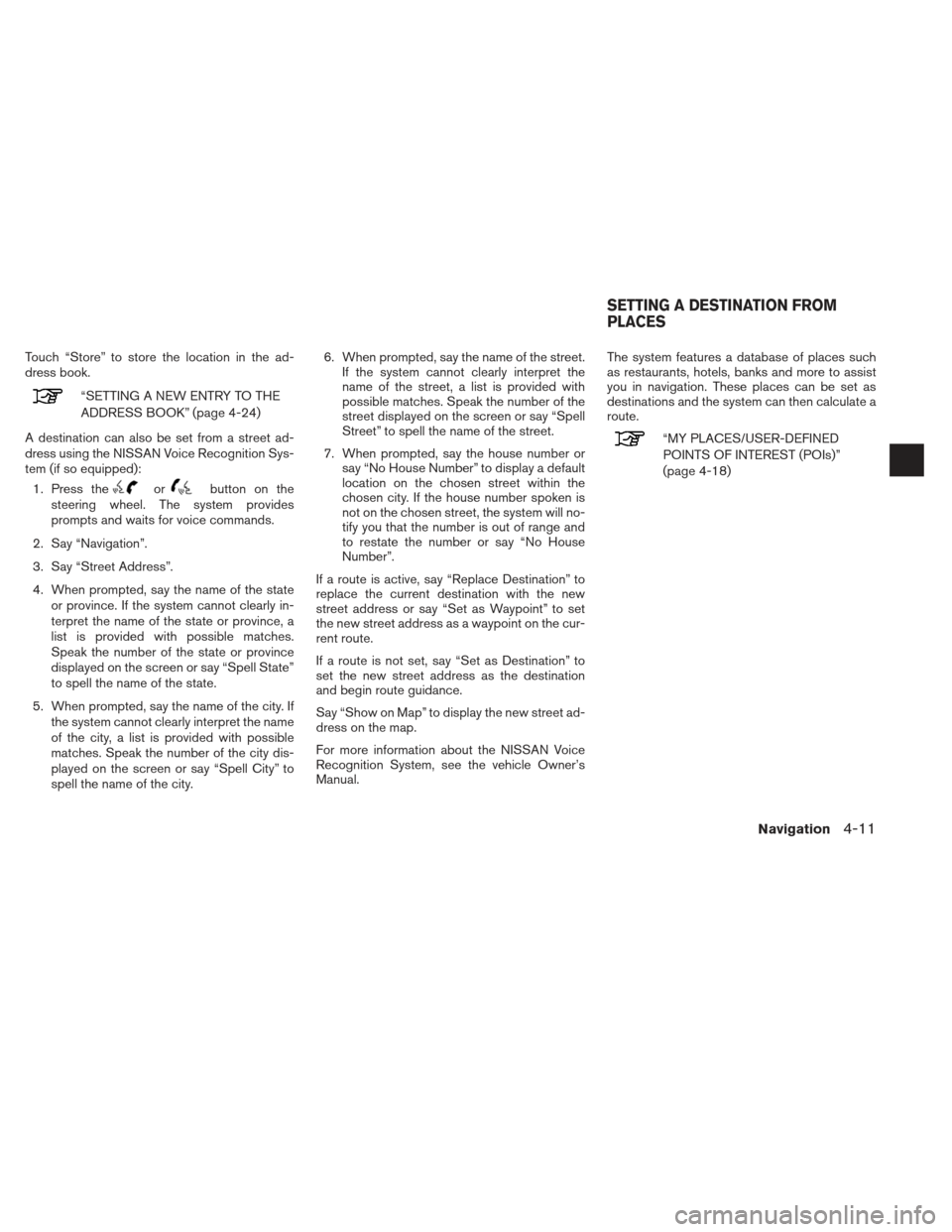

Touch “Store” to store the location in the ad-
dress book.
“SETTING A NEW ENTRY TO THE
ADDRESS BOOK” (page 4-24)
A destination can also be set from a street ad-
dress using the NISSAN Voice Recognition Sys-
tem (if so equipped): 1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Street Address”.
4. When prompted, say the name of the state or province. If the system cannot clearly in-
terpret the name of the state or province, a
list is provided with possible matches.
Speak the number of the state or province
displayed on the screen or say “Spell State”
to spell the name of the state.
5. When prompted, say the name of the city. If the system cannot clearly interpret the name
of the city, a list is provided with possible
matches. Speak the number of the city dis-
played on the screen or say “Spell City” to
spell the name of the city. 6. When prompted, say the name of the street.
If the system cannot clearly interpret the
name of the street, a list is provided with
possible matches. Speak the number of the
street displayed on the screen or say “Spell
Street” to spell the name of the street.
7. When prompted, say the house number or say “No House Number” to display a default
location on the chosen street within the
chosen city. If the house number spoken is
not on the chosen street, the system will no-
tify you that the number is out of range and
to restate the number or say “No House
Number”.
If a route is active, say “Replace Destination” to
replace the current destination with the new
street address or say “Set as Waypoint” to set
the new street address as a waypoint on the cur-
rent route.
If a route is not set, say “Set as Destination” to
set the new street address as the destination
and begin route guidance.
Say “Show on Map” to display the new street ad-
dress on the map.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual. The system features a database of places such
as restaurants, hotels, banks and more to assist
you in navigation. These places can be set as
destinations and the system can then calculate a
route.
“MY PLACES/USER-DEFINED
POINTS OF INTEREST (POIs)”
(page 4-18)
SETTING A DESTINATION FROM
PLACES
Navigation4-11

If you choose “Search by Name” in Step 4, you
can search for places using a specific name. The
touch keyboard is shown.
“HOW TO INPUT CHARACTERS”
(page 2-8)
NOTE:
● When searching “By Category”, the system
will search for up to 200 matches within
50 miles (80 km) of the chosen city.
● When searching “By Name”, the system will
search for up to 30 matches within 50 miles
(80 km) of the chosen city. If no matches are
found, touch “Change Name” to search for
another name or touch “Google®” to search
using the Google® Places function.
“SETTING A GOOGLE® PLACES
DESTINATION” (page 4-28) 11. Destinations are shown based on the dis-
tance from the selected position. The arrow
on the right shows the direction of the
destination. The distance shown is a
straight line distance from the city center.
Touch the desired destination from the list. 12. A detailed description of the destination is
provided.
Press the BACK or
BACK button to
go back and pick another destination or
touch “Start” to have the system calculate
the route to the destination.
SEARCHING FOR PLACES USING
VOICE RECOGNITION (if so
equipped)
Places can be set as destinations using the
NISSAN Voice Recognition System:
1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Places”.
LNV2052LNV2050
Navigation4-17

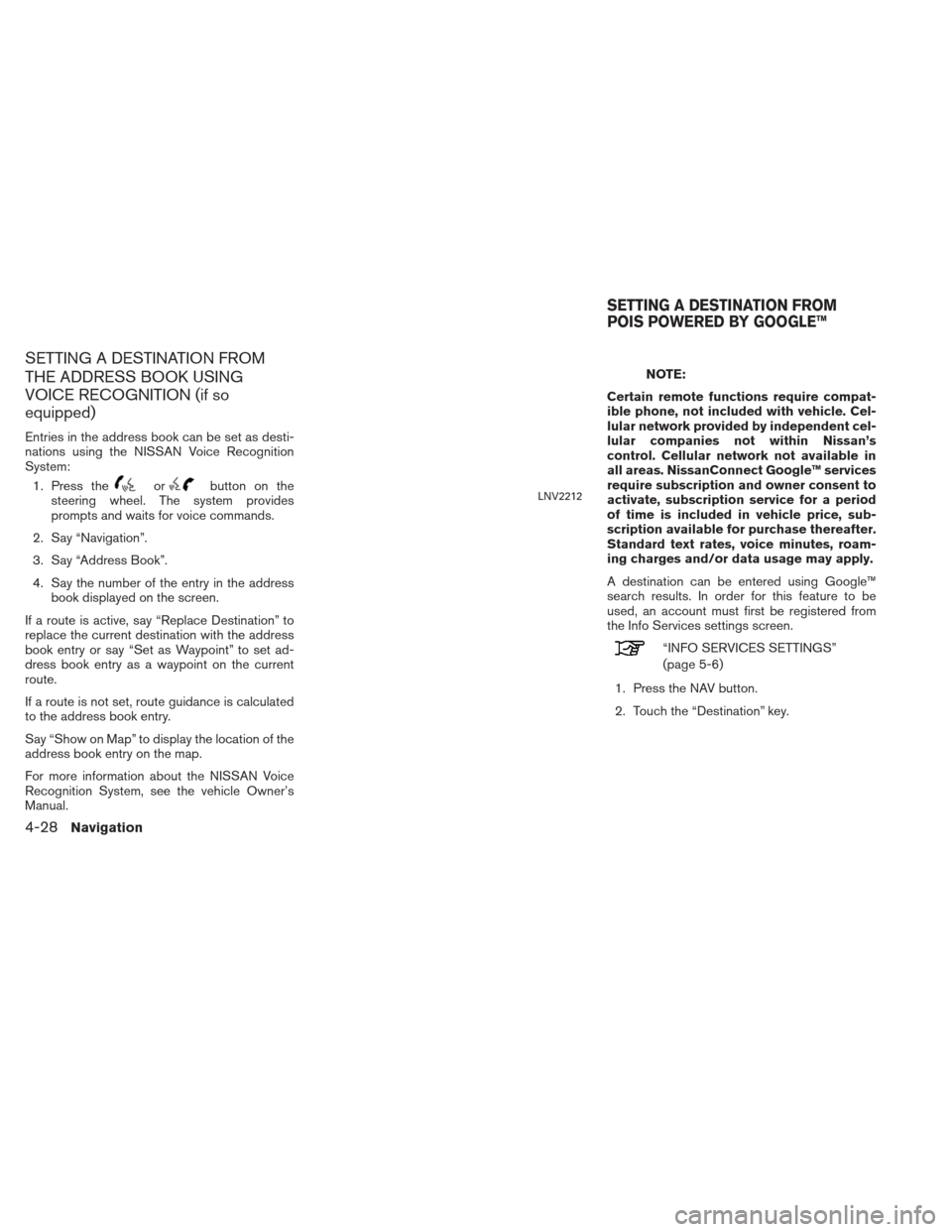

SETTING A DESTINATION FROM
THE ADDRESS BOOK USING
VOICE RECOGNITION (if so
equipped)
Entries in the address book can be set as desti-
nations using the NISSAN Voice Recognition
System:1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Address Book”.
4. Say the number of the entry in the address book displayed on the screen.
If a route is active, say “Replace Destination” to
replace the current destination with the address
book entry or say “Set as Waypoint” to set ad-
dress book entry as a waypoint on the current
route.
If a route is not set, route guidance is calculated
to the address book entry.
Say “Show on Map” to display the location of the
address book entry on the map.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual.
NOTE:
Certain remote functions require compat-
ible phone, not included with vehicle. Cel-
lular network provided by independent cel-
lular companies not within Nissan’s
control. Cellular network not available in
all areas. NissanConnect Google™ services
require subscription and owner consent to
activate, subscription service for a period
of time is included in vehicle price, sub-
scription available for purchase thereafter.
Standard text rates, voice minutes, roam-
ing charges and/or data usage may apply.
A destination can be entered using Google™
search results. In order for this feature to be
used, an account must first be registered from
the Info Services settings screen.
“INFO SERVICES SETTINGS”
(page 5-6)
1. Press the NAV button.
2. Touch the “Destination” key.
LNV2212
SETTING A DESTINATION FROM
POIS POWERED BY GOOGLE™
4-28Navigation
