2013 NISSAN XTERRA light

CONTROL PANEL (Type A)
1VOL (volume) control knob/PWR (power)
button:Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
2Touch screen display
3TUNE-SCROLL dial / ENTER/AUDIO button:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
4BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
5MAP button: Press to display the current location map
screen.
6NAV button:Press to access the functions of the Navi-
gation system.
7MENU button:Press to access the system settings.
8button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE/SCROLL dial.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
LNV2017
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

CONTROL PANEL (Type B)
1Touch screen display
2MAP button:Press to display the current location map
screen.
3NAV button:Press to access the functions of the Navi-
gation system.
4MENU button:Press to access the system settings.
5BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
6TUNE dial/AUDIO button:Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the dial to select a highlighted item on
the screen.
7button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE dial.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
8VOL (volume) control knob/ON-OFF button: Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
LNV2396
Getting started2-3

STEERING WHEEL SWITCH
(Type A)
1ENTER button / tuning switch
Scrolls up and down through lists and se-
lects the highlighted item on the screen.
2(back) button
Returns to the previous screen or deletes
the last inputted letter if a touch keyboard is
displayed on the screen.
3Volume increase button
Increases the volume of the voice guidance
given by the Navigation System if pressed
while the voice guidance is speaking. If the
volume increase button is pressed at any
other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be increased.
4Volume decrease button
Decreases the volume of the voice guidance
given by the Navigation System if pressed
while the voice guidance is speaking. If the
volume decrease button is pressed at any
other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be decreased.
For more information about the audio system,
Bluetooth® Hands-Free Phone System and
Voice Recognition system (if so equipped) , see
the vehicle’s Owner’s Manual.
STEERING WHEEL SWITCH
(Type B)
1Tuning switch
Scrolls up and down through lists and se-
lects the highlighted item on the screen.
2Volume control button
Increases or decreases the volume of the
voice guidance given by the Navigation Sys-
tem if pressed while the voice guidance is
speaking. If the volume button is pressed at
any other time, only the volume of the active
screen (phone, SMS playback, Voice Rec-
ognition system [if so equipped], audio sys-
tem) will be adjusted.
AltimaLNV2018TitanLNV2391
2-4Getting started

Menu screens and their purpose
Press one of the application buttons to activate
the corresponding menu screen:
●NAV (Navigation)
● MENU
How to select a menu item
1. As an alternative to using the touch screen,
turn the scrolling dial clockwise or counter-
clockwise to scroll through the menu items
until the preferred item is highlighted.
2. To select the preferred item, press the scrolling dial.
3. Press the BACK or
BACK button.
The previous screen will be displayed and
the changes will be saved.
HOW TO INPUT CHARACTERS
Character (letter and number) input
screen
Alphanumeric characters are used when setting
a destination, searching for an address, editing
stored locations, etc.
1. Touch characters on the touch keyboardand they will appear in the field at the top of
the screen. When the entry is complete,
touch the “OK” key.
Alternatively, use the scrolling dial to high-
light a character and press the dial to select
that character.
NOTE:
● Press the BACK or
BACK button to
delete the last inputted character or to return
to the previous screen if no characters have
been inputted.
● On every character entry screen, the touch
keyboard will display only the letters that are
possible to enter after the current letter.
● Symbol and number keys are available when
the “123/ABC” key is touched.
(Type B)LNV2397LNV2205
2-8Getting started

●Touch the “123/ABC” key to toggle the dis-
play between the touch keyboard for letters
and the touch keyboard for numbers and
symbols.
2. To delete the last entry, touch the “Delete” key or hold it to delete all entries at once.
3. After finalizing the entries, touch the “OK” key or touch the “List” key for the completed
list screen.
NOTE:
● If a phrase is being entered that has been pre-
viously entered into the system, the matched
text may appear in light gray. Touch “OK” to
search for the matched text. Touch “List” to
search for both the matched text and entered
text.
Getting started2-9

●Show Places on Map
Touch the “Show Places on Map” key to ac-
tivate or deactivate the display of places
icons on the map. Available places are gas
stations, parking, hotels, airports,
restaurants, local train stations, hospitals,
banks and auto repair.
Certain place icons will appear as the brand
logo for that place. However, places repre-
sented by a brand logo on the map may not
necessarily be named the same as the
brand of the logo. ●
Map Data Information
Touch the “Map Data Information” key and
the follow-up screen will display the version
of the current installed map.
“MAP SD-CARD” (page 3-11)
NOTE:
A message may be displayed when new
map data is available (if so equipped) . If
such a message is shown, contact a
NISSAN dealer for more information. When the vehicle is approaching a junction or
interchange, the screen switches to a split view.
Lane information is graphically displayed on the
left side of the split screen and icons showing
the proper lanes for upcoming maneuvers are
shown in the upper right corner below the clock.
The highlighted lanes are those from which the
next maneuver on the route will be made. Lanes
displayed in gray are those that do not follow the
route at the upcoming junction or interchange.
The icons in the upper right corner also indicate
direction and may change as the junction or in-
terchange approaches (for example, straight
ahead, to straight and then right) .
Once the vehicle passes through the junction or
interchange, the screen returns to the previous
view.
LNV2077LNV2076LNV2247
LANE INFORMATION
3-10Map settings

HOW TO HANDLE THE SD-CARD
When handling the SD-card, please be careful
and adhere to the following instructions:
CAUTION
●Handle the SD-card with care. Never
touch the metal contacts.
● Do not use any conventional cleaner,
benzine, thinner, or antistatic spray.
● If you need to clean the SD-card use
a soft cloth.
● Never attempt to use an SD-card that
has been cracked, deformed or re-
paired using adhesive. Doing so may
damage the equipment.
● Do not try to bend the SD-card. Do
not use any SD-card that is bent or
cracked.
● Do not put on any sticker or write
anything on the SD card.
● Handle the SD-card carefully to
avoid contamination or flaws.
Otherwise, the data may not be read
properly. ●
Do not store the SD-card in locations
exposed to direct sunlight, or in high
temperatures or humidity.
● Always place the SD-card in its stor-
age case when not in use.SD-CARD REPLACEMENT
For additional SD-cards with map data, contact
the NISSAN Navigation Helpdesk.
HOW TO ORDER MAP DATA UP-
DATES
To order updated map data, contact the NISSAN
Navigation Helpdesk. See the contact informa-
tion on the inside front cover of this manual.
ABOUT THE MAP DATA
● Bosch has compiled the digitized map data
into a usable format. © 2011 Robert Bosch
GmbH all rights in compilation software
reserved. Due to the production timing of the
map data, some new roads may not be
included, or some names and roads may be
different from those in use at the time this map
data is used. ●
Traffic control and regulation data used in this
map data may be different from those in use at
the time this map data is used. When driving,
follow the actual traffic control signs and no-
tices on the roads.
● Reproducing or copying this map software is
strictly prohibited by law.
mWARNING
●This navigation system should not be
used to replace your own judgement.
No itinerary suggested by this navi-
gation system should ever override
any freeway regulations, your own
judgement, or a knowledge of safe
driving practices. Do not follow the
navigation system’s suggested itin-
erary if it would cause you to perform
a dangerous or illegal act, place you
in a dangerous situation, or take you
into an area you consider unsafe.
3-12Map settings

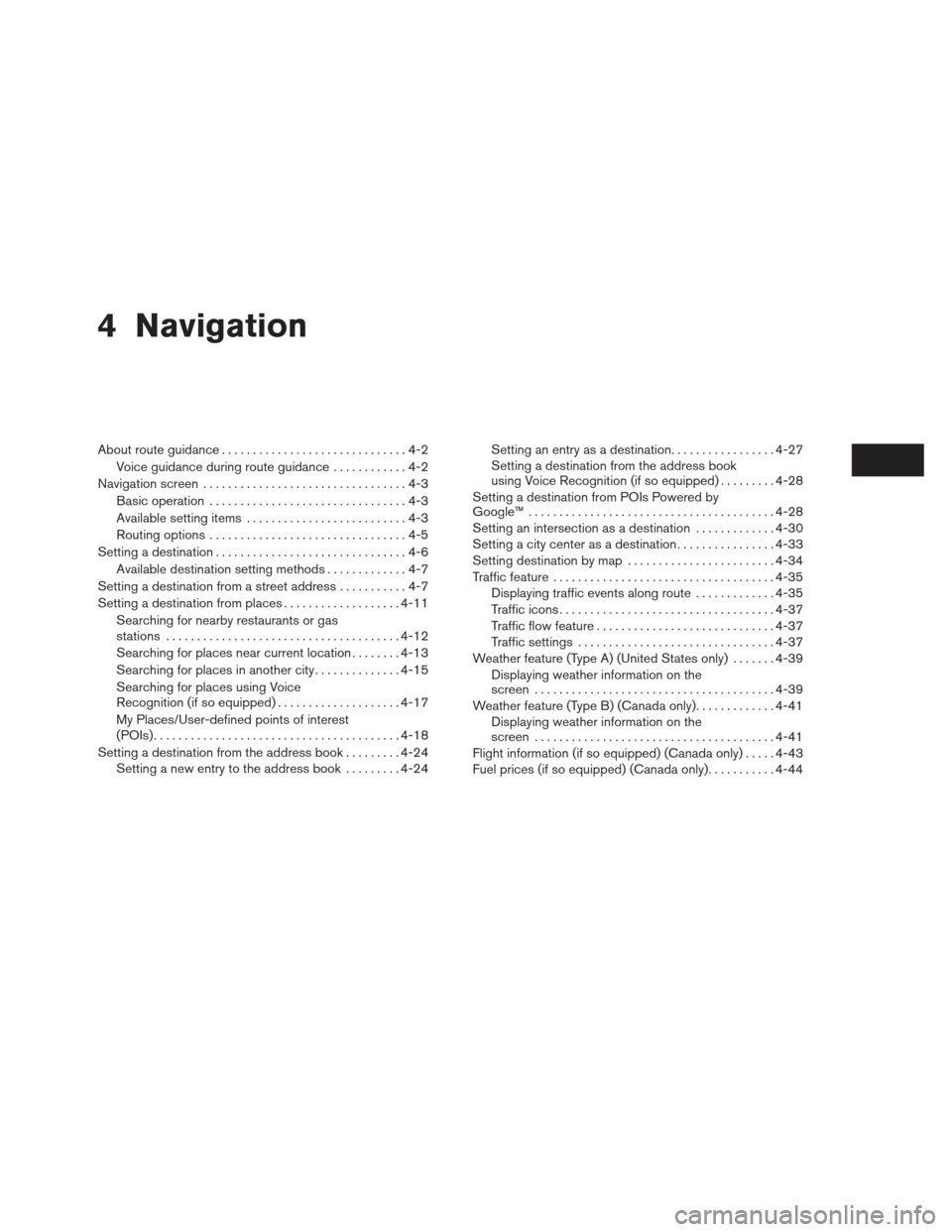

4 Navigation
About route guidance..............................4-2
Voice guidance during route guidance ............4-2
Navigation screen . . ...............................4-3
Basic operation ................................4-3
Available setting items ..........................4-3
Routing options ................................4-5
Setting a destination ...............................4-6
Available destination setting methods .............4-7
Setting a destination from a street address ...........4-7
Setting a destination from places ...................4-11
Searching for nearby restaurants or gas
stations ...................................... 4-12
Searching for places near current location ........4-13
Searching for places in another city ..............4-15
Searching for places using Voice
Recognition (if so equipped) ....................4-17
My Places/User-defined points of interest
(POIs) ........................................ 4-18
Setting a destination from the address book .........4-24
Setting a new entry to the address book .........4-24 Setting an entry as a destination
.................4-27
Setting a destination from the address book
using Voice Recognition (if so equipped) .........4-28
Setting a destination from POIs Powered by
Google™ ........................................ 4-28
Setting an intersection as a destination .............4-30
Setting a city center as a destination ................4-33
Setting destination by map ........................4-34
Traffic feature .................................... 4-35
Displaying traffic events along route .............4-35
Traffic icons ................................... 4-37
Traffic flow feature ............................. 4-37
Traffic settings ................................ 4-37
Weather feature (Type A) (United States only) .......4-39
Displaying weather information on the
screen ....................................... 4-39
Weather feature (Type B) (Canada only) .............4-41
Displaying weather information on the
screen ....................................... 4-41
Flight information (if so equipped) (Canada only) .....4-43
Fuel prices (if so equipped) (Canada only) ...........4-44
