2013 NISSAN XTERRA set clock

CONTROL PANEL (Type A)
1VOL (volume) control knob/PWR (power)
button:Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
2Touch screen display
3TUNE-SCROLL dial / ENTER/AUDIO button:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
4BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
5MAP button: Press to display the current location map
screen.
6NAV button:Press to access the functions of the Navi-
gation system.
7MENU button:Press to access the system settings.
8button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE/SCROLL dial.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
LNV2017
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

CONTROL PANEL (Type B)
1Touch screen display
2MAP button:Press to display the current location map
screen.
3NAV button:Press to access the functions of the Navi-
gation system.
4MENU button:Press to access the system settings.
5BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
6TUNE dial/AUDIO button:Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the dial to select a highlighted item on
the screen.
7button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE dial.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
8VOL (volume) control knob/ON-OFF button: Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
LNV2396
Getting started2-3

Menu screens and their purpose
Press one of the application buttons to activate
the corresponding menu screen:
●NAV (Navigation)
● MENU
How to select a menu item
1. As an alternative to using the touch screen,
turn the scrolling dial clockwise or counter-
clockwise to scroll through the menu items
until the preferred item is highlighted.
2. To select the preferred item, press the scrolling dial.
3. Press the BACK or
BACK button.
The previous screen will be displayed and
the changes will be saved.
HOW TO INPUT CHARACTERS
Character (letter and number) input
screen
Alphanumeric characters are used when setting
a destination, searching for an address, editing
stored locations, etc.
1. Touch characters on the touch keyboardand they will appear in the field at the top of
the screen. When the entry is complete,
touch the “OK” key.
Alternatively, use the scrolling dial to high-
light a character and press the dial to select
that character.
NOTE:
● Press the BACK or
BACK button to
delete the last inputted character or to return
to the previous screen if no characters have
been inputted.
● On every character entry screen, the touch
keyboard will display only the letters that are
possible to enter after the current letter.
● Symbol and number keys are available when
the “123/ABC” key is touched.
(Type B)LNV2397LNV2205
2-8Getting started

SCREEN INFORMATION (2D or 3D)
1“Voice” keyTouch to repeat the voice guidance while a
route is active. Touch and hold for two sec-
onds to toggle the voice guidance on or off
(button will be grayed out when voice guid-
ance is turned off) . This option is available
only when a route is set.
2Audio information
Indicates the radio station, CD track number
or other audio information currently playing.
3Next maneuver road nameIndicates the name of the next road in the
route guidance. This is only shown if route
guidance is active.
4ClockIndicates the current time.
5Direction indicator and distance to next ma-
neuver on the route
When route guidance is active but you have
deviated from the route, this area displays a
compass icon with an arrow indicating the
destination direction. When route guidance is active and you are
on the route, this area indicates the dis-
tance (in miles or kilometers) to the next
point and the turning direction at that point.
When the “Voice” key is not shown on the
screen (such as when an audio screen is
displayed on the screen) , touch the direc-
tion indicator to repeat the voice guidance
while a route is active. Touch and hold for
two seconds to toggle the voice guidance
on or off.
6Estimated time of arrival and distance to
destination or remaining time of travel and
distance to destination.
Touch this button to switch the indicator be-
tween estimated arrival time and remaining
travel time. This indicator only appears once
the destination is set and the route guid-
ance is initiated. The estimated arrival time
may not switch to the estimated arrival time
for the destination’s time zone if a time zone
line is crossed as part of the route.
7Current road indicatorThe location of where the car is positioned.
8Vehicle iconIndicates the current location and direction
of the vehicle.
LNV2206
Map settings3-3

●Show Places on Map
Touch the “Show Places on Map” key to ac-
tivate or deactivate the display of places
icons on the map. Available places are gas
stations, parking, hotels, airports,
restaurants, local train stations, hospitals,
banks and auto repair.
Certain place icons will appear as the brand
logo for that place. However, places repre-
sented by a brand logo on the map may not
necessarily be named the same as the
brand of the logo. ●
Map Data Information
Touch the “Map Data Information” key and
the follow-up screen will display the version
of the current installed map.
“MAP SD-CARD” (page 3-11)
NOTE:
A message may be displayed when new
map data is available (if so equipped) . If
such a message is shown, contact a
NISSAN dealer for more information. When the vehicle is approaching a junction or
interchange, the screen switches to a split view.
Lane information is graphically displayed on the
left side of the split screen and icons showing
the proper lanes for upcoming maneuvers are
shown in the upper right corner below the clock.
The highlighted lanes are those from which the
next maneuver on the route will be made. Lanes
displayed in gray are those that do not follow the
route at the upcoming junction or interchange.
The icons in the upper right corner also indicate
direction and may change as the junction or in-
terchange approaches (for example, straight
ahead, to straight and then right) .
Once the vehicle passes through the junction or
interchange, the screen returns to the previous
view.
LNV2077LNV2076LNV2247
LANE INFORMATION
3-10Map settings

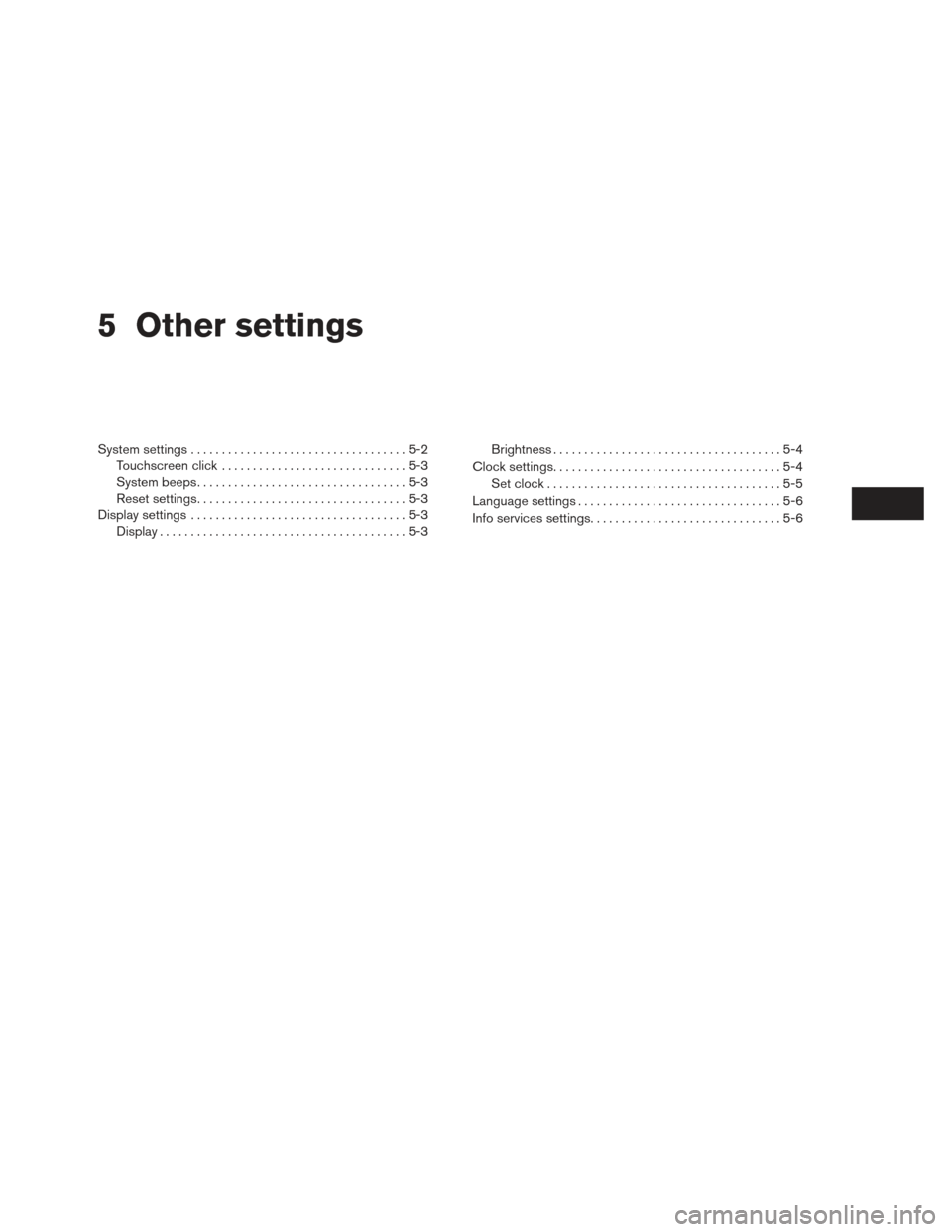

5 Other settings
System settings...................................5-2
Touchscreen click ..............................5-3
System beeps. . . ...............................5-3
Reset settings. . . ...............................5-3
Display settings ...................................5-3
Display ........................................5-3 Brightness
.....................................5-4
Clock settings.....................................5-4 Set clock ......................................5-5
Language settings .................................5-6
Info services settings ...............................5-6

The system can be customized according to
your preference.1. Press the MENU button.
2. Touch “Settings”. 3. Touch “System”.
4. Select the preferred setting item on the
screen and the next screen will be shown.
You may need to use the scrolling dial or the
touch screen to scroll if more than one
screen of options is available.
The following settings are available:
● Display
“DISPLAY SETTINGS”
(page 5-3)
● Clock Settings
“CLOCK SETTINGS” (page 5-4)
● Language
“LANGUAGE SETTINGS”
(page 5-6)
LNV2378LNV2236LNV2087
SYSTEM SETTINGS
5-2Other settings

●Touchscreen Click
“TOUCHSCREEN CLICK”
(page 5-3)
● System Beeps
“SYSTEM BEEPS” (page 5-3)
● “Reset All Settings/Memory”
“RESET SETTINGS” (page 5-3)
5. Select the button of the preferred item and adjust the setting. Alternatively, use the
scrolling dial or steering wheel scrolling
switch (if so equipped) .
6. Press the BACK or
BACK button to
return to the previous screen or press the
NAV button to return to the current location
map screen.
TOUCHSCREEN CLICK
Use this setting to change the audible confirma-
tion between the on or off position when a
screen button is touched.
Select the “Touchscreen Click” key to toggle be-
tween On and Off.
SYSTEM BEEPS
Use this setting to change the audible confirma-
tion when:
● a button on the unit is pressed and held for
about two seconds, such as the
button.
● a pop-up message appears on the screen.
Select the “System Beeps” key to toggle be-
tween ON and OFF.
RESET SETTINGS
Use this setting to restore the factory default
settings.
Touch the “Reset All Settings/Memory” key and
then confirm the message. If you choose “Yes”,
the system will reset the settings to the default
settings. If you choose “No”, the default settings
will not be restored and the display returns to the
system settings screen.
DISPLAY
Switching the display on or off
This setting allows you to turn the display on or
off. When the display is turned off, the clock will
still be displayed.
To turn off the display, press the
button.
The display will switch on when:
● the
button is pressed.
● any other button is pressed.
● receiving incoming calls or during a phone
call. When the call is ended, the display re-
turns to clock display.
Ty p e ALNV2181
DISPLAY SETTINGS
Other settings5-3
