●Touch the “123/ABC” key to toggle the dis-
play between the touch keyboard for letters
and the touch keyboard for numbers and
symbols.
2. To delete the last entry, touch the “Delete” key or hold it to delete all entries at once.
3. After finalizing the entries, touch the “OK” key or touch the “List” key for the completed
list screen.
NOTE:
● If a phrase is being entered that has been pre-
viously entered into the system, the matched
text may appear in light gray. Touch “OK” to
search for the matched text. Touch “List” to
search for both the matched text and entered
text.
Getting started2-9

2-10Getting started

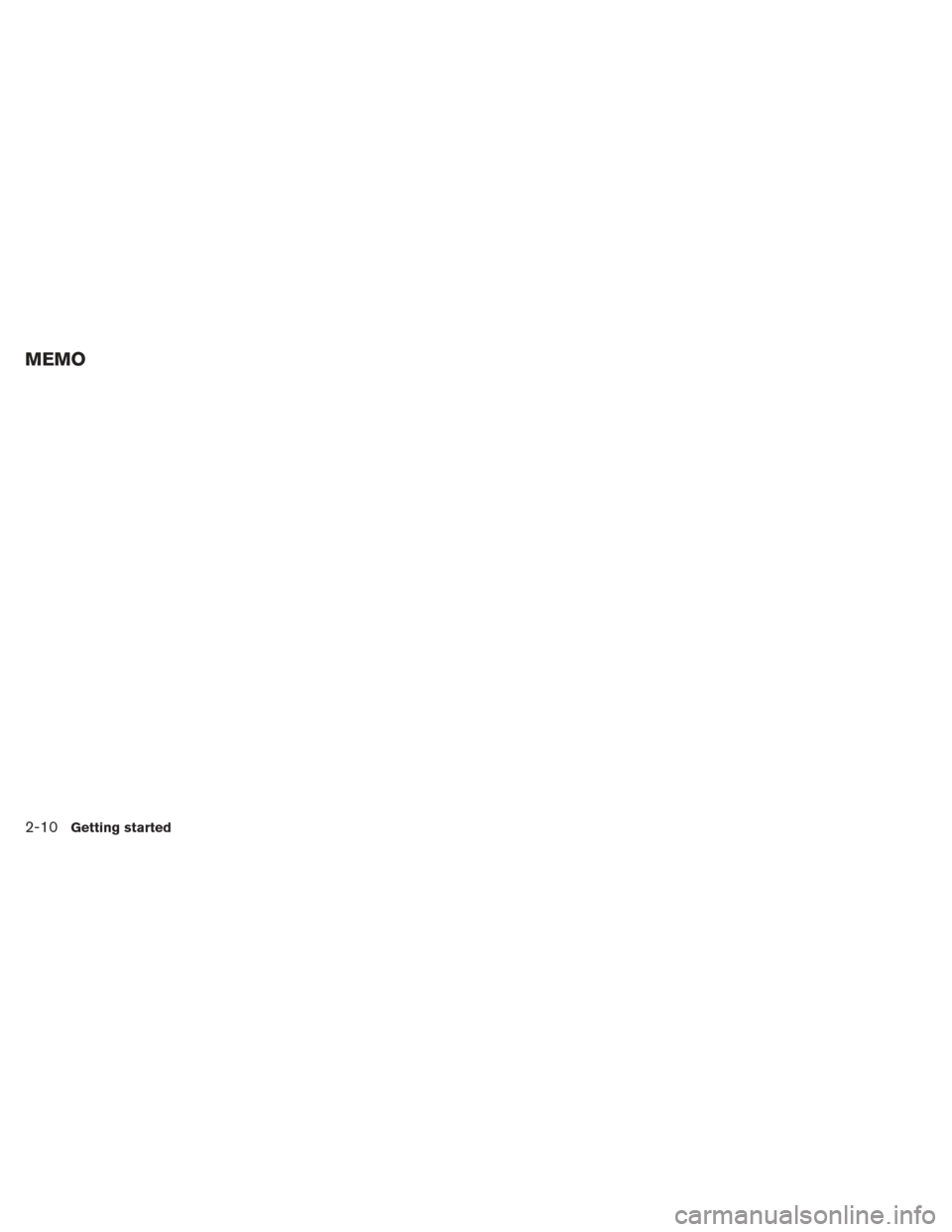

MEMO

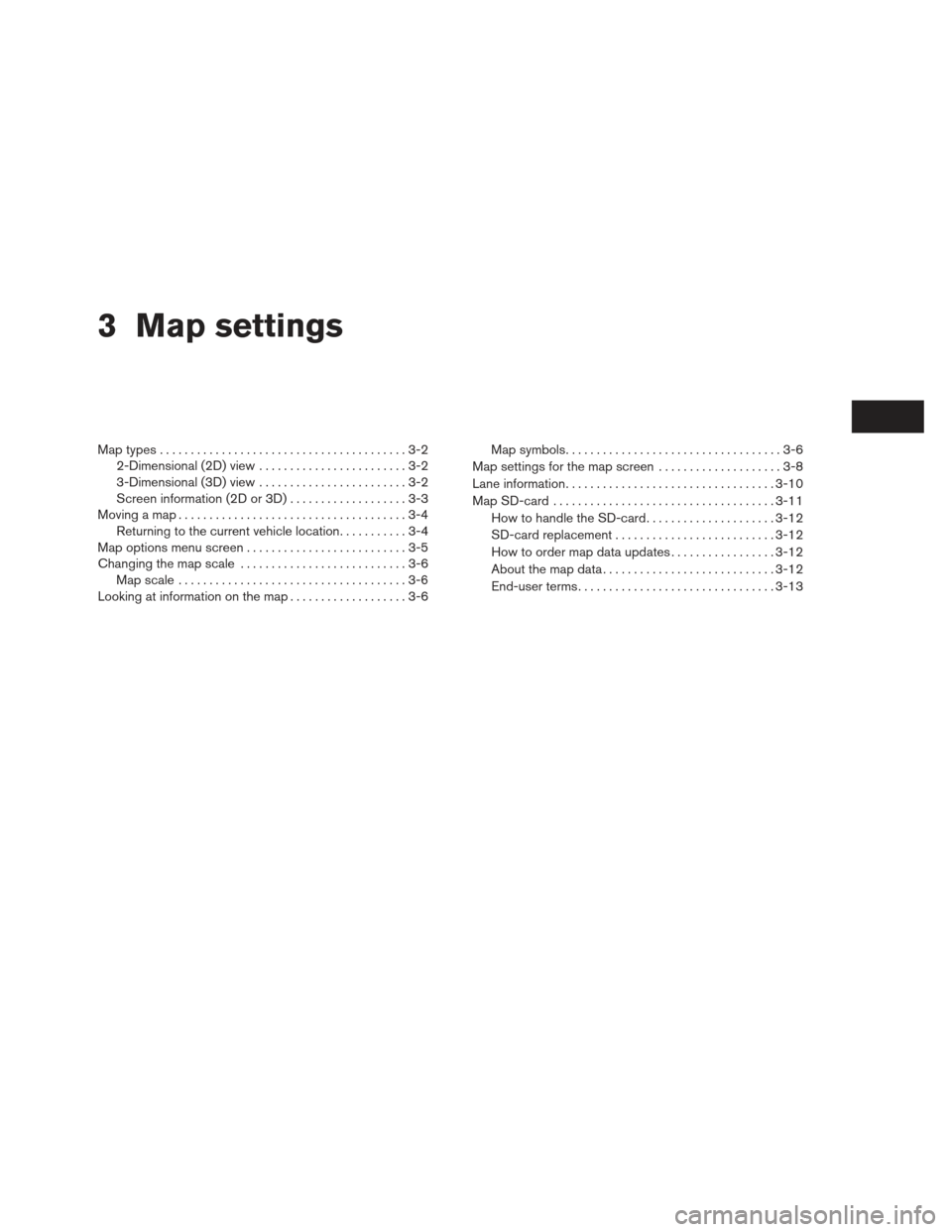

3 Map settings
Map types........................................3-2
2-Dimensional (2D) view . . . .....................3-2
3-Dimensional (3D) view . . . .....................3-2
Screen information (2D or 3D) ...................3-3
Moving a map .....................................3-4
Returning to the current vehicle location ...........3-4
Map options menu screen ..........................3-5
Changing the map scale ...........................3-6
Map scale .....................................3-6
Looking at information on the map ...................3-6 Map symbols
...................................3-6
Map settings for the map screen ....................3-8
Lane information .................................. 3-10
Map SD-card .................................... 3-11
How to handle the SD-card .....................3-12
SD-card replacement .......................... 3-12
How to order map data updates .................3-12
About the map data ............................ 3-12
End-user terms ................................ 3-13

2-DIMENSIONAL (2D) VIEW
The 2D map is a two-dimensional (flat) repre-
sentation of the map data, similar to a road map,
focused on the vehicle’s position (vehicle icon) .
“SCREEN INFORMATION (2D or
3D)” (page 3-3)
“MAP SETTINGS FOR THE MAP
SCREEN” (page 3-8)
3-DIMENSIONAL (3D) VIEW
The 3D map displays the map from an elevated
perspective, providing a panoramic view over a
long distance.
The map in 3D view always appears with the cur-
rent forward direction facing up (heading up) .
“SCREEN INFORMATION (2D or
3D)” (page 3-3)
“MAP SETTINGS FOR THE MAP
SCREEN” (page 3-8)
2D
LNV2025
3D
LNV2026
MAP TYPES
3-2Map settings

SCREEN INFORMATION (2D or 3D)
1“Voice” keyTouch to repeat the voice guidance while a
route is active. Touch and hold for two sec-
onds to toggle the voice guidance on or off
(button will be grayed out when voice guid-
ance is turned off) . This option is available
only when a route is set.
2Audio information
Indicates the radio station, CD track number
or other audio information currently playing.
3Next maneuver road nameIndicates the name of the next road in the
route guidance. This is only shown if route
guidance is active.
4ClockIndicates the current time.
5Direction indicator and distance to next ma-
neuver on the route
When route guidance is active but you have
deviated from the route, this area displays a
compass icon with an arrow indicating the
destination direction. When route guidance is active and you are
on the route, this area indicates the dis-
tance (in miles or kilometers) to the next
point and the turning direction at that point.
When the “Voice” key is not shown on the
screen (such as when an audio screen is
displayed on the screen) , touch the direc-
tion indicator to repeat the voice guidance
while a route is active. Touch and hold for
two seconds to toggle the voice guidance
on or off.
6Estimated time of arrival and distance to
destination or remaining time of travel and
distance to destination.
Touch this button to switch the indicator be-
tween estimated arrival time and remaining
travel time. This indicator only appears once
the destination is set and the route guid-
ance is initiated. The estimated arrival time
may not switch to the estimated arrival time
for the destination’s time zone if a time zone
line is crossed as part of the route.
7Current road indicatorThe location of where the car is positioned.
8Vehicle iconIndicates the current location and direction
of the vehicle.
LNV2206
Map settings3-3

9Suggested routeAppears as a bold blue line during route
guidance.
10Scale indicatorIndicates the scale of the map.
11Compass iconIndicates the direction of the map. Touch
this icon to switch the map view between
the North Up, Heading Up (or actual direc-
tion) and 3D modes.
12“Presets” keyThis option toggles on and off with the
“Menu” key and displays a touch menu of
the radio presets on the screen. For more
information about the audio system, see the
vehicle Owner’s Manual.
13Zoom in and zoom out keysTouch to zoom the map in or out.
14“Options” keyTouch this key to access the map options
menu screen.
“ MAP OPTIONS MENU
SCREEN” (page 3-5) To scroll the map in either direction:
1. Touch and release the screen anywhere on the map.
2. Touch the screen again and move your fin- ger along the screen in the direction you
wish to scroll.
After releasing and touching the map again, a
marker will be displayed at the point touched
and, if possible, the position determined.
NOTE:
● If the map is in 3D view, touching the map to
scroll will automatically switch the map to the
2D view and will automatically orientate the
map North Up.
● If the map is in 2D view, the map will be ori-
ented North Up. ●
When the current location of the vehicle is
recognized, the street name will be displayed
at the bottom of the screen. When scrolling a
map and an area that is not a road, city or POI
is touched, coordinates corresponding to the
marker’s position are displayed at the bottom
of the screen.
RETURNING TO THE CURRENT VE-
HICLE LOCATION
The basic map screen displays the current loca-
tion of the vehicle. The current location can be
displayed again even after the map is moved, or
after the menu screen is displayed.
Press the MAP button or the BACK or
BACK button and the current location will be
displayed on the map.
LNV2207
MOVING A MAP
3-4Map settings

The Map Options menu allows you to quickly
store the current position, show position infor-
mation or destination information, and adjust the
map settings.1. Touch the “Options” key while the routeguidance map is displayed.
2. The following options are available for se- lection:
● Places Along Route
Select to choose the types of places to
display along the active route. Available
options are gas stations, restaurants,
ATMs, parking, rest areas, hotels, dealer-
ships and airports.
NOTE:
Some places of interest on divided high-
ways may show the equivalent place of in-
terest on the opposite side of the road (such
as a rest area) as being closer than the place
in your traveling direction. Confirm location
of the place before following the route.
●Show Entire Route Along Map
Select to display the entire route on the
screen. The view will zoom to the neces-
sary level in order to show both the start-
ing point and destination on the screen.
● Show Destination Information
Select to show Information such as the
address and phone number (if available)
for the destination. If waypoints are also
part of the route, a list will display with
the destination and all waypoints. Touch
an item to see information for that desti-
nation or waypoint.
● Store Current Position
Select to store the current position. A
keyboard is displayed to allow for a new
name for the location to be entered if
desired.
● Show Position Information
Select to display the latitude, longitude
and altitude for the current position of the
vehicle.
● Map Setup
“ MAP SETTINGS FOR THE
MAP SCREEN” (page 3-8)
LNV2031
MAP OPTIONS MENU SCREEN
Map settings3-5

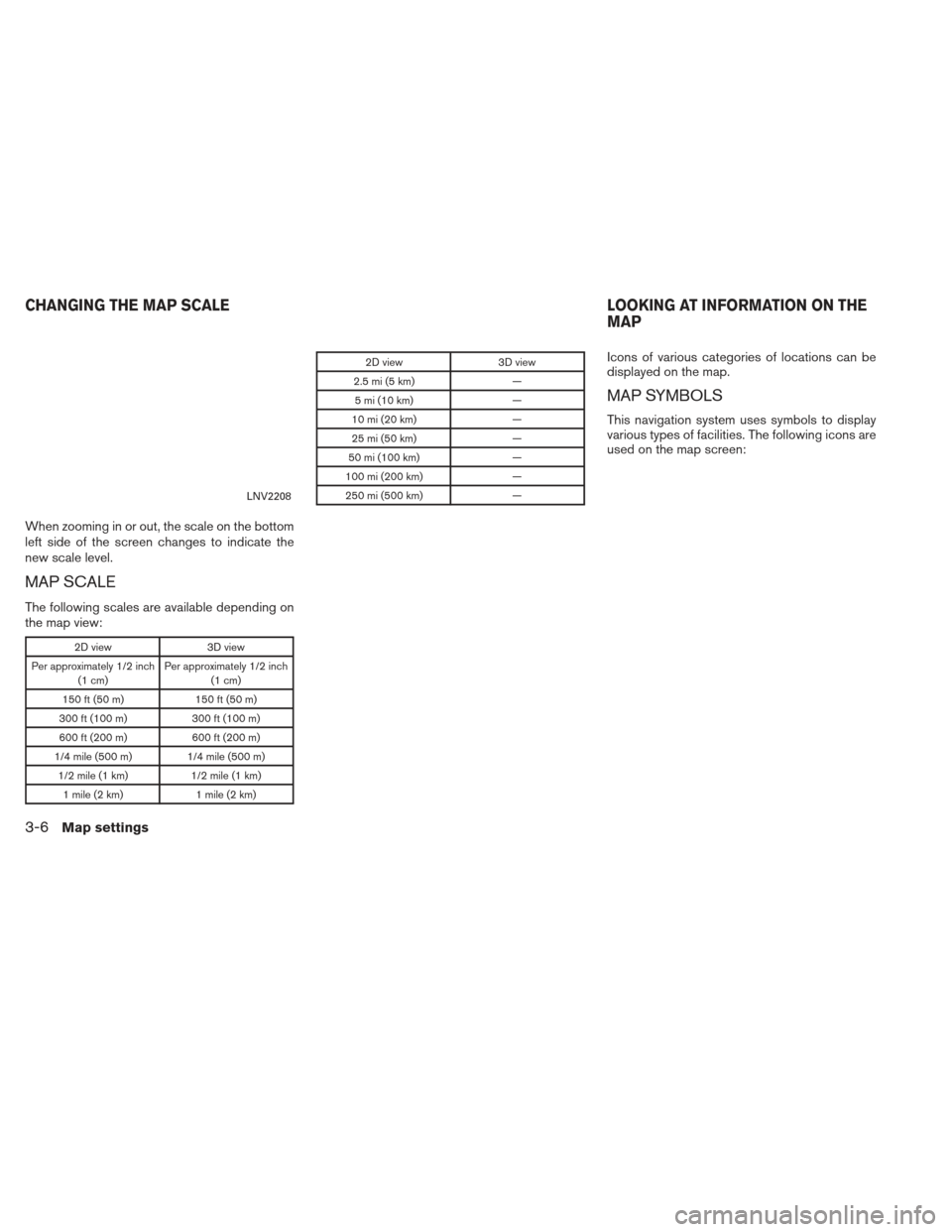

When zooming in or out, the scale on the bottom
left side of the screen changes to indicate the
new scale level.
MAP SCALE
The following scales are available depending on
the map view:
2D view3D view
Per approximately 1/2 inch (1 cm) Per approximately 1/2 inch
(1 cm)
150 ft (50 m) 150 ft (50 m)
300 ft (100 m) 300 ft (100 m)
600 ft (200 m) 600 ft (200 m)
1/4 mile (500 m) 1/4 mile (500 m)
1/2 mile (1 km) 1/2 mile (1 km)
1 mile (2 km) 1 mile (2 km)
2D view 3D view
2.5 mi (5 km) —
5 mi (10 km) —
10 mi (20 km) —
25 mi (50 km) —
50 mi (100 km) —
100 mi (200 km) —
250 mi (500 km) —Icons of various categories of locations can be
displayed on the map.
MAP SYMBOLS
This navigation system uses symbols to display
various types of facilities. The following icons are
used on the map screen:
LNV2208
CHANGING THE MAP SCALE LOOKING AT INFORMATION ON THE
MAP
