2013 NISSAN SENTRA Quick Reference Guide

Q
UI
c
k REFEREN
c
E
G
UIDE
2 0 13
SENTRA

*See your Owner’s Manual for information.
02
01
03
10
11
12
14
15
13
08
07
01 TRIP c
O
MPUTER02 LOW TIRE PRESSURE WARNING LIGHT03 HEADLIGHT AND TURN SIGNAL c
O
NTROL04 WINDSHIELD WIPER AND
WASHER SWIT
c
H
05 TRIP c
O
MPUTER MENU/
STEERING WHEEL SWIT
cHE
S
FOR AUDIO*/BLUETOOTH
®
06 cRUISE
cONTROL
07 INSTRUMENT BRIGHTNESS c
O
NTROL*08 OUTSIDE MIRROR c ONTROL SWIT
c
H
09 TRUNk
L
ID OPENER10 TILT/TELES
cO
PI
c
STEERING c
O
LUMN*11 DRIVE MODES (E
cO and S
PORT)12 VEHI
cLE D
YNAMI
c
c
O
NTROL (VD
c
)
OFF SWIT
c
H13 FUEL-FILLER DOOR RELEASE
14 HOOD RELEASE*15 FRONT PASSENGER AIR BAG STATUS LIGHT16 AUDIO AND NAVIGATION SYSTEM17 cLIMATE c
O
NTROLS
06
05
16
17
09
Behind
Steering Wheel
04Behind
Steering Wheel

TABLE OF
c
O
NTENTS
NeW SYSTeM FeaT ureS

Drive Mode....................................................2
Navigation System (if so equipped)................................2
e

SS
eNT
ial iNF
orM
a
T
io N

Loose Fuel

c ap
................................................3



T
ire Pressure Monitoring System (TPMS) with
Easy Fill Tire Alert (if so equipped)
.................................3
Fi

r
ST D
rive Fea
T
ure
S

N

ISSAN Intelligent k
ey® System (if so equipped)....................5
T

runk Lid Release
..............................................5

Seat Adjustments

..............................................
6

Outside Mirror

c
ontrol Switch ...................................
6

St

arting/Stopping the Engine ....................................
6

Headlight

c
ontrol Switch ........................................
7

W

indshield Wiper and Washer Switch .............................
8

Automatic

c
limate
c
ontrols (if so equipped) ........................
8



FM/AM/SiriusXM
™ Satellite Radio with cD Player (if so equipped).....10


USB/iPod® Interface (if so equipped).............................11


c
ruise
c
ontrol (if so equipped) ..................................
11

Fuel-Filler Door

...............................................
12
S
Y

ST
e

M
Gui
D e
T

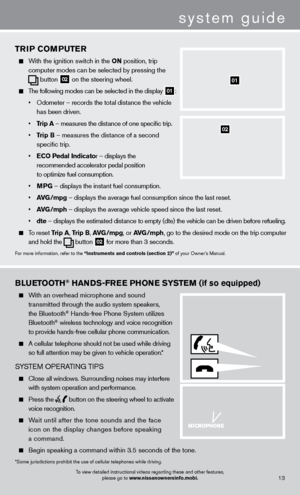

rip
c
omputer
................................................13


Bluetooth
® Hands-free Phone System (if so equipped) ..............13


Bluetooth® System Without Navigation (if so equipped)..............14

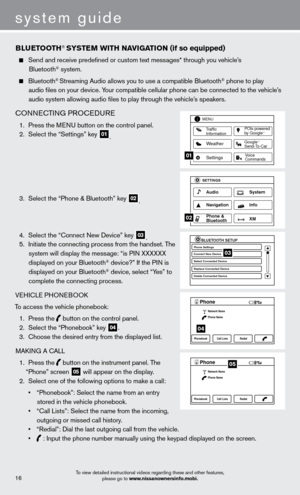

Bluetooth® System With Navigation (if so equipped) ................16
Navigation System (if so equipped)...............................18
• A cellular telephone should not be used for any purpose while

driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
c hildren 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according
to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/sentra or snap this barcode with an appropriate barcode reader.

Drive MoDe
NORMAL
Normal drive mode is recommended for normal
everyday driving, and is the default mode of
your vehicle.
E
c O
EcO drive mode is recommended for maximum fuel economy . Performance may be reduced.
• Press the e
C
o button
01 on the instrument panel to activate.
• The
e
C

o
drive indicator light illuminates on the instrument panel.
SPORT
The SPORT drive mode is recommended for an enhanced performance feel. Fuel econ\
omy may be reduced.
• Press the SP
or

T button
02 on the instrument panel to activate.
• SP
or

T drive indicator light illuminates on the instrument panel.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
new system features
NaviG aT io N SYST eM (if so equipped)
Your Navigation System can calculate a route from the current location to\
a preferred destination.



T
he real-time map display and turn-by-turn voice guidance will lead you a\
long the route.
The Navigation System will continually update your vehicle’s position. If you have deviated



from the original route, it will recalculate the route from your current\
location.

For more information, refer to your Navigation System Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.2
0102

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

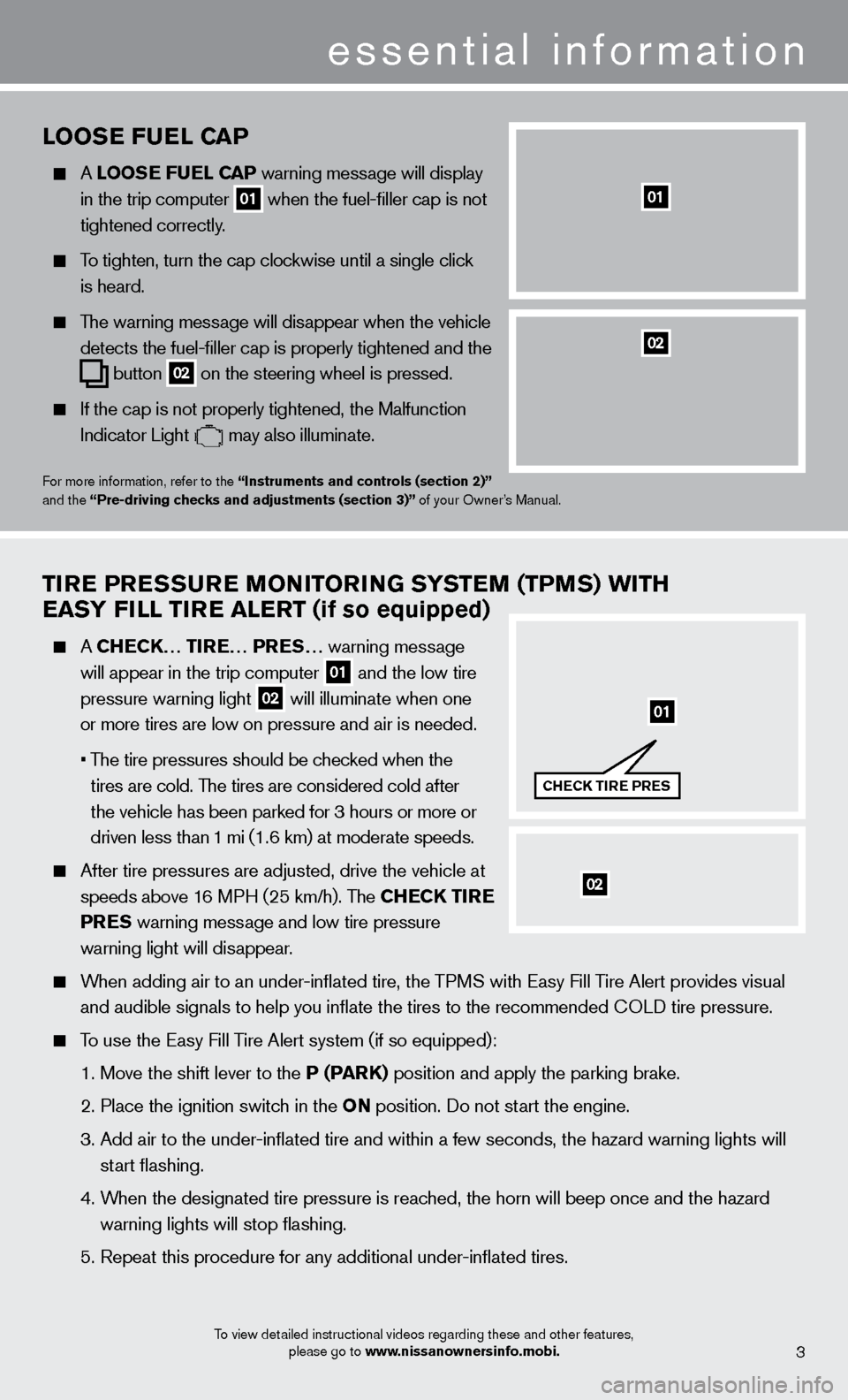

looSe F uel Ca P
A looSe F uel Ca P warning message will display



in the trip computer 01 when the fuel-filler cap is not

tightened correctly
.
To tighten, turn the cap clockwise until a single click



is heard.
The warning message will disappear when the vehicle



detects the fuel-filler cap is properly tightened and the

button 02 on the steering wheel
is pressed.
If the cap is not properly tightened, the Malfunction




Indicator Light may also illuminate.
For more information, refer to the “instruments and controls (section 2)”

and the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
01
Tire PreS Su re Mo Ni Tor iN G SYST eM (TPM S) W i TH
ea

SY F ill T ire aler T (if so equipped)
A CHeCK… T ire … P reS… warning message
will appear in the trip computer
01 and the low tire

pressure warning light 02 will illuminate when one

or more tires are low on pressure and air is needed.



•


T

he tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.
After tire pressures are adjusted, drive the vehicle at



speeds above 1
6 MPH (25 km/h). The CH
eCK T

ire

Pre

S warning message and low tire pressure



warning light will dis
appear.
When adding air to an under-inflated tire, the TPMS with Easy Fill Tire Alert provides visual

and audible signals to help you inflate the tires to the recommended
c
O
LD tire pressure.
To use the Easy Fill Tire Alert system (if so equipped):



1. Move the shift lever to the
P (P
arK)
position and apply the parking brake.



2. Place the ignition switc
h in the o N position. Do not start the engine.



3.

Add air to the under-inflated tire and within a few seconds, the hazar\
d warning lights will

start flashing.



4.

W
hen the designated tire pressure is reached, the horn will beep once and the hazard
warning lights will stop flashing.



5. Repeat this procedure for any additional under-inflated tires.
essential information
02
01
CHeCK T ire P reS
02
3

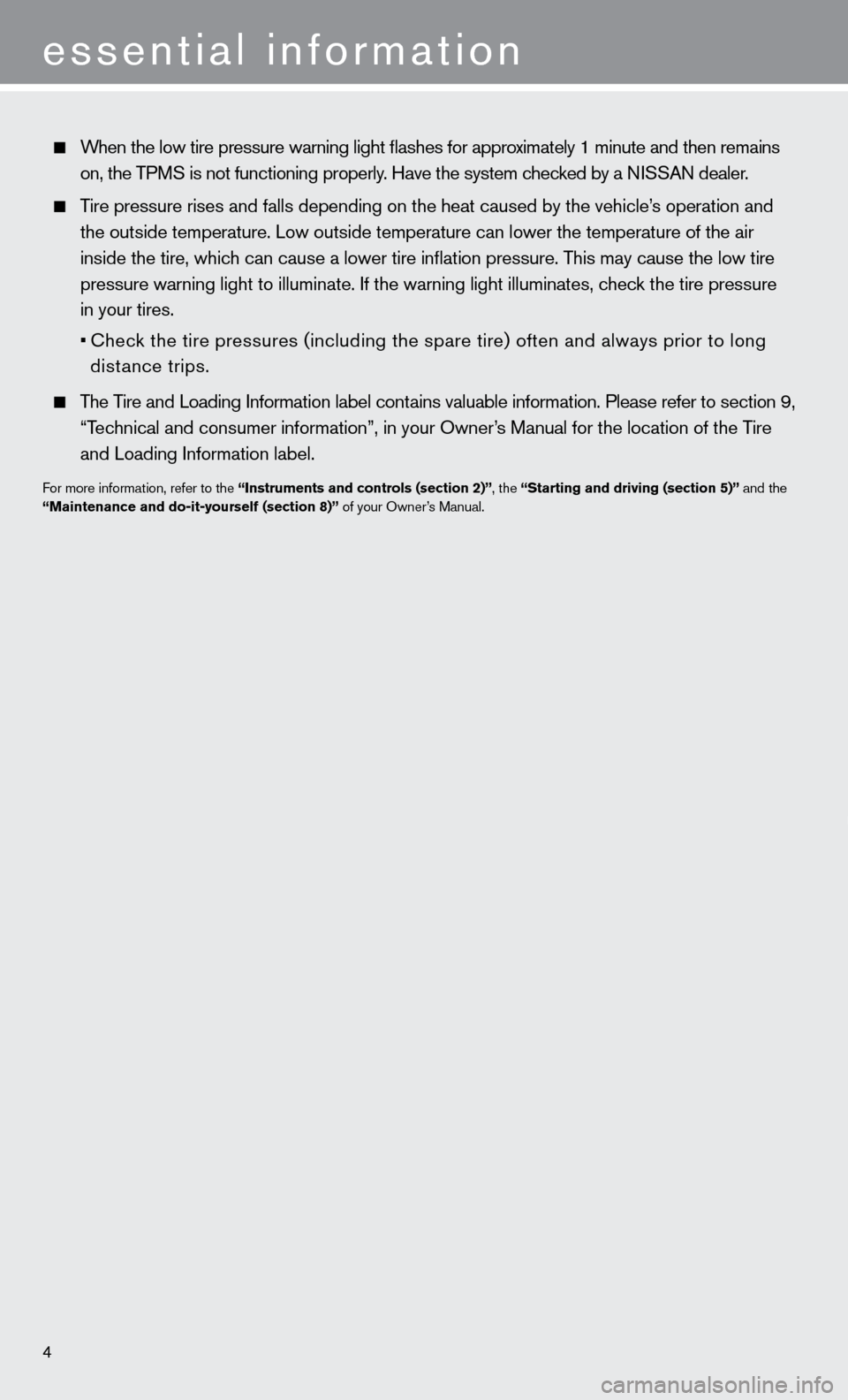

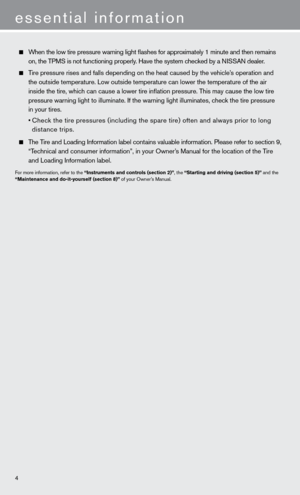

When the low tire pressure warning light flashes for approximately 1 minute and then remains
on, the TPMS is not functioning properly. Have the system checked by a NISSAN dealer.
Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This may cause the low tire
pressure warning light to illuminate. If the warning light illuminates, \
check the tire pressure
in your tires.



•


c heck the tire pressures (including the spare tire) often and always prior\
to long
distance trips.
The Tire and Loading Information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire
and Loading Information label.
For more information, refer to the “instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
essential information
4

02TruNK liD relea Se
Use one of the following methods to unlatch
the trunk lid, then raise the lid to open the trunk:
Push the trunk opener request switch


01 , located in the center under the
trunk handle, for more than 1 second



while carrying the N
ISSAN Intelligent k
ey® with you.
Press the trunk release button HolD 02 on the
keyfob for more than 0.5 seconds.
Push the trunk lid release 03 down. The release is
located to the left of the steering wheel.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
03
02
NiSS a N iNT elliGeNT Ke Y® SYSTeM (if so equipped)
The NISSAN Intelligent key® system allows you to lock or
unlock the vehicle, open the trunk and start the engine.
NOTE: It is important to make sure the Intelligent
k
ey is

with you (that is, in your pocket or purse).
To lock the vehicle, push either door handle request
switch
01 once or press the
button
02 on

the keyfob.
To unlock the vehicle, perform one of the following procedures:



•

Push either door handle request switc
h
01 once;

the corresponding door will unlock. Push the door
handle request switch
01 again within 60 seconds;

all other doors will unlock, or



•


Press the button
03 on the keyfob to unlock the

driver’s side door. Press the button again; all other

doors will unlock.
To release the trunk lid, press the button
04 for more than 0.5 seconds. Lift the trunk lid
to access the trunk.
The Intelligent key can also be used to activate the panic alarm by pressing and holding \
the

button 05 for more than 0.5 seconds. Once activated, the panic alarm and headlight\
s will stay
on for a period of time.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
01
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
02
03
04
05
5
01
first drive features

STarT iNG/STo PP iN G THe eN GiNe
cONTINUOUSLY VARIABLE TRANSMISSION
(N ISSAN Intelligent k
ey® models only - if so equipped)
Depress the brake pedal.



•

If the brake pedal is not depressed, pushing the

ignition switch once enters the
a CC mode.



•

If the ignition switc
h is pushed a second time the
vehicle will enter the
o N mode.
Move the shift lever to the P (ParK) position.
Push the ignition switch
to start the engine.
NOTE: It is important to make sure the Intelligent k
ey is with you (that is, in your poc
ket or purse).
MANUAL TRANSMISSION (if so equipped)
Depress the brake pedal.
Move the shift lever to the N (Neu T ral) position.
Depress the clutc h pedal to the floor.
Press the ignition switc h.
ouTSiDe Mi rror C o NT rol SW i TCH
Move switch 01 right or left to select the right



or left side mirror

.
Adjust eac h mirror to the desired position using the
switc

h
02.
Move the switc h 01 to the middle “neutral”



position to prevent accident
ally moving the mirror.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.

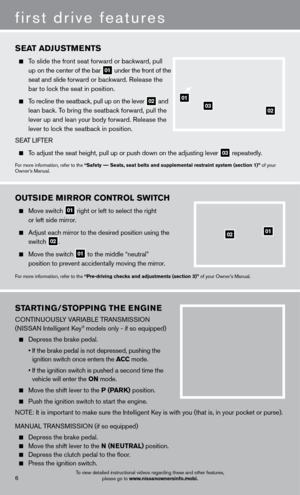

SeaT a DJuSTMeNTS
To slide the front seat forward or backward, pull
up on the center of the bar
01 under the front of the
seat and slide forward or backward. Release the
bar to lock the seat in position.
To recline the seatback, pull up on the lever 02 and

lean bac
k. To bring the seatback forward, pull the



lever up and lean your body forward. Release the




lever to loc

k the seatback in position.
S
EA

T


LIFTER

T o adjust the seat height, pull up or push down on the adjusting lever
03 repeatedly.
For more information, refer to the “Safety –– Seats, seat belts and supplemental restraint system (section 1)”\
of your
Owner’s Manual.
01
0203
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
0201
first drive features
6
