2013 NISSAN ROGUE warning lights

Black plate (7,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)...
........................................................................\
.... 0-2
Exterior front ...
........................................................................\
....... 0-3
Exterior rear ...
........................................................................\
........ 0-4
Passenger compartment ...
......................................................... 0-5 Instrument panel
...
....................................................................... 0-6
Meters and gauges ...
.................................................................. 0-8
Engine compartment ...
............................................................... 0-9
QR25DE engine ...
................................................................ 0-9
Warning and indicator lights ...
.............................................. 0-10

Black plate (14,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-8Illustrated table of contents
S35-D-110201-BA7643A9-5590-4C58-9A41-1AA8C68ABF1F
JVC0301X
1. Tachometer (P.2-5)
2. Warning/indicator lights (P.2-8)
3. Vehicle information display (P.2-16)
4. Speedometer (P.2-4)
5. Engine coolant temperature gauge (P.2-6)
6.
switch (twin trip odometer control and
brightness control) (P.2-5, P.2-7) 7.
switch (settings control and trip computer
control) (P.2-16)
8. Fuel gauge (P.2-6)
METERS AND GAUGES

Black plate (16,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
0-10Illustrated table of contents
GUID-65B13399-03E2-4AC9-B527-1CEEE81B9182
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-9
Anti-lock Braking System (ABS)
warning light2-9
Brake warning light
2-10
Charge warning light2-10
Electric power steering warning
light 2-10
Engine oil pressure warning
light2-11
Low fuel warning light
2-11
Low tire pressure warning light 2-11
Master warning light 2-12
Seat belt warning light 2-12
Supplemental air bag warning
light 2-13
Vehicle Dynamic Control (VDC)
warning light2-13Indicator
light Name Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-13
Exterior light indicator
2-13
Front passenger air bag status
light 2-14
High beam indicator light 2-14
Malfunction Indicator Light
(MIL)2-14
Overdrive off indicator light 2-15
Security indicator light
2-15
SPORT mode indicator light 2-15
Turn signal/hazard indicator
lights 2-15
Vehicle Dynamic Control (VDC)
off indicator light2-15
*: if so equipped
WARNING AND INDICATOR LIGHTS

Black plate (71,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-4
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-5
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-6
Instrument brightness control ...
.......................................... 2-7
Warning/indicator lights and audible reminders ...
............... 2-8
Checking bulbs ...
.................................................................... 2-9
Warning lights ...
...................................................................... 2-9
Indicator lights ...
................................................................... 2-13
Audible reminders ...
............................................................ 2-15
Vehicle information display ...
.................................................. 2-16
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-18
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-21
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-24
Security systems ...
.................................................................... 2-25
Vehicle Security System ...
................................................. 2-25
NISSAN Vehicle Immobilizer System ...
.......................... 2-26
Windshield wiper and washer switch ...
............................... 2-28 Rear window wiper and washer switch
...
.......................... 2-29
Rear window and outside mirror defroster switch ...
....... 2-30
Headlight and turn signal switch ...
....................................... 2-30
Xenon headlights (if so equipped) ...
............................ 2-30
Headlight switch ...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-34
Fog light switch (if so equipped) ...
.............................. 2-34
Horn ...
........................................................................\
.................. 2-35
Heated seats (if so equipped) ...
........................................... 2-35
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-36
Power outlet ...
........................................................................\
.... 2-37
Storage ...
........................................................................\
............ 2-38
Cup holders ...
..................................................................... 2-38
Sunglasses holder ...
......................................................... 2-39
Glove box ...
........................................................................\
. 2-40
Console box ...
.................................................................... 2-40
Luggage floor box (if so equipped) ...
.......................... 2-41
Luggage side box ...
.......................................................... 2-41
Cargo cover (if so equipped) ...
..................................... 2-41
Luggage hooks (if so equipped) ...
............................... 2-42
Coat hooks (if so equipped) ...
....................................... 2-43
Utility hook ...
....................................................................... 2-43
Roof rack (if so equipped) ...
.......................................... 2-44>

Black plate (74,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-4Instruments and controls
S35-D-110201-F221FA22-5C18-4A37-B124-E6F61E733E4B
JVC0301X
1. Tachometer
2. Warning/indicator lights
3. Vehicle information display
4. Speedometer
5. Engine coolant temperature gauge
6.
switch (twin trip odometer control and
brightness control) 7.
switch (settings control and trip computer
control)
8. Fuel gauge
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
SIC4534
SPEEDOMETERS35-D-110201-C9945ABD-2549-458F-908F-CB27BD1CA5A3
SpeedometerS35-D-110201-60576567-9CF2-4129-A4A9-9B5C4699383DThe speedometer indicates vehicle speed in
miles per hour (MPH) or kilometers per hour
(km/h) .
METERS AND GAUGES

Black plate (78,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

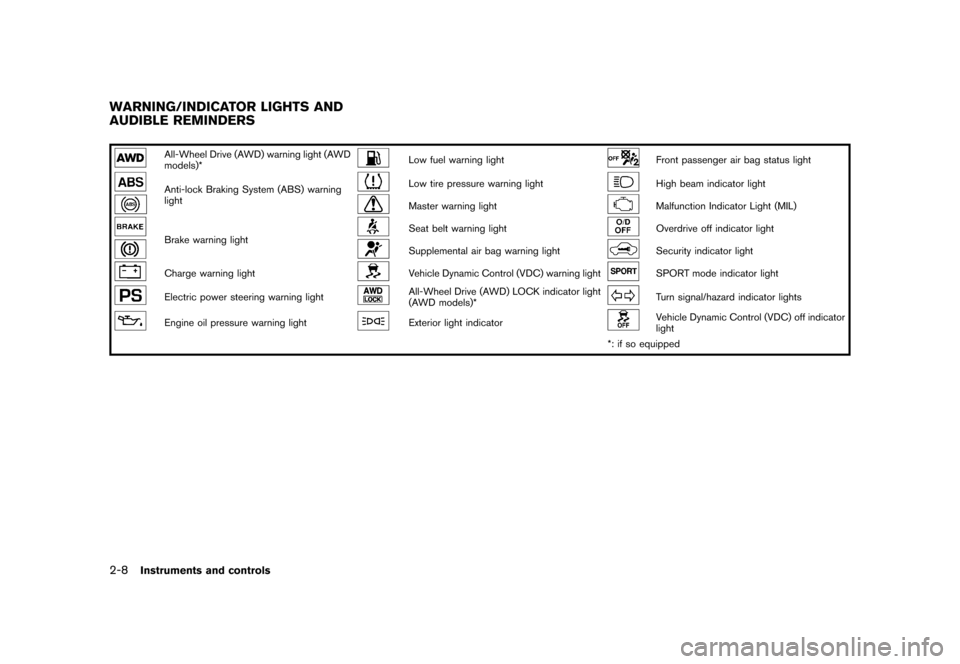

2-8Instruments and controls
S35-D-110201-B00B3ECC-8D3D-461F-9906-7A31121D4043
All-Wheel Drive (AWD) warning light (AWD
models)*Low fuel warning lightFront passenger air bag status light
Anti-lock Braking System (ABS) warning
lightLow tire pressure warning lightHigh beam indicator light
Master warning lightMalfunction Indicator Light (MIL)
Brake warning lightSeat belt warning lightOverdrive off indicator light
Supplemental air bag warning lightSecurity indicator light
Charge warning lightVehicle Dynamic Control (VDC) warning lightSPORT mode indicator light
Electric power steering warning lightAll-Wheel Drive (AWD) LOCK indicator light
(AWD models)*Turn signal/hazard indicator lights
Engine oil pressure warning lightExterior light indicatorVehicle Dynamic Control (VDC) off indicator
light
*: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

Black plate (79,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
CHECKING BULBSS35-D-110201-509763A1-1CD5-4013-B64B-BA38C7221423With all doors closed, apply the parking brake
and turn the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,or,,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display be-
tween the speedometer and tachometer. (See
“Vehicle information display” later in this sec-
tion.)
WARNING LIGHTSS35-D-110201-B0BCAF7C-D090-4C01-8D57-DB3AE4D3CA95
All-Wheel Drive (AWD) warning
light (AWD models)
S35-D-110201-355E3C0A-32CD-480B-B487-AC5E7170D1C5The light illuminates when the ignition switch is
turned to the ON position. It turns off after the
engine is started.
If the All-Wheel Drive (AWD) system malfunc-
tions, or the diameter of the front and the rear
wheels are different, the warning light will either
remain illuminated or blink. (See “All-Wheel
Drive (AWD)” in the “5. Starting and driving”
section.)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a NISSAN dealer as
soon as possible.
. If the AWD warning light blinks
while driving:
— blinks rapidly (about twice a
second):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same, tire
pressure is correct and tires are
not worn.
. If the warning light is still on after
the above operations, have your
vehicle checked by a NISSAN dealer
as soon as possible.orAnti-lock Braking System
(ABS) warning light
S35-D-110201-1E759848-5414-4A25-BA81-86C4D2F42713When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
Instruments and controls2-9

Black plate (80,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
2-10Instruments and controls
operates normally, but without anti-lock assis-
tance. (See “Brake system” in the “5. Starting
and driving” section.)
orBrake warning lightS35-D-110201-FAC4FDDE-38CB-4A48-8813-E0FC7230DB1AThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light illuminates when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light illuminates while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluidas necessary. (See “Brake fluid” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System (ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by a NISSAN dealer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
.
Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning lightS35-D-110201-B5291C9A-3089-486D-840B-2926E436A0BEIf the light illuminates while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Electric power steering warning
light
S35-D-110201-88542F69-8229-41AA-9C73-2BE953D6B595When the ignition switch is in the ON position,
the electric power steering warning light illumi-
nates. After starting the engine, the electric
power steering warning light turns off. This
indicates the electric power steering system is
operational.
If the electric power steering warning light
illuminates while the engine is running, it may
indicate the electric power steering system is
not functioning properly and may need servicing.
Have the electric power steering system
checked by a NISSAN dealer.
When the electric power steering warning light
