The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
For US models: The headlights will also be turned
on automatically at twilight or in rainy weather
(when the windshield wiper is operated continu-
ously) .
If the power switch is placed in the OFF position
and one of the doors is opened and this condition
continues, the headlights remain on for 45 sec-
onds.
Automatic headlights off delay:
You can keep the headlights on for up to 180
seconds after you push the power switch to OFF
and open any door then close all the doors.
You can adjust the period of the automatic head-
lights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
the LEAF Navigation System Owner’s Manual.Be sure not to put anything on top of the
photo sensor
1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in the
neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low
beam.
3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
Instruments and controls2-43

LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock or
unlock all doors simultaneously using the me-
chanical key.
Turning the driver’s door key cylinder towardsthe front of the vehicle
1will lock all doors and
the rear hatch.
Turning the driver’s door key cylinder once to- wards the rear of the vehicle
2will unlock the
driver’s door. After returning the key to the neu-
tral position, turning it towards the rear again
within 5 seconds will unlock all doors and the
rear hatch. You can switch the lock system to the mode that
allows you to open all the doors when the key is
turned once. (See the LEAF Navigation System
Owner’s Manual.)
LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1then close the
door.
To unlock, move the inside lock knob to the
unlock position
2.
When the front door is locked, pulling the front
door handle will unlock the front door.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
3-4Pre-driving checks and adjustments

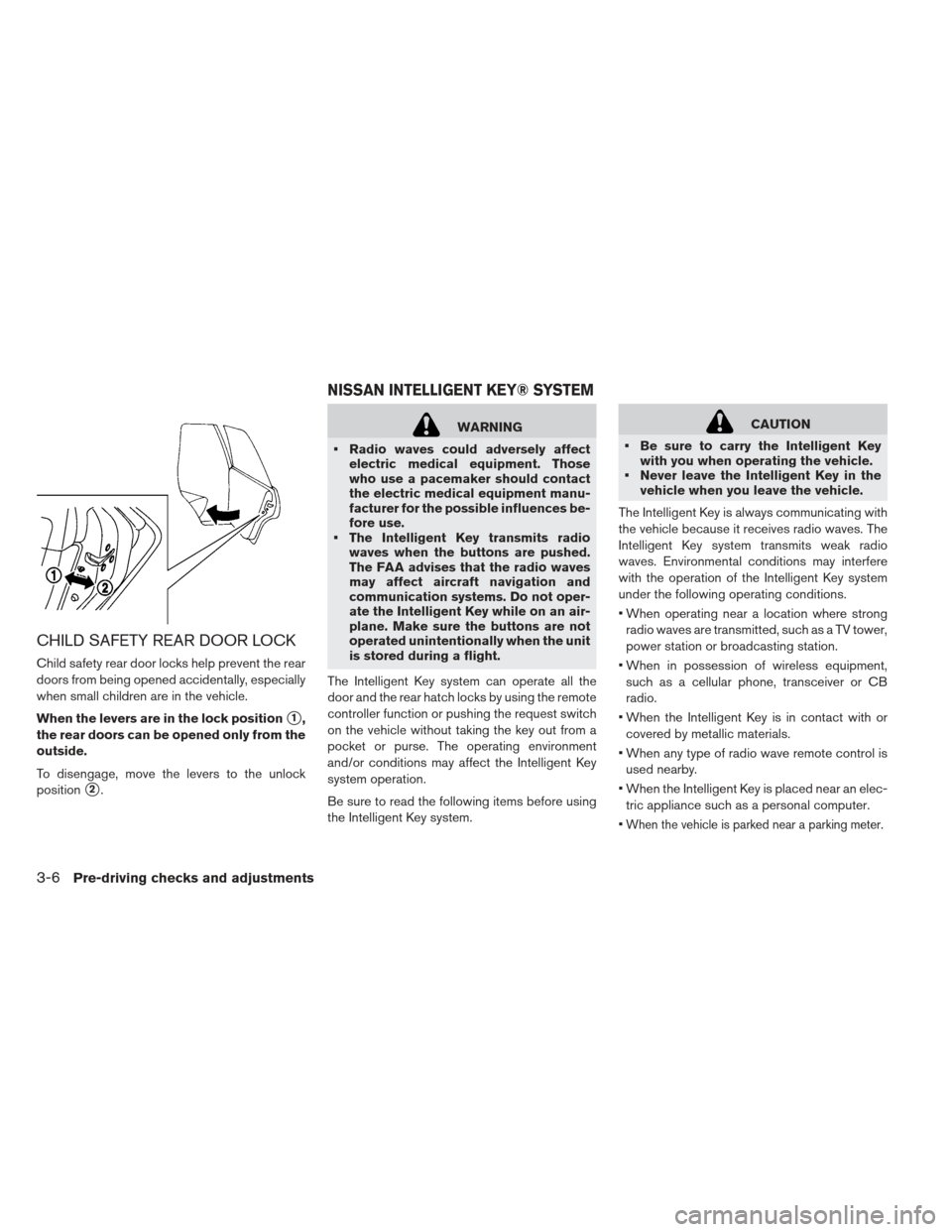

CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent the rear
doors from being opened accidentally, especially
when small children are in the vehicle.
When the levers are in the lock position
1,
the rear doors can be opened only from the
outside.
To disengage, move the levers to the unlock
position
2.
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
The Intelligent Key system can operate all the
door and the rear hatch locks by using the remote
controller function or pushing the request switch
on the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following items before using
the Intelligent Key system.CAUTION
Be sure to carry the Intelligent Key with you when operating the vehicle.
Never leave the Intelligent Key in the vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle because it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
When operating near a location where strong radio waves are transmitted, such as a TV tower,
power station or broadcasting station.
When in possession of wireless equipment, such as a cellular phone, transceiver or CB
radio.
When the Intelligent Key is in contact with or covered by metallic materials.
When any type of radio wave remote control is used nearby.
When the Intelligent Key is placed near an elec- tric appliance such as a personal computer.

When the vehicle is parked near a parking meter.
NISSAN INTELLIGENT KEY® SYSTEM
3-6Pre-driving checks and adjustments

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
Do not allow the Intelligent Key, which contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
Do not drop the Intelligent Key. Do not strike the Intelligent Key
sharply against another object.
Do not change or modify the Intelli- gent Key.
Wetting may damage the Intelligent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C) .
Do not attach the Intelligent Key with a key holder that contains a magnet.
Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computers or cellular phone.
The remote keyless entry function can operate all
door locks using the remote keyless entry func-
tion of the Intelligent Key. The remote keyless
entry function can operate at a distance of ap-
proximately 33 ft (10 m) from the vehicle. (The
operating distance depends upon the conditions
around the vehicle.)
The remote keyless entry function will not oper-
ate:
When the Intelligent Key is not within the opera- tional range. When the doors are open or not closed se-
curely.
When the Intelligent Key battery is discharged.
The remote keyless entry function can also oper-
ate the vehicle alarm.
Pre-driving checks and adjustments3-13

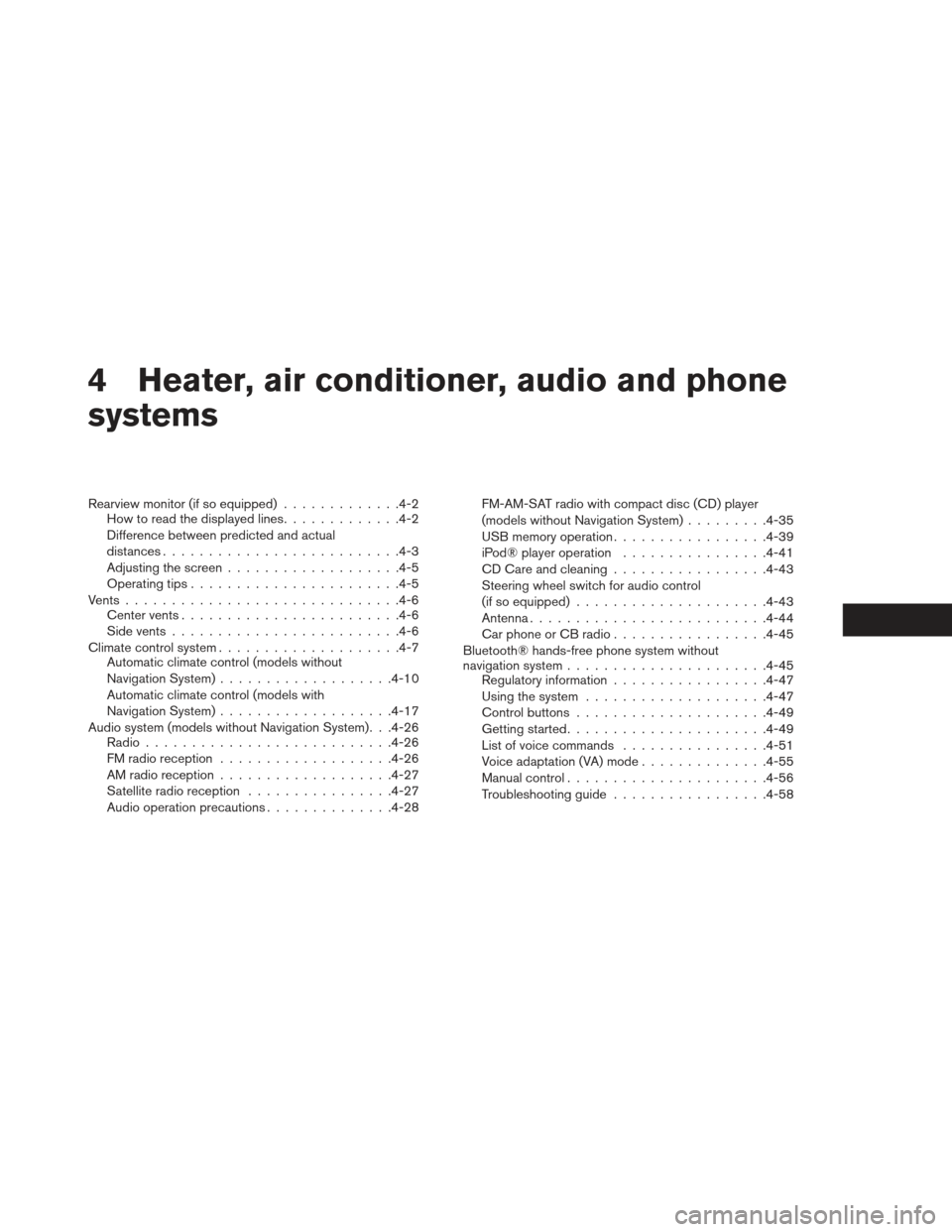

4 Heater, air conditioner, audio and phone
systems
Rearview monitor (if so equipped).............4-2
How to read the displayed lines .............4-2
Difference between predicted and actual
distances ......................... .4-3
Adjusting the screen .................. .4-5
Operating tips ...................... .4-5
Vents ............................. .4-6
Center vents ....................... .4-6
Side vents ........................ .4-6
Climate control system ................... .4-7
Automatic climate control (models without
Navigation System) .................. .4-10
Automatic climate control (models with
Navigation System) .................. .4-17
Audio system (models without Navigation System). . .4-26 Radio .......................... .4-26
FM radio reception .................. .4-26
AM radio reception .................. .4-27
Satellite radio reception ................4-27
Audio operation precautions ..............4-28FM-AM-SAT radio with compact disc (CD) player
(models without Navigation System)
.........4-35
USB memory operation ................ .4-39
iPod® player operation ................4-41
CD Care and cleaning ................ .4-43
Steering wheel switch for audio control
(if so equipped) .................... .4-43
Antenna ......................... .4-44
Car phone or CB radio ................ .4-45
Bluetooth® hands-free phone system without
navigation system ..................... .4-45
Regulatory information ................ .4-47
Using the system ................... .4-47
Control buttons .................... .4-49
Getting started ..................... .4-49
List of voice commands ................4-51
Voice adaptation (VA) mode ..............4-55
Manual control ..................... .4-56
Troubleshooting guide ................ .4-58

the positionAif the object projects over the
actual backing up course.
ADJUSTING THE SCREEN
The procedure for adjusting the quality of the
screen differs depending on the type of screen
present on the vehicle.
For vehicles without Navigation System:
1. Press the ENTER/SETTING button.
2. Turn the TUNE-SCROLL knob to highlight the “Brightness” or “Contrast” key.
3. Press the ENTER/SETTING button.
4. Adjust the level using the TUNE-SCROLL knob and then press the ENTER/SETTING
button to apply the adjustment. Do not adjust the Brightness or Contrast of the
RearView Monitor while the vehicle is moving.
OPERATING TIPS
When the shift selector is shifted to R (Re-verse) , the monitor screen automatically
changes to the RearView Monitor mode. How-
ever, the radio can be heard.
It may take some time until the RearView Moni- tor is displayed after the shift selector has been
shifted to R (Reverse) . Objects may be dis-
torted momentarily until the RearView Monitor
screen is displayed completely. When the shift
selector is returned to a position other than R
(Reverse) , it may take some time until the
screen changes. Objects on the screen may be
distorted until they are completely displayed.
When the temperature is extremely high or low, the screen may not clearly display objects. This
is not a malfunction.
When strong light directly enters the camera, objects may not be displayed clearly.
Vertical lines may be seen in objects on the screen. This is due to strong reflected light from
the bumper. This is not a malfunction.
The screen may flicker under fluorescent light. This is not a malfunction.
Heater, air conditioner, audio and phone systems4-5

Power switch positionLOCK/OFFACCON READY to drive
Fan --Available Available
Heater and air conditioner --Available*2 Available
Timer (Climate Ctrl. Timer) Available*1Available*1- -
Remote control*3 AvailableAvailable- -
*1: The EVSE (Electric Vehicle Supply Equip-
ment) must be connected.
*2: The climate control system will only start when charging is being performed. After
charging is complete, it will continue to op-
erate if the EVSE (Electric Vehicle Supply
Equipment) is connected.
*3: Models with Navigation System.
4-8Heater, air conditioner, audio and phone systems

DISPLAYING CLIMATE CONTROL SYSTEM
STATUS SCREEN (MODELS WITH NAVIGA-
TION SYSTEM)
Push the STATUS button to display the climate
control system status on the navigation system
screen. (See the LEAF Navigation System Own-
er’s Manual.)
NOTE:
If the READY to drive indicator light is
illuminated and the EVSE (Electric Vehicle
Supply Equipment) is connected to the
vehicle, the power switch will change to
the ON position. At the same time, the
climate control system will stop operat-
ing. However, the fan will continue to op-
erate. If you want to turn on climate con-
trol again, place the power switch in the
OFF position and then place it in the ON
position again after confirming that the
vehicle has started charging.
When the power switch is in the ON posi-
tion, if the power supply from the EVSE
(Electric Vehicle Supply Equipment) is in-
terrupted due to an electrical outage, etc.,
the system will operate in the following
ways. – If it occurs while charging is being per-
formed:– The climate control system will stop
once. If the power supply is restored
within approximately 5 minutes, the
climate control system will restart.
However, if more than 5 minutes
have elapsed, the climate control
system will not restart.
– If it occurs after charging has finished: –The climate control system will stop.
Heater, air conditioner, audio and phone systems4-9
