The Genuine NISSAN charging equipmentcommunicates with the vehicle before Li-ion
battery charging starts. If this communication
does not occur because other equipment is
used, the Li-ion battery will not charge.
NISSAN recommends that you connect the normal charge cable when getting out of the
vehicle, even if it is not going to be used. By
doing this, you can get the most out of the
remote climate control (models with navigation
system) and Climate Ctrl. Timer functions the
next time you use the vehicle.

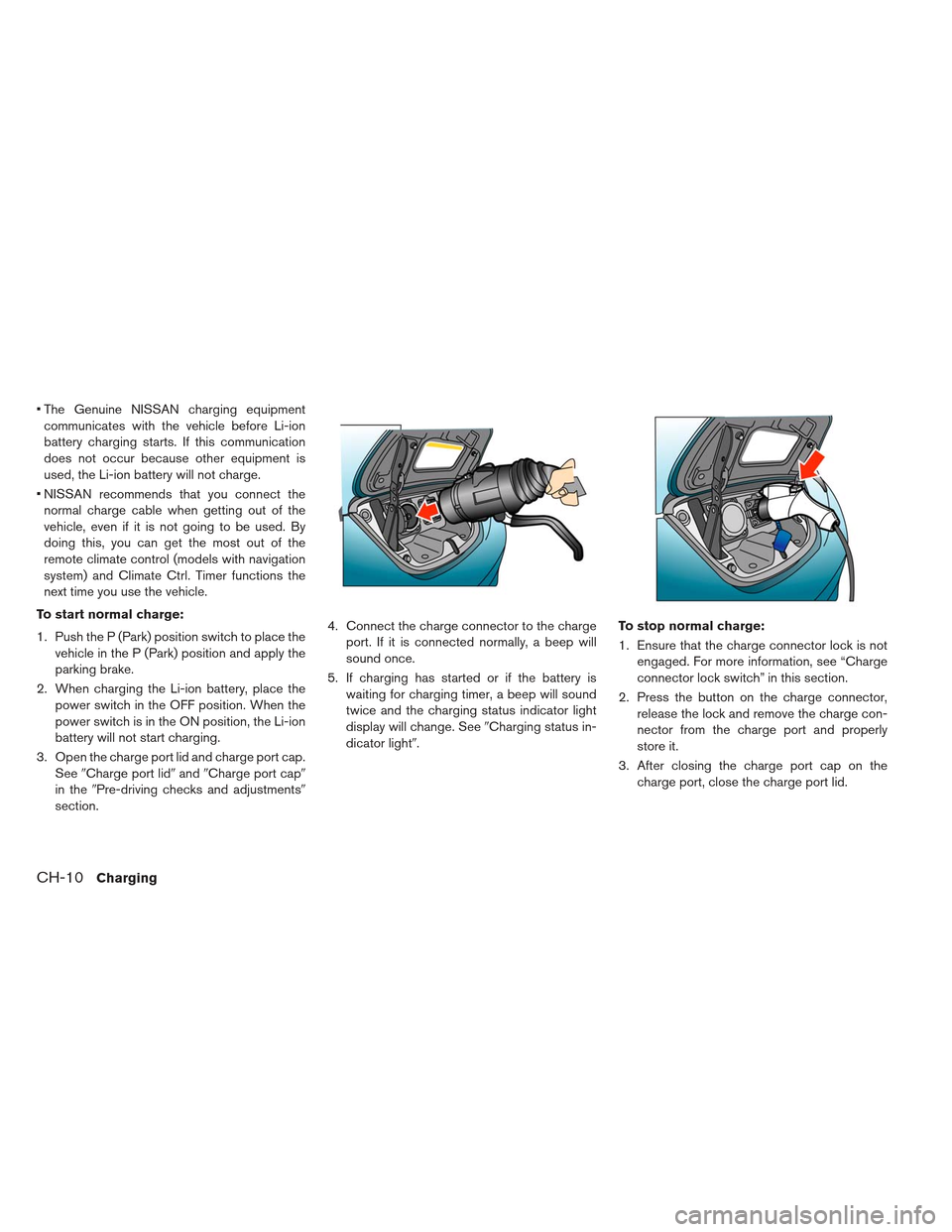

To start normal charge:
1. Push the P (Park) position switch to place the vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid and charge port cap. See Charge port lid andCharge port cap
in the Pre-driving checks and adjustments
section. 4. Connect the charge connector to the charge
port. If it is connected normally, a beep will
sound once.
5. If charging has started or if the battery is waiting for charging timer, a beep will sound
twice and the charging status indicator light
display will change. See Charging status in-
dicator light. To stop normal charge:
1. Ensure that the charge connector lock is not
engaged. For more information, see “Charge
connector lock switch” in this section.
2. Press the button on the charge connector, release the lock and remove the charge con-
nector from the charge port and properly
store it.
3. After closing the charge port cap on the charge port, close the charge port lid.
CH-10Charging

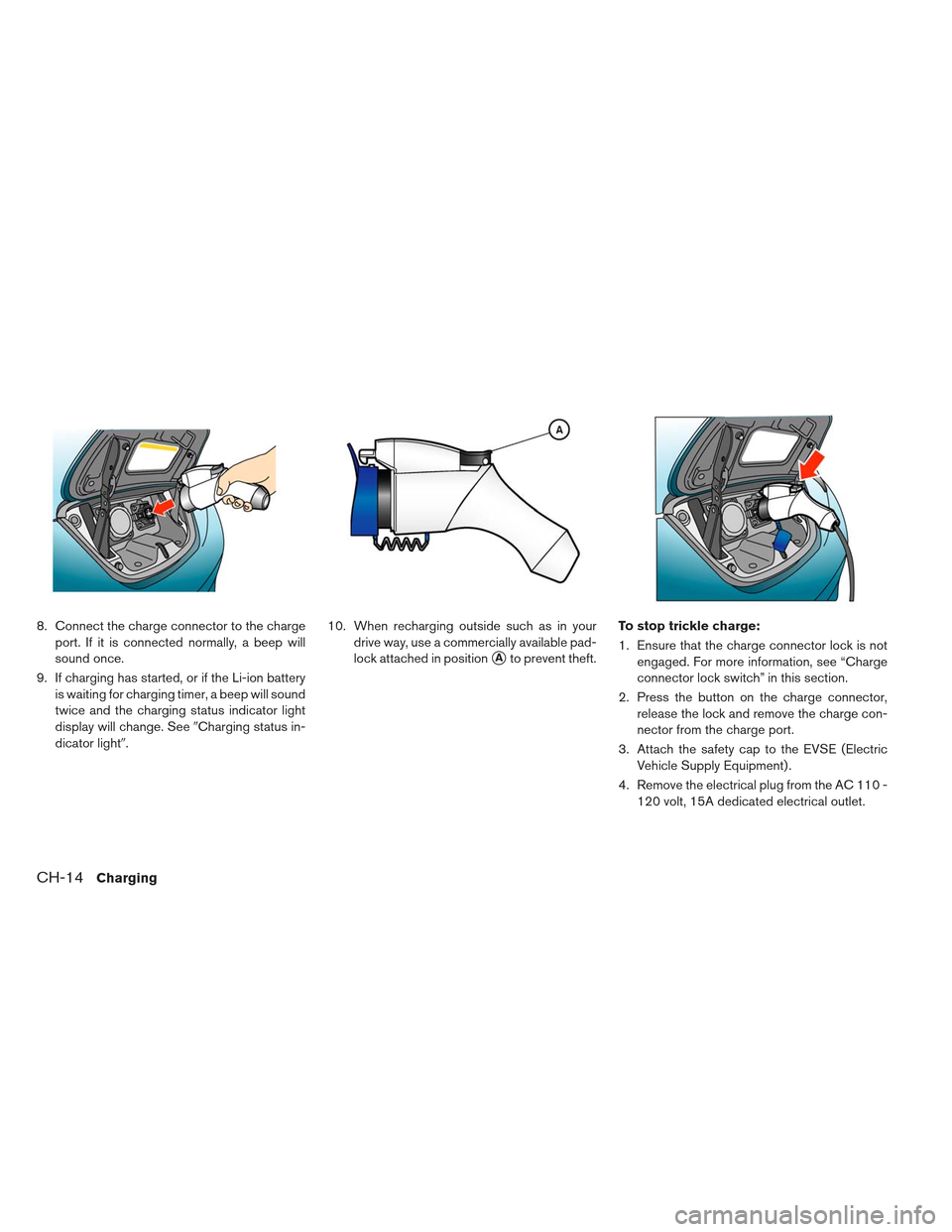

8. Connect the charge connector to the chargeport. If it is connected normally, a beep will
sound once.
9. If charging has started, or if the Li-ion battery is waiting for charging timer, a beep will sound
twice and the charging status indicator light
display will change. See Charging status in-
dicator light. 10. When recharging outside such as in your
drive way, use a commercially available pad-
lock attached in position
Ato prevent theft. To stop trickle charge:
1. Ensure that the charge connector lock is not
engaged. For more information, see “Charge
connector lock switch” in this section.
2. Press the button on the charge connector, release the lock and remove the charge con-
nector from the charge port.
3. Attach the safety cap to the EVSE (Electric Vehicle Supply Equipment) .
4. Remove the electrical plug from the AC 110 - 120 volt, 15A dedicated electrical outlet.
CH-14Charging

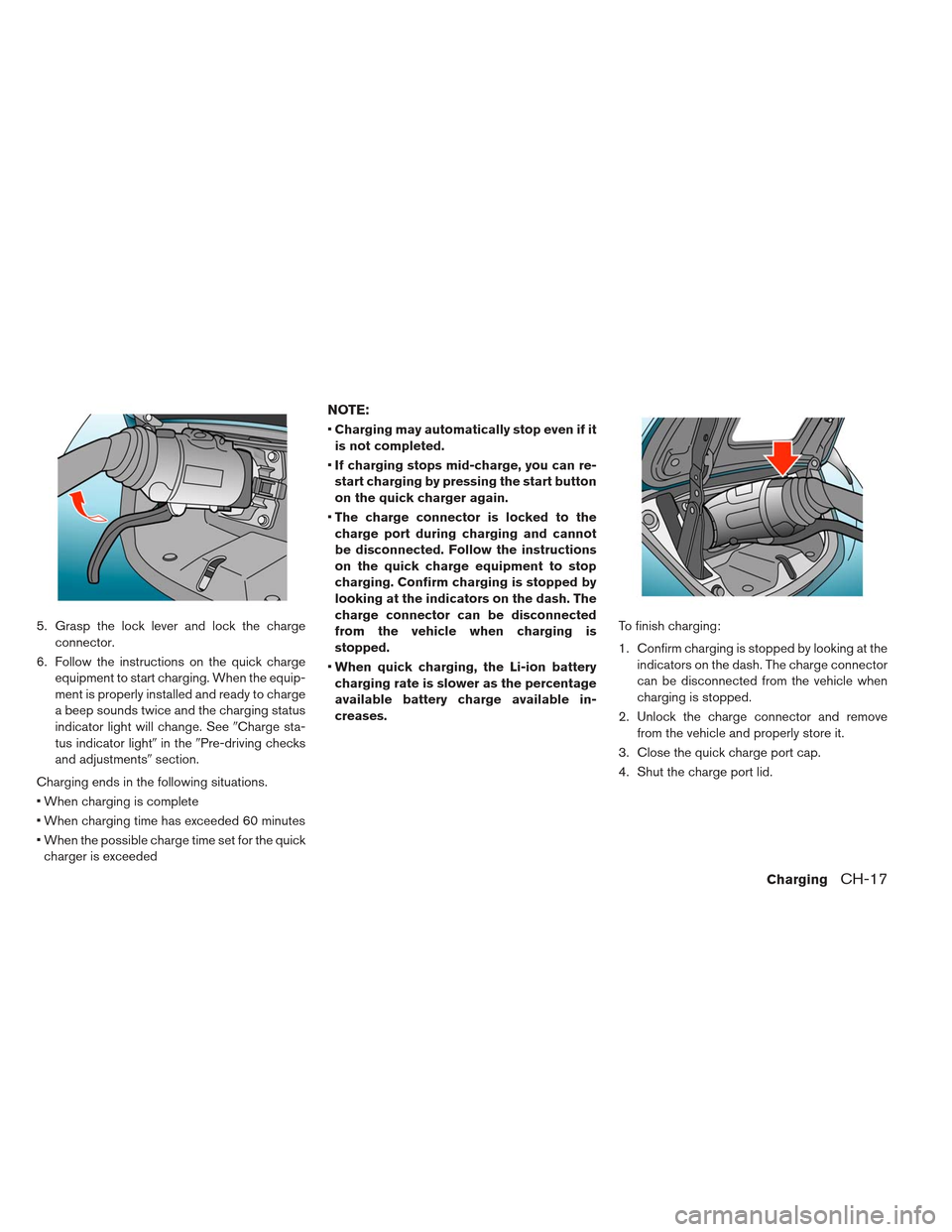

5. Grasp the lock lever and lock the chargeconnector.
6. Follow the instructions on the quick charge equipment to start charging. When the equip-
ment is properly installed and ready to charge
a beep sounds twice and the charging status
indicator light will change. See Charge sta-
tus indicator light in thePre-driving checks
and adjustments section.
Charging ends in the following situations.
When charging is complete
When charging time has exceeded 60 minutes
When the possible charge time set for the quick charger is exceeded
NOTE:
Charging may automatically stop even if it
is not completed.
If charging stops mid-charge, you can re-
start charging by pressing the start button
on the quick charger again.
The charge connector is locked to the
charge port during charging and cannot
be disconnected. Follow the instructions
on the quick charge equipment to stop
charging. Confirm charging is stopped by
looking at the indicators on the dash. The
charge connector can be disconnected
from the vehicle when charging is
stopped.
When quick charging, the Li-ion battery
charging rate is slower as the percentage
available battery charge available in-
creases. To finish charging:
1. Confirm charging is stopped by looking at the
indicators on the dash. The charge connector
can be disconnected from the vehicle when
charging is stopped.
2. Unlock the charge connector and remove from the vehicle and properly store it.
3. Close the quick charge port cap.
4. Shut the charge port lid.
ChargingCH-17

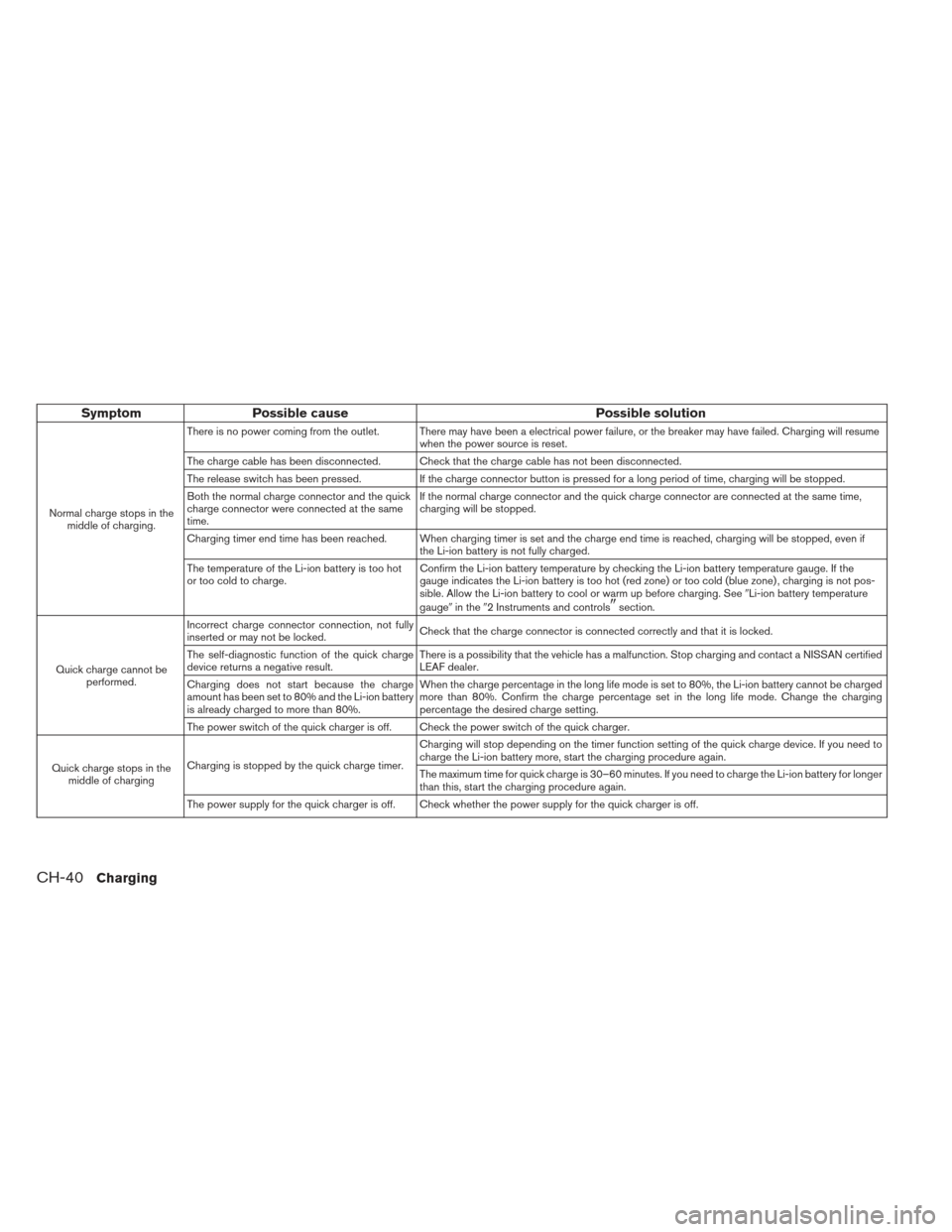

SymptomPossible cause Possible solution
Normal charge stops in the
middle of charging. There is no power coming from the outlet. There may have been a electrical power failure, or the breaker may have failed. Charging will resume
when the power source is reset.
The charge cable has been disconnected. Check that the charge cable has not been disconnected.
The release switch has been pressed. If the charge connector button is pressed for a long period of time, charging will be stopped.
Both the normal charge connector and the quick
charge connector were connected at the same
time. If the normal charge connector and the quick charge connector are connected at the same time,
charging will be stopped.
Charging timer end time has been reached. When charging timer is set and the charge end time is reached, charging will be stopped, even if the Li-ion battery is not fully charged.
The temperature of the Li-ion battery is too hot
or too cold to charge. Confirm the Li-ion battery temperature by checking the Li-ion battery temperature gauge. If the
gauge indicates the Li-ion battery is too hot (red zone) or too cold (blue zone) , charging is not pos-
sible. Allow the Li-ion battery to cool or warm up before charging. See
Li-ion battery temperature
gauge in the2 Instruments and controls
section.
Quick charge cannot be performed. Incorrect charge connector connection, not fully
inserted or may not be locked.
Check that the charge connector is connected correctly and that it is locked.
The self-diagnostic function of the quick charge
device returns a negative result. There is a possibility that the vehicle has a malfunction. Stop charging and contact a NISSAN certified
LEAF dealer.
Charging does not start because the charge
amount has been set to 80% and the Li-ion battery
is already charged to more than 80%. When the charge percentage in the long life mode is set to 80%, the Li-ion battery cannot be charged
more than 80%. Confirm the charge percentage set in the long life mode. Change the charging
percentage the desired charge setting.
The power switch of the quick charger is off. Check the power switch of the quick charger.
Quick charge stops in the middle of charging Charging is stopped by the quick charge timer. Charging will stop depending on the timer function setting of the quick charge device. If you need to
charge the Li-ion battery more, start the charging procedure again.
The maximum time for quick charge is 30–60 minutes. If you need to charge the Li-ion battery for longer
than this, start the charging procedure again.
The power supply for the quick charger is off. Check whether the power supply for the quick charger is off.
CH-40Charging

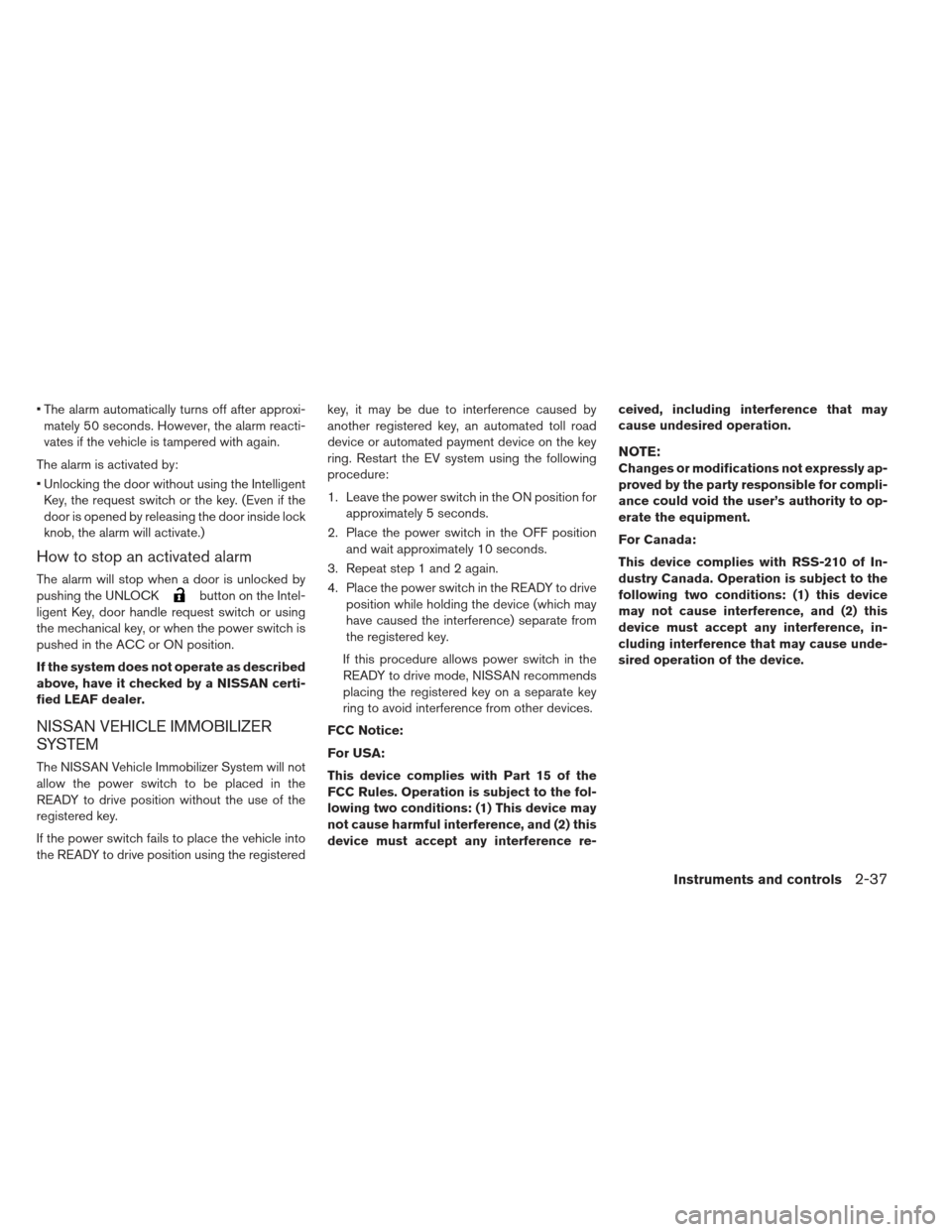

The alarm automatically turns off after approxi-mately 50 seconds. However, the alarm reacti-
vates if the vehicle is tampered with again.
The alarm is activated by:
Unlocking the door without using the Intelligent Key, the request switch or the key. (Even if the
door is opened by releasing the door inside lock
knob, the alarm will activate.)
How to stop an activated alarm
The alarm will stop when a door is unlocked by
pushing the UNLOCK
button on the Intel-
ligent Key, door handle request switch or using
the mechanical key, or when the power switch is
pushed in the ACC or ON position.
If the system does not operate as described
above, have it checked by a NISSAN certi-
fied LEAF dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System will not
allow the power switch to be placed in the
READY to drive position without the use of the
registered key.
If the power switch fails to place the vehicle into
the READY to drive position using the registered key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the EV system using the following
procedure:
1. Leave the power switch in the ON position for
approximately 5 seconds.
2. Place the power switch in the OFF position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Place the power switch in the READY to drive position while holding the device (which may
have caused the interference) separate from
the registered key.
If this procedure allows power switch in the
READY to drive mode, NISSAN recommends
placing the registered key on a separate key
ring to avoid interference from other devices.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re- ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.
Instruments and controls2-37

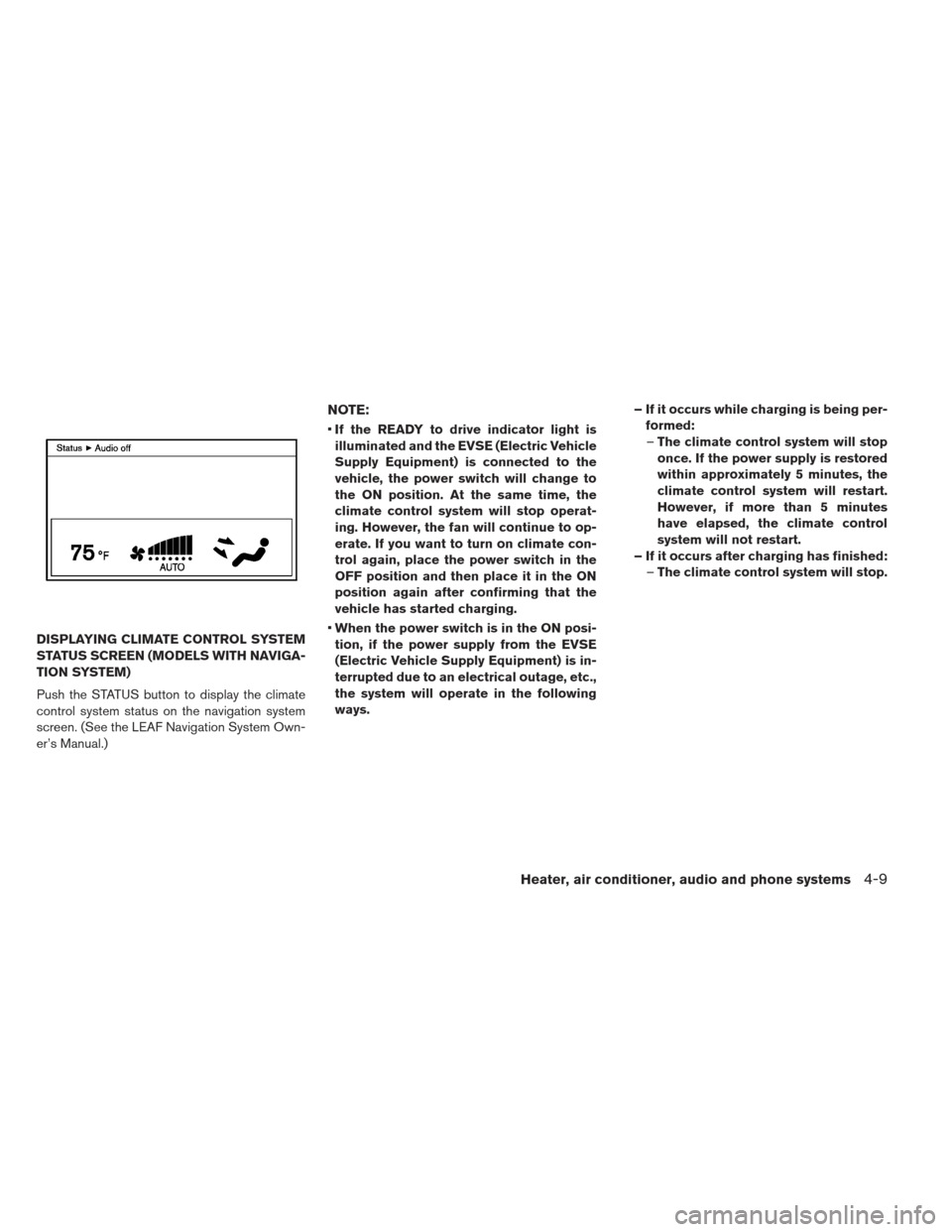

DISPLAYING CLIMATE CONTROL SYSTEM
STATUS SCREEN (MODELS WITH NAVIGA-
TION SYSTEM)
Push the STATUS button to display the climate
control system status on the navigation system
screen. (See the LEAF Navigation System Own-
er’s Manual.)
NOTE:
If the READY to drive indicator light is
illuminated and the EVSE (Electric Vehicle
Supply Equipment) is connected to the
vehicle, the power switch will change to
the ON position. At the same time, the
climate control system will stop operat-
ing. However, the fan will continue to op-
erate. If you want to turn on climate con-
trol again, place the power switch in the
OFF position and then place it in the ON
position again after confirming that the
vehicle has started charging.
When the power switch is in the ON posi-
tion, if the power supply from the EVSE
(Electric Vehicle Supply Equipment) is in-
terrupted due to an electrical outage, etc.,
the system will operate in the following
ways. – If it occurs while charging is being per-
formed:– The climate control system will stop
once. If the power supply is restored
within approximately 5 minutes, the
climate control system will restart.
However, if more than 5 minutes
have elapsed, the climate control
system will not restart.
– If it occurs after charging has finished: –The climate control system will stop.
Heater, air conditioner, audio and phone systems4-9

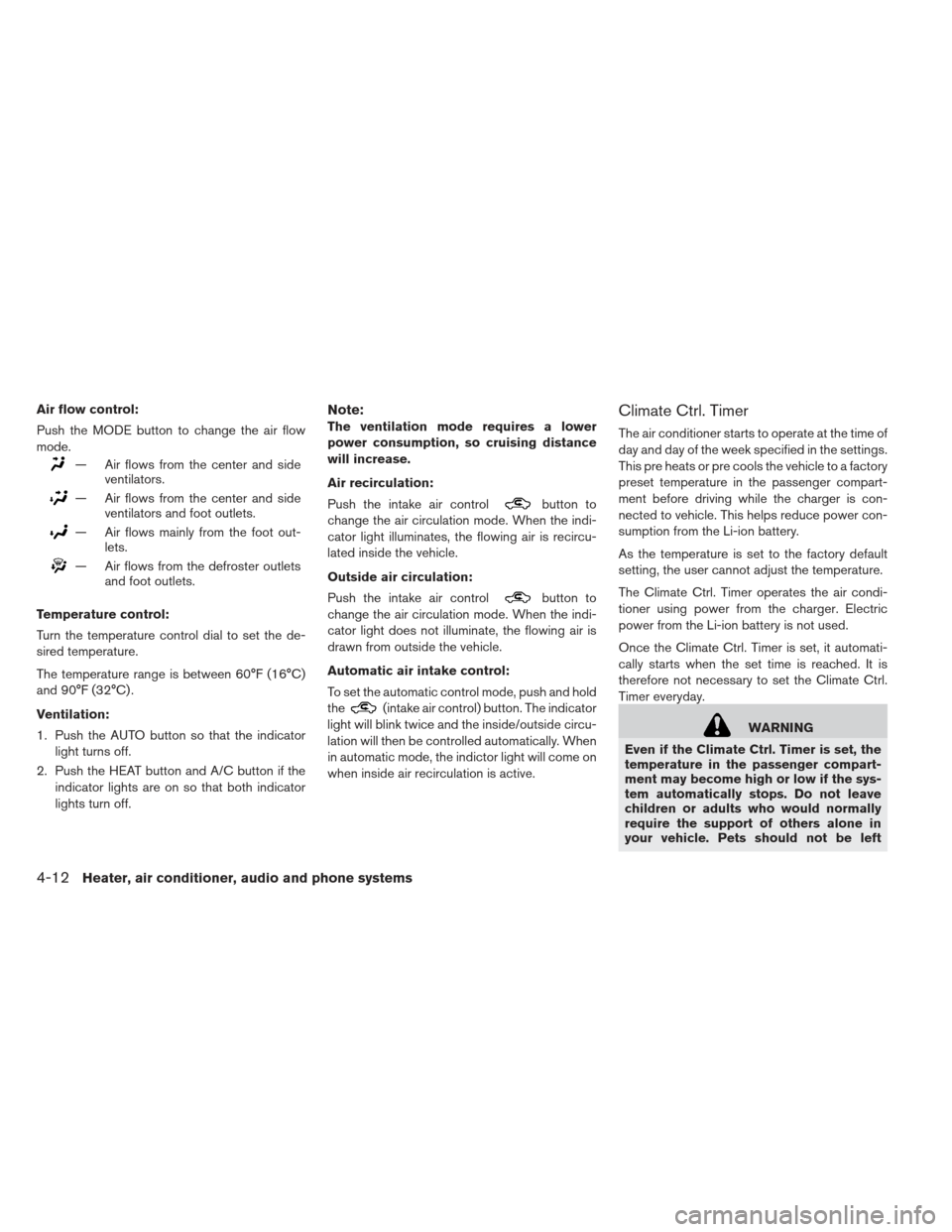

Air flow control:
Push the MODE button to change the air flow
mode.
— Air flows from the center and sideventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the foot out-lets.
— Air flows from the defroster outletsand foot outlets.
Temperature control:
Turn the temperature control dial to set the de-
sired temperature.
The temperature range is between 60°F (16°C)
and 90°F (32°C) .
Ventilation:
1. Push the AUTO button so that the indicator light turns off.
2. Push the HEAT button and A/C button if the indicator lights are on so that both indicator
lights turn off.
Note:
The ventilation mode requires a lower
power consumption, so cruising distance
will increase.
Air recirculation:
Push the intake air control
button to
change the air circulation mode. When the indi-
cator light illuminates, the flowing air is recircu-
lated inside the vehicle.
Outside air circulation:
Push the intake air control
button to
change the air circulation mode. When the indi-
cator light does not illuminate, the flowing air is
drawn from outside the vehicle.
Automatic air intake control:
To set the automatic control mode, push and hold
the
(intake air control) button. The indicator
light will blink twice and the inside/outside circu-
lation will then be controlled automatically. When
in automatic mode, the indictor light will come on
when inside air recirculation is active.
Climate Ctrl. Timer
The air conditioner starts to operate at the time of
day and day of the week specified in the settings.
This pre heats or pre cools the vehicle to a factory
preset temperature in the passenger compart-
ment before driving while the charger is con-
nected to vehicle. This helps reduce power con-
sumption from the Li-ion battery.
As the temperature is set to the factory default
setting, the user cannot adjust the temperature.
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
Once the Climate Ctrl. Timer is set, it automati-
cally starts when the set time is reached. It is
therefore not necessary to set the Climate Ctrl.
Timer everyday.
WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high or low if the sys-
tem automatically stops. Do not leave
children or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
4-12Heater, air conditioner, audio and phone systems

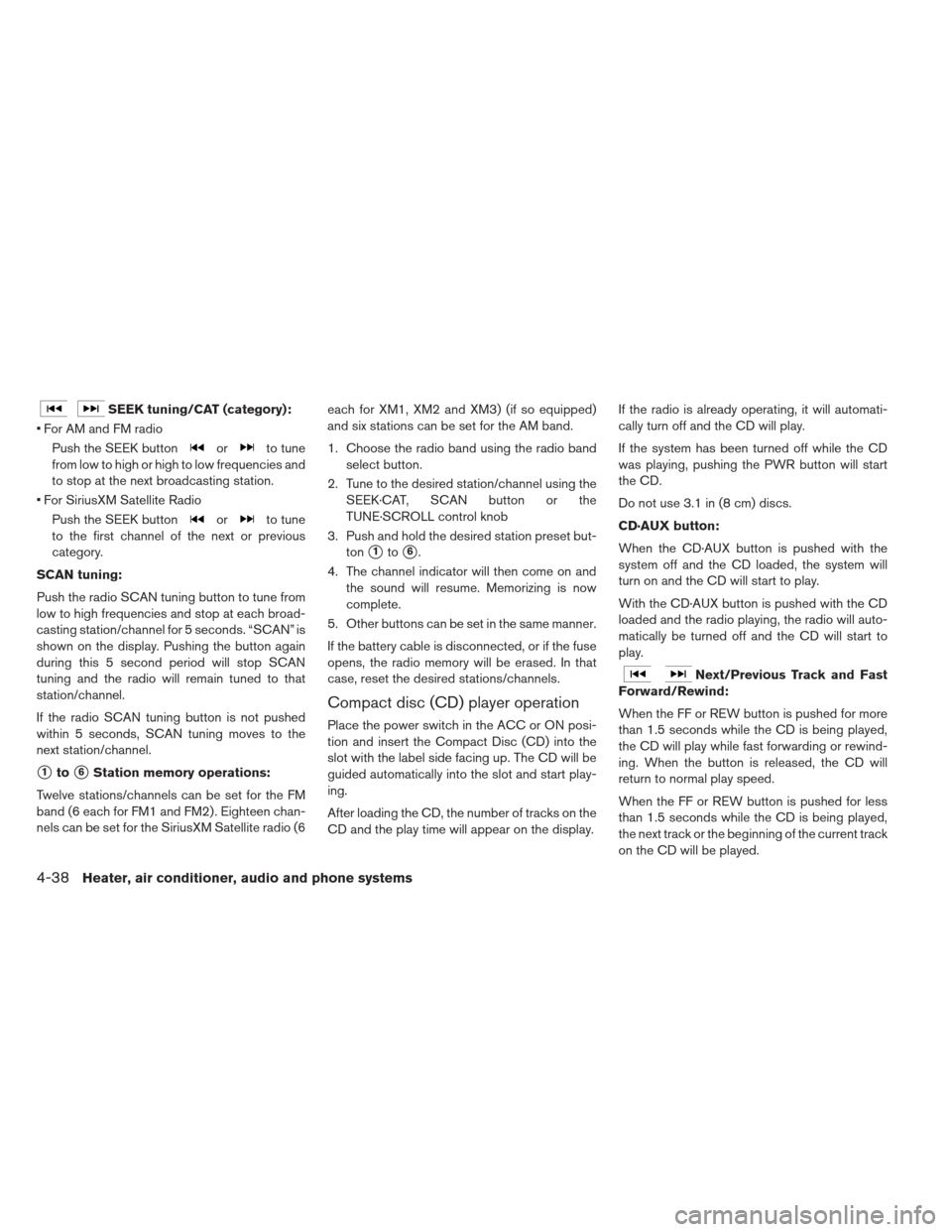

SEEK tuning/CAT (category):
For AM and FM radio Push the SEEK button
orto tune
from low to high or high to low frequencies and
to stop at the next broadcasting station.
For SiriusXM Satellite Radio Push the SEEK button
orto tune
to the first channel of the next or previous
category.
SCAN tuning:
Push the radio SCAN tuning button to tune from
low to high frequencies and stop at each broad-
casting station/channel for 5 seconds. “SCAN” is
shown on the display. Pushing the button again
during this 5 second period will stop SCAN
tuning and the radio will remain tuned to that
station/channel.
If the radio SCAN tuning button is not pushed
within 5 seconds, SCAN tuning moves to the
next station/channel.
1to6Station memory operations:
Twelve stations/channels can be set for the FM
band (6 each for FM1 and FM2) . Eighteen chan-
nels can be set for the SiriusXM Satellite radio (6 each for XM1, XM2 and XM3) (if so equipped)
and six stations can be set for the AM band.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station/channel using the SEEK·CAT, SCAN button or the
TUNE·SCROLL control knob
3. Push and hold the desired station preset but- ton
1to6.
4. The channel indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations/channels.
Compact disc (CD) player operation
Place the power switch in the ACC or ON posi-
tion and insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start play-
ing.
After loading the CD, the number of tracks on the
CD and the play time will appear on the display. If the radio is already operating, it will automati-
cally turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the PWR button will start
the CD.
Do not use 3.1 in (8 cm) discs.
CD·AUX button:
When the CD·AUX button is pushed with the
system off and the CD loaded, the system will
turn on and the CD will start to play.
With the CD·AUX button is pushed with the CD
loaded and the radio playing, the radio will auto-
matically be turned off and the CD will start to
play.
Next/Previous Track and Fast
Forward/Rewind:
When the FF or REW button is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or rewind-
ing. When the button is released, the CD will
return to normal play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current track
on the CD will be played.
4-38Heater, air conditioner, audio and phone systems
