2013 NISSAN LEAF flat tire

9 Technical and consumer information
Capacities and recommended lubricants.........9-2
Air conditioning system refrigerant and lubricant
recommendations .................... .9-3
Specifications ........................ .9-4
Charging system .................... .9-4
Motor ........................... .9-6
Wheels and tires .................... .9-6
Dimensions and weights ................ .9-6
When traveling or registering your vehicle in another
country ............................ .9-7
Vehicle identification .................... .9-7
Vehicle Identification Number (VIN) plate .......9-7
Vehicle identification number (chassis number). . . .9-7
Traction motor serial number ..............9-8
F.M.V.S.S./C.M.V.S.S certification label ........9-8
Emission control information label ...........9-8
Tire and Loading Information label ...........9-9
Air conditioner specification label ............9-9
Installing front license plate .................9-9Vehicle loading information
.................9-10
Terms .......................... .9-10
Vehicle load capacity ................. .9-11
Securing the load ................... .9-12
Loading tips ...................... .9-12
Measurement of weights ................9-13
Towing a trailer ....................... .9-13
Flat towing ......................... .9-14
Uniform tire quality grading .................9-14
Treadwear ....................... .9-14
Traction AA, A, B and C ................9-14
Temperature A, B and C ................9-15
Reporting safety defects ................. .9-15
Telematics overview .................... .9-16
Event Data Recorder (EDR) ................9-18
Owner’s Manual/Service Manual order information. . .9-18
Charging information ................... .9-20
Cold tire pressures .................... .9-22

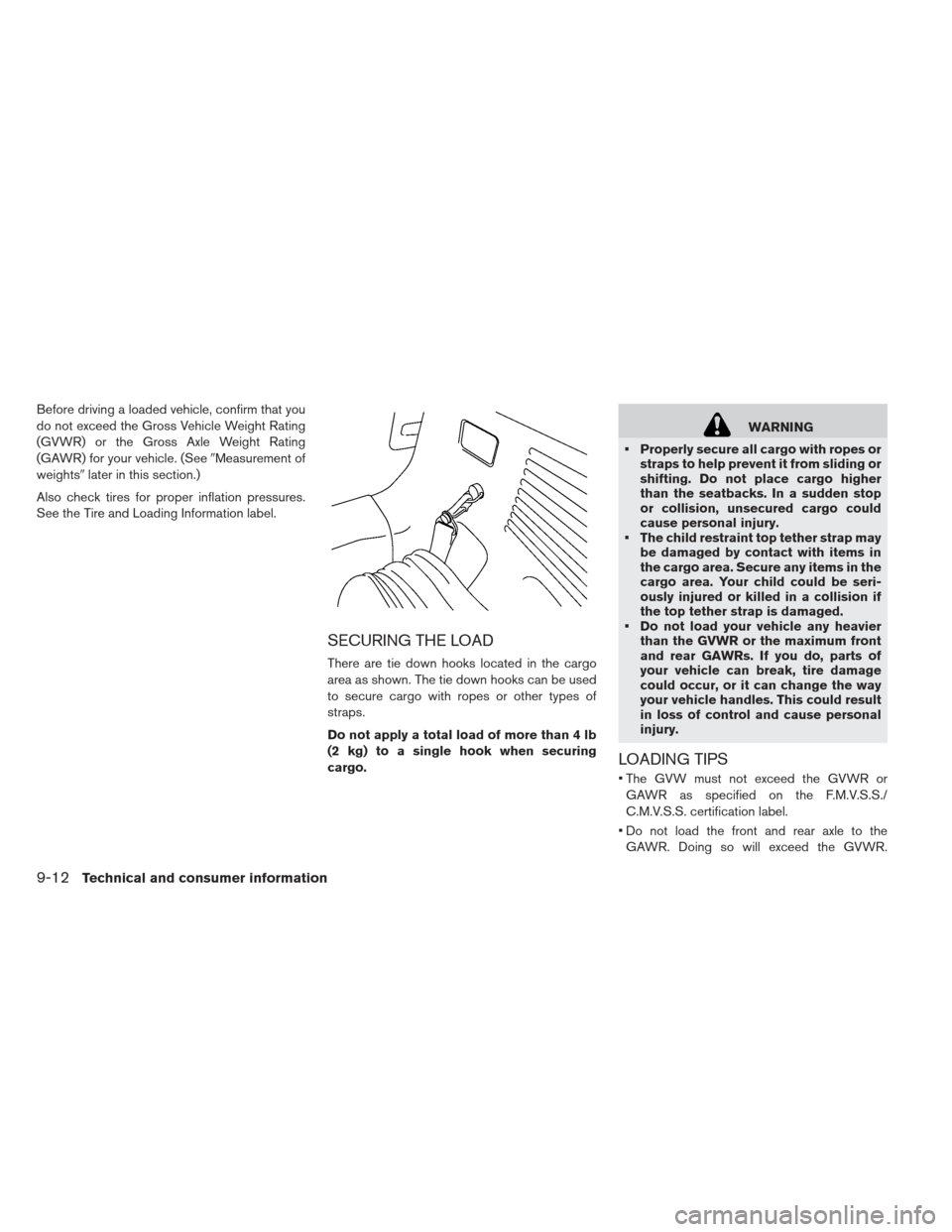

Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. (SeeMeasurement of
weights later in this section.)
Also check tires for proper inflation pressures.
See the Tire and Loading Information label.
SECURING THE LOAD
There are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or other types of
straps.
Do not apply a total load of more than 4 lb
(2 kg) to a single hook when securing
cargo.
WARNING
Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
The child restraint top tether strap may be damaged by contact with items in
the cargo area. Secure any items in the
cargo area. Your child could be seri-
ously injured or killed in a collision if
the top tether strap is damaged.
Do not load your vehicle any heavier than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could result
in loss of control and cause personal
injury.
LOADING TIPS
The GVW must not exceed the GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
Do not load the front and rear axle to the GAWR. Doing so will exceed the GVWR.
9-12Technical and consumer information

Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is typically used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
Failure to follow these guidelines can result in severe reduction gear dam-
age.
DO NOT tow this vehicle with all four wheels on the ground (flat towing) .
For emergency towing procedures re-
fer to Towing your vehicle in theIn
case of emergency
section of this
manual. DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon actual conditions of their use however, and
may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the tire’s
ability to stop on wet pavement as measured
under controlled conditions on specified govern-
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
FLAT TOWING UNIFORM TIRE QUALITY GRADING
9-14Technical and consumer information

TEMPERATURE A, B AND C
The temperature grades A (the highest) , B, and
C, representing the tire’s resistance to the gen-
eration of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly in-
flated and not overloaded. Excessive
speed, under-inflation, or excessive load-
ing, either separately or in combination,
can cause heat build-up and possible tire
failure. For USA
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or
death, you should immediately inform the Na-
tional Highway Traffic Safety Administration
(NHTSA) in addition to notifying NISSAN.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA
cannot become involved in individual problems
between you, your dealer, or NISSAN.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washington,
D.C. 20590. You can also obtain other informa-
tion about motor vehicle safety from http://
www.safercar.gov.
You may notify NISSAN by contacting our Con-
sumer Affairs Department, toll-free, at 1-877-
NOGASEV (1-877-664-2738) . For Canada
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or
death, you should immediately inform Transport
Canada in addition to notifying NISSAN.
If Transport Canada receives complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may request
a recall campaign. However, Transport Canada
cannot become involved in individual problems
between you, your dealer, or NISSAN.
You may contact Transport Canada’s Defect In-
vestigations and Recall Division toll free at
1-800-333-0510. You may also report safety
defects online at; https://wwwapps.tc.gc.ca/
Saf-Sec-Sur/7/PCDB-BDPP/Index.aspx.
Additional information concerning motor vehicle
safety may be obtained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers) .
To notify NISSAN of any safety concerns please
contact our Consumer Information Centre toll
free at 1-800-387-0122.
REPORTING SAFETY DEFECTS
Technical and consumer information9-15

Checking.....................2-13
Checking bulbs .............. .2-13
Checking coolant level ............8-8
Child restraints..................1-17
Booster seats............... .1-31
Precautions on child restraints ......1-17
Top tether strap .............. .1-20
Child safety....................1-15
Child safety rear door lock ............3-6
Circuitbreaker,Fusiblelink...........8-17
Cleaning exterior and interior ........7-2,7-4
Climatecontrol..................4-16
Climate control service ...........4-16
Climate control system refrigerant
and lubricant recommendations .....4-16
In-cabin microfilter .............4-16
Climate control system ..............4-7
Climate control operation ..........4-7
Climate Ctrl. Timer............4-12,4-19
Clock.......................2-11
Cockpit .......................2-3
Cold weather driving ..............5-24
Console box ...................2-52
Coolant.......................9-2
Capacities and recommended
lubricants .................. .9-2
Changing coolant .............. .8-9
Checking coolant level ............8-8
Cooling system..................8-7
Corrosionprotection ...............7-6
Cruise control ..................5-15 Cupholders...................2-50
D
Defroster switch, Rear window and outside
mirror defroster switch
..............2-41
Dimensionsandweights.............9-6
Dot matrix liquid crystal display .........2-22
Driving ......................5-24
Cold weather driving ............5-24
Driving vehicle ............... .5-11
Precautions when starting and driving . . .5-2
Driving range ....................2-8
Driving vehicle ..................5-11
E
ECO .......................2-46
ECO switch................ .2-46
ECOindicator..................2-10
Efficient use of your vehicle ..........EV-23
Emergency charge ..............CH-11
Emergency EV (Electric Vehicle) shut off. .5-9, 6-2
Emergency shutoff system ...........EV-9
Emission control information label ........9-8
EV Characteristics ...............EV-9
Event Data Recorder (EDR) ...........9-18
EVSE (Electric Vehicle Supply
Equipment) ...................CH-11 EVSE (Electric Vehicle Supply Equipment)
cleaning
......................7-6
EV system ....................EV-2
EV unique information .............EV-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire.......................6-3
Flattowing....................9-14
Floormatcleaning.................7-5
Fluid ........................8-10
Brake fluid ................. .8-10
Capacities and recommended
lubricants .................. .9-2
coolant .................... .8-7
Reduction gear fluid .............8-9
Window washer fluid ............8-10
F.M.V.S.S./C.M.V.S.S. certification label .....9-8
Foglightswitch .................2-45
Frontmanualseatadjustment ..........1-3
Front passenger air bag and status light ....1-42
Front seat, Front seat adjustment ........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-58
Transceiver ................. .2-58
10-2Index

When starting and driving..........5-2
Push starting...................6-12
Q
Quickcharge .................CH-15
R
Rapidairpressureloss..............5-6
Rearcenterseatbelt ..............1-14
Rear door lock, Child safety rear door lock . . .3-6
Rear hatch....................3-17
Rearseats.....................1-4
Rearview monitor .................4-2
Rear window and outside mirror defroster
switch .......................2-41
Rear window wiper and washer switch ....2-40
Reductiongearfluid................8-9
Remotecharge ................CH-31
Remoteclimatecontrol.............4-23
Remote keyless entry function, For Intelligent
Keysystem....................3-13
Repairing flat tire .................6-4
Repairing tire ...................6-6
Reporting safety defects ............9-15
Road accident precautions ...........EV-8
Roadside assistance program ..........6-2
Rollover ......................5-5
S
Safety.......................1-15
Child seat belts .............. .1-15
Reporting safety defects ..........9-15
Sceneguide..................EV-22
At home after driving...........EV-22
Before driving your vehicle (models
with navigation system) ..........EV-13
Charging the Li-ion battery .......EV-10
Driving the vehicle .............EV-18
Parking the vehicle ............EV-21
Starting your vehicle ...........EV-17
Seat adjustment..................1-3
Front manual seat adjustment ........1-3
Front seats ................. .1-3
Seat belt(s)....................1-15
Child safety ................ .1-15
Infants ................... .1-15
Injured persons .............. .1-10
Larger children .............. .1-16
Precautions on seat belt usage .......1-7
Pregnant women ............. .1-10
Rear center seat belt ............1-14
Seat belt cleaning ............. .7-5
Seat belt extenders .............1-14
Seat belt hooks .............. .1-13
Seat belt maintenance ...........1-14
Seat belts .................. .1-7
Seat belts with pretensioners .......1-47
Seat belt warning light ...........2-18 Shoulder belt height adjustment
.....1-13
Small children ............... .1-15
Three-point type ............. .1-10
Seat(s) , Seats...................1-2
Heated seats............... .2-47
Security system (NISSAN Vehicle Immobilizer
System) , EV system start ............2-37
Servicing climate control ............4-16
Shifting ......................5-11
Electric shift control system ........5-11
Shoulder belt height adjustment, For front
seats.......................1-13
Soft bottle holders ................2-51
Solar cell module .................7-3
Speedometer ...................2-6
Starting ......................5-10
Before starting system ...........5-10
Jump starting ............... .6-10
Precautions when starting and driving . . .5-2
Push starting ............... .6-12
Status light, Front passenger air bag ......1-42
Steering .....................2-45
Heated steering wheel ...........2-45
Power steering system ...........5-19
Tilting steering column ...........3-20
Stopping the vehicle...............6-5
Storage......................2-50
Stowing golf bags ................2-53
Sun visors ....................3-21
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-18
Index10-5

Supplemental restraint system.........1-34
Precautions on supplemental restraint
system................... .1-34
Switch......................2-42
Autolight switch .............. .2-42
Charge timer OFF switch .........2-49
ECO switch ................ .2-46
Fog light switch .............. .2-45
Hazard warning flasher switch .......6-2
Headlight switch ............. .2-42
Power door lock switch ...........3-5
Rear window and outside mirror
defroster switch .............. .2-41
Turn signal switch ............. .2-44
Vehicle dynamic control (VDC) off
switch ................... .2-48
T
Telematics overview...............9-16
Temperature ....................2-7
Li-ion battery temperature gauge ......2-7
Theft (NISSAN Vehicle Immobilizer System) ,
traction motor start................2-37
Tilt steering column ...............3-20
Tire........................2-16
Low tire pressure warning light ......2-16
Tires ........................6-3
Flat tire.................... .6-3
Low tire pressure warning system .....5-2
Tire and Loading information label . . .8-27, 9-9
Tire chains................. .8-31
Tire dressing ................ .7-4
Tire pressure ................ .8-28
Tire pressure monitoring system
(TPMS) ................. .5-2, 6-3
Tire rotation ................ .8-32
Types of tires ............... .8-30
Uniform tire quality grading ........9-14
Wheels and tires ............. .8-26
Wheel/tire size ............... .9-6
Tools.......................6-13
Top........................1-20
Tether strap child restraints ........1-20
Towing......................9-14
Flat towing................. .9-14
Towing a trailer .............. .9-13
Tow truck towing ............. .6-13
TPMS, Tire pressure monitoring system .....5-2
TPMS, Tire pressure warning system ......6-3
Tractionmotor...................9-8
Traction motor serial number ........9-8
Trailer towing...................9-13
Transceiver, HomeLink® Universal .......2-58
Transceiver................. .2-58
Transmitter, With Intelligent Key system
(See Intelligent Key system)...........3-13
Tricklecharge.................CH-11
Trip computer ..................2-27
Turn signal switch ................2-44 Type of charge and how to charge the Li-ion
battery
......................CH-5
U
Underbody cleaning ................7-3
Uniform tire quality grading ...........9-14
Unplugged status ...............CH-31
V
Vanity mirror...................3-24
Vehicle.......................9-6
Dimensions and weights ..........9-6
Identification number (VIN) .........9-7
Loading information .............9-10
Recovery (freeing stuck vehicle) .....6-15
Security system .............. .2-36
Vehicle dynamic control (VDC) off
switch ................... .2-48
Vehicle dynamic control (VDC) system .5-22
Vehicle Dynamic Control (VDC) warning
light ..................... .2-19
Vehicle Dynamic Control (VDC) warning light .2-19
Vehicle security system.............2-36
Vents........................4-6
10-6Index
