2013 NISSAN LEAF flat tire

surface, steer the vehicle to stay in the appro-
priate driving lane.
If you decide that it is not safe to return the vehicle to the road surface based on vehicle,
road or traffic conditions, gradually slow the
vehicle to a stop in a safe place off the road.
RAPID AIR PRESSURE LOSS
Rapid air pressure loss or a “blow-out” can occur if
the tire is punctured or is damaged due to hitting a
curb or pothole. Rapid air pressure loss can also be
caused by driving on under-inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.
Help prevent rapid air pressure loss by maintain-
ing the correct air pressure and visually inspect
the tires for wear and damage. See Wheels and
tires in the Maintenance and do-it-yourself
section of this manual.
If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The ve-
hicle must be driven as appropriate based on the
conditions of the vehicle, road and traffic.
WARNING
The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pressure.
Losing control of the vehicle may cause a
collision and result in personal injury.
The vehicle generally moves or pulls in the direction of the flat tire.
Do not rapidly apply the brakes.
Do not rapidly release the accelerator pedal.
Do not rapidly turn the steering wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel with both hands and try to hold a straight course.
3. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
4. Gradually steer the vehicle to a safe location off the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and either contact a roadside emergency service to
change the tire or see Flat tirein theIn case
of emergency of this Owner’s Manual.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgement. Driving af-
ter drinking alcohol increases the likeli-
hood of being involved in an accident
injuring yourself and others. Additionally,
if you are injured in an accident, alcohol
can increase the severity of the injury.
NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents. Al-
though the local laws vary on what is considered
to be legally intoxicated, the fact is that alcohol
affects all people differently and most people
underestimate the effects of alcohol.
Remember, drinking and driving don’t mix! That is
true for drugs too (over-the-counter, prescrip-
tion, and illegal drugs) . Do not drive if your ability
to operate your vehicle is impaired by alcohol,
drugs, or some other physical condition.
5-6Starting and driving

4. Push the power switch while depressing thebrake pedal within 10 seconds after the
chime sounds. The power switch position
changes to READY to drive mode.
After step 3 is performed, if the power switch is
pushed without depressing the brake pedal, the
power switch position will change to ACC.
NOTE:
When the power switch is pushed to the
ACC or ON position or READY to drive
mode by the above procedure, the Intelli-
gent Key battery discharge indicator ap-
pears on the dot matrix liquid crystal dis-
play even if the Intelligent Key is inside
the vehicle. This is not a malfunction. To
stop the warning indicator from blinking,
touch the power switch with the Intelli-
gent Key again.
If the Intelligent Key system battery dis-
charge indicator appears on the dot ma-
trix liquid crystal display, replace the bat-
tery as soon as possible. See Intelligent
key battery replacement in theMainte-
nance and do-it-yourself section. Make sure that the area around the vehicle is
clear.
Check fluid levels such as coolant, brake fluid, and window washer fluid as frequently as pos-
sible.
Check that all windows and lights are clean.
Visually inspect tires for their appearance and condition. Also check tires for proper inflation.
Check that all doors are closed.
Position the seat and adjust the head restraints.
Adjust the inside and outside mirrors.
Fasten seat belts and ask all passengers to do likewise.
Check the operation of the warning lights when the power switch is pushed to the ON position.
(See Warning/indicator lights and audible re-
minders in theInstruments and controls sec-
tion.) 1. Confirm the parking brake is applied.
2. Confirm that the vehicle is in the P (Park)
position.
The EV (Electric Vehicle) is designed not to
operate unless the shift lever is in the P (Park)
or N (Neutral) positions.
The Intelligent Key must be carried with
you when operating the power switch.
3. Depress the brake pedal and push the power switch to place the EV (Electric Vehicle) sys-
tem in the READY to drive position.
To place the vehicle in the READY to drive
position immediately, push and release the
power switch while depressing the brake
pedal with the power switch in any position.
The READY to drive indicator light
in the
meter illuminates.
4. To stop the EV (Electric Vehicle) system, push the P (Park) position switch on the shift lever,
and push the power switch to the OFF
position.
BEFORE STARTING THE EV
(ELECTRIC VEHICLE) SYSTEM STARTING THE EV (ELECTRIC
VEHICLE) SYSTEM
5-10Starting and driving

Vehicle range depends on a number of factors.
Actual vehicle range will vary depending upon:
speed,
vehicle load,
electrical load from vehicle accessories,
traffic and road conditions,
NISSAN recommends the following driving
habits to help maximize vehicle range:
Before driving:
Follow recommended periodic maintenance.
Keep tires inflated to correct pressure.
Keep wheels in correct alignment.
Pre-heat or pre-cool the interior cabin while thevehicle is charging.
Remove unnecessary cargo from the vehicle.
While driving:
Drive in ECO mode – In the ECO position more regenerativebrake is applied when the accelerator pedal
is released in comparison to the D (Drive)
position and more power is provided to the
Li-ion battery.
– The ECO position helps reduce power con- sumption by reducing acceleration when compared to the same accelerator pedal
position in the D (Drive ) position.
– The ECO position reduces the power pro- vided to the heater and air conditioner sys-
tem.
Drive at a constant speed. Maintain cruising speeds with a constant accelerator positions or
by using cruise control when appropriate.
Accelerate slowly and smoothly. Gently press and release the accelerator pedal for accelera-
tion and deceleration.
Drive at moderate speeds on the highway.
Avoid frequent stopping and braking. Maintain a safe distance behind other vehicles.
Turn off the air conditioner/heater when it is not necessary.
Select a moderate temperature setting for heat- ing or cooling to help reduce power consump-
tion.
Use the air conditioner/heater and close win- dows to reduce drag when cruising at highway
speed.
Release the accelerator pedal to slow down and do not apply the brakes when traffic and
road conditions allow. – This vehicle is equipped with a regenerative
brake system. The primary purpose of re-
generative brake system is to provide some
power to recharge the Li-ion battery and
extend driving range. A secondary benefit is
“engine braking” that operates based on
Li-ion battery conditions. In the D (Drive)
position, when the accelerator pedal is re-
leased, the regenerative brake system pro-
vides some deceleration and some power to
the Li-ion battery.
INCREASING POWER ECONOMY
Starting and driving5-17

6 In case of emergency
Roadside assistance program................6-2
Emergency EV (Electric Vehicle) shut off .........6-2
Hazard warning flasher switch ...............6-2
Flat tire ............................ .6-3
Tire Pressure Monitoring System (TPMS) .......6-3
Repairing flat tire .................... .6-4
Jump starting ........................ .6-10If the Li-ion battery becomes completely
discharged
......................... .6-12
Push starting ........................ .6-12
Tools ............................. .6-13
Towing your vehicle .................... .6-13
Towing recommended by NISSAN ..........6-14
Vehicle recovery (freeing stuck vehicle) .......6-15

WARNING
If stopping for an emergency, be sure to move the vehicle well off the road.
Do not use the hazard warning flash- ers while moving on the highway un-
less unusual circumstances force you
to drive so slowly that your vehicle
might become a hazard to other traf-
fic.
Turn signals do not work when the hazard warning flasher lights are on.
The flasher can be actuated with the power
switch in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires. When the low tire pressure warn-
ing light is lit, and the CHECK TIRE PRESSURE
warning appears on the dot matrix liquid crystal
display, one or more of your tires is significantly
under-inflated. If the vehicle is being driven with
low tire pressure, the TPMS will activate and
warn you of it by the low tire pressure warning
light. This system will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . For more details, see Warning/
indicator lights and audible reminders in the
Instruments and controls section andTire
Pressure Monitoring System (TPMS) in the
Starting and driving section.
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop the
vehicle as soon as possible. Driving
with underinflated tires may perma-
nently damage the tires and increase
the likelihood of tire failure. Serious
vehicle damage could occur and may
lead to an accident and could result in
serious personal injury. Check the tire
pressure for all four tires. Adjust the
tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat. If you have a
flat tire, repair it as soon as possible.
When a wheel is replaced, the TPMS will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Contact a
NISSAN certified LEAF dealer as soon
as possible for tire replacement
and/or system resetting.
FLAT TIRE
In case of emergency6-3

Replacing tires with those not origi-nally specified by NISSAN could affect
the proper operation of the TPMS.
If you used the Emergency Tire Sealant to repair a minor tire puncture, your
NISSAN certified LEAF dealer will also
need to replace the TPMS sensor in
addition to repairing or replacing the
tire.
NISSAN recommends using only NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure.
REPAIRING FLAT TIRE
WARNING
After using Emergency Tire Sealant to
repair a minor tire puncture, do not
drive the vehicle at speeds faster than
50 MPH (80 km/h) .
Immediately after using the Emer-
gency Tire Sealant to repair a minor
tire puncture, take your vehicle to a
NISSAN certified LEAF dealer to in-
spect, and repair or replace the tire.
The Emergency Tire Sealant cannot
permanently seal a punctured tire.
Continuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
If you used the Emergency Tire Sealant
to repair a minor tire puncture, your
NISSAN certified LEAF dealer will also
need to replace the TPMS sensor in
addition to repairing or replacing the
tire.
NISSAN recommends using only
NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure.
This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emergency
Tire Sealant) is supplied with the vehicle instead of a spare tire. It can be used to temporarily repair
minor tire punctures.
If possible, have the vehicle towed to a facility that
can repair or replace the flat tire. Using the emer-
gency tire puncture repair kit may cause a mal-
function of the tire pressure sensor and cause the
low tire pressure warning light to illuminate.
If you have a flat tire, follow the instructions be-
low.
CAUTION
To avoid the emergency tire puncture
kit being damaged during storage or
use:
–Only use the emergency tire punc-
ture repair kit on your vehicle. Do
not use it on other vehicles.
– Only use the kit to inflate the tires of
your vehicle and to check the vehi-
cle’s tire pressure.
– Only plug the compressor into a 12-
volt DC car power point.
– Keep the kit free of water and dirt.
– Do not disassemble or modify the
kit.
– Do not drop the kit or allow hard
impacts to the kit.
6-4In case of emergency

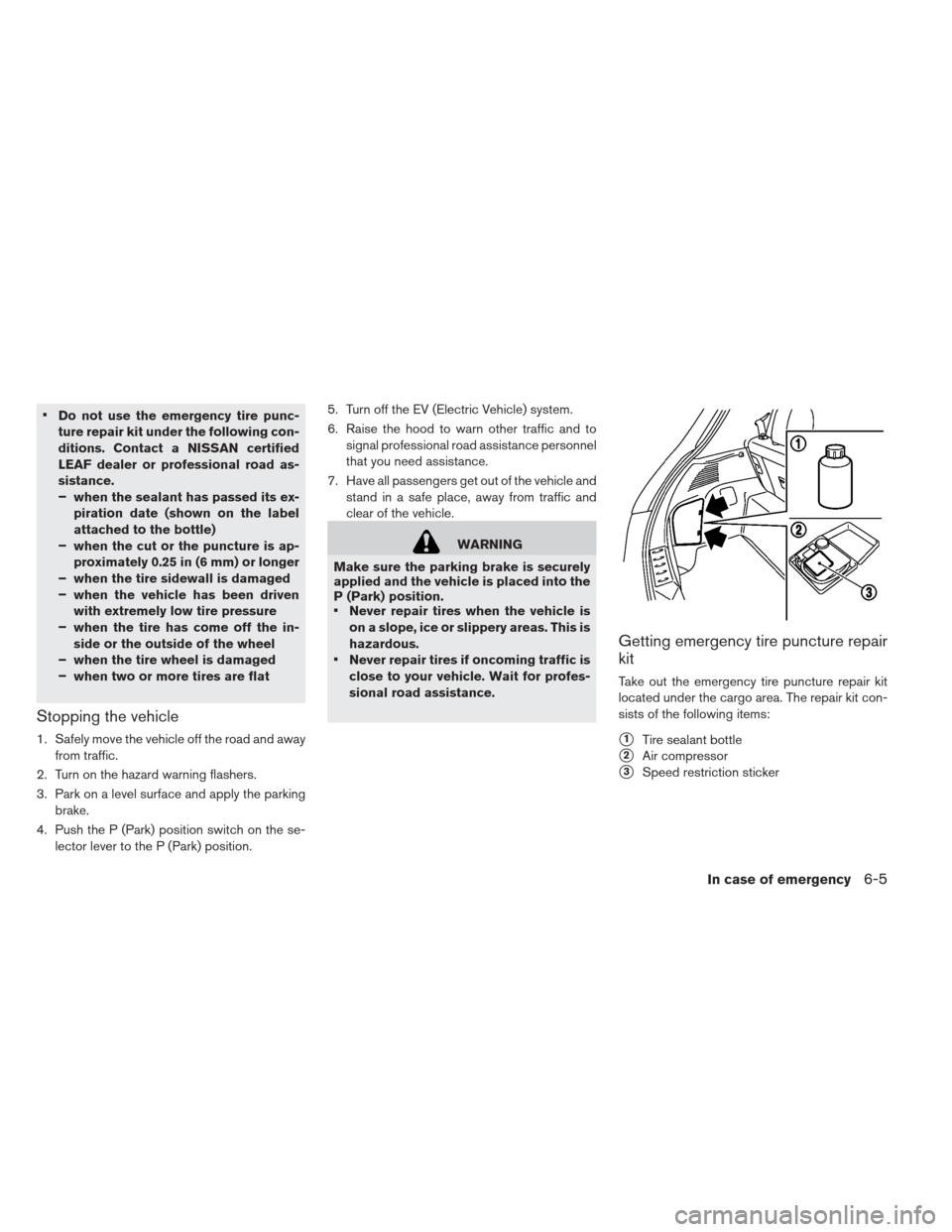

Do not use the emergency tire punc-
ture repair kit under the following con-
ditions. Contact a NISSAN certified
LEAF dealer or professional road as-
sistance.
–when the sealant has passed its ex-
piration date (shown on the label
attached to the bottle)
– when the cut or the puncture is ap-
proximately 0.25 in (6 mm) or longer
– when the tire sidewall is damaged
– when the vehicle has been driven
with extremely low tire pressure
– when the tire has come off the in-
side or the outside of the wheel
– when the tire wheel is damaged
– when two or more tires are flat
Stopping the vehicle
1. Safely move the vehicle off the road and away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake.
4. Push the P (Park) position switch on the se- lector lever to the P (Park) position. 5. Turn off the EV (Electric Vehicle) system.
6. Raise the hood to warn other traffic and to
signal professional road assistance personnel
that you need assistance.
7. Have all passengers get out of the vehicle and stand in a safe place, away from traffic and
clear of the vehicle.
WARNING
Make sure the parking brake is securely
applied and the vehicle is placed into the
P (Park) position.
Never repair tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
Never repair tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
Getting emergency tire puncture repair
kit
Take out the emergency tire puncture repair kit
located under the cargo area. The repair kit con-
sists of the following items:
1Tire sealant bottle
2Air compressor
3Speed restriction sticker
In case of emergency6-5

2. Take the hose1and the power plug2out
of the air compressor. Remove the cap of the
bottle holder from the air compressor. 3. Remove the cap from the tire sealant bottle,
and screw the bottle clockwise onto the bottle
holder. (Leave the bottle seal intact. Screwing
the bottle onto the bottle holder will pierce the
seal of the bottle.)
4. Remove the cap from the tire valve on the flattire.
In case of emergency6-7
