2013 MERCEDES-BENZ S-CLASS SEDAN Owners Manual

Setting the temperature in the rear
compartment using the front control
panel
X
Turn the SmartKey to position 2 in the
ignition lock.
X Activate the Y rear compartment
function via COMAND ( Y page 268).
The rear-compartment climate control can
be controlled via the front control panel
using
the Y rear compartment function.
X To increase/reduce: press the w
rocker switch up or down.
Only change the temperature setting in
small increments. Start at

72 ‡ (22 †).
i To
return to the standard display, activate
the front climate control function via
COMAND (Y page 268).
i The rear display changes to the standard
display automatically after five seconds.
Setting the temperature in the rear
compartment using the rear control
panel X
Turn the SmartKey to position 2 in the
ignition lock.
X To increase/reduce: press rocker
switch H or M up or down ( Y page 291).
Only change the temperature setting in
small increments. Start at

72 ‡ (22 †).
Setting the footwell temperature The footwell temperature can be set via
COMAND (Y page 268).
Setting the air distribution
Air distribution settings The air distribution can be set individually for
the driver's and front-passenger sides.
¯
Directs air through the defroster vents
P Directs air through the center and side
air vents O
Directs the airflow through the
footwell air vents
S Directs air through the center, side and
footwell vents
a Directs air through the defroster and
footwell vents
_ Directs air through the defroster,
center, side and footwell vents
b Directs air through the defroster,
center and side air vents
W Sets the air distribution to automatic
Setting the air distribution in the front/
rear compartment using COMAND The air distribution can be set using COMAND
(Y page 266).
Setting the rear-compartment air
distribution

using the rear control panel X
Turn the SmartKey to position 2 in the
ignition lock.
X Press rocker switch I or L up or down
repeatedly
(Y page 291) until the desired
air distribution symbol is shown in the
display. Setting the airflow
Setting the front-compartment airflow
using the front control panel You can select different airflow settings for
the

driver's and front-passenger sides as well
as for the rear compartment.
You can also use COMAND to set the airflow
(Y page 266).
X Turn the SmartKey to position 2 in the
ignition lock.
X To increase/reduce: press the K
rocker switch up or down. Operating the climate control system
295
Climate control Z

Setting the rear-compartment airflow
using the front control panel
X
Turn the SmartKey to position 2 in the
ignition lock.
X Activate the Y rear compartment
function via COMAND ( Y page 268).
The rear-compartment climate control can
be controlled via the front control panel
using
the Y rear compartment function.
X To increase/reduce: press the K
rocker switch up or down.
Setting the rear-compartment airflow
using the rear control panel X
Turn the SmartKey to position 2 in the
ignition lock.
X To increase/reduce: press rocker switch
J up or down ( Y page 291).Defrosting the windshield
You can use this function to defrost the
windshield or to defrost the inside of the
windshield and the side windows.
i You should only select the defrosting
function

until the windshield is clear again.
X Turn the SmartKey to position 2 in the
ignition lock.
X To switch on: press the ¬ rocker
switch up or down.
The indicator lamp in the ¬ rocker
switch lights up.
The

climate control system switches to the
following functions:
R cooling with air dehumidification on
R high airflow 17
R high temperature 17
R air distribution to the windshield and
front side windows
R air-recirculation mode off X
To deactivate: press the ¬ rocker
switch up or down.
The indicator lamp in the ¬ rocker
switch goes out. The previously selected
settings

come into effect again. The cooling
with air dehumidification function remains
on. Air-recirculation mode remains
deactivated.
or
X Press the w rocker switch up or down.
or
X Press the K rocker switch up or down. MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running.
The MAX COOL function is activated
automatically:
R if climate control is set to automatic
(Ã) on both sides
R if additional cooling is used
The display shows MAX COOL.
This is the quickest way to cool the vehicle
interior

when the sliding sunroof and the side
windows are closed. Defrosting the windows
Windows fogged up on the inside X
Activate the cooling with air
dehumidification function via COMAND
(Y page 267).
X Activate automatic mode Ã.
X If the windows continue to fog up, activate
the defrosting function

(Y page 296).
i You should only select this setting until
the windshield is clear again.
17 Depending on the outside temperature.296
Operating the climate control system
Climate control

Windows fogged up on the outside
X
Switch on the windshield wipers.
X Activate automatic climate control.
i You should only select this setting until
the windshield is clear again. Rear window defroster
Activating/deactivating G
WARNING
Any accumulation of snow and ice should be
removed from the rear window before driving.
Visibility could otherwise be impaired,
endangering you and others.
The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the window is clear as it only switches
off automatically after several minutes.
If the battery voltage is too low, the rear
window defroster may switch off.
X Turn the SmartKey to position 2 in the
ignition lock.
X Press the ¤ rocker switch up or down.
The indicator lamp in the ¤ rocker
switch lights up or goes out.
Problems with the rear window
defroster The rear window defroster has deactivated
itself prematurely or cannot be activated.
X
Switch off any consumers that are not
required, e.g. reading lamps or interior
lighting.
When the battery is sufficiently charged,
the rear window defroster is activated
again automatically. Activating/deactivating air-
recirculation mode
You can deactivate the flow of fresh air if
unpleasant odors are entering the vehicle from outside. The air already inside the
vehicle will then be recirculated. G
WARNING
Fogged windows impair visibility,
endangering you and others. If the windows
begin to fog on the inside, switching off the
air recirculation mode immediately should
clear interior window fogging. If interior
window fogging persists, make sure the air
conditioning is activated, or press the ¬
button.
X Turn the SmartKey to position 2 in the
ignition lock.
X To activate: press the g rocker switch
up or down.
The indicator lamp in the g rocker
switch lights up.
i Air-recirculation mode is activated
automatically at high outside
temperatures. The indicator lamp in the
g rocker switch is not lit when
automatic air-recirculation mode is
activated.
Outside air is added after about 30
minutes.
X To deactivate: press the g rocker
switch up or down.
The indicator lamp in the g rocker
switch goes out.
i Air-recirculation mode deactivates
automatically:
R after approximately five minutes if
outside

temperatures are less than about
41 ‡ (5 †)
R after approximately five minutes if
cooling with air dehumidification is
deactivated
R after approximately 30 minutes if outside
temperatures are over about
41 ‡ (5 †) Operating the climate control system
297
Climate control Z

Activating/deactivating the residual
heat function
It
is possible to make use of the residual heat
of the engine to continue heating the
stationary vehicle for up to 30 minutes after
the engine has been switched off. The heating
time depends on the temperature that has
been set.
i The blower will run at a low speed
regardless of the airflow setting.
i If you activate the residual heat function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed.
X Turn the SmartKey to position 0 in the
ignition lock or remove it.
X To activate: press the Ì rocker switch
up or down.
The indicator lamp in the Ì rocker
switch lights up.
X To deactivate: press the Ì rocker
switch up or down.
The indicator lamp in the Ì rocker
switch goes out.
i Residual heat is deactivated
automatically:
R after about 30 minutes
R when the ignition is switched on
R if the battery voltage drops
R if the coolant temperature is too low Setting the air vents
Important safety notes
G
WARNING
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold

(depending on the set temperature). This
could cause burns or frostbite to unprotected
skin in the immediate area of the air vents. Always keep sufficient distance between
unprotected parts of the body and the air
vents. If necessary, use the air distribution
adjustment

to direct the air to air vents in the
vehicle interior that are not in the immediate
area of unprotected skin.
In order to ensure the direct flow of fresh air
through the air vents into the vehicle interior,
please observe the following notes:
R keep the air intake grille on the hood free
of blockages, such as ice, snow or leaves
R never cover the air vents or air intake grille
in the vehicle interior.
i For virtually draft-free ventilation, adjust
the sliders of the air vents to the center
position. Setting the center air vents
:
Fixed center air vent
; Center air vent, right
= Center vent thumbwheel, right
? Center vent thumbwheel, left
A Center air vent, left
X To open/close: turn thumbwheels =
and ? up or down. 298
Setting the air vents
Climate control

Setting the side air vents
X
To open/close: turn thumbwheel = up or
down.
i Side window defroster vent : is never
completely shut, even if side air vent ; is
shut. Setting the glove box air vent
When automatic climate control is activated,
the glove box can be ventilated, for instance
to cool its contents. The level of airflow
depends on the airflow and air distribution
settings.
! Close the air vent when heating the
vehicle.
At high outside temperatures, open the air
vent and activate the "cooling with air
dehumidification" function. Otherwise,
temperature-sensitive items stored in the
glove box could be damaged. X
To open: turn thumbwheel : counter-
clockwise
from position 3 to position 2.
X To close: turn thumbwheel : clockwise
from position 2 to position 3. Setting the rear-compartment air
vents
Setting the center vents in the rear
compartment :
Rear-compartment air vent, left
; Rear-compartment air vent, right
= Rear-compartment air vent thumbwheel,
right
? Rear control panel for automatic climate
control
A Rear-compartment air vent thumbwheel,
left
X To open/close: turn thumbwheel = or
A to the right or left.
i In
vehicles without rear-compartment air-
conditioning system: close the rear-
compartment air vents when heating mode
is activated, as no warm air flows through
the rear vents in the basic heating setting. Setting the air vents
299
Climate control Z

Setting the B-pillar air vents
:
B-pillar air vent
; Thumbwheel for B-pillar air vent
X To open/close: turn thumbwheel ; to the
left or right. 300
Setting the air ventsClimate control

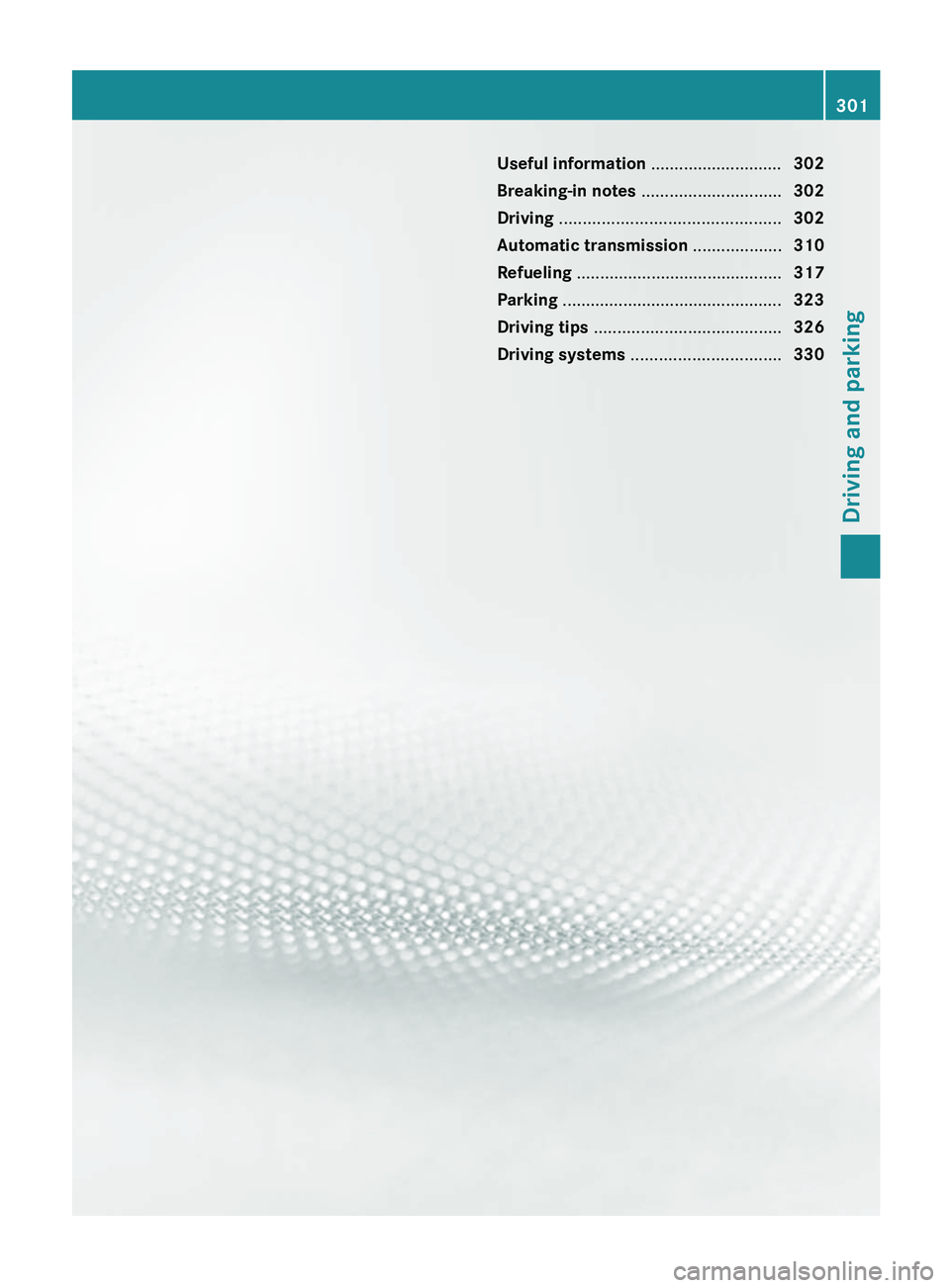

Useful information ............................
302
Breaking-in notes .............................. 302
Driving ............................................... 302
Automatic transmission ................... 310
Refueling ............................................ 317
Parking ............................................... 323
Driving tips ........................................ 326
Driving systems ................................ 330 301Driving and parking

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible.
Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops (Y page 31). Breaking-in notes
The first 1000 miles (1500 km)
The
more you look after the engine when it is
new, the more satisfied you will be with its
performance in the future.
R Drive at varying vehicle speeds and engine
speeds for the first 1000 miles (1500 km)
for this reason.
R Avoid overstraining the vehicle during this
period, e.g. driving at full throttle.
R Change gear in good time, at the latest
when the tachometer needle is 2
/ 3 of the
way to the red area in the tachometer
display.
R Do not manually shift to a lower gear to
brake the vehicle.
R If possible, do not depress the accelerator
pedal past the point of resistance
(kickdown).
R Only select shift ranges 3, 2 or 1 when
driving slowly, e.g. in mountainous terrain.
R If possible, drive in drive program E (in AMG
vehicles in drive program C) for the first
1000 miles (1500 km).
After 1000 miles (1500 km), you can increase
the engine speed gradually and bring the
vehicle up to full speed. Additional breaking-in notes for AMG
vehicles:
R
do not drive faster than 85 mph
(140 km/h) in the first 1000 miles
(1500 km).
R only allow the engine to reach a maximum
engine speed of 4500 rpm briefly.
R change gear in good time.
i You should also observe these notes on
running

in if the engine or parts of the drive
train on your vehicle have been replaced.
i Always observe the respective speed
restrictions. Driving
Important safety notes
G
WARNING
Make sure absolutely no objects are
obstructing the pedals' range of movement.
Keep the driver's footwell clear of all
obstacles. If there are any floormats or
carpets

in the footwell, make sure the pedals
still have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate. This could lead to accidents and
injury. G
WARNING
On slippery road surfaces, never downshift in
order to obtain braking action. This could
result

in drive wheel slip and reduced vehicle
control. Your vehicle's ABS will not prevent
this type of loss of control. G
WARNING
It is dangerous to shift the automatic
transmission out of parking position P or
neutral position N if the engine speed is
higher

than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You 302
Driving
Driving and parking
