2013 MERCEDES-BENZ M-Class Owner's Manual

ML 350 4MATIC BlueEFFICIENCY
All-weather tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
BA: 265/45 R 20 108 H XL M+SMOExtended
3, 4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
3
MOExtended tires (tires featuring run-fla tcharacteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
4 Use of snow chains not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
431Wheels and tires Z

Winter tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S
0002 BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
0002 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
0002MOExtended3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00024 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL
M+S0002MOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
ML 350 BlueTEC 4MATIC
All-weather tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
3
MOExtended tires (tires featuring run-fla tcharacteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
4 Use of snow chains not permitted. Observe the notes under "Snow chains". 432
Wheel and tire combinationsWheels and tires

R 19
Tires Allo
ywheels BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
BA: 265/45 R 20 108 H XL M+SMOExtended
3, 4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R 18
Tires Alloy wheels
BA: 255/55 R 18 105 H M+S
0002 BA: 8.0 J x 18 H2
Wheel offset: 2.21 in (56 mm)
3
MOExtended tires (tires featuring run-fla tcharacteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
4 Use of snow chains not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
433Wheels and tires Z

R 19
Tires Allo
ywheels BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
0002 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
0002MOExtended3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00024 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL
M+S0002MOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
ML 550 4MATIC BlueEFFICIENCY
All-weather tires
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
3
MOExtended tires (tires featuring run-fla tcharacteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
4 Use of snow chains not permitted. Observe the notes under "Snow chains". 434
Wheel and tire combinationsWheels and tires

Tires Allo
ywheels BA: 255/50 R 19 107 H XL M+S
4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R 19 107 H XL M+SMOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R 20
Tires Alloy wheels
BA: 265/45 R 20 108 H XL M+S
4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
BA: 265/45 R 20 108 H XL M+SMOExtended
3, 4 BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires
R 19
Tires Alloy wheels
BA: 225/50 R 19 103 W BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 225/50 R 19 103 W MOExtended
3 BA: 8,5 J x 19 H2
Wheel offset: 2,44 in (62 mm)
BA: 255/50 R 19 107 H XL M+S
0002 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
0002MOExtended3 BA: 8.0 J x 19 H2
Wheel offset: 2.21 in (56 mm)
BA: 255/50 R 19 107 H XL M+S
00024 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R 19 107 H XL
M+S0002MOExtended
3, 4 BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
4
Use of snow chains not permitted. Observe the notes under "Snow chains".
3 MOExtended tires (tires featuring run-fla tcharacteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor. Wheel and tire combinations
435Wheels and tires Z

ML 63 AMG 4MATIC
Summer tires
R 20
Tires Alloy wheels
BA: 265/45 ZR 20 108 Y XL
4 BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R 21
Tires Alloy wheels
BA: 295/35 ZR 21 107 Y XL
4 BA: 10.0 J x 21 H2
Wheel offset: 2.21 in (56 mm)
Winter tires
R 20
Tires Alloy wheels
BA: 255/45 R 20 105 V XL M+S
0002 BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R 21
Tires Alloy wheels
BA: 295/35 R 21 107 V XL M+S
00024 BA: 10.0 J x 21 H2
Wheel offset: 2.21 in (56 mm)
Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident. To avoid hazardous situations:
R
adapt you rdriving style accordingly and
drive carefully.
R never mount more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
4 Use of snow chains not permitted .Observe the notes under "Snow chains". 436
Emergency spare wheelWheels and tires

!
AMG vehicles with "Minispare"
emergency spare wheel: use the
"Minispare" emergency spare wheel only
on the rear axle. If you mount the
"Minispare" emergency spare wheel on the
front axle, this could result in damage to the
brake system.
If a tire on the front axle is defective, an
intact wheel from the rear axle must first
be replaced with the "Minispare"
emergency spare wheel. The defective
wheel on the front axle can then be
replaced with the intact wheel from the rear
axle.
Make sure to note the placard on the
"Minispare" emergency spare wheel.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels. General notes
Mounting the emergency spare wheel is
described under "Mounting a wheel"
(Y page 422).
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 402). The applicable value
can be found on the wheel or under
"Technical data" (Y page 439).
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel. Removing the emergency spare wheel
Emergency spare wheel (example: vehicle without
lockable cargo compartment floor)
0002
"Minispare" emergency spare wheel
0003 Emergency spare wheel retainer
The "Minispare" emergency spare wheel can
be found in the stowage well under the cargo
compartment floor.
X Lift the cargo compartment floor up
(Y page 342).
X Vehicles with trailer tow hitch: remove
the ball coupling stowage tray
(Y page 255).
X Vehicles without alockable cargo
compartment floor: turn emergency
spare wheel retainer 0003counter-clockwise
and remove it.
X Remove "Minispare" emergency spare
wheel 0002. Vehicles with a lockable cargo compartmen
tfloor
0002 "Minispare" emergency spare wheel
0003 Stowage well Emergency spare wheel
437Wheels and tires Z

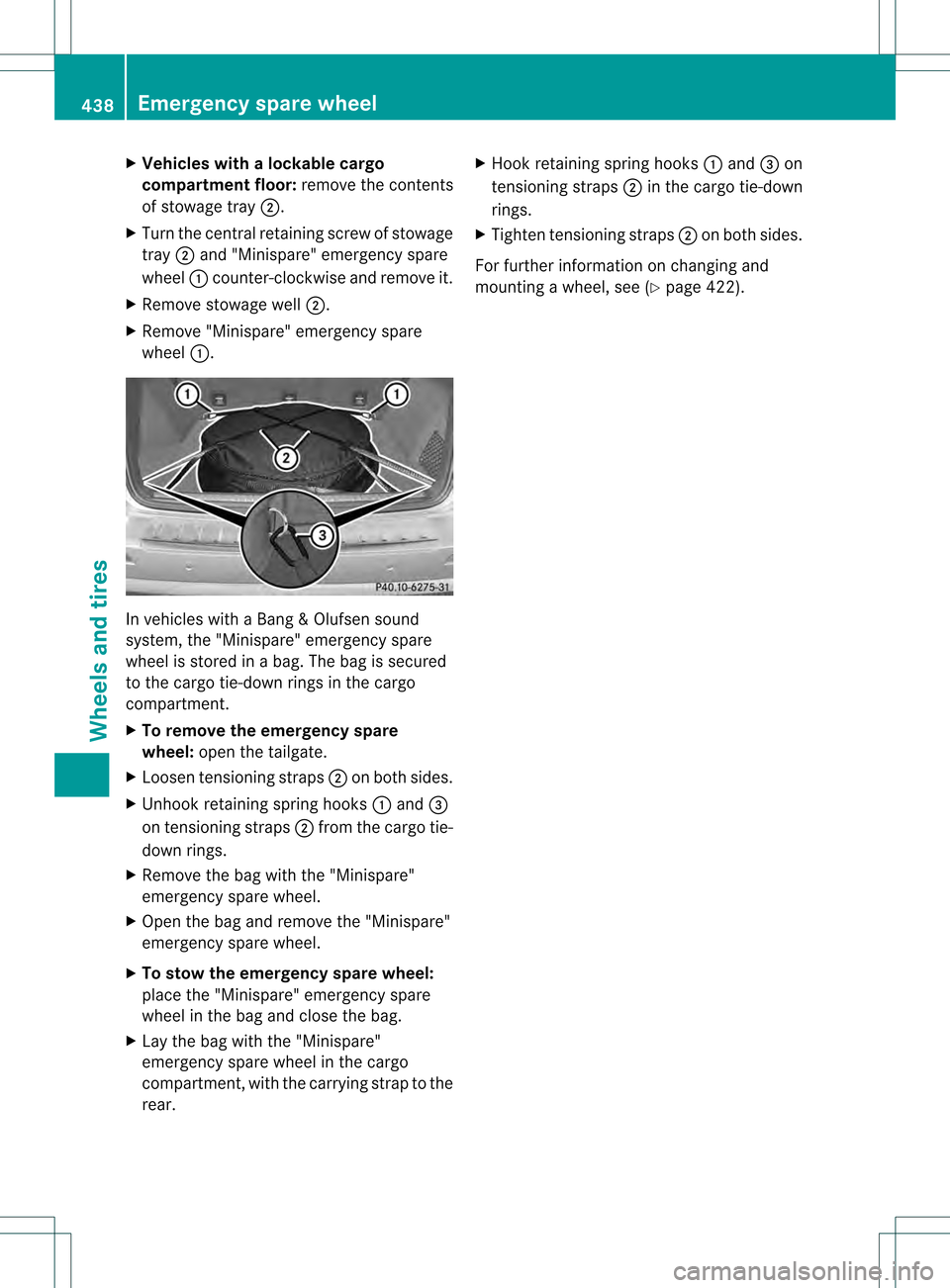

X
Vehicles with alockable cargo
compartment floor: remove the contents
of stowage tray 0003.
X Turn the central retaining screw of stowage
tray 0003and "Minispare" emergency spare
wheel 0002counter-clockwise and remove it.
X Remove stowage well 0003.
X Remove "Minispare" emergency spare
wheel 0002. In vehicles with a Bang
&Olufsen sound
system, the "Minispare" emergency spare
wheel is stored in a bag. The bag is secured
to the cargo tie-down rings in the cargo
compartment.
X To remove the emergency spare
wheel: open the tailgate.
X Loosen tensioning straps 0003on both sides.
X Unhook retaining spring hooks 0002and 001F
on tensioning straps 0003fromt he cargo tie-
down rings.
X Remove the bag with the "Minispare"
emergency spare wheel.
X Open the bag and remove the "Minispare"
emergency spare wheel.
X To stow the emergency spare wheel:
place the "Minispare" emergency spare
wheel in the bag and close the bag.
X Lay the bag with the "Minispare"
emergency spare wheel in the cargo
compartment, with the carrying strap to the
rear. X
Hook retaining spring hooks 0002and 001Fon
tensioning straps 0003in the cargo tie-down
rings.
X Tighten tensioning straps 0003on both sides.
For further information on changing and
mounting a wheel, see (Y page 422).438
Emergency spare wheelWheels and tires
