passenger side returns to the driving
position.
Using the memory button 0043
Left-hand exterior mirror
0044 Right-hand exterior mirror
0087 Adjustment button
0085 Memory button
You can position the front-passenger side
exterior mirror in
such
a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. This setting can be
stored using memory button M 0085.
X Make sure that the SmartKey is in
position 2 (Y
page 139) in

the ignition lock.
X With the exterior mirror on the front-
passenger side activated, use adjustment
button 0087 to adjust the exterior mirror. In
the exterior mirror, the rear wheel and the
curb should be visible.
X Press memory button M 0085 and one of
the
arrows on adjustment button 0087 within
three seconds.
The parking position is stored if the exterior
mirror does not move.
X If the mirror moves out of position, repeat
the steps. Calling up a stored parking position
setting
0043
Left-hand exterior mirror
0044 Right-hand exterior mirror
0087 Adjustment button
0085 Memory button
X Turn the SmartKey to position
2 (Y page 139) in the ignition lock.
X Adjust the exterior mirror on the front-
passenger side using button 0044.
X Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the stored parking position.
The exterior mirror on the front-passenger
side moves back to its original position:
R as soon as you exceed a speed of 9 mph
(15 km/h)
R if you press button 0043 for the exterior
mirror on the driver's side Memory functions
Storing settings
G
WARNING
Only use the memory function on the driver's
side when the vehicle

is stationary. You could
otherwise be distracted from the traffic
conditions by the seat moving of its own
accord, and as a result cause an accident. Memory functions
95
Seats, steering wheel and mirrors Z

X
Make sure that the SmartKey is in position
2(Y page 139) or that the respective door
is open.
X Adjust the seat ( Y page 86) and head
restraint ( Y page 86).
X On the driver's side, adjust the steering
wheel ( Y page 91)
and the exterior mirrors
(Y page 93).
X Press the M memory button.
X Press one of memory buttons 1, 2 or 3
within three seconds.
The settings are stored in the selected
storage position. Calling up a stored setting
! If you want to

move the seat from the fully
reclined position to a stored seat position,
first raise the backrest using the seat
switch. The seat could otherwise be
damaged.
X Press and hold the relevant memory button
1, 2 or 3, until the seat, head restraints,
steering wheel and mirrors

are in the stored
position.
i The setting procedure is interrupted as
soon as you release the memory button. 96
Memory functions
Seats, steering wheel and mirrors

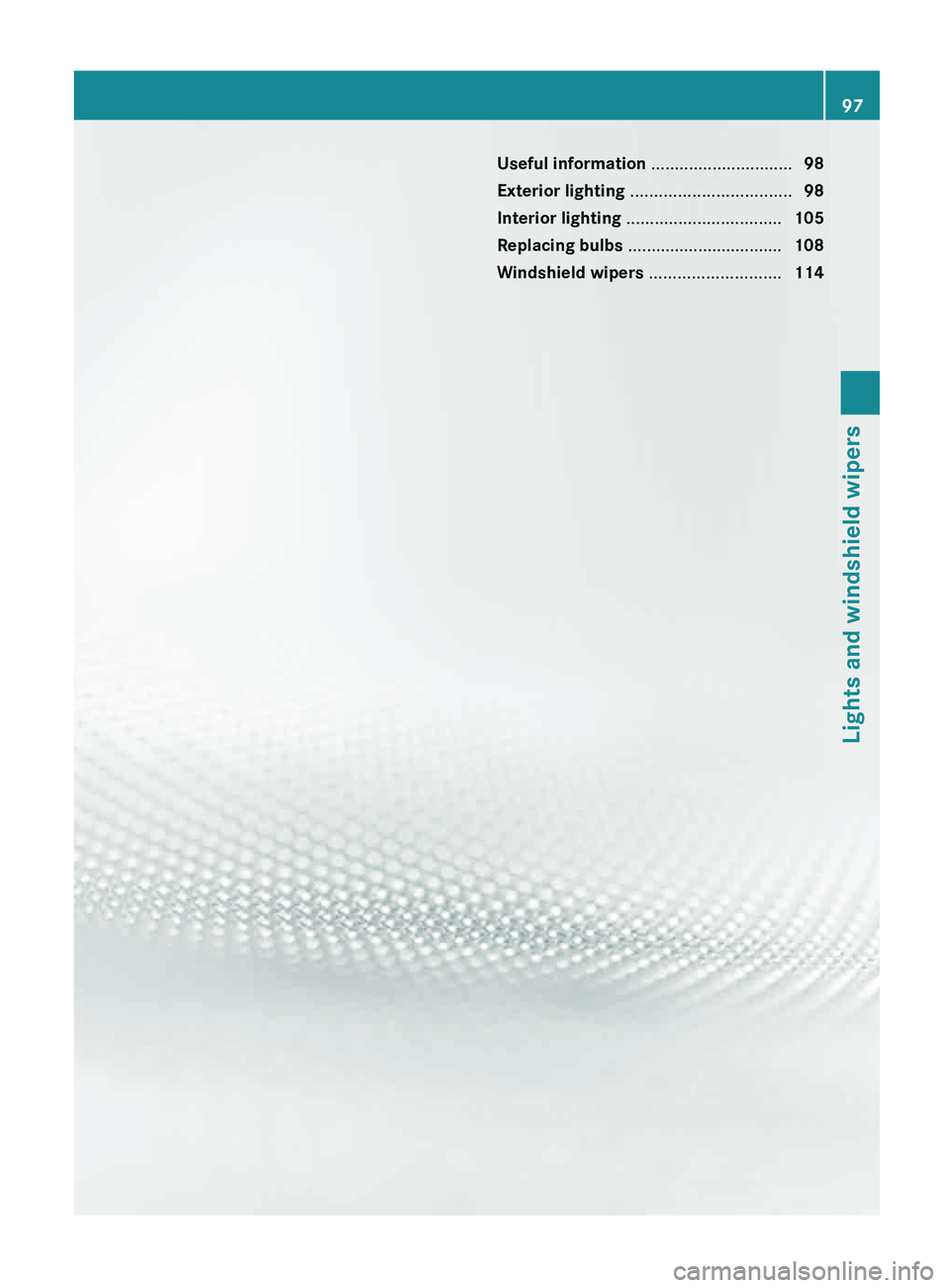

Useful information ..............................
98
Exterior lighting .................................. 98
Interior lighting ................................. 105
Replacing bulbs ................................. 108
Windshield wipers ............................114 97Lights and windshield wipers

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that
your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 23).Exterior lighting
Important safety notes
For reasons of safety, Mercedes-Benz
recommends that you drive with the lights
switched on even during

the daytime. In some
countries, operation of the headlamps varies
due to legal requirements and self-imposed
obligations. Driving abroad
Conversion to symmetrical low beam Switch the headlamps to symmetrical low
beam in countries in which traffic drives on
the opposite side
of

the road from the country
where the vehicle is registered. This prevents
glare to oncoming traffic. When using
symmetrical lights, the edge of the road is not
lit as widely and as far ahead as normal.
Have the headlamps converted at a qualified
specialist workshop as close to the border as
possible before driving in these countries.
Conversion to asymmetrical low beam
after returning Have the headlamps converted back to
asymmetrical low-beam headlamps at a
qualified specialist workshop as soon as
possible after crossing the border again. Light switch
Operation !
Switch off the parking lamps and low-
beam headlamps when you leave the
vehicle. This prevents the battery from
discharging.
! If the battery has been excessively
discharged, the parking lamps or standing
lamps are automatically switched off to
enable the next engine start. Always park
your vehicle safely and sufficiently lit
according to legal standards. Avoid the
continuous use of the 0060 parking lamps
for several hours. If

possible, switch on the
0064 right or the 0063 left standing lamp. 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
If you hear a warning tone when you leave the
vehicle, the lights may still be switched on.
X Turn the light switch to 0058.
The turn signals, high-beam headlamps and
the high-beam flasher
are

operated using the
combination switch (Y page 103). 98
Exterior lighting
Lights and windshield wipers

The exterior lighting (except the parking/
standing lamps) switches off automatically if
you:
R
remove the SmartKey from
the ignition lock
R open the driver's door with the SmartKey
in position 0.
Low-beam headlamps 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
X To switch on the low-beam headlamps:
turn the SmartKey in the ignition lock to
position 2 or start the engine.
X Turn the light switch to 0058.
The 0058 indicator lamp in the instrument
cluster lights up. Daytime running lamps Daytime running lamps in Canada
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
The daytime running lamps function is
required by law
in

Canada. It cannot therefore
be deactivated.
X Turn the light switch to 0058.
With the engine running:

depending on the
ambient light, the daytime running lamps or
the low-beam headlamps are switched on.
When the low-beam headlamps are
switched on, the 0058 indicator lamp in the
instrument cluster lights up.
When the engine is running and the vehicle is
stationary: if you move

the selector lever from
a drive position to P, the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in high ambient light
brightness: if you turn the light switch
to 0060, you turn on the daytime running
lamps and parking lamps.
If the engine is running and you turn the light
switch to 0058, the manual settings take
precedence over the daytime running lamps. Exterior lighting
99
Lights and windshield wipers

Daytime running lamps in the USA
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
In the USA, the daytime running lamps are
deactivated upon delivery from the factory.
X To activate the daytime running
lamps: activate the
daytime
running lamps
function in the on-board computer
(Y page 219).
X Turn the light switch to 0058.
With the engine running:

depending on the
ambient light, the daytime running lamps or
the low-beam headlamps are switched on.
When the low-beam headlamps are
switched on, the 0058 indicator lamp in the
instrument cluster lights up.
If the engine is running and you turn the light
switch to 0060 or 0058, the manual settings
take precedence over the daytime running
lamps.
Automatic headlamp mode G
WARNING
If the light switch is set to 0058 and it is
foggy,
snowing or there is poor visibility, the low-
beam headlamps will not come on
automatically. This could endanger you and others. In such situations turn the light switch
to 0058.
The automatic headlamp feature is only an
aid. The driver
is

responsible for the vehicle's
lighting at all times. 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
X To switch on automatic headlamp
mode: turn the light switch to 0058.
SmartKey in
position 1

in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
With the engine running: if you have
activated the daytime running lamps
function in the on-board computer, the
daytime running lamps or the low-beam
headlamps are switched on or off
automatically depending on the brightness
of the ambient light.
When the low-beam headlamps are
switched on, the 0058 indicator lamp in the
instrument cluster lights up. 100
Exterior lighting
Lights and windshield wipers

Front fog lamps (except AMG vehicles)
G
WARNING
If you suspect that driving conditions will be
foggy, turn the light
switch to 0058 before you
start your journey. Your vehicle may
otherwise not be visible and you could
endanger yourself and others. 00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
X To switch on the fog lamps: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to 0060, 0058 or
0058. X
Press the 005A button.
The green 005A indicator lamp in the
instrument cluster lights up.
X To switch off the front fog lamps: press
the 005A button.
The green 005A indicator lamp in the
instrument cluster goes out.
Only vehicles with front fog lamps have the
fog lamps function. Rear fog lamp
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp Exterior lighting
101
Lights and windshield wipers Z

X
To switch on the rear fog lamp: turn the
SmartKey in the ignition lock to position 2
or start the engine.
X Turn the light switch to 0058 or 0058.
X Press the 005E button.
The yellow 005E indicator lamp in the
instrument cluster lights up.
X To switch off the rear fog lamp: press the
005E button.
The yellow 005E
indicator lamp in the
instrument cluster goes out. Parking lamps
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps 0084005A
Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
X To switch on: turn light switch to 0060. Standing lamps
00470063
Left-hand standing lamps
00480064 Right-hand standing lamps
00490060 Parking lamps, side marker lamps,
license plate and instrument cluster
lighting
004A0058 Automatic headlamp mode/daytime
running lamps
004B0058 Low-beam/high-beam headlamps
0084005A Fog lamps (except AMG vehicles)
006B005E Rear fog lamp
Switching on the standing lamps ensures the
corresponding side of the vehicle is
illuminated. 102
Exterior lighting
Lights and windshield wipers
