2013 MERCEDES-BENZ G-CLASS SUV Owners Manual

Page 265 of 364

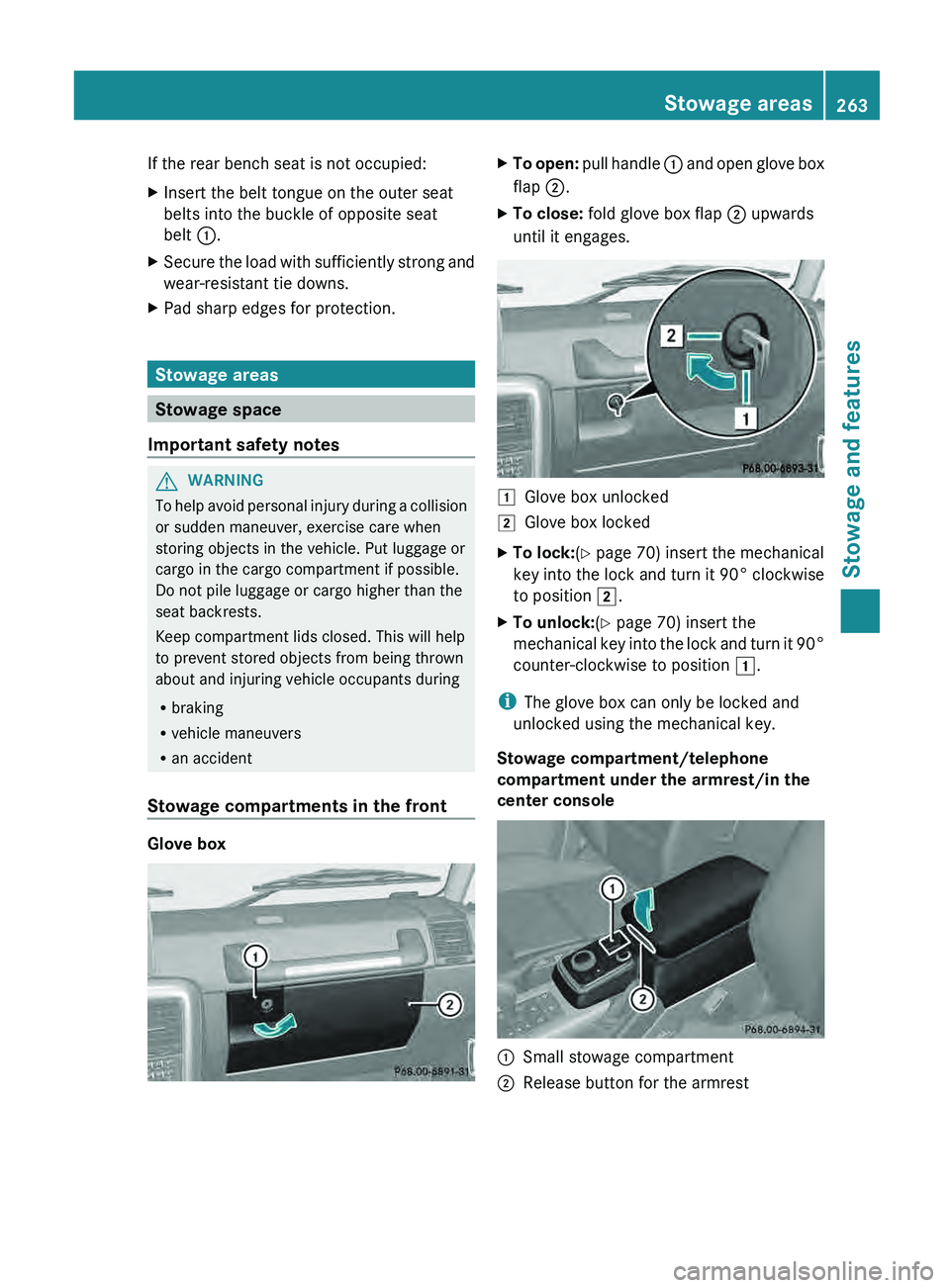

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual If the rear bench seat is not occupied:
X
Insert the belt tongue on the outer seat
belts into the buckle of opposite seat
belt 0043.
X Secure the load with sufficiently strong and
wear-resistant tie d

Page 266 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Stowage compartment/telephone
compartment under the armrest
X
To open: press button 0044.
X Fold up armrest.
i In the stowage compartment, there is a
stowage tray.
X To close:  fold the armrest down.

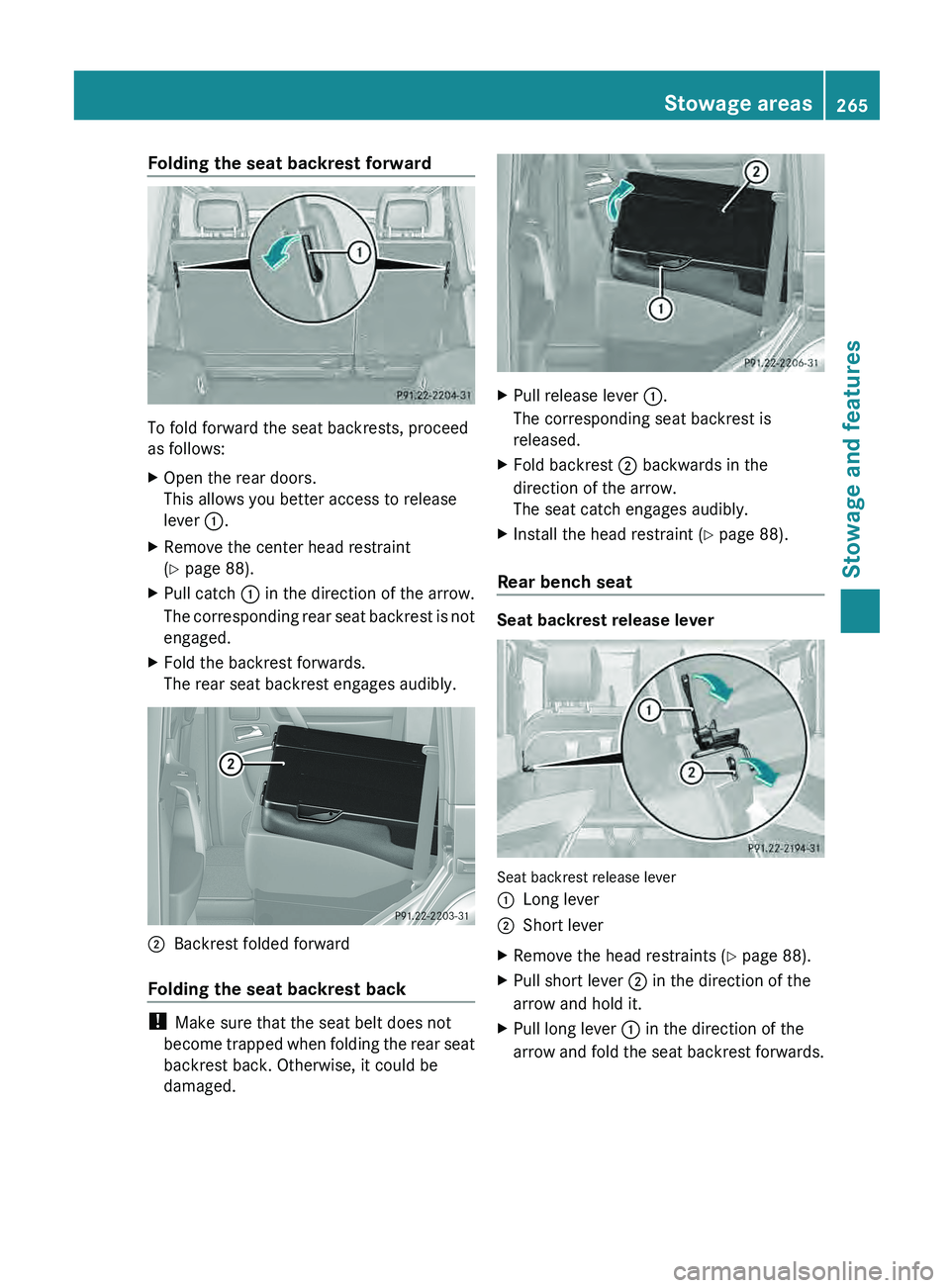

Page 267 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Folding the seat backrest forward
To fold forward the seat backrests, proceed
as follows:
X
Open the rear doors.
This allows you better access to release
lever 0043.
X Remove the center head restraint

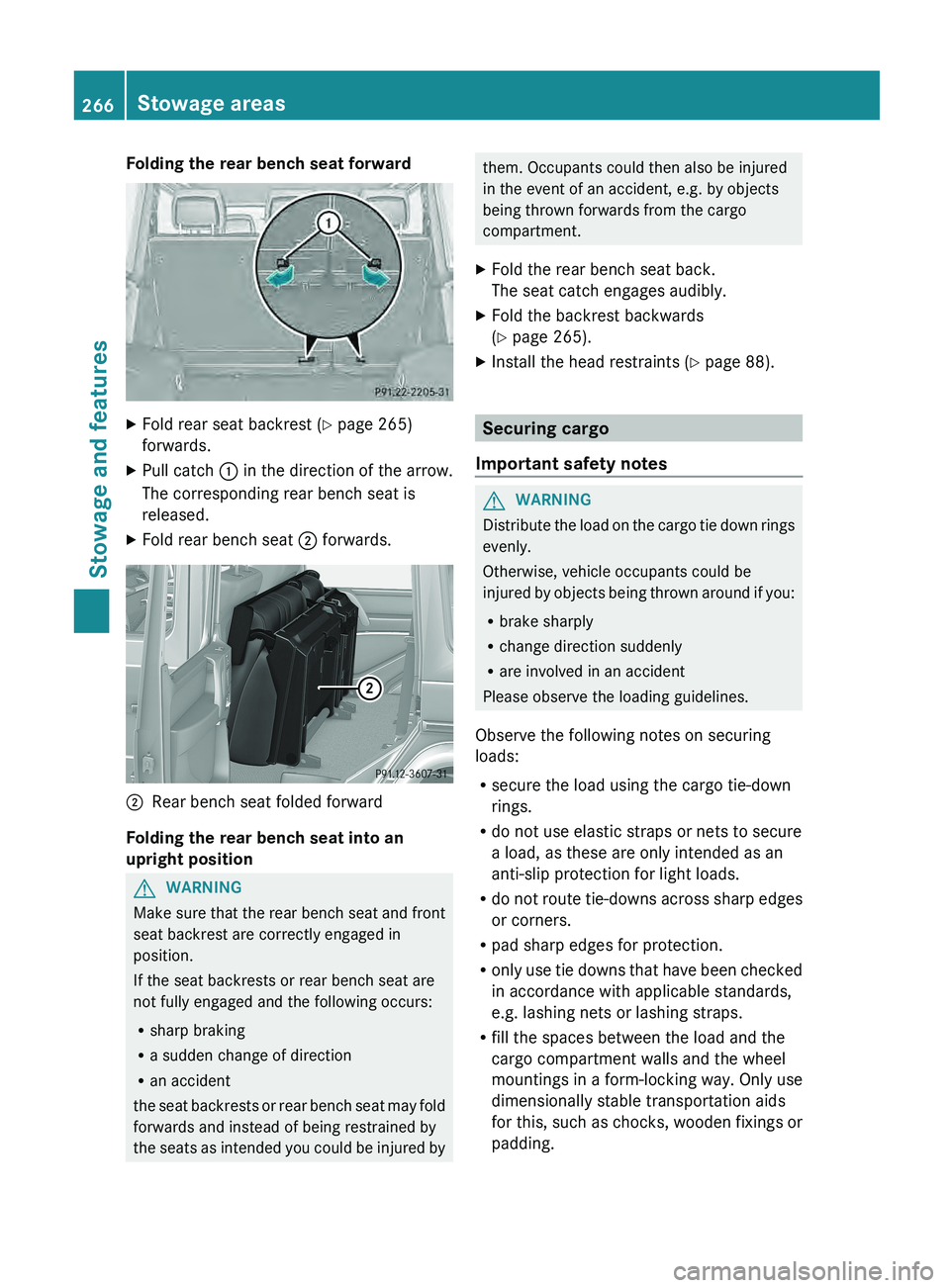

Page 268 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Folding the rear bench seat forward
X
Fold rear seat backrest (Y page 265)
forwards.
X Pull catch 0043 in the direction of the arrow.
The corresponding rear bench seat is
released.
X Fold rear bench s

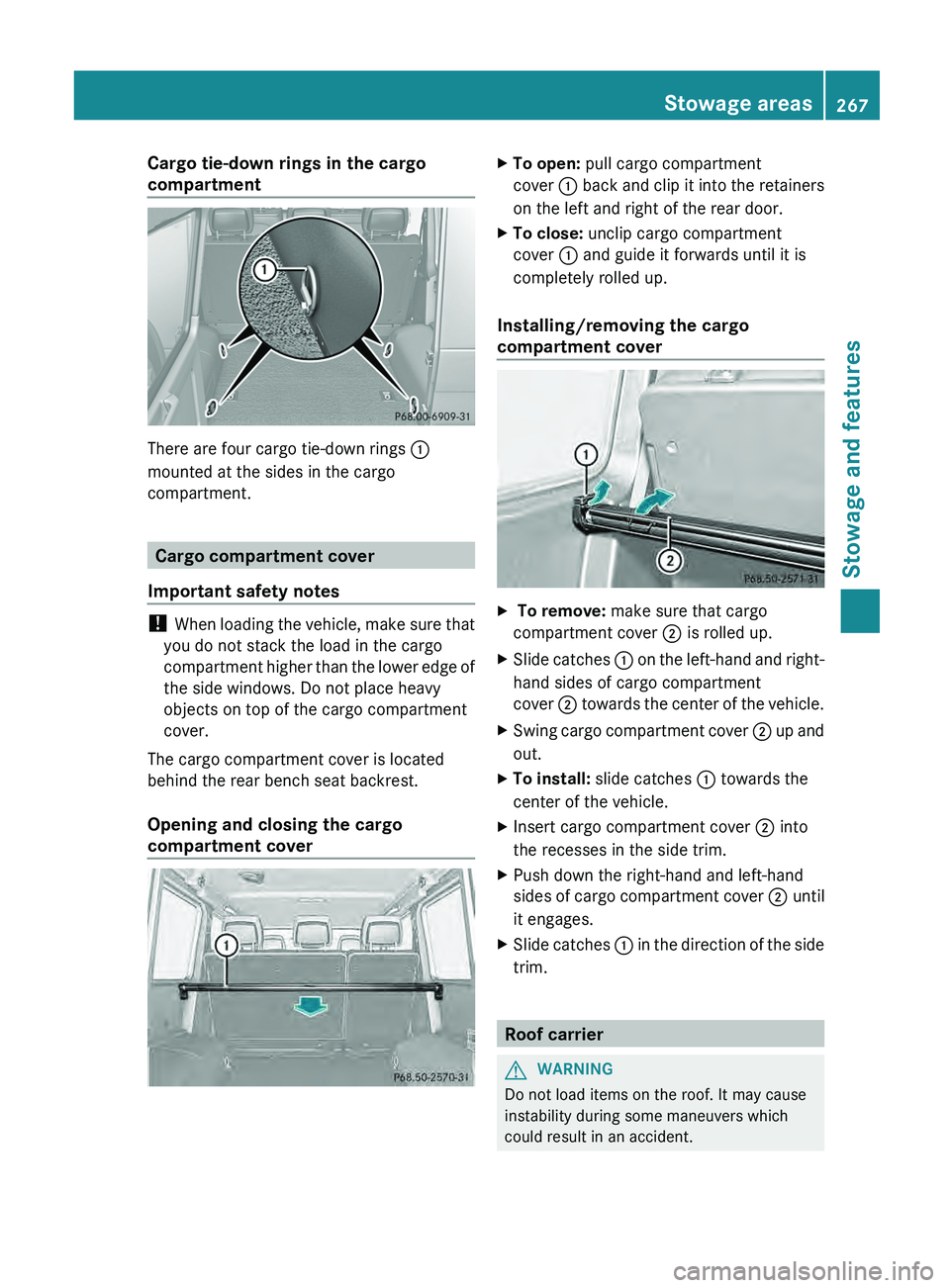

Page 269 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Cargo tie-down rings in the cargo
compartment
There are four cargo tie-down rings
0043
mounted at the sides in the cargo
compartment. Cargo compartment cover
Important safety notes !
When loading th

Page 270 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual The roof is not suited for transporting loads.
Never use roof rails or other accessories
mounted on the roof.
Features
Cup holders
Important safety notes G
WARNING
In order to help prevent spilling li

Page 271 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Vanity mirror in the sun visor
0043
Sun visor
0044 Bracket
0087 Mirror cover
0085 Mirror light
Mirror lights 0085 will only function if sun
visor 0043 is clipped into bracket 0044.
X Fold down sun vis

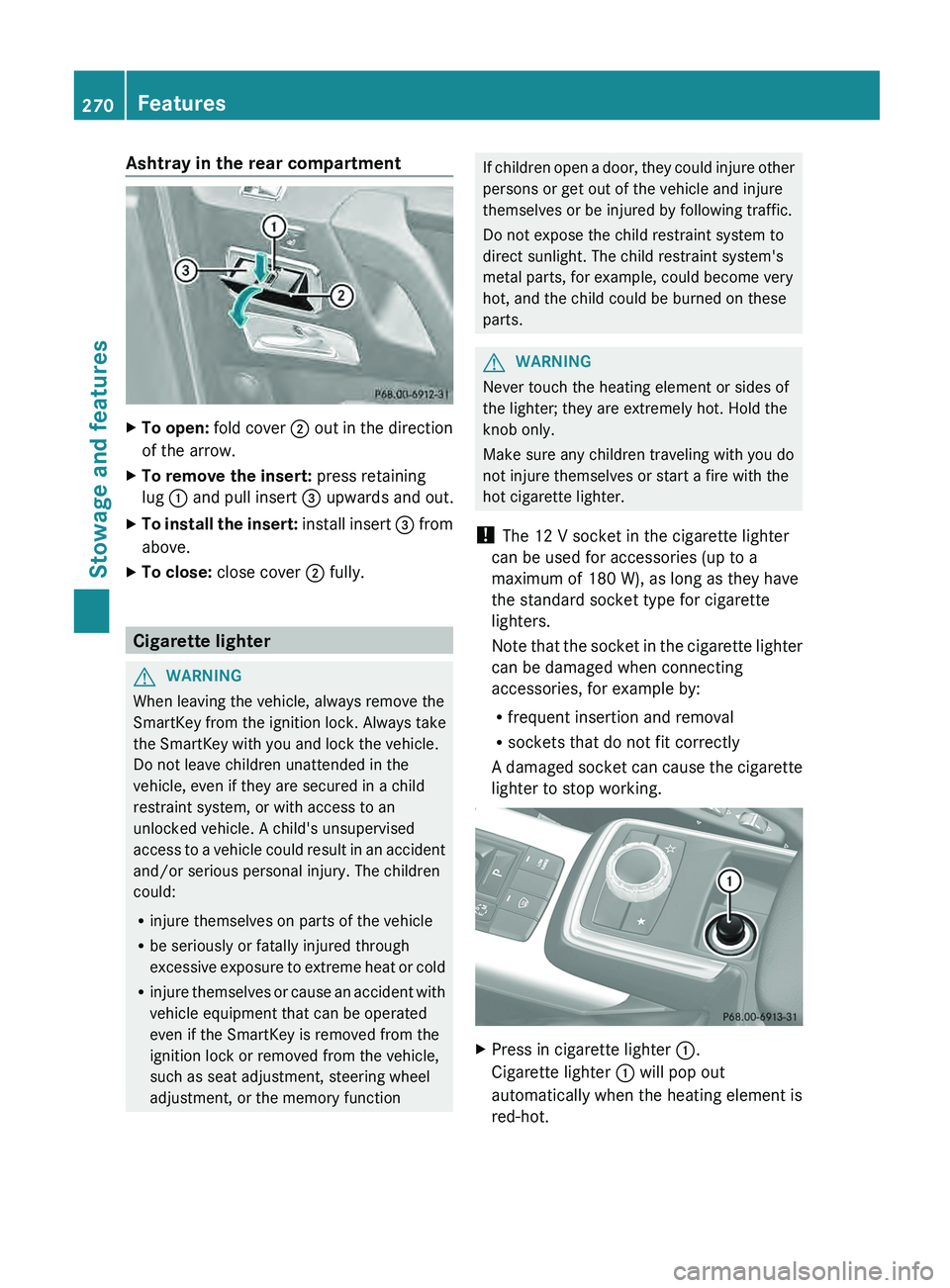

Page 272 of 364

MERCEDES-BENZ G-CLASS SUV 2013  Owners Manual Ashtray in the rear compartment
X
To open:  fold cover  0044 out  in the direction
of the arrow.
X To remove the insert:  press retaining
lug  0043 and pull  insert 0087

 upwards and out.
X To instal
