2013 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (465,1)

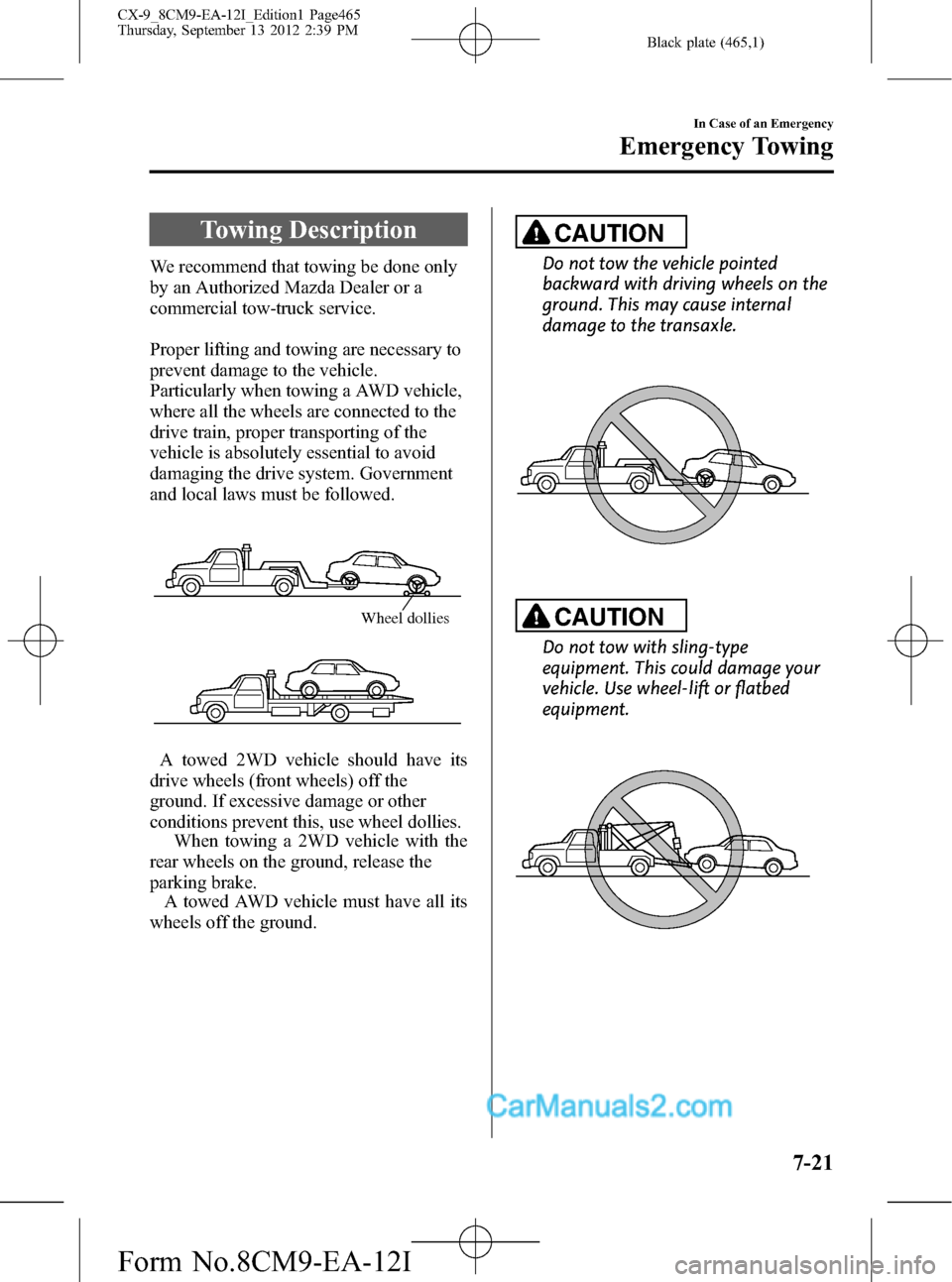

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Particularly when towing a AWD vehicle,
where all the wheels are connected to the
drive train, proper transporting of the
vehicle is absolutely essential to avoid
damaging the drive system. Government
and local laws must be followed.
Wheel dollies
A towed 2WD vehicle should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
When towing a 2WD vehicle with the
rear wheels on the ground, release the
parking brake.
A towed AWD vehicle must have all its
wheels off the ground.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-21
CX-9_8CM9-EA-12I_Edition1 Page465
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (466,1)
WARNING
Always tow a AWD vehicle with all four
wheels off the ground:
Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has
been damaged, transport the vehicle
on a flat bed truck.
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2.(Front)
Press the marking on the cap as shown
in the figure to remove the cap.
(Rear)
Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the bumper.
Front
7-22
In Case of an Emergency
Emergency Towing
CX-9_8CM9-EA-12I_Edition1 Page466
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (467,1)
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet
using the lug wrench.
Front
Lug wrench
Rear
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
Front
Tiedown eyelet
Rear
Tiedown eyelet
In Case of an Emergency
Emergency Towing
7-23
CX-9_8CM9-EA-12I_Edition1 Page467
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (468,1)
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-21) and
“Tiedown Hooks”(page 7-22) and
carefully follow the instructions.
7-24
In Case of an Emergency
Emergency Towing
CX-9_8CM9-EA-12I_Edition1 Page468
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (469,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) .... 8-4
Scheduled Maintenance (Mexico) ........................................... 8-10
Owner Maintenance ................................................................... 8-17
Owner Maintenance Schedule ................................................ 8-17
Owner Maintenance Precautions ............................................. 8-18
Engine Compartment Overview .............................................. 8-20
Engine Oil ............................................................................... 8-21
Engine Coolant ....................................................................... 8-23
Brake Fluid ............................................................................. 8-25
Power Steering Fluid ............................................................... 8-26
Washer Fluid ........................................................................... 8-26
Body Lubrication .................................................................... 8-27
Wiper Blades ........................................................................... 8-28
Battery ..................................................................................... 8-32
Tires ........................................................................................ 8-34
Light Bulbs ............................................................................. 8-40
Fuses ....................................................................................... 8-49
Appearance Care ........................................................................ 8-56
How to Minimize Environmental Paint Damage .................... 8-56
Exterior Care ........................................................................... 8-58
Interior Care ............................................................................ 8-62
8-1
CX-9_8CM9-EA-12I_Edition1 Page469
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (470,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
8-2
Maintenance and Care
Introduction
CX-9_8CM9-EA-12I_Edition1 Page470
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (471,1)
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Maintenance and Care
Introduction
8-3
CX-9_8CM9-EA-12I_Edition1 Page471
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (472,1)
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
lRepeated short-distance drivinglDriving in dusty conditionslDriving with extended use of brakeslDriving in areas where salt or other corrosive materials are usedlDriving on rough or muddy roadslExtended periods of idling or low-speed operationlDriving for long periods in cold temperatures or extremely humid climateslDriving in extremely hot conditionslDriving in mountainous conditions continually
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
NOTE
After the prescribed period, continue to follow the described maintenance at the recommended
intervals.
