Auxiliary terminals
The auxiliary terminals consist of one
image input terminal and two sound input
terminals (for left and right).
Image input terminal: Yellow
Sound input (Right) terminal: Red
Sound input (Left) terminal: White
To use, open the cover.
CAUTION
Close the cover when the terminals
are not in use. If foreign material
penetrates, or liquid is spilled on it, it
may cause a malfunction.
NOTE
lFor monaural equipment (with one sound
output terminal), connect the terminal to
the sound input terminal (White). The
sound is output from the speaker to which
the terminal has been connected.
lNoise may occur depending on the
connected equipment.
Power Outlet
The power outlet can be used as a power
supply for electrical devices when the
ignition is switched to ACC or ON.
Only use AC 115 V electrical appliances
requiring no greater than 100 W
Open the cover to use the power outlet.
WARNING
ØNever use medical instruments
with the power outlet.
ØFollow the cautions below to
prevent electrical shock.
ØDo not plug accessories into the
power outlet or unplug them
with wet hands.
ØDo not put anything other than
plugs into the outlet.
ØDo not disassemble the outlet.
CAUTION
ØAlways close the cover when not in
use. If foreign objects or liquid
penetrate the outlet, it may cause
a malfunction.
ØDo not use electrical appliances
that exceed the prescribed power
capacity. It may cause a
malfunction.
NOTE
To prevent discharging of the battery, do not
use the auxiliary input for long periods with
the engine off or idling.
Plug-in
1. Open the cover.
2. Lightly insert the plug and turn the
outlet 90 degrees, then insert it fully.
POWER OUTLET
Unplug
1. Pull the plug out.
2. Close the cover.
Interior Comfort
Rear Entertainment System
6-105
CX-9_8CM9-EA-12I_Edition1 Page369
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (370,1)
NOTE
The following electrical appliances may not
operate even if their electrical capacity is 100
W or less.
lAppliances requiring large amounts of
power for activation (such as cathode-ray
tube televisions, refrigerators with a
compressor, electrical pumps, and electrical
tools)
lAppliances with a power supply frequency
switch function (such as clocks and audio)
lAppliances for precise data processing
(such as measurement equipment)
Some electrical appliances other than the
above may not operate.
The protection circuit may operate and the
power supply may be stopped to prevent
battery depletion.
When using an electrical appliance for data
processing such as a personal computer, back
up the data frequently.
The power outlet (AC115V) cannot be used in
the following cases:
lBattery power is weaklAppliances with a capacity of 100 W or
more are used
lCabin temperature is extremely hot
Noise may occur during radio or television
operation depending on the electrical
appliance being used.
qUsing AV Equipment
CAUTION
For safe driving, adjust the volume
while driving so that ambient sound
can be heard.
NOTE
Before operating, read the instruction manual
accompanying the AV equipment to be used.
1. Switch the ignition off.
2. If a power supply is necessary, connect
the outlet to the power outlet.
Refer to Auxiliary Terminals and
Power Outlet on page 6-104.
3. Connect the image cable and sound
cables to the input terminals.
Auxiliary
terminalsAccessory socket
(DC12 V, 10 A) Plug
Red
White
Yellow
Sound cable (Right)
Sound cable (Left)Image cableAV
equipment
NOTElFor monaural equipment (with one sound
output terminal), connect the terminal to
either of the sound input terminals (Red)
and (White). The sound is output from the
speaker to which the terminal has been
connected.
lNoise may occur depending on the
connected equipment.
4. Switch the ignition to ACC or ON.
6-106
Interior Comfort
Rear Entertainment System
CX-9_8CM9-EA-12I_Edition1 Page370
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (371,1)
5. Press the SOURCE button and select
the AUX mode.
Refer to Mode on page 6-89.
6. Operate the equipment following the
instruction manual accompanying the
equipment.
Interior Comfort
Rear Entertainment System
6-107
CX-9_8CM9-EA-12I_Edition1 Page371
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (372,1)
Language Code List
Language Code
Abkhazian ab 1001
Afar aa 1000
Afrekaans af 1005
Albanian sq 2816
Amharic am 1012
Arabic ar 1017
Armenian hy 1724
Assamase as 1018
Aymara ay 1024
Azerbaijani az 1025
Bashkir ba 1100
Basque eu 1420
Bengali bn 1113
Bhutani dz 1325
Bihari bh 1107
Bislama bi 1108
Breton br 1117
Bulgarian bg 1106
Burmese my 2224
Byelorussian be 1104
Cambodian km 2012
Catalan ca 1200
Chinese zh 3507
Corsican co 1214
Croatian hr 1717
Czech cs 1218
Danish da 1300
Dutch nl 2311
English en 1413
Esperanto eo 1414
Estonian et 1419
Faroese fo 1514
Fiji fj 1509
Finnish fi 1508
French fr 1517
Friesian fy 1524
Galician gl 1611
German de 1304
Gorgian ka 2000Language Code
Greek el 1411
Greenlandic kl 2011
Guarani gn 1613
Gujarati gu 1620
Hausa ha 1700
Hebrew iw 1822
Hindi hi 1708
Hungarian hu 1720
Icelandic is 1818
Indonesian in 1813
Interlingua ia 1800
Interlingue ie 1804
Inupiak ik 1810
Irish ga 1600
Italian it 1819
Japanese ja 1900
Javanese jw 1922
Kannada kn 2013
Kashmiri ks 2018
Kazakh kk 2010
Kinyarwanda rw 2722
Kirghiz ky 2024
Kirundi rn 2713
Korean ko 2014
Kurdish ku 2020
Laothian lo 2114
Latin la 2100
Latvian lv 2121
Lingala ln 2113
Lithuanian lt 2119
Macedonian mk 2210
Malagasy mg 2206
Malay ms 2218
Malayalam ml 2211
Maltese mt 2219
Maori mi 2208
Marathi mr 2217
Moldavian mo 2214
Mongolian mn 2213
6-108
Interior Comfort
Rear Entertainment System
CX-9_8CM9-EA-12I_Edition1 Page372
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (373,1)
Language Code
Nauru na 2300
Nepali ne 2304
Norwegian no 2314
Occtian oc 2402
Oriya or 2417
Oromo om 2412
Panjabi pa 2500
Pashto, Pushto ps 2518
Persian fa 1500
Polish pl 2511
Portuguese pt 2519
Quechua qu 2620
Rhaeto-Romance rm 2712
Romanian ro 2714
Russian ru 2720
Samoan sm 2812
Sangho sg 2806
SanSkrit sa 2800
Scots-Gaelic gd 1603
Serbian sr 2817
Serbo-Croatian sh 2807
Sesotho st 2819
Setswana tn 2913
Shona sn 2813
Sindhi sd 2803
Singhalese si 2808
Siswaiti ss 2818
Slovak sk 2810
Slovenian sl 2811
Somali so 2814
Spanish es 1418
Sundanese su 2820
Swahili sw 2822
Swedish sv 2821
Tagalog tl 2911
Tajik tg 2906
Tamil ta 2900
Tatar tt 2919
Telugu te 2904
Thai th 2907
Tibetan bo 1114Language Code
Tigrinya ti 2908
Tonga to 2914
Tsonga ts 2918
Tukmen tk 2910
Turkish tr 2917
Twi tw 2922
Ukrainian uk 3010
Urdu ur 3017
Uzbek uz 3025
Vietnamese vi 3108
Volapuk vo 3114
Welsh cy 1224
Wolof wo 3214
Xhosa xh 3307
Yiddish ji 1908
Yoruba yo 3414
Zulu zu 3520
Interior Comfort
Rear Entertainment System
6-109
CX-9_8CM9-EA-12I_Edition1 Page373
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (374,1)
Country Code List
Country Code
Afghanistan AF 1005
Albania AL 1011
Algeria DZ 1325
American Samoa AS 1018
Andorra AD 1003
Angola AO 1014
Anguilla AI 1008
Antarctica AQ 1016
Antigua and Barbuda AG 1006
Argentina AR 1017
Armenia AM 1012
Aruba AW 1022
Australia AU 1020
Austria AT 1019
Azerbaijan AZ 1025
Bahamas BS 1118
Bahrain BH 1107
Bangladesh BD 1103
Barbados BB 1101
Belarus BY 1124
Belgium BE 1104
Belize BZ 1125
Benin BJ 1109
Bermuda BM 1112
Bhutan BT 1119
Bolivia BO 1114
Bosnia and Herzegovina BA 1100
Botswana BW 1122
Bouvet Island BV 1121
Brazil BR 1117
British Indian Ocean
TerritoryIO 1814
Brunei BN 1113
Bulgaria BG 1106
Burkina Faso BF 1105
Burundi BI 1108
Cambodia KH 2007
Cameroon CM 1212
Canada CA 1200Country Code
Cape Verde CV 1221
Cayman Islands KY 2024
Central African Republic CF 1205
Chad TD 2903
Chile CL 1211
China CN 1213
Christmas Island CX 1223
Cocos (Keeling) Islands CC 1202
Colombia CO 1214
Comoros KM 2012
Congo CG 1206
Congo, The Democratic
Republic of theCD 1203
Cook Islands CK 1210
Costa Rica CR 1217
Cote D'Ivoire CI 1208
Croatia (Hrvatska) HR 1717
Cuba CU 1220
Cyprus CY 1224
Czech Republic CZ 1225
Denmark DK 1310
Djibouti DJ 1309
Dominica DM 1312
Dominican Republic DO 1314
East Timor TP 2915
Ecuador EC 1402
Egypt EG 1406
El Salvador SV 2821
Equatorial Guinea GQ 1616
Eritrea ER 1417
Estonia EE 1404
Ethiopia ET 1419
Falkland Islands (Malvinas) FK 1510
Faroe Islands FO 1514
Fiji FJ 1509
Finland FI 1508
France FR 1517
French Guiana GF 1605
French PF 2505
6-110
Interior Comfort
Rear Entertainment System
CX-9_8CM9-EA-12I_Edition1 Page374
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (375,1)

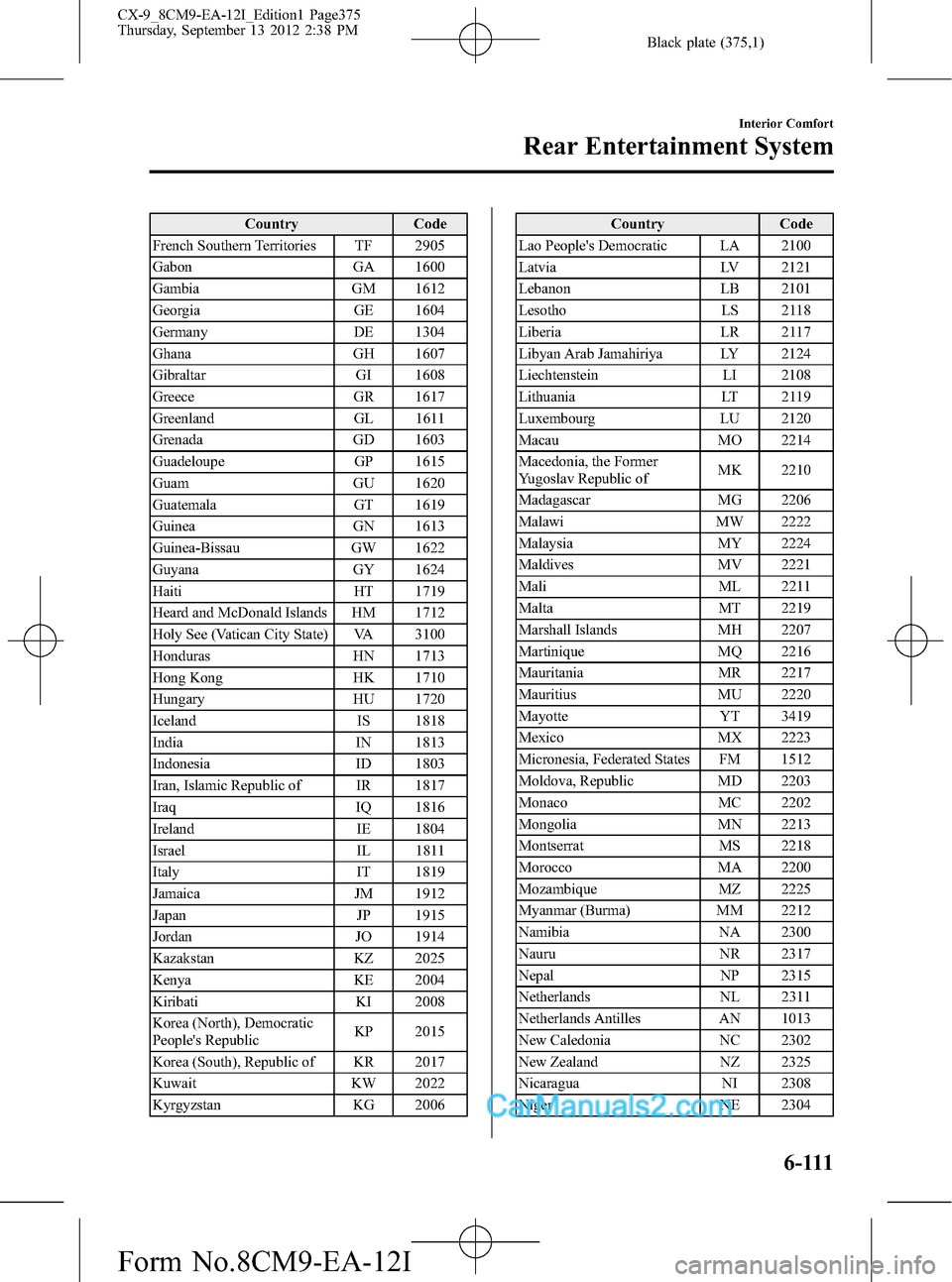

Country Code
French Southern Territories TF 2905
Gabon GA 1600
Gambia GM 1612
Georgia GE 1604
Germany DE 1304
Ghana GH 1607
Gibraltar GI 1608
Greece GR 1617
Greenland GL 1611
Grenada GD 1603
Guadeloupe GP 1615
Guam GU 1620
Guatemala GT 1619
Guinea GN 1613
Guinea-Bissau GW 1622
Guyana GY 1624
Haiti HT 1719
Heard and McDonald Islands HM 1712
Holy See (Vatican City State) VA 3100
Honduras HN 1713
Hong Kong HK 1710
Hungary HU 1720
Iceland IS 1818
India IN 1813
Indonesia ID 1803
Iran, Islamic Republic of IR 1817
Iraq IQ 1816
Ireland IE 1804
Israel IL 1811
Italy IT 1819
Jamaica JM 1912
Japan JP 1915
Jordan JO 1914
Kazakstan KZ 2025
Kenya KE 2004
Kiribati KI 2008
Korea (North), Democratic
People's RepublicKP 2015
Korea (South), Republic of KR 2017
Kuwait KW 2022
Kyrgyzstan KG 2006Country Code
Lao People's Democratic LA 2100
Latvia LV 2121
Lebanon LB 2101
Lesotho LS 2118
Liberia LR 2117
Libyan Arab Jamahiriya LY 2124
Liechtenstein LI 2108
Lithuania LT 2119
Luxembourg LU 2120
Macau MO 2214
Macedonia, the Former
Yugoslav Republic ofMK 2210
Madagascar MG 2206
Malawi MW 2222
Malaysia MY 2224
Maldives MV 2221
Mali ML 2211
Malta MT 2219
Marshall Islands MH 2207
Martinique MQ 2216
Mauritania MR 2217
Mauritius MU 2220
Mayotte YT 3419
Mexico MX 2223
Micronesia, Federated States FM 1512
Moldova, Republic MD 2203
Monaco MC 2202
Mongolia MN 2213
Montserrat MS 2218
Morocco MA 2200
Mozambique MZ 2225
Myanmar (Burma) MM 2212
Namibia NA 2300
Nauru NR 2317
Nepal NP 2315
Netherlands NL 2311
Netherlands Antilles AN 1013
New Caledonia NC 2302
New Zealand NZ 2325
Nicaragua NI 2308
Niger NE 2304
Interior Comfort
Rear Entertainment System
6-111
CX-9_8CM9-EA-12I_Edition1 Page375
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I

Black plate (376,1)
Country Code
Nigeria NG 2306
Niue NU 2320
Norfolk Island NF 2305
Northern Mariana Islands MP 2215
Norway NO 2314
Oman OM 2412
Pakistan PK 2510
Palau PW 2522
Palestinian Territory,
OccupiedPS 2518
Panama PA 2500
Papua New Guinea PG 2506
Paraguay PY 2524
Peru PE 2504
Philippines PH 2507
Pitcairn PN 2513
Poland PL 2511
Portugal PT 2519
Puerto Rico PR 2517
Qatar QA 2600
Reunion RE 2704
Romania RO 2714
Russian Federation RU 2720
Rwanda RW 2722
Saint Helena SH 2807
Saint Kitts and KN 2013
Saint Lucia LC 2102
Saint Pierre and Miquelon PM 2512
Saint Vincent and the
GrenadinesVC 3102
Samoa WS 3218
San Marino SM 2812
Sao Tome and Principe ST 2819
Saudi Arabia SA 2800
Senegal SN 2813
Seychelles SC 2802
Sierra Leone SL 2811
Singapore SG 2806
Slovakia (Slovak Republic) SK 2810
Slovenia SI 2808
Solomon Islands SB 2801
Somalia SO 2814Country Code
South Africa ZA 3500
South Georgia and the South
Sandwich IslandsGS 1618
Spain ES 1418
Sri Lanka LK 2110
Sudan SD 2803
Suriname SR 2817
Svalbard and Jan Mayen
IslandsSJ 2809
Swaziland SZ 2825
Sweden SE 2804
Switzerland CH 1207
Syrian Arab Republic SY 2824
Taiwan, Province of China TW 2922
Tajikistan TJ 2909
Tanzania, United Republic TZ 2925
Thailand TH 2907
Togo TG 2906
Tokelau TK 2910
Tonga TO 2914
Trinidad and Tobago TT 2919
Tunisia TN 2913
Turkey TR 2917
Turkmenistan TM 2912
Turks and Caicos Islands TC 2902
Tuvalu TV 2921
Uganda UG 3006
Ukraine UA 3000
United Arab Emirates AE 1004
United Kingdom GB 1601
United States US 3018
United States Minor Outlying
IslandsUM 3012
Uruguay UY 3024
Uzbekistan UZ 3025
Vanuatu VU 3120
Vatican City State See Holy
SeeVA 3100
Venezuela VE 3104
Viet Nam VN 3113
Virgin Islands, British VG 3106
Virgin Islands, U.S. VI 3108
6-112
Interior Comfort
Rear Entertainment System
CX-9_8CM9-EA-12I_Edition1 Page376
Thursday, September 13 2012 2:38 PM
Form No.8CM9-EA-12I
