“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
Type A
OFF  ON (km/h)  OFF
Type B
OFF  ON (mph) 
ON (km/h)  OFF
“DISP” button
Pressing the button changes
the display items (except vehi-
cle speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3

1252. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Adjusting the display position
Higher
Lower
Setting the brightness
The brightness of the display is automatically adjusted in accor-
dance with the brightness of the surrounding environment. How-
ever, the brightness can also be manually adjusted in 9 stages.
Brighter
Darker

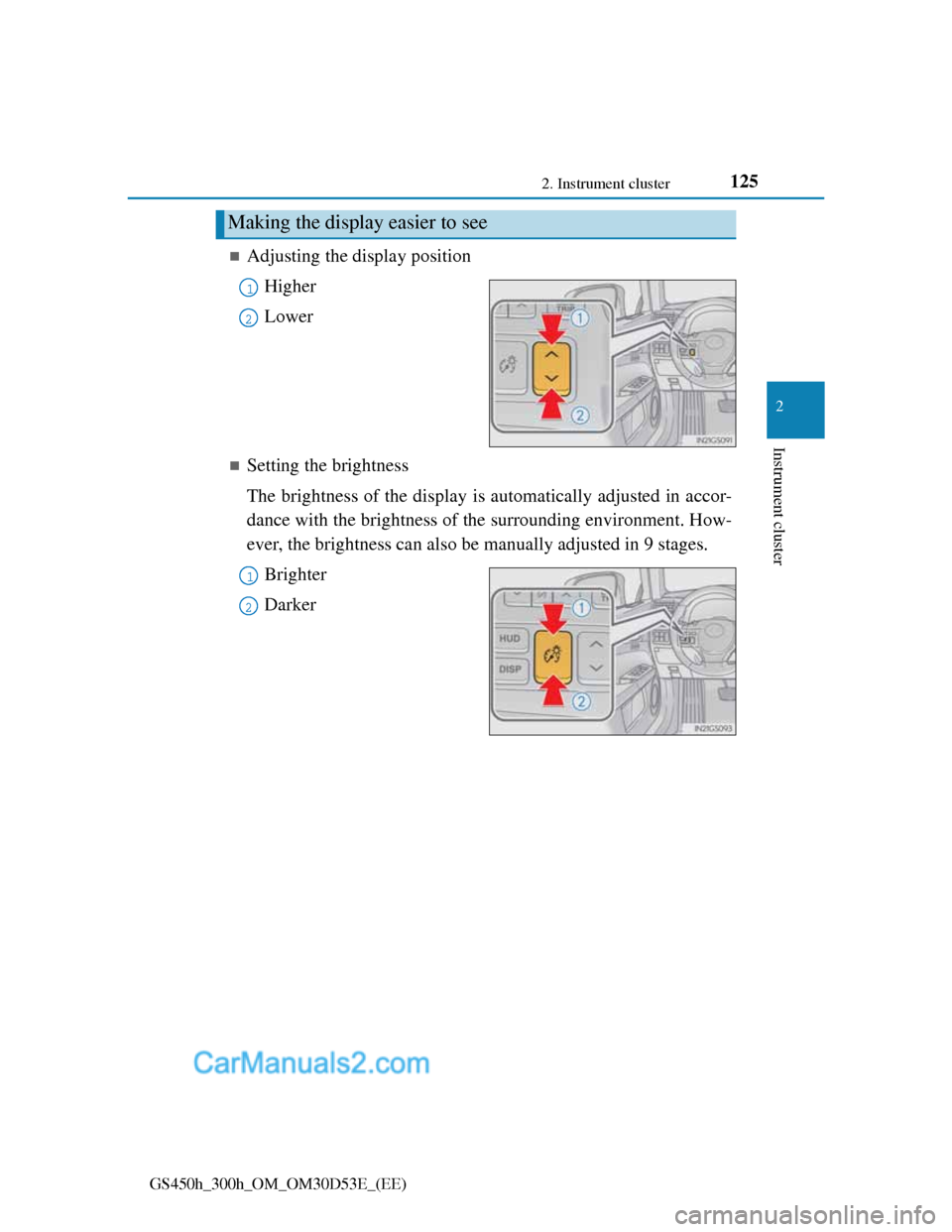

Making the display easier to see
1
2
1
2

1272. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
When the vehicle approaches an
intersection, the direction the
vehicle should go is guided by
the arrow.
When the vehicle approaches an
intersection, the route guidance
will start and the distance
* to the
intersection will also be dis-
played.
*: The distance decreases in incre-
ments of 50 m (164 ft.) and the dis-
tance indication will disappear
when the vehicle passes through
the intersection.
Route guidance display (vehicles with navigation system)

1282. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
The audio display can be shown or hidden.
Press and hold the “DISP”
button until the screen
changes.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
8 km/h (5 mph).
Press the “DISP” button to
switch between on and off.
On and off will be switched
between each time the button is
pressed.
If the button is left alone without
being operated for a short time,
setting will be finished automati-
cally.
Display customization
1
2

1292. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Head-up display
The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
When the head-up display is turned off, it will remain off even if the power
switch is turned to ON mode after the power switch has been turned off.
The startup image will be displayed on the head-up display after the power
switch has been turned to ON mode while the head-up display switch is set
to on.
When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
Before using the head-up display
Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident, result-
ing in death or serious injury.
NOTICE
To prevent damage to components
Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-

1302. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Remote Touch knob
“MENU” button
You can view the status of your hybrid system on the multi-infor-
mation display and the Remote Touch screen.
1
2
3
4

1312. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Remote Touch screen (P. 444)
Press the “MENU” button on the Remote Touch.
Select “Car” on the “Menu”
screen.
If the “Trip information” or
“Past record” screen is dis-
played, select “Energy”.
Vehicles with a 12.3-inch display: The “Energy monitor” screen
can be displayed on the “Side Display”. For details, refer to the
“Navigation System Owner’s Manual”.
Multi-information display
Press the “DISP” button on
the steering wheel several
times to select the energy
monitor display.
Energy monitor
1
2

1332. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

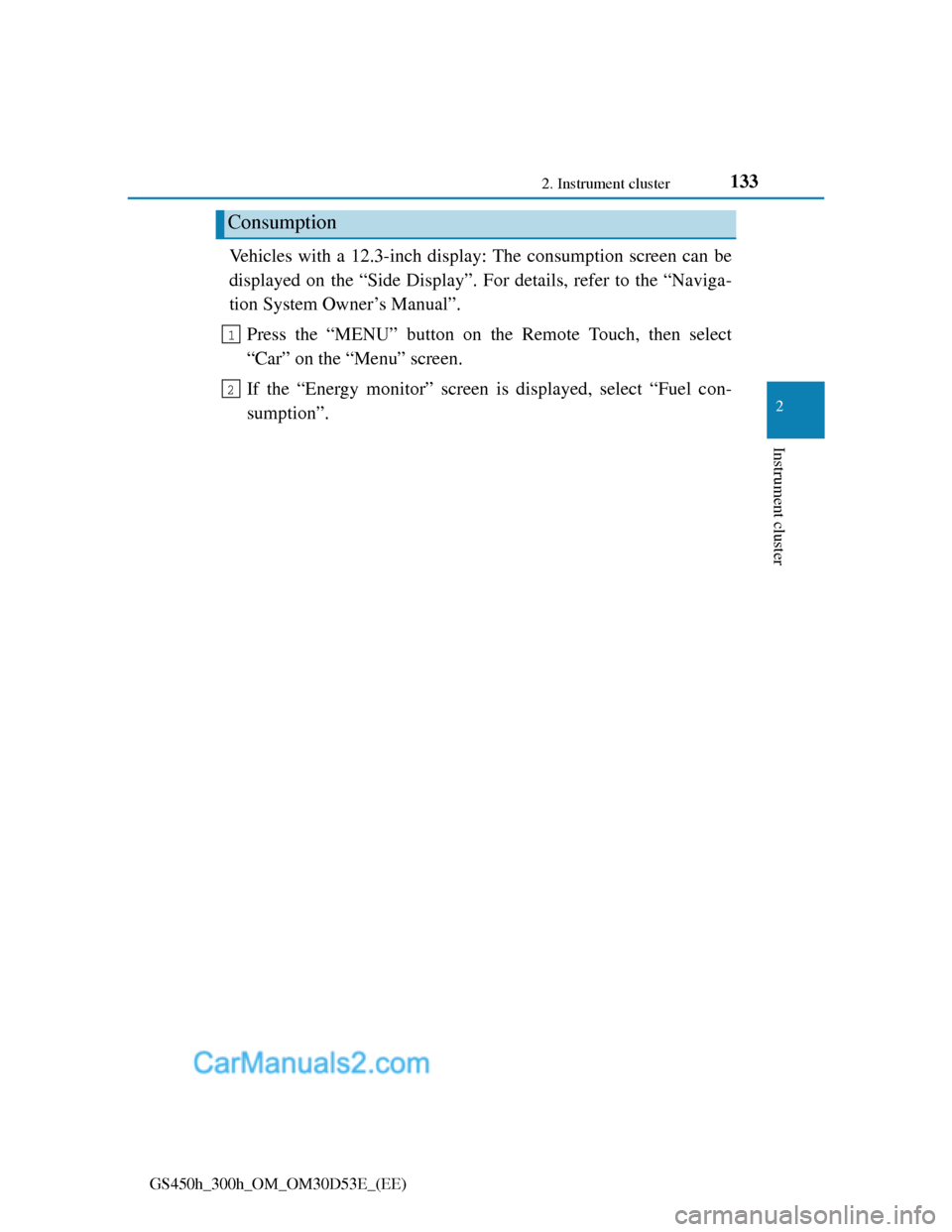

Vehicles with a 12.3-inch display: The consumption screen can be
displayed on the “Side Display”. For details, refer to the “Naviga-
tion System Owner’s Manual”.
Press the “MENU” button on the Remote Touch, then select
“Car” on the “Menu” screen.
If the “Energy monitor” screen is displayed, select “Fuel con-
sumption”.
Consumption
1
2
