2013 Lexus GS300h display

1162. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Average fuel consumption
Average vehicle speed
Driving range Displays the average fuel consumption since
the function was reset
• The function can be reset by pressing the
“DISP” button for longer than 1 second when
the average fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
vehicle speed is displayed.
Displays the estimated approximate distance
that can be driven with the quantity of fuel
remaining
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the power switch off. If
the vehicle is refueled without turning the
power switch off, the display may not be
updated.

1172. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Tire inflation pressure (if equipped)
Outside temperature, average
fuel consumption after refueling
or driving range can be selected
and displayed.
If displayed on the drive moni-
tor, other trip information or
warning messages can be dis-
played simultaneously.
For display and selection proce-
dures, follow the “Setting up the
displays”.
The information displayed on the
drive monitor will not be displayed
on the trip information screen.
Displays inflation pressure of each tire
For the vehicles with a compact spare tire: The
inflation pressure of the spare tire will not be dis-
played.
Drive monitor

1182. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
While the vehicle is stopped,
press the “DISP” button until
the “Settings” screen appears.
Press and hold the “DISP”
button until the screen
changes.
Press and hold the “DISP”
button after selecting the
desired setting item by press-
ing the “DISP” button.
Setting up the displays
1
2
3

1192. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

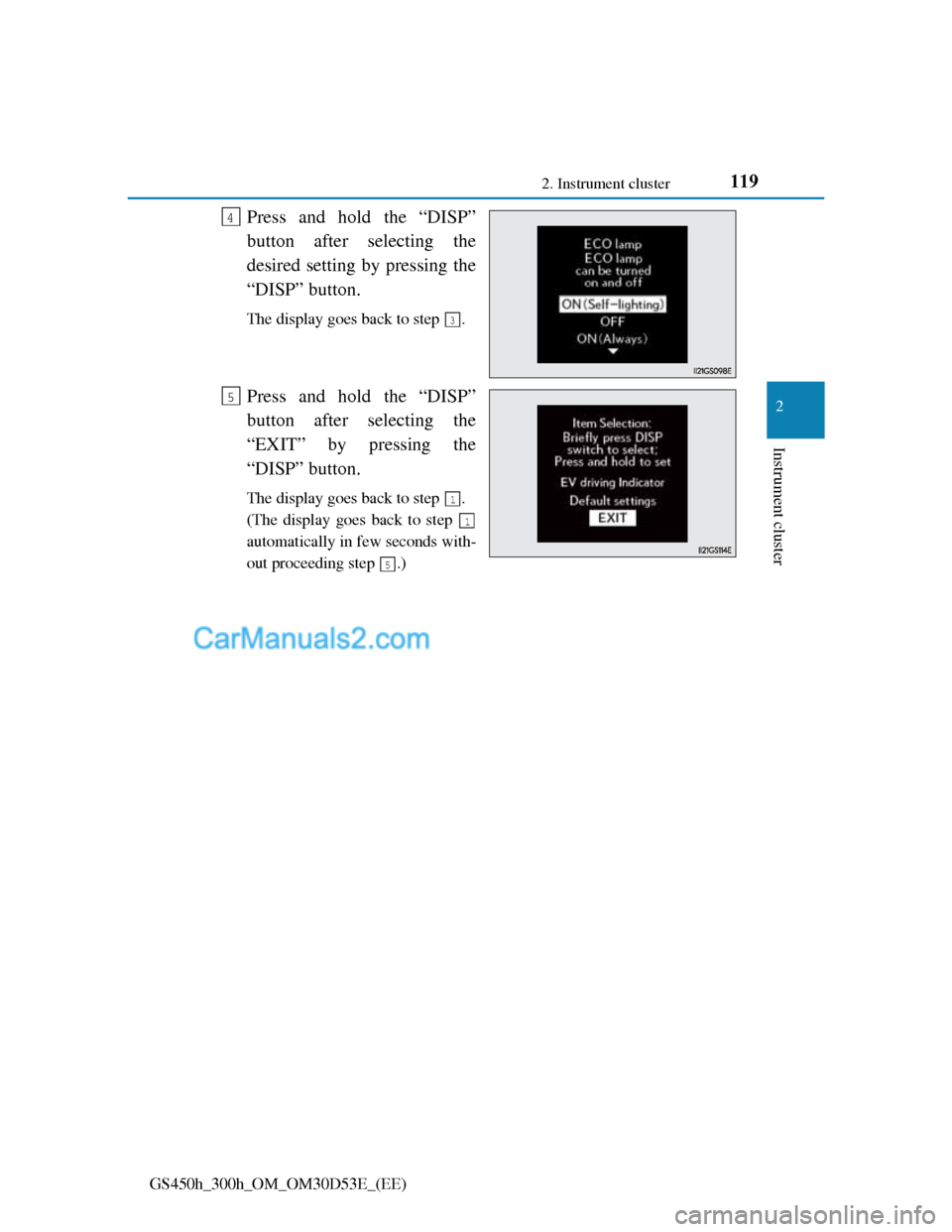

Press and hold the “DISP”
button after selecting the
desired setting by pressing the
“DISP” button.
The display goes back to step .
Press and hold the “DISP”
button after selecting the
“EXIT” by pressing the
“DISP” button.
The display goes back to step .
(The display goes back to step
automatically in few seconds with-
out proceeding step .)
4
3
5
1
1
5

1202. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is dis-
played while system operation is checked.
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” button will automatically be turned off.
When a warning message appears while the setting display is displayed
When the vehicle begins to move while the setting display is displayed
Tire inflation pressure (if equipped)
It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.
“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Customization
Setting of available languages can be changed. (Customizable features: P.
944)

1212. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information dis-
play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon mon-
oxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1222. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Head-up display
The head-up display can be used to project vehicle speed and other
information onto the windshield.
Head-up display
Display brightness will change
automatically according to the
brightness of the surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted
to the desired level.
Display position adjustment
switch
“DISP” button

: If equipped
Summary of functions
1
2
3
4
5

1232. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Vehicle speed
Hybrid System Indicator (P. 126)
Tachometer
Shift position and shift range
Displays the selected shift position or selected shift range (P. 256)

Audio display
Displays audio information for approximately 3 seconds when the audio
system is operated

Route guidance display (vehicles with navigation system)
(P. 127)
When approaching an intersection while the navigation system is giving
route guidance, an arrow will automatically be displayed to indicate the
direction of travel.

Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) (P. 854)
Approach warning display (dynamic radar cruise control,
dynamic radar cruise control with full-speed range) (if equipped)
(P. 853)
Pre-crash braking warning message (pre-crash safety system)
(if equipped) (P. 854)
Head-up display contents
