2013 Lexus ES300h Owner's Manual

1683-4. Adjusting the steering wheel and mirrors
ES350 300h_OM_OM33A01U_(U)
■Mirror angle can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI-
TION ON mode.
■Linked mirror function when reversing
●When either “L” or “R” of the mirror select switch is selected, the outside rear view
mirrors will automatically angle downwards when the vehicle is reversing in order
to give a better view of the ground. To disable this function, select neither “L” nor
“R”.
●If the mirror angle adjustment switch is operated while the linked mirror function is
in operation, the angle and position of the mirrors can be remembered, and the
mirrors will operate at the angle adjusted to the last time the linked mirror function
was operated.
However, because the mirrors move based on the angle they are in when the linked
mirror function is not operating, the mirror angle when the linked mirror function is
operating will also be changed if the mirrors are adjusted while the function is not
operating.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. (→P. 3 7 2 )
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 1 5 3 )
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 1 6 5 )

1693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350 300h_OM_OM33A01U_(U)
CAUTION
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.

170
ES350 300h_OM_OM33A01U_(U)
3-5. Opening, closing the windows and moon roof
Powe r w i n d ows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the opposite direction will stop window travel part-
way.
Press the switch to lock the passen-
ger window switches.
Use this switch to prevent children
from accidentally opening or closing a
passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch

ES350 300h_OM_OM33A01U_(U)
1713-5. Opening, closing the windows and moon roof
3
Operation of each component
■The power windows can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
“START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or
turned off. They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rele-
vant door.
●After stopping the vehicle, the window can be closed by holding the power window
switch in the one-touch closing position while the “START STOP ENGINE”
<“POWER”> switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation as explained
above, initialize the function by performing the following procedure.Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Continue
holding the switch for a further 2 seconds after the window has opened com-
pletely.
Hold the power window switch in the one-touch closing position once again.
Continue holding the switch for a further 2 seconds after the window has
closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer.
1
2
3

172
ES350 300h_OM_OM33A01U_(U)
3-5. Opening, closing the windows and moon roof
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
(→ P. 8 0 2 )
●The power windows can be opened using the wireless remote control.* (→ P. 1 3 6 )
*: These settings must be customized at your Lexus dealer.
■When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned
off and the driver’s door is opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 8 5 2 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.

173
ES350 300h_OM_OM33A01U_(U)
3-5. Opening, closing the windows and moon roof
3
Operation of each component

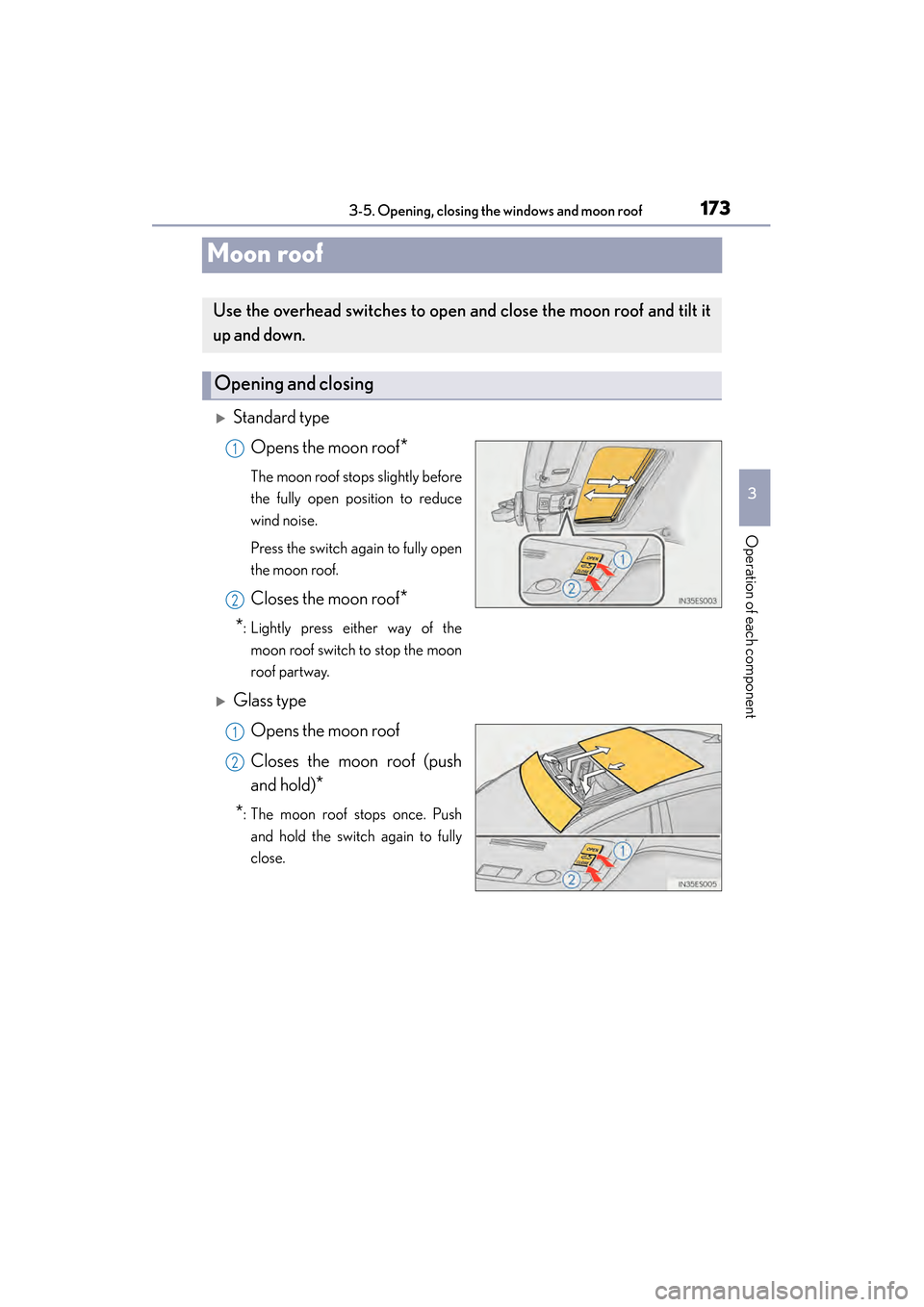

Moon roof
XStandard typeOpens the moon roof
*
The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.
Closes the moon roof*
*
: Lightly press either way of the moon roof switch to stop the moon
roof partway.
XGlass type
Opens the moon roof
Closes the moon roof (push
and hold)
*
*
: The moon roof stops once. Push and hold the switch again to fully
close.
Use the overhead switches to open and close the moon roof and tilt it
up and down.
Opening and closing
1
2
1
2

174
ES350 300h_OM_OM33A01U_(U)
3-5. Opening, closing the windows and moon roof
XStandard typeTilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof switch to stop the moon
roof partway.
XGlass type
Tilts the moon roof up
*
Tilts the moon roof down (push
and hold)
*: Lightly press either way of themoon roof switch to stop the moon
roof partway.
Tilting up and down
1
2
1
2

ES350 300h_OM_OM33A01U_(U)
1753-5. Opening, closing the windows and moon roof
3
Operation of each component
■The moon roof can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the “START
STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* ( → P. 8 0 2 )
●The moon roof can be opened using the wireless remote control.* (→ P. 1 3 6 )
*: These settings must be customized at your Lexus dealer.
