2013 Lexus ES300h child restraint

TABLE OF CONTENTS2
ES350 300h_OM_OM33A01U_(U)For your information ................................... 8
Reading this manual...................................14
How to search ..............................................15
Pictorial index ...............................................16
1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 49
Safety information for children ................................... 54
Child restraint systems ............... 55
Installing child restraints............. 59
Exhaust gas precautions............ 69
1-2. Hybrid system Hybrid system features (hybrid vehicles) ......................... 70
Hybrid system precautions (hybrid vehicles) .......................... 74
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles).....................80
Immobilizer system (hybrid vehicles) ......................... 82
Alarm ................................................. 84 2. Instrument cluster
Warning lights and indicators ..............................88
Gauges and meters ..................... 93
Multi-information display .......... 98
Energy monitor/ consumption screen ............... 108
3-1. Key information Keys ...................................................120
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .............123
Wireless remote control ...........136
Doors ................................................139
Trunk..................................................144
3-3. Adjusting the seats Front seats........................................ 151
Driving position memory..........153
Head restraints .............................159
3-4. Adjusting the steering wheel and mirrors
Steering wheel .............................. 162
Inside rear view mirror ..............164
Outside rear view mirrors........ 167
3-5. Opening, closing the windows and moon roof
Power windows ............................. 170
Moon roof ....................................... 173
1For safety and security
2Instrument cluster
3Operation of each
component

27
ES350 300h_OM_OM33A01U_(U)
For safety and security1
1-1. For safe useBefore driving................................. 28
For safety drive...............................30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 49
Safety information for children.................................... 54
Child restraint systems ............... 55
Installing child restraints ............. 59
Exhaust gas precautions ............ 69
1-2. Hybrid system Hybrid system features (hybrid vehicles) ......................... 70
Hybrid system precautions (hybrid vehicles) .......................... 74
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles) .....................80
Immobilizer system (hybrid vehicles) ......................... 82
Alarm ................................................. 84

301-1. For safe use
ES350 300h_OM_OM33A01U_(U)
For safety drive
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (→P. 151)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( →P. 151)
Lock the head restraint in place
with the center of the head
restraint closest to the top of your
ears. ( →P. 1 5 9 )
Wear the seat belt correctly.
(→ P. 32)
Make sure that all occupants are we aring their seat belts before driving
the vehicle. ( →P. 32)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 5 5 )
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

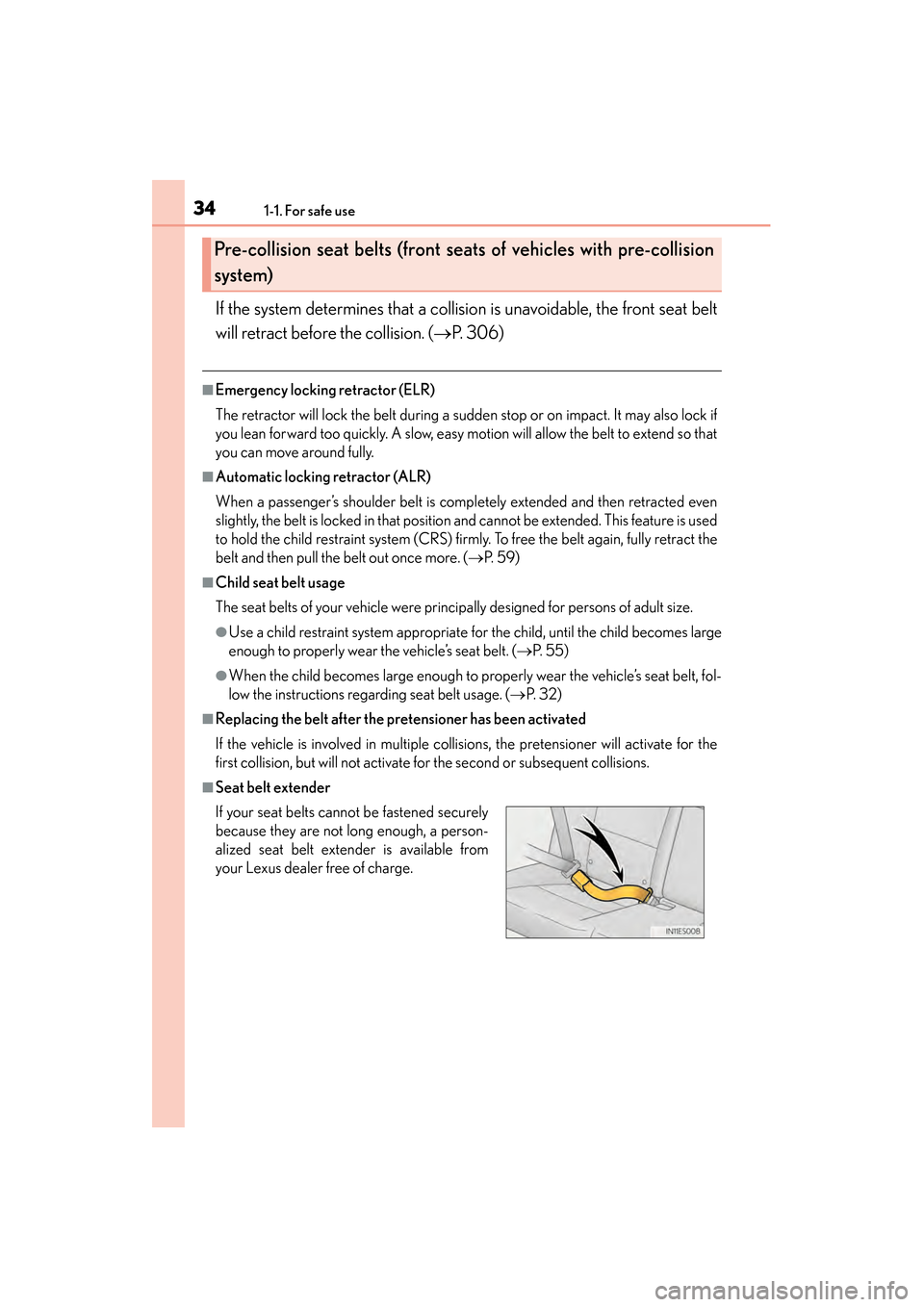

341-1. For safe use
ES350 300h_OM_OM33A01U_(U)
If the system determines that a collision is unavoidable, the front seat belt
will retract before the collision. (→P. 306)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used
to hold the child restraint system (CRS) firmly . To free the belt again, fully retract the
belt and then pull the belt out once more. ( →P. 5 9 )
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( →P. 5 5 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. ( →P. 3 2 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
Pre-collision seat belts (front seat s of vehicles with pre-collision
system)
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

351-1. For safe use
ES350 300h_OM_OM33A01U_(U)
1
For safety and security
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (→P. 3 2 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants,
extending the shoulder belt completely over
the shoulder and avoiding belt contact with
the rounding of the abdominal area.
If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.

371-1. For safe use
ES350 300h_OM_OM33A01U_(U)
1
For safety and security
CAUTION
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

421-1. For safe use
ES350 300h_OM_OM33A01U_(U)
CAUTION
■SRS airbag precautions
●The SRS front passenger airbag also deploys with considerable force, and can
cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger seat should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.
●Improperly seated and/or restrained infants and children can be killed or seri-
ously injured by a deploying airbag. An infant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus strongly
recommends that all infants and children be placed in the rear seats of the vehicle
and properly restrained. The rear seats are safer for infants and children than the
front passenger seat. (→P. 5 5 )
●If the seat belt extender has been con-
nected to the front seat belt buckle but the
seat belt extender has not also been fas-
tened to the latch plate of the seat belt, the
SRS front airbags will judge that the driver
and front passenger are wearing the seat
belt even though the seat belt has not been
connected. In this case, the SRS front air-
bags may not activate correctly in a colli-
sion, resulting in death or serious injury in
the event of a collision. Be sure to wear the
seat belt with the seat belt extender.
●Do not sit on the edge of the seat or lean
against the dashboard.

501-1. For safe use
ES350 300h_OM_OM33A01U_(U)
■Adult*1
■Child*3 or child restraint system*4
Condition and operation in the front passenger occupant classifi-
cation system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF” indicator lights“A I R B A G O N ”
SRS warning lightOff
Seat belt reminder lightFlashing*2
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF” indicator lights“A I R B A G OFF”
*5
SRS warning lightOff
Seat belt reminder lightFlashing*2
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
